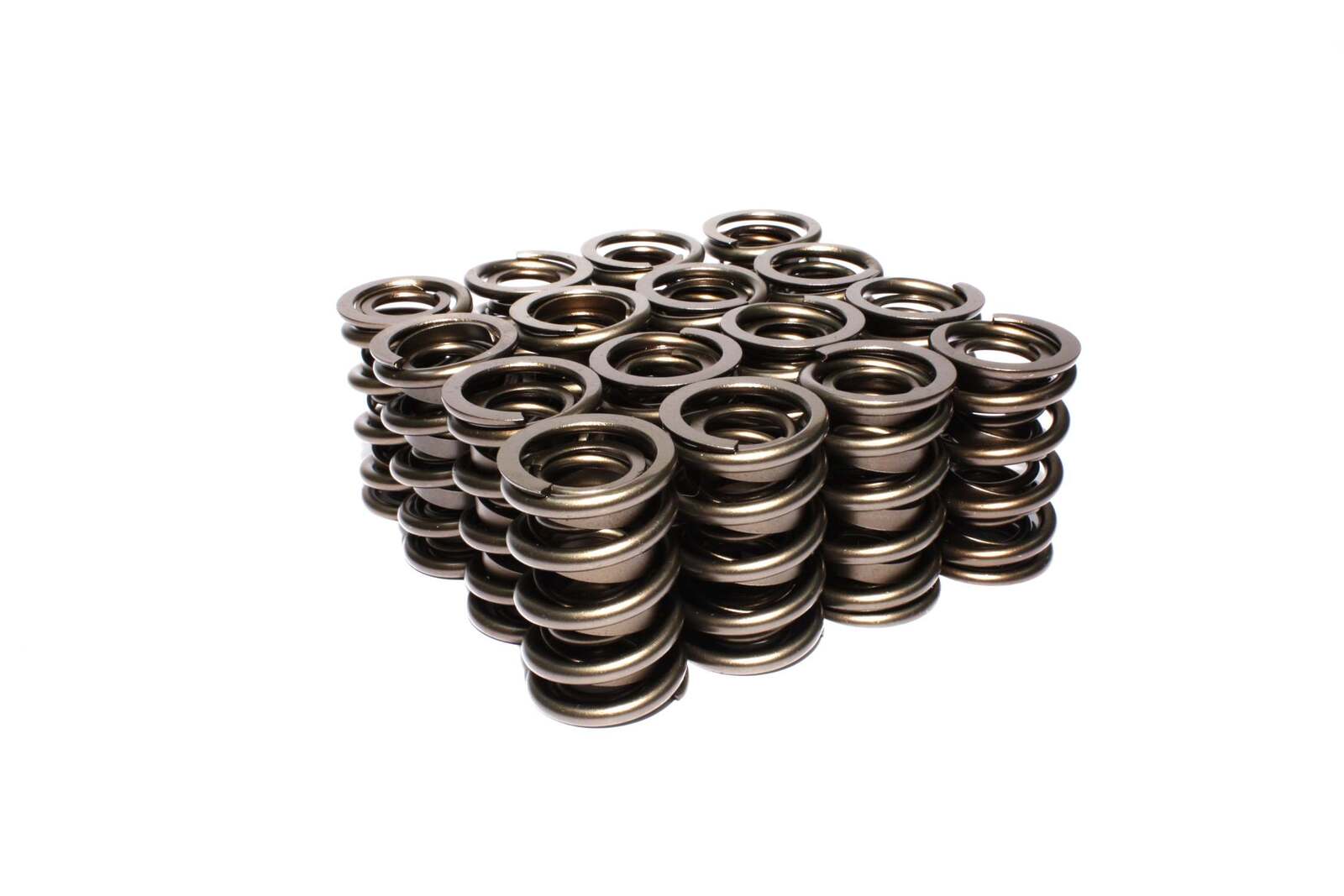

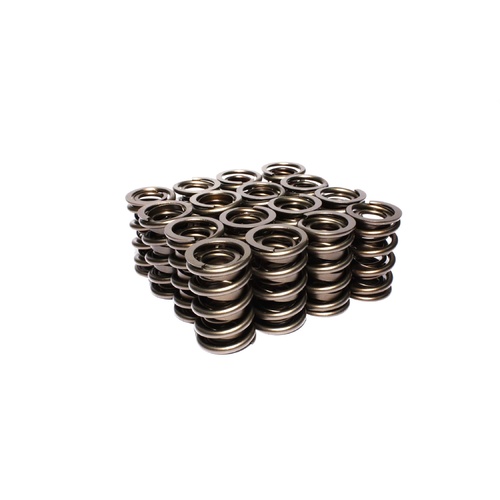

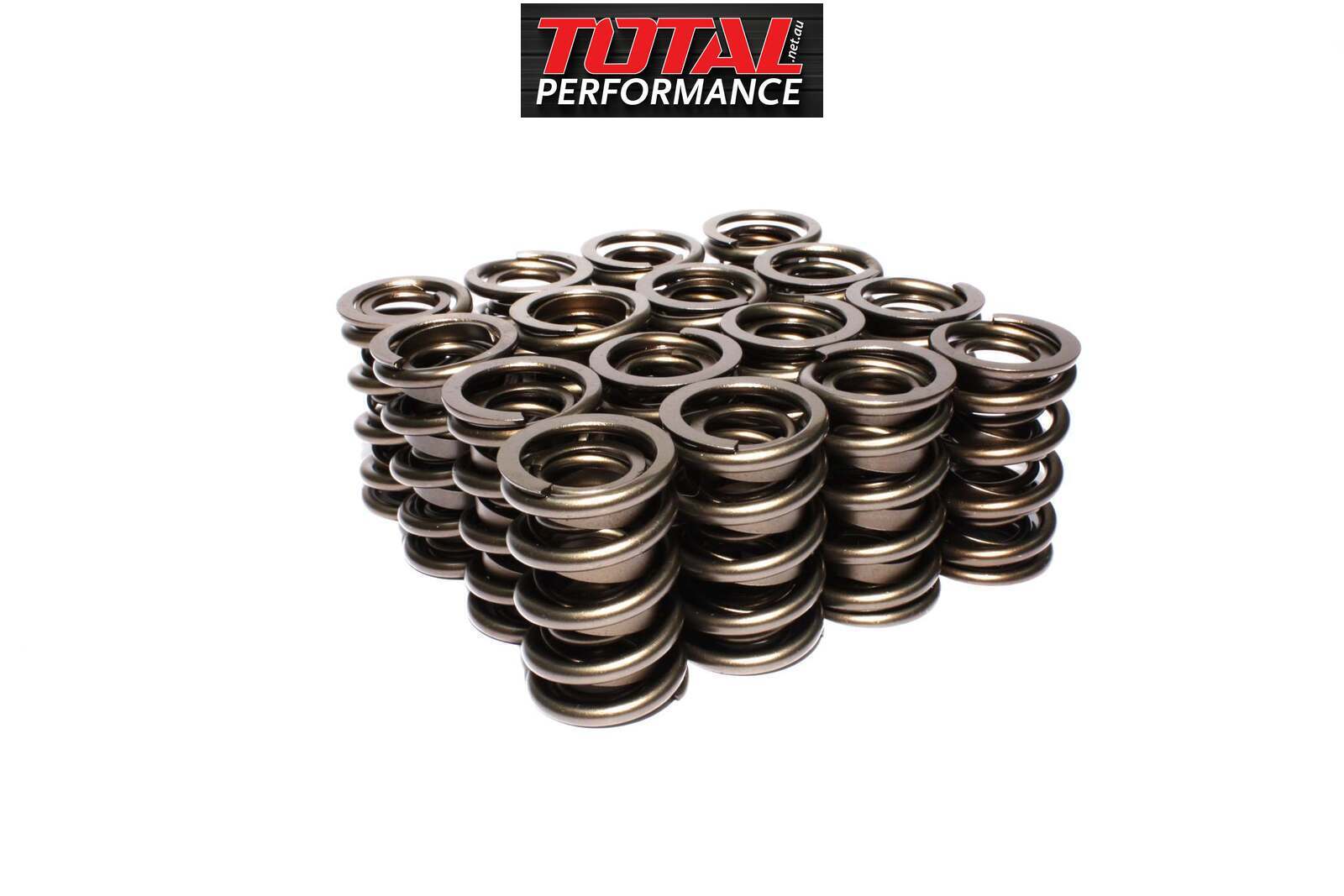

Solid Roller Engine Valve Springs Street Series - 351 Cleveland & 454 BBC Chevy 1.900" @ 210lbs
Ford351C + BBC heads. Street Series
Description
Comp Cams 954-16 Solid Roller Engine Valve Springs
Street Series - 351 Cleveland & 454 BBC Chevy 1.900" @ 210lbs
Suitable for Street Series Solid Roller Camshafts.
**Requires machining on OEM cylinder heads.
Dual Valve Springs: 1.525" O.D. Outer, .730" I.D. Inner
Seat Pressure: 210 lbs @ 1.900"
Spring Rate: 483 lbs/inch
Open @ .600" 500lbs
Max lift: 0.670" Lift (@ .060" to coil bind)
Matching Valve Spring Components:
Spring Cup (O.D. Locator): 4700-16
Spring Seat (.570" Guide Dia.):4781-16
Spring Seat (.630" Guide Dia.):4782-16
Steel Retainers:721-16 / 732-16 / 741-16
Tool Steel Retainers:1732-16
Comp Cams
Specifications
| SKU | 73367-16LUN |
| Brand | LUNATI |
| Seat Height | 1.9 |
| Damper | Yes |
| Seat Pressure | 210 |
| Outer Spring Outside Diameter | 1.536 |
| Outer Spring Inside Diameter | 1.112 |
| Number Of Springs | 2 |
| Inner Spring Inside Diameter | 0.72 |
| Coil Bind Height | 1.17 |
| Spring Rate | 483 |
