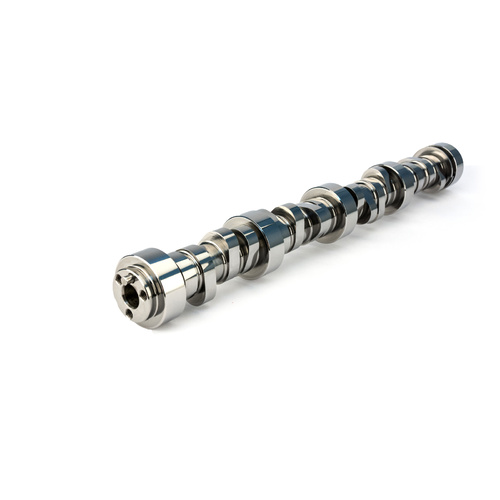

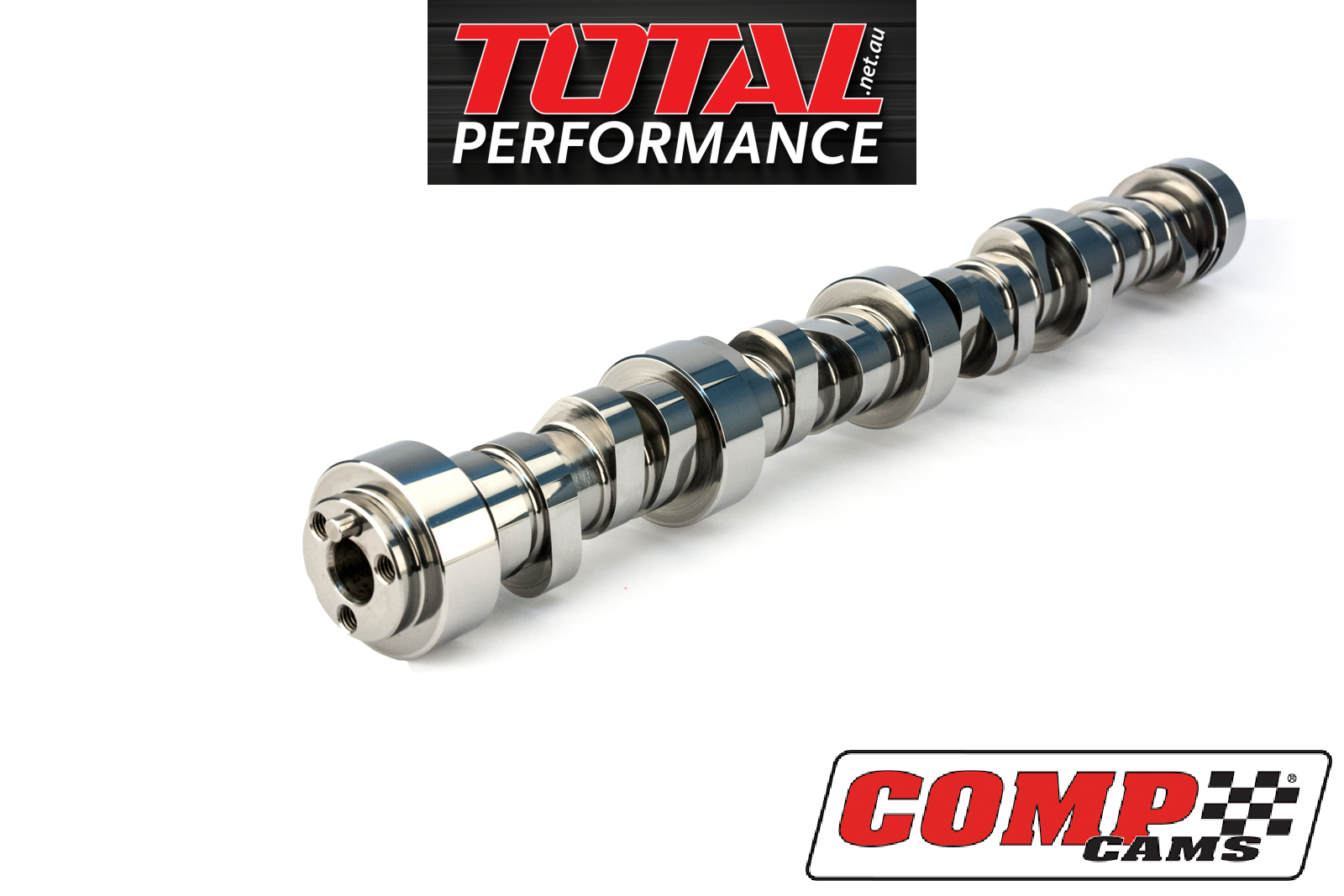

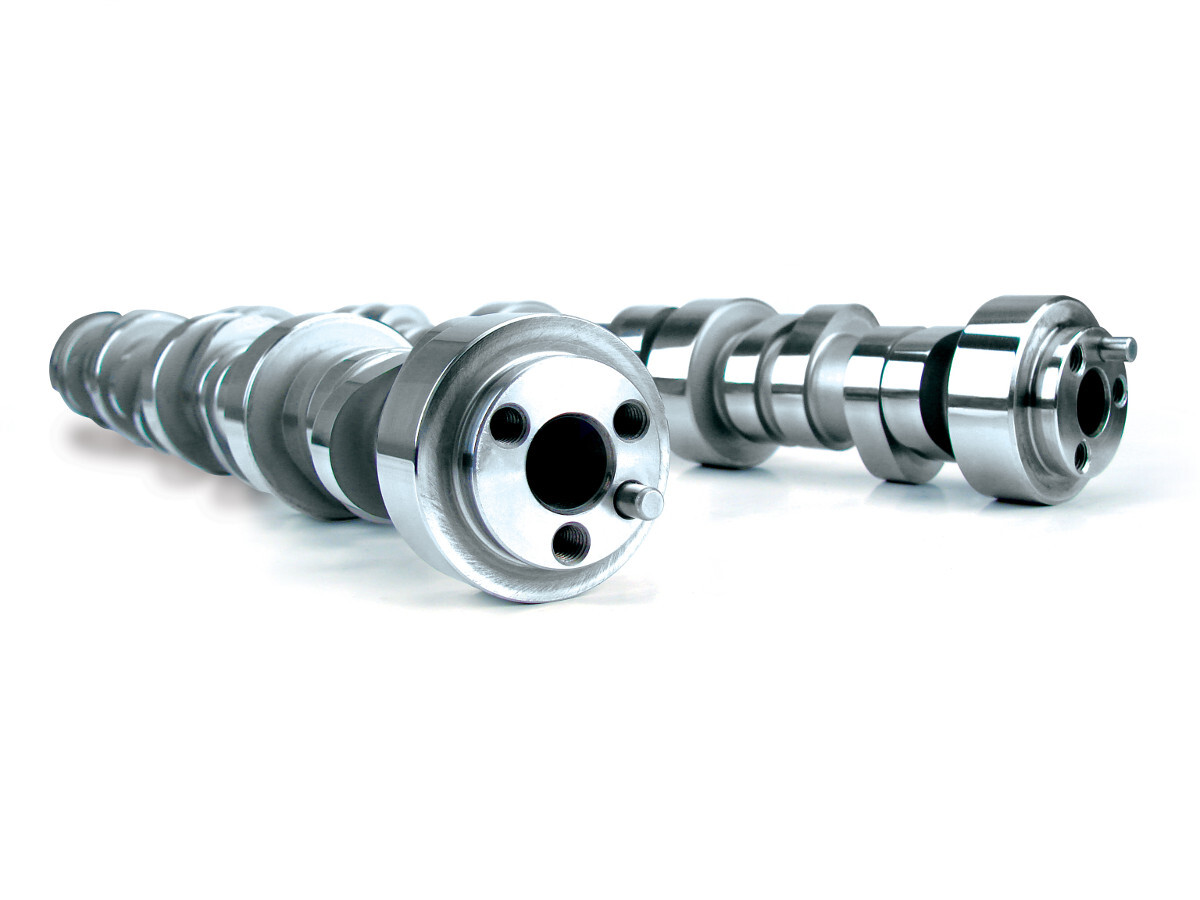

LS1 LS2 Cathedral Port 227/239 LSA 112 Hydraulic Roller Camshaft

** FREE SHIPPING ON ORDERS OVER $200 **

Description

Lunati Camshaft, suits 5.7L & 6.0L Cathedral Port, Good street/strip camshaft with wide range. Must have substantial airflow upgrades, inlet and exhaust.

Hydraulic Roller Camshaft.

Fair idle, strong bottom and mid range,works with small nitrous kit or up to 8 psi of boost.

Advertised Duration (Int/Exh): 278/290

Duration @ .050 (Int/Exh): 227/239

Gross Valve Lift (Int/Exh): .651"/.651"

LSA: 112

ICL: 108

RPM Range: 2200-6800

Specifications

SKU	20540723LUN
Brand	LUNATI
intake valve lift	0.614
Exhaust Valve Lift	0.621
Lifter Type	Hydraulic Roller
Advertised Exhaust Duration	285
Advertised Intake Duration	277
Cam Type	Hydraulic Roller
Exhaust Duration At .050 Inch Lift	235
Intake Duration At .050 Inch Lift	227
Lobe Separation	112
Camshaft Series	LSR Cathedral Port Small Displacement/Max Torque
Grind Number	277Lr HR-13
Basic Operating Rpm Range	1,900-7,000
Lifters Included	No
Valve Springs Required	Yes
Camshaft Gear Attachment	3-Bolt
Camshaft Material	Billet Steel
