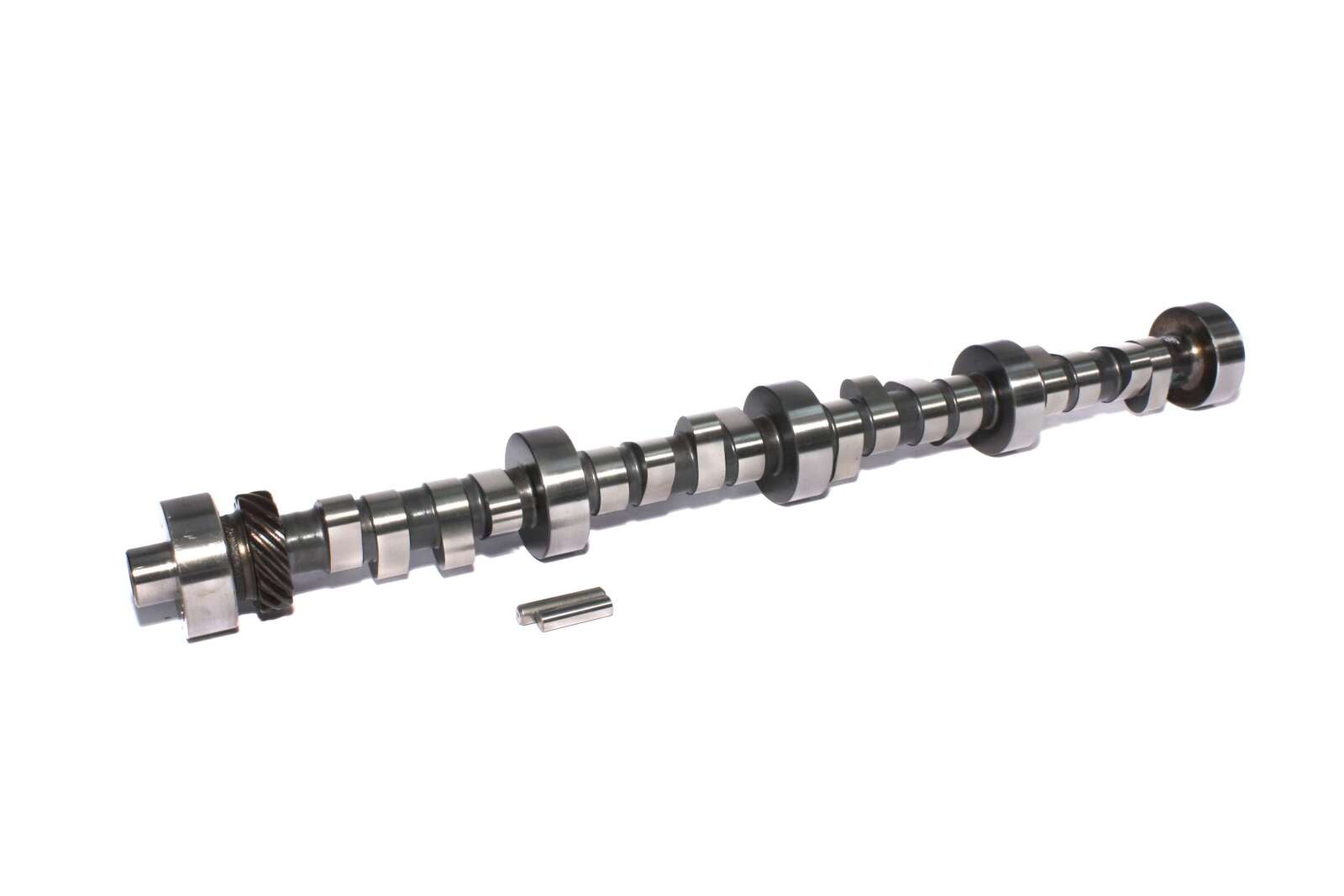

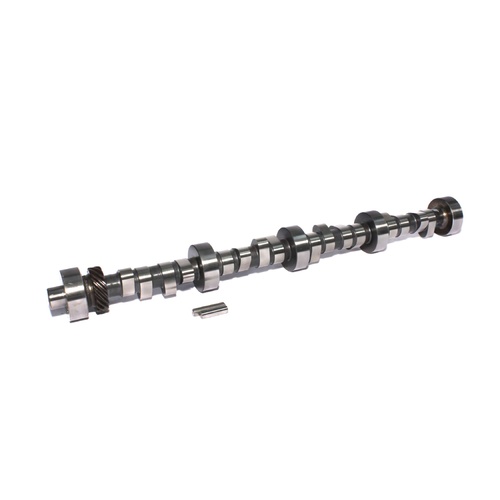

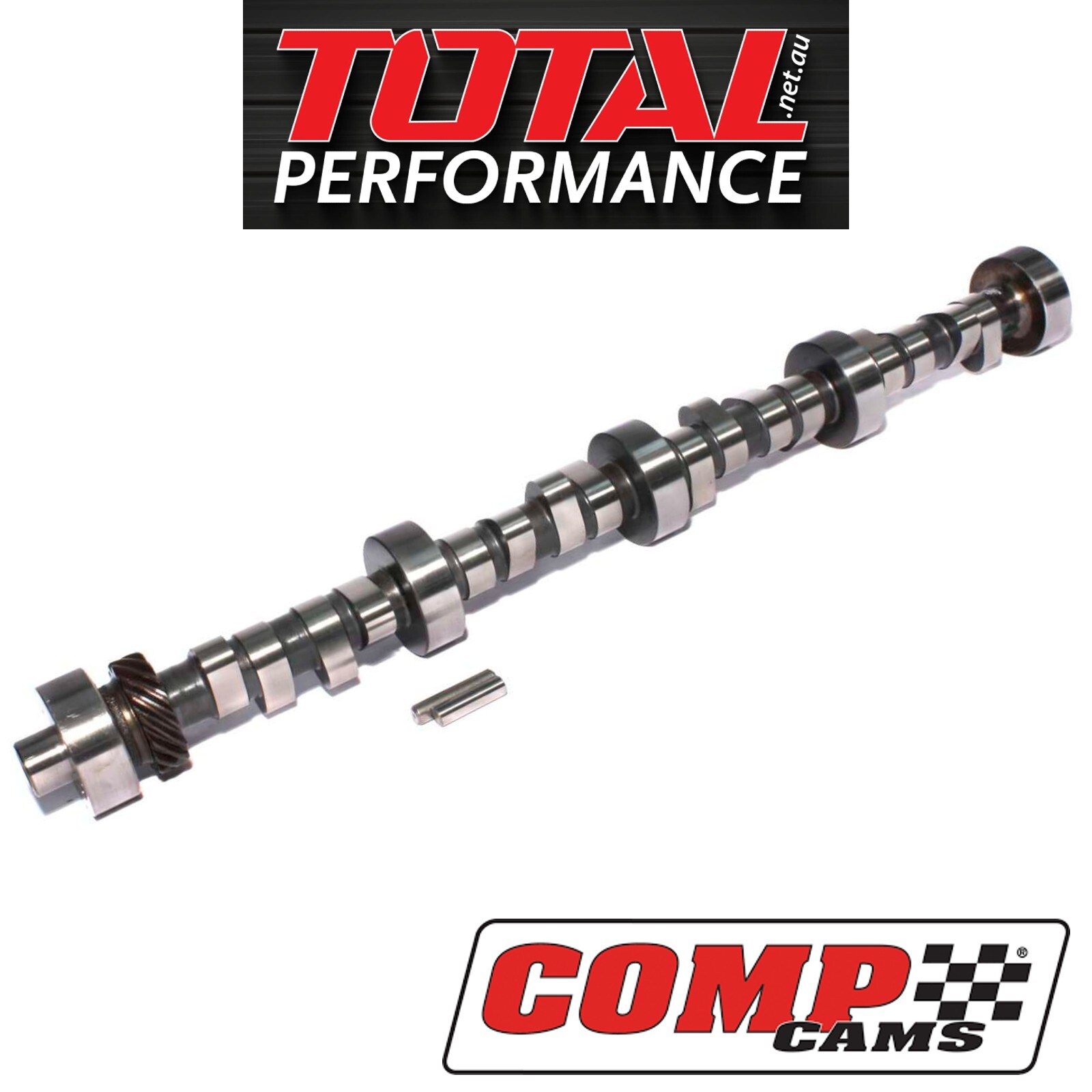

Voodoo 241/249 LSA 112 Hydraulic Roller Camshaft Ford Windsor 302W 5.0L 351W LARGE BASE CIRCLE

LUNATI VOODOO 241/249 Hydraulic Roller Camshaft Ford 302W 5.0L 351W Windsor

Large Base Circle + 351W firing order
Street/strip, 9.5:1 compression, intake, headers, 3000+ converter, 4.10+ gears, rough idle.

Lunati Windsor Hydraulic Roller Camshaft. Serious street/race cam. Needs 11:1 compression or forced induction to maximize performance. Likes increased induction systems, heads and nitrous. Needs 3.73+ gearing.; RPM Range: 3000-7000; Includes: Cam Only

Voodoo incorporates 30 years of cam design experience with more recent developments in profiles, geometry, and tolerances—delivering some of the most aggressive ramp profiles ever used in cams. Asymmetrical lobe designs with slower closing sides set the valve down easy to reduce noise and premature failure of the valvetrain. These cams deliver more "area under the curve," meaning more throttle response—as well as quicker acceleration, more vacuum, and better efficiency. Combine those traits with maximum horsepower and torque, and you'll agree: a Lunati Voodoo camshaft is the best choice for your Ford Windsor.

Cam Specs
Grind Number: VOODOO VDSF-292

RPM Operating Range: 3000-7000

Advertised Duration: (Int/Exh): 292/300

Duration @ .050 Inch Lift:  (Int/Exh): 241/249

Valve Lift:  (Int/Exh): .600/.600

Lobe Lift: 0.36/0.375

Lobe Separation:112

Intake Centerline:106

Exhaust Close ATDC:

Intake Open BTDC:

Exhaust Open BBDC:

Intake Close ABDC:

Valve Lash (Int/Exh):  Hyd/Hyd;
