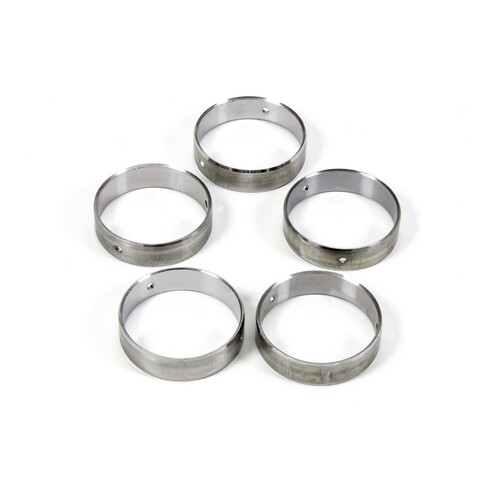

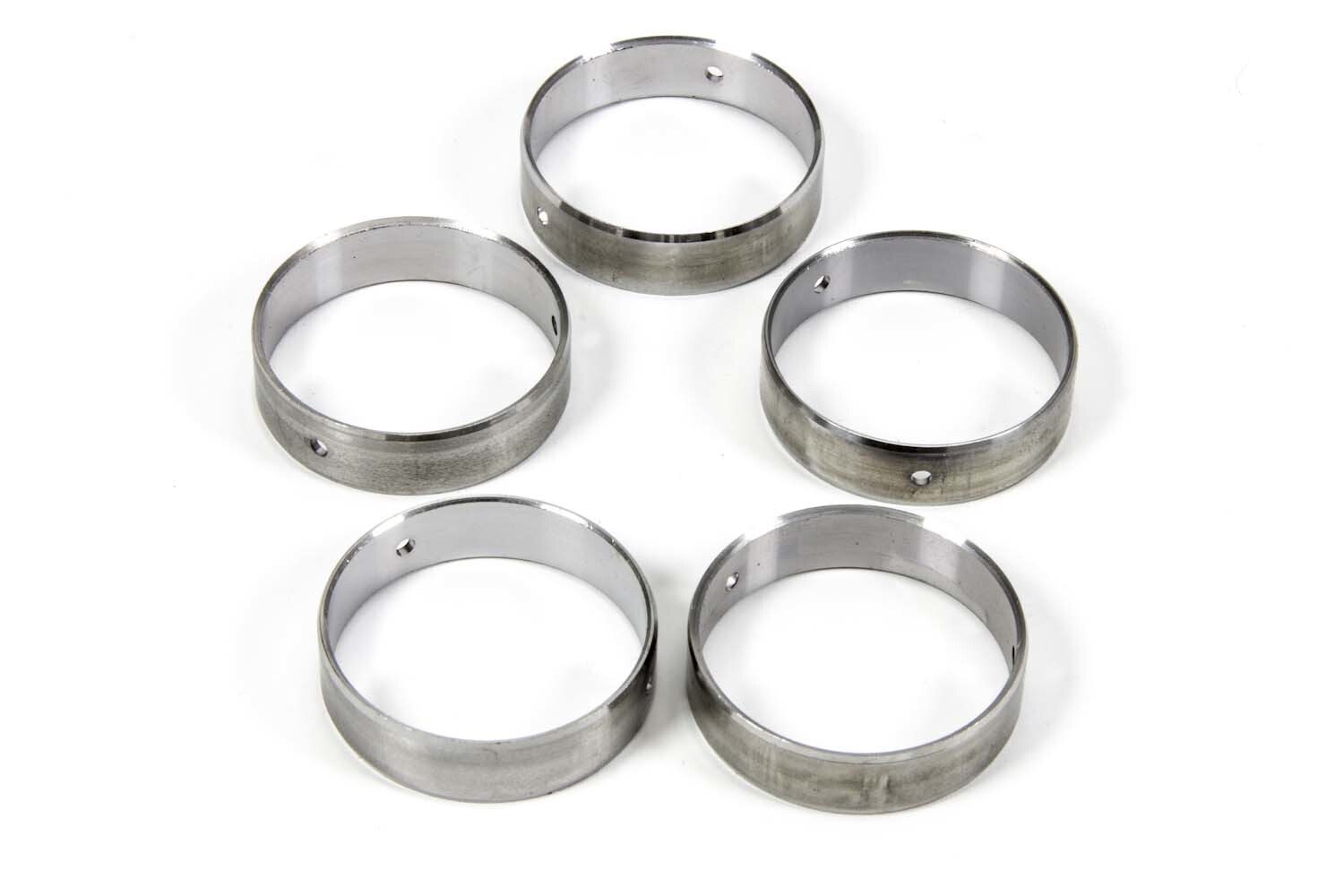

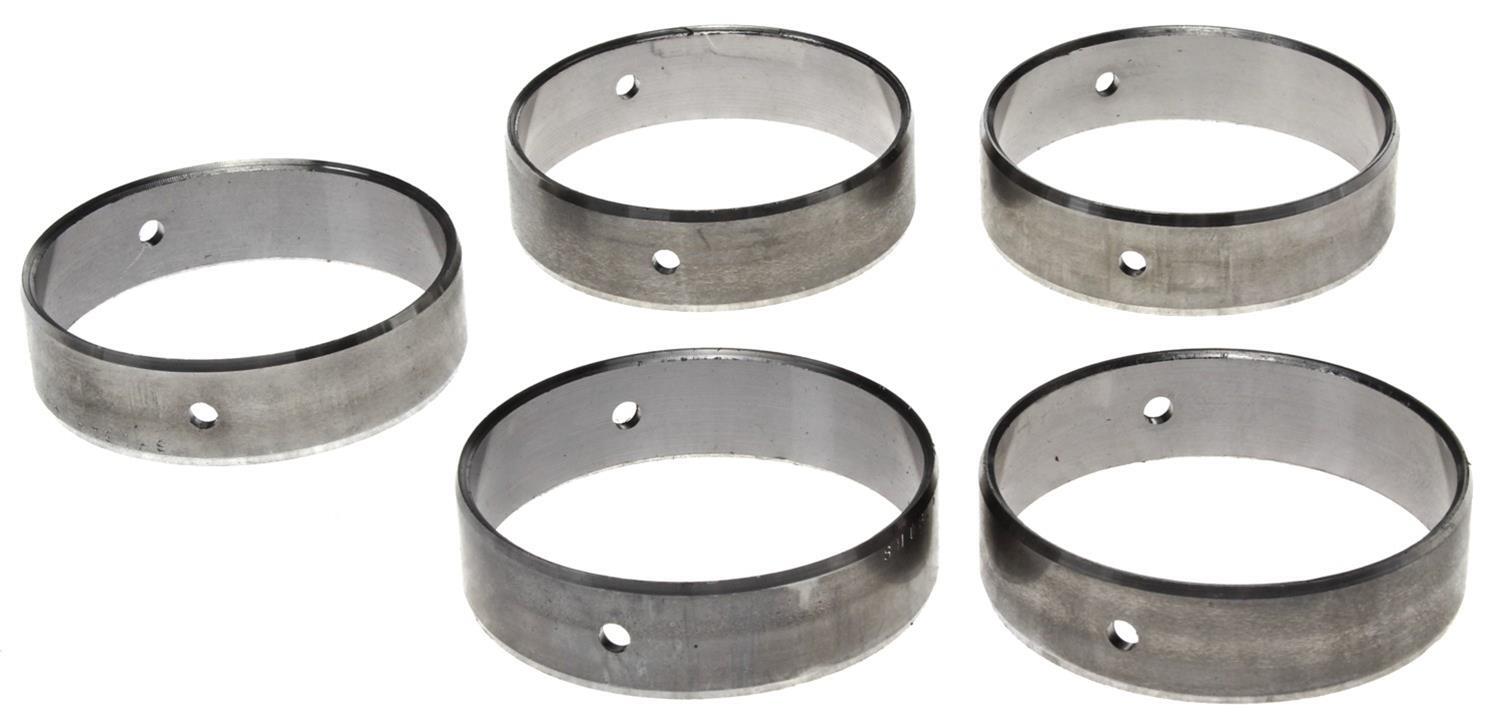

LS1 LS2 LS3 2004+ 2ND Design CAM BEARINGS GM LS Series 5.7L 6.0L 6.2L

Clevite camshaft bearings are manufactured to meet or exceed OEM parts when it comes to strength and durability. They will help to give your motor extra life, and their quality construction and superior materials will help to protect your vital engine parts from the harmful effects of friction. With thousands of applications, you're sure to find the bearings you need for your motor

Part #:   SH2125S

SUITS:   LS1/LS2/LS3 GEN III, 2004+  2nd Design  with #1 and #5 with Housing Bore 2.23460"/2.3480"

 VX ONWARDS COMMODORES WITH THE LATER 2004+  ENGINES

Bearing Usage:  Direct replacement

Bearing Material:  B-1

Cam Bearing Oversize (in.):  Stock

Cam Bearing Oversize (mm):  Stock

Grooved Bearing:  No

Engine Block Align Bored:  No

Outside Diameter (in):  2.348 in.

Width (in):  0.630 in.

NOTE:    LS Engines have a few different size/options of Camshaft Bearings. Please read below to make sure you are selecting the correct part numbered Bearing set.:

MAHLE/CLEVITE range of Cam bearings:

• M77SH1814S       LS1/LS2 GEN III, 1997-2004 1st Design with #1 and #5 with Housing Bore 2.23260"/2.3280"
• M77SH2125S + CH-25     LS1/LS2/LS3 GEN III, 2004+ 2nd Design with #1 and #5 with Housing Bore 2.23460"/2.3480"
• M77SH2157S         LS6 6.2L/376 CID, 2010-14
• M77SH2142S         LSX Block
