SKU: MSD-8202

Ignition coil RED Blaster 2 Round body female socket No Resistor Required

No Resistor Required

$89.99

or 4 payments of $22.50 with Info

SOLD OUT

*Free shipping on orders over $200

Description

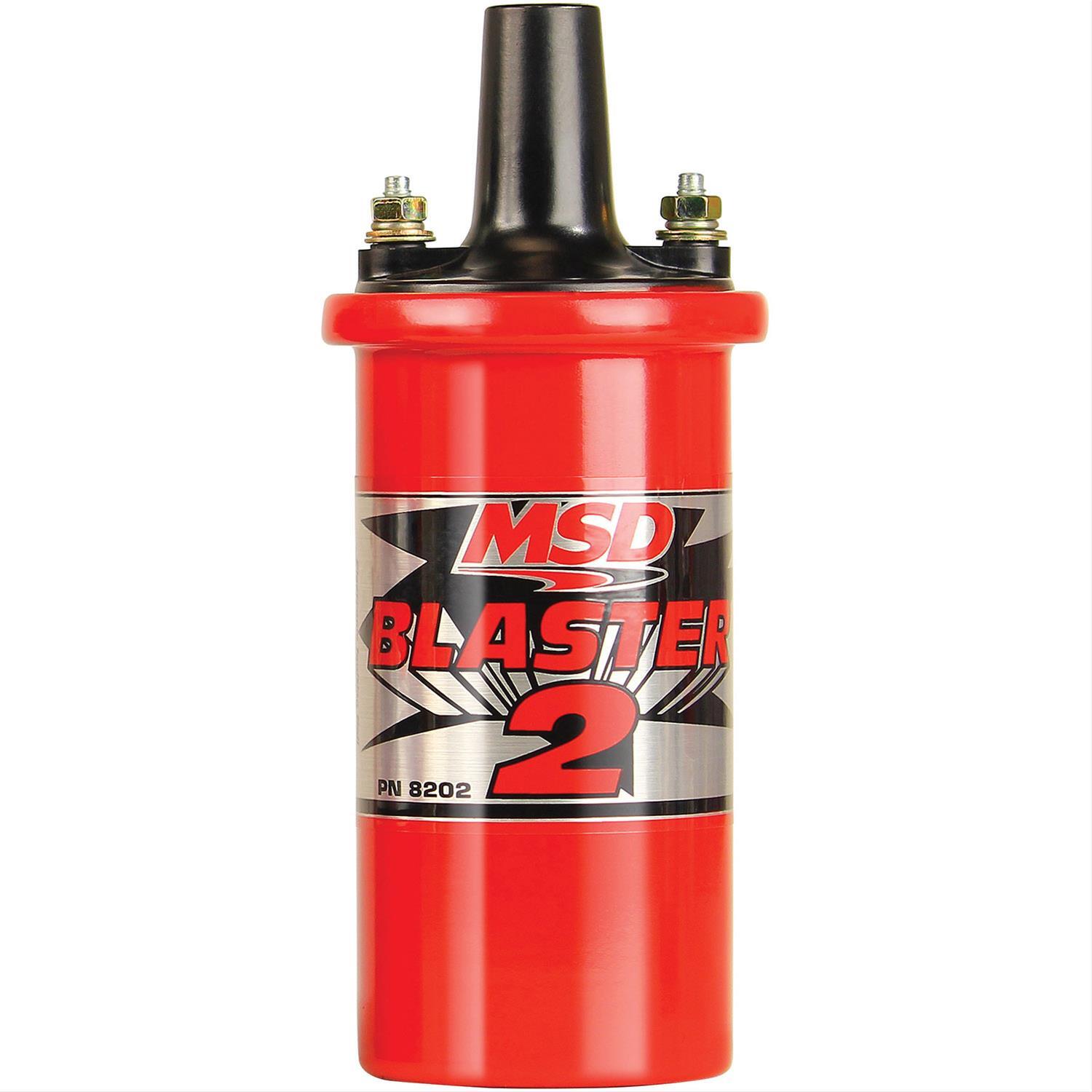

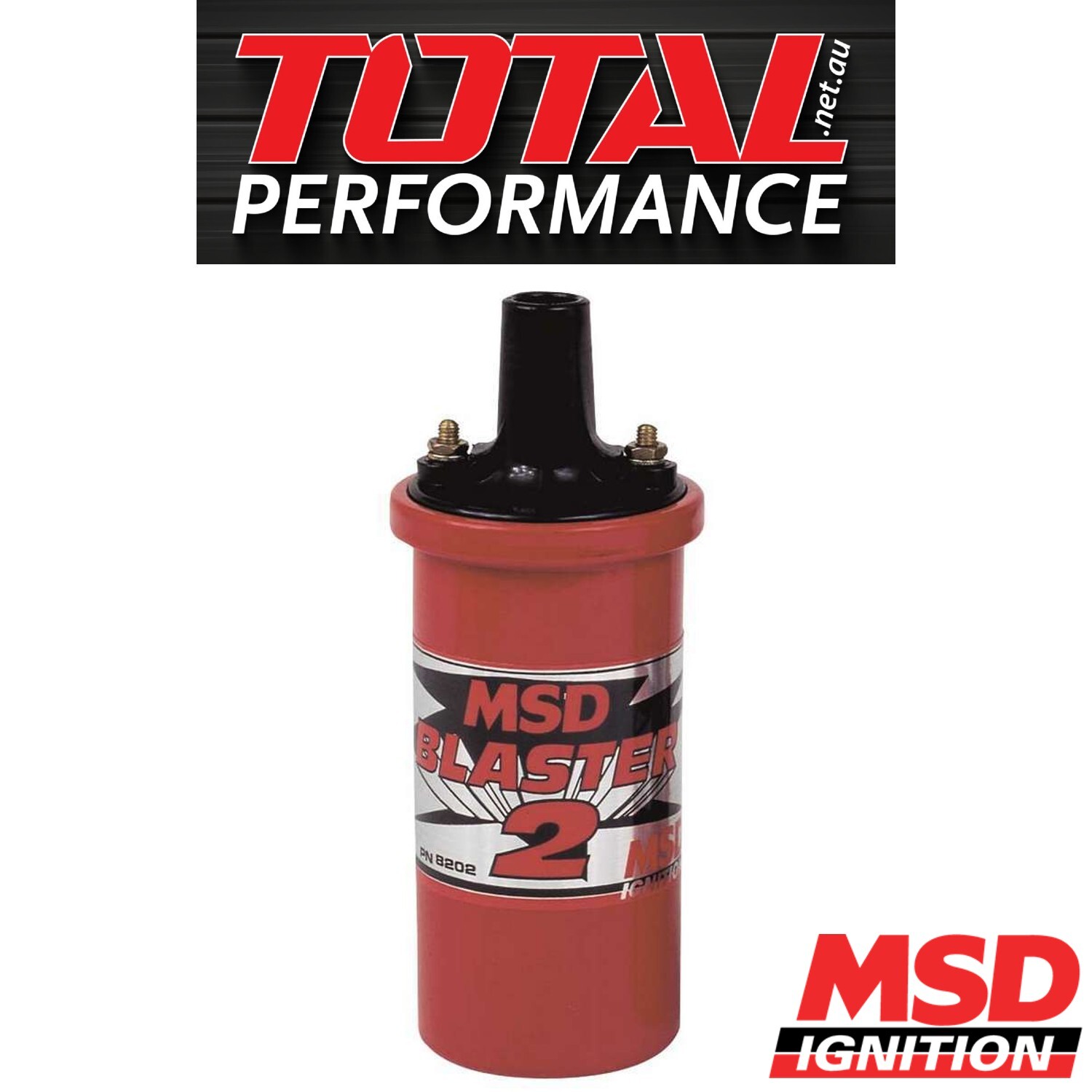

MSD Blaster 2 Ignition Coils - No Resistor Required.

The MSD Blaster 2 coil (MSD 8202) is engineered to significantly improve spark output over stock ignition coils, offering a maximum output of 45,000 volts. The coil, which pairs well with stock or MSD performance ignition systems, features special 100:1 windings for excellent voltage build-up. Each coil’s alkyd tower assembly offers high dielectric characteristics, while wide-spaced brass primary terminals are designed to prevent the possibility of a spark.

Coil Style:            Remote mount

Primary Resistance:        0.700 ohms

Coil Internal Construction:           Oil-filled

Coil Lead Connector:      Female/Socket

Body Color:         Red

Maximum Voltage:         45,000 V

Secondary Resistance:   4.70K ohms

Inductance:        8.00 mH

Peak Current:    140 mA

Spark Duration: 350 uS

Mounting Bracket Included:        No

Coil Wire Included:          No

Ballast Resistor Included:              No

Coil Shape:          Round

Diameter (in.):  2.125 in.

Height (in.):        6.000 in.

Notes:  This coil should only be mounted in a vertical upright position.



Specifications

SKU MSD-8202
Brand MSD
