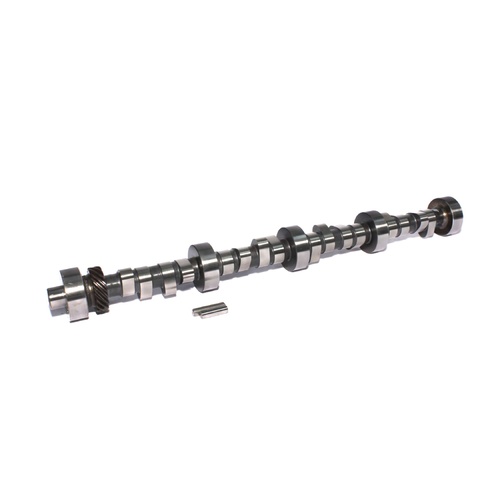

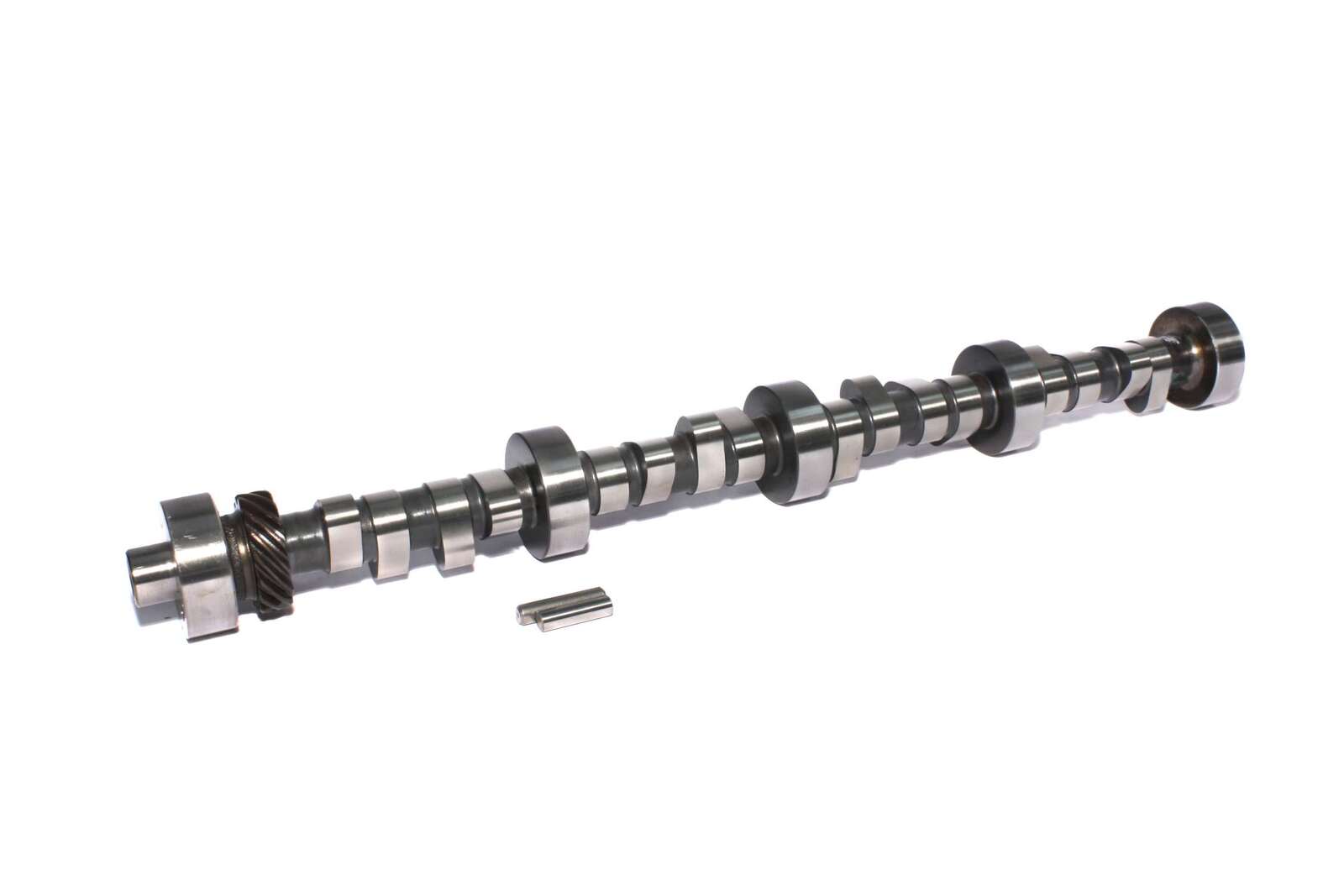

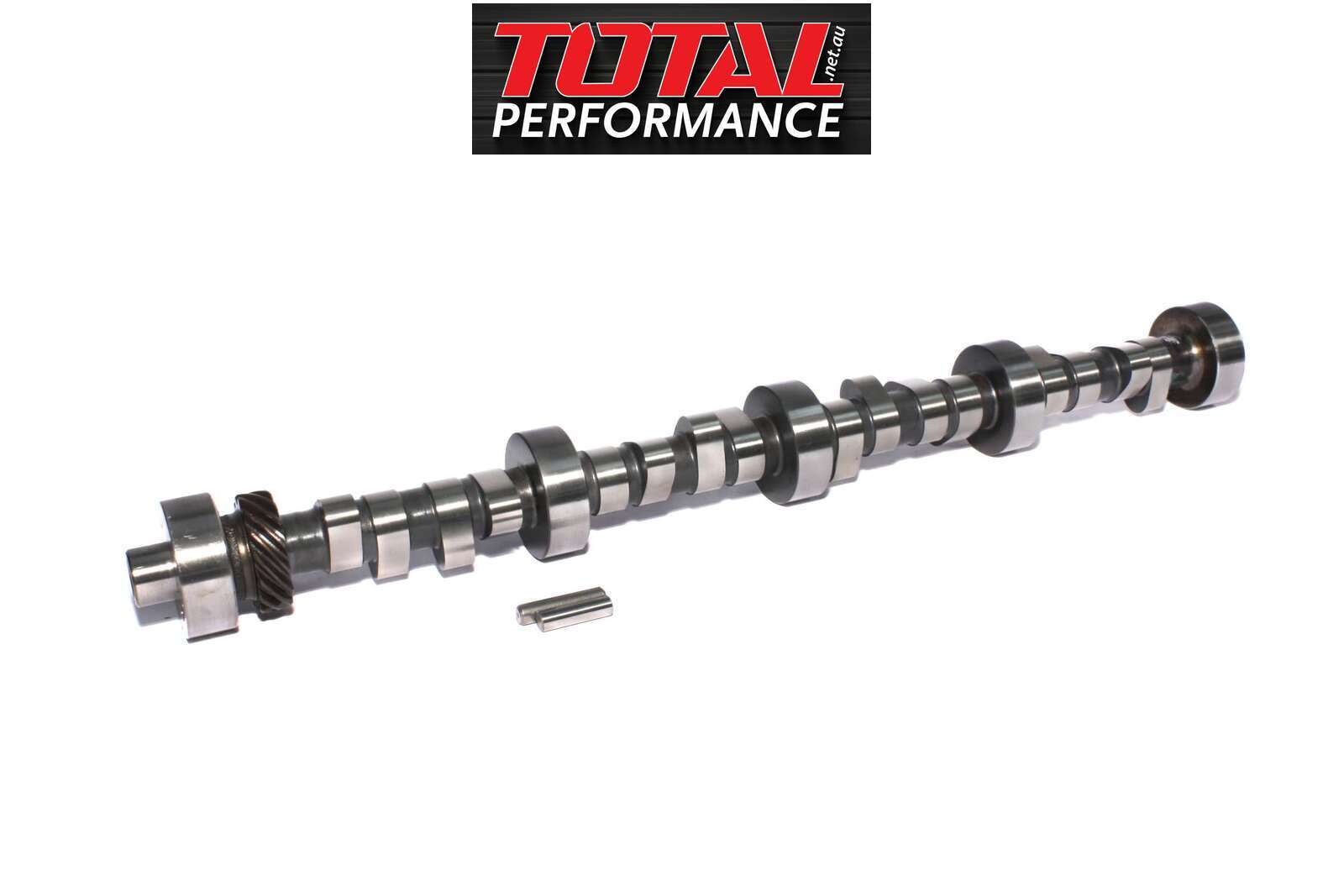

Ford 289 302 Windsor 290HR Magnum 230/230 LSA 110 0.544"/0.544" Hydraulic Roller Camshaft Retro Fit 302W SBF

Comp Cams, 281HR, 31-432-8,

Ford 289 302 Windsor Hydraulic Roller Camshaft - Reto fit.

Street/strip only, 4 speed and 4.10 or lower gear. 9:1 compression minimum, aftermarket intake, headers and 2500+ converter.

aftermarket intake, headers & converter.

Brand: Comp Cams

Engine Family: Ford 289 302 Windsor  , 260, 289, 302 c.i. 8 Cylinder (1963-1995)

RPM Operating Range:3,000-6,500

Grind Number:290HR

Cam Type:Hydraulic Roller

Lifter Style:Hydraulic Roller

Camshaft Series:Magnum

Usage:Street/Performance

Advertised Intake Duration:290

Advertised Exhaust Duration:290

Intake Duration at .050 Inch Lift:230

Exhaust Duration at .050 Inch Lift:230

Intake Valve Lift:0.544

Exhaust Valve Lift:0.544

Lobe Separation:110

Exhaust Close ATDC:31

Intake Open BTDC:39

Exhaust Open BBDC:79

Intake Close ABDC:71

Camshaft Gear Attachment:1-Bolt

Notes:

• Will not fit HO models due to base circle size. Designed for pre-roller block applications. Not design for stock EFI applications.
• These cams can only be used in 289 and 302 engines. Not for 302 H.O. blocks due to base circle size.

Comp Cams - Made in USA. Total Performance is a Comp Cams Australian Dealer.
