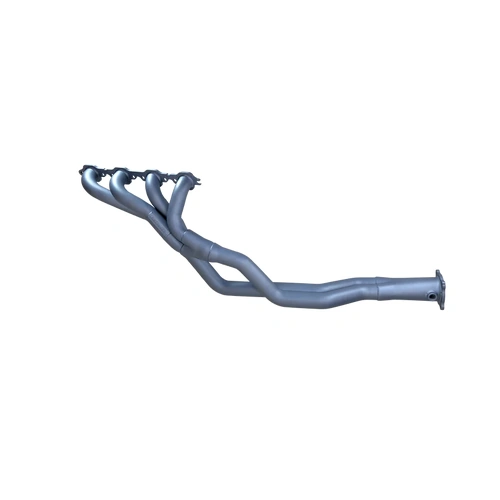

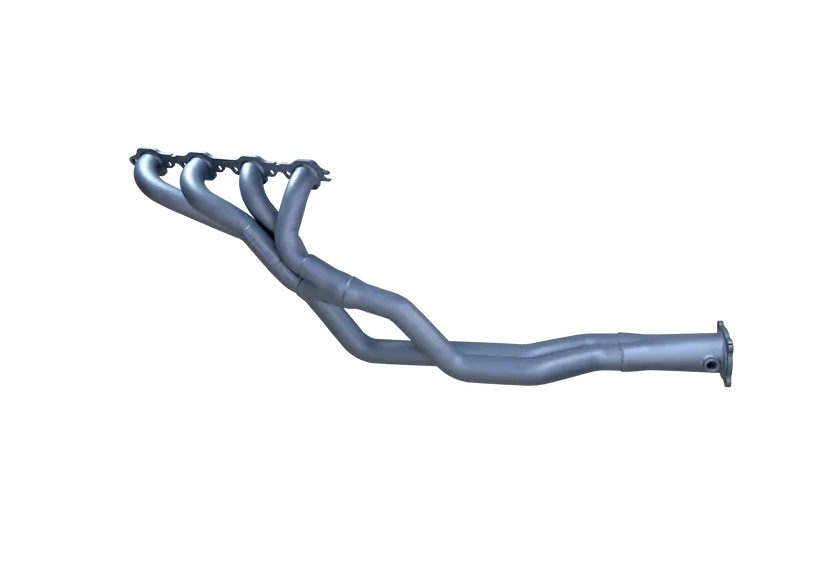

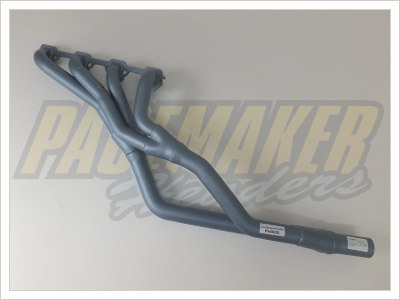

1 3/4" Ford 302 Windsor Headers, "Spread Port" TRI-Y, Dual Bolt Exhaust Heads, XR-XF Falcon 02 Bungs, Blue Finish Tuned length, Extractors

PACEMAKER, FORD 302 WINDSOR HEADERS, EXTRACTORS, PH4038, 1 3/4" Tri-Y

"Spread Port" - Suits the larger port openings on Windsor cylinder heads with the dual bolt holes. As found on the DRP Cylinder heads.

V8 289 302 WINDSOR WITH AFTERMARKET CYLINDER HEADS -

FORD 302 WINDSOR HEADERS, FOR FALCON & FAIRLANE  XR XT XW XY XA XB XC XD XE XF

MANUFACTURER: PACEMAKER

TYPE: TRI-Y, EXTRACTORS, HEADERS

MATERIAL: MILD STEEL

BENDS:    MANDREL BENT

STYLE:  TRI-Y

PRIMARIES - 1.3/4"

SECONDARY PIPE:  2"

OUTLET: 3"

FINISH:  HIGH TEMP BLUE STEEL   (* CAN BE CERAMIC COATED)

O2 SENSOR:  YES 1 X EACH SIDE (INCLUDED BLANK OFF BUNGS)

QUANTITY:  SOLD AS A PAIR

FITMENT NOTES:

WILL SUIT MANUAL & AUTO THIS PRODUCT WAS DESIGNED IN AN XY FALCON WITH GT40P

CYLINDER HEADS AND STANDARD WINDSOR HEADS, C4 AUTOMATIC, AOD, 95LE GEARBOXES.

STANDARD ENGINE & GEARBOX MOUNTS WERE USED WHEN DESIGNING THESE HEADERS.

PACEMAKER EXTRACTORS - PROUDLY AUSTRALIAN MADE

NOTE:

Will NOT fit standard / oem Windsor Heads. Needs the wider bolt pattern on the dual bolt hole head for this product to work.   See DRP heads.

• Will not fit 351 Windsor
