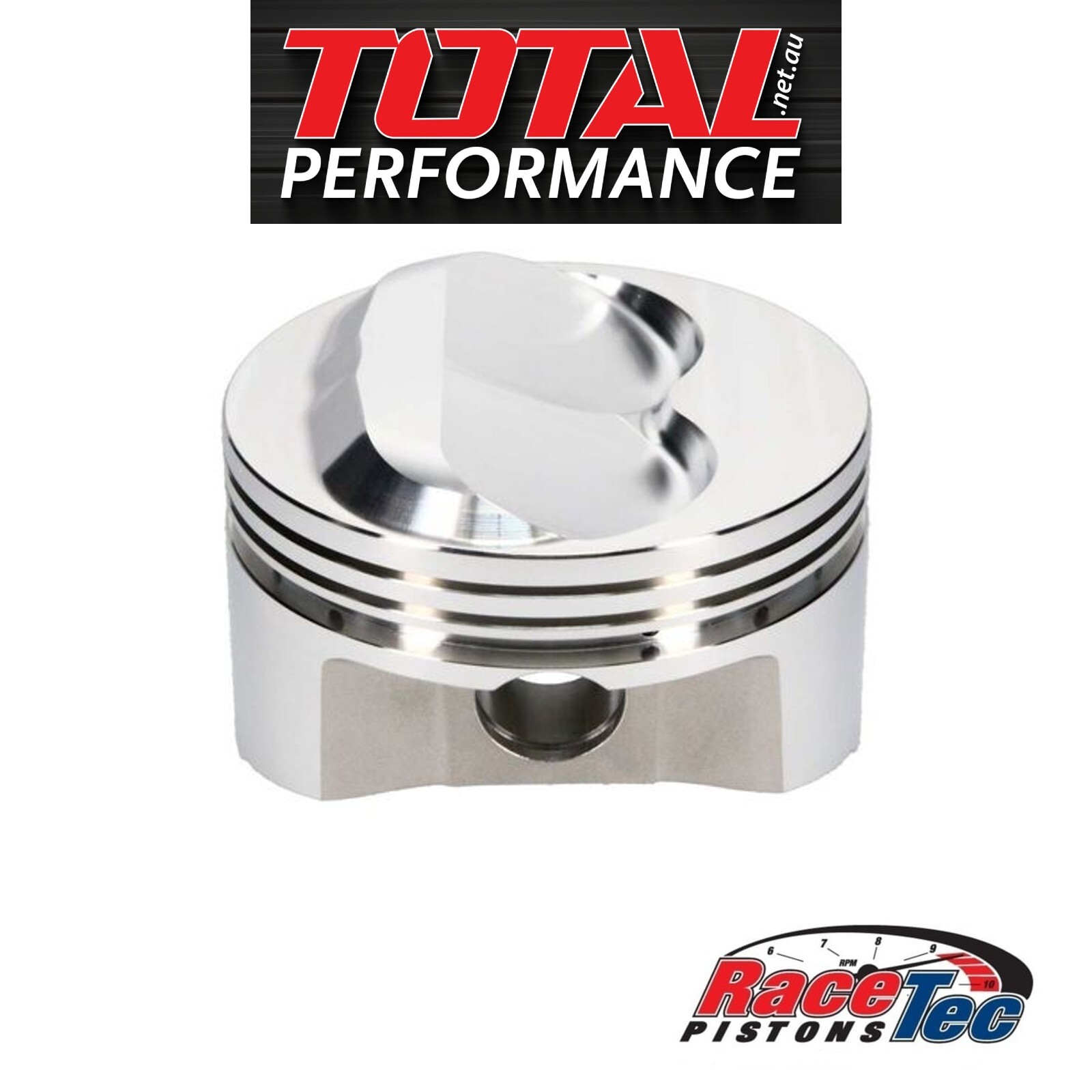

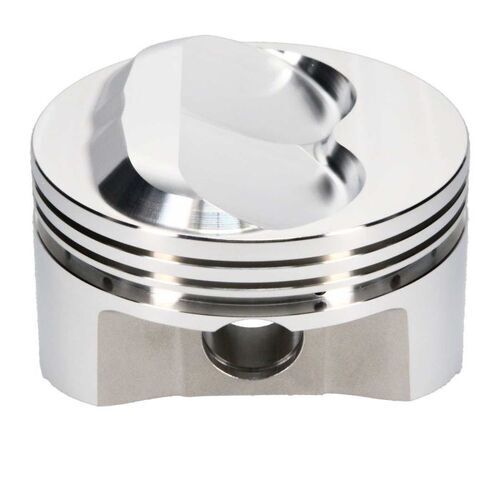

4.030" +030" Ford 302W 347 Windsor Dome Top Stroker Pistons Forged 4032, +10cc, (3.400" x 5.400") CH 1.100"

Description

1000425 Racetec / Autotec Small Block Ford 302W 347 Stroker Pistons, Dome Top Forged Pistons

Small Block Ford 302 Windsor Dome Top pistons

CNC Precision machined ring grooves for 1.5mm, 1.5mm, 3.0mm Rings.

Top ring land gas distribution groove to enhance performance and improve ring seal.

Autotec Pistons have wire locks, broached pin oilers and accumulator grooves as standard along with

Diamond turned skirts.

Windsor Piston Bore size: 4.030"
Engine Capacity: 347 cu
Compression Height: 1.100"
Dome Volume: +9.7cc
Stroker Combination: 3.400" stroke x 5.400" Conrod.
Compression Ratios: 13:1 @ 60cc / 12.2:1 @ 64cc
Rings Size: 1.5mm x 1.5mm x 3.00mm (NOT included)
Rings Recommended: AT-4030-H (Plasma Moly) RT-4030-S (Steel Top/ Napier 2nd)
Gudgeon Pin size: 0.927" Chevy Pin

AutoTec pistons are the Street/Strip family of the Ractec brand. These Forged Autotec Windsor pistons a High Quality, Precision Manufactured Forged piston option at an extremely competitive price.

Specifications

SKU	AT-1000425
Brand	AUTOTEC
