SKU: DRP-SBC200-A-SFT-FV

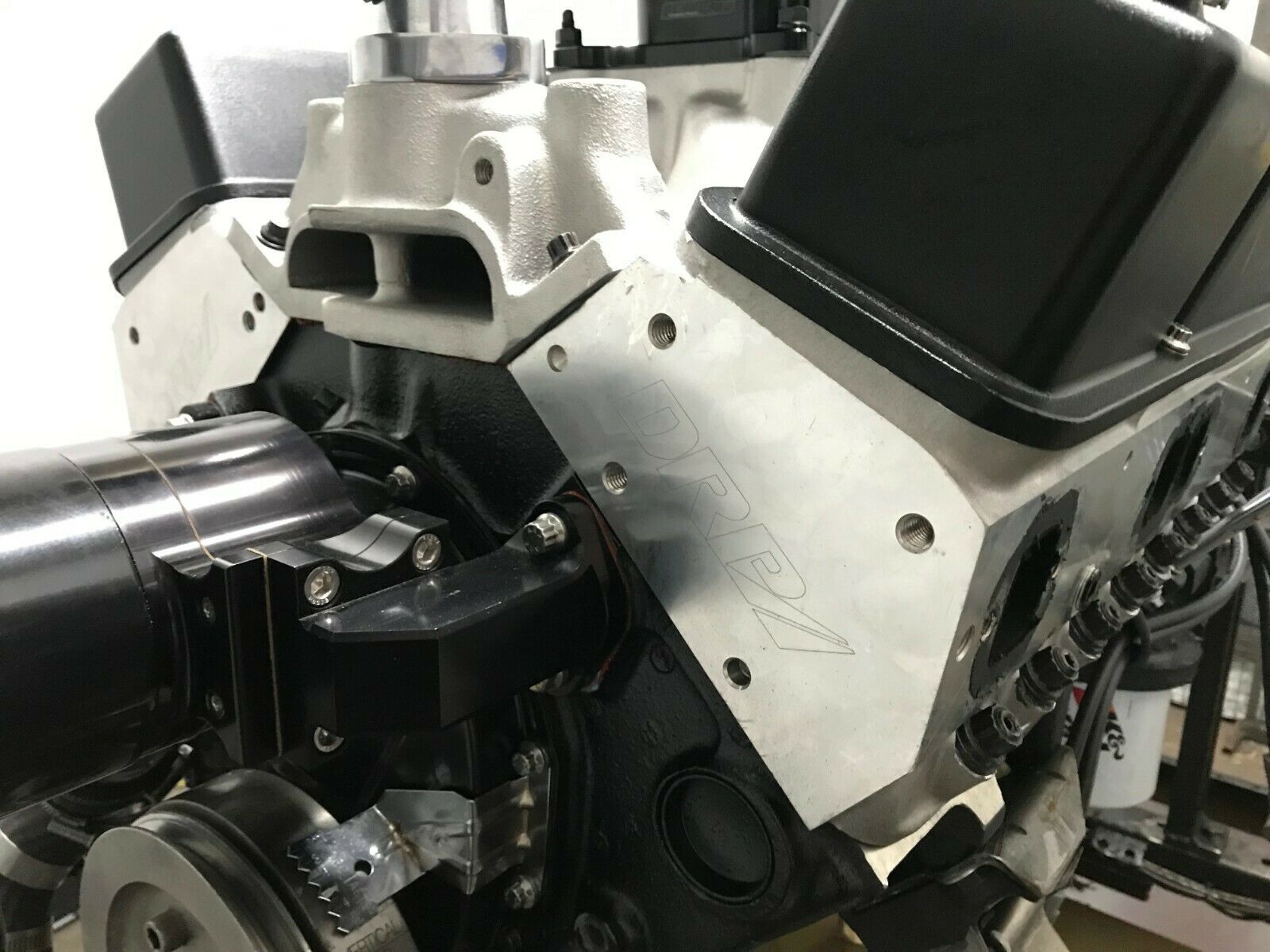

SBC Small Block Chev 350 23° Heads DRP ASSEMBLED Comp Cams SOLID FLAT TAPPET

FERREA 5000 SERIES VALVES

$1,798.03

In Stock

Customise Your Purchase

4771-16 ID Spring Locator Set of 16 - 1.550" OD, .570" ID, .060" Thickness

4771-16 ID Spring Locator Set of 16 - 1.550"

$58.85

QTY
518-16 Set of 16 Metal Body Viton Valve Seals for .530" Guide Size, 11/32" Valve Stem

518-16 Set of 16 Metal Body Viton Valve Seals for

$27.64

QTY
6001-8 Sportsman Intake Valve Set Chevrolet Small Block w/ 2.020" Head, 5.011" Length

6001-8 Sportsman Intake Valve Set Chevrolet Small

$162.03

QTY
6002-8 Sportsman Exhaust Valve Set Chevrolet Small Block w/ 1.600" Head, 5.011" Length

6002-8 Sportsman Exhaust Valve Set Chevrolet Small

$162.03

QTY
630-16 Set of 16 - 10 Degree 11/32 Single Groove Locks w/ Lash Cap Recess -.050" Height

630-16 Set of 16 - 10 Degree 11/32 Single Groove L

$47.67

QTY
740-16 10 Superlock Steel Retainer Set of 16 for 1.437"-1.500" OD Valve Spring

740-16 10 Superlock Steel Retainer Set of 16 for 1

$86.49

QTY
985-16 Engine Valve Spring Kit

985-16 Engine Valve Spring Kit

$157.70

QTY

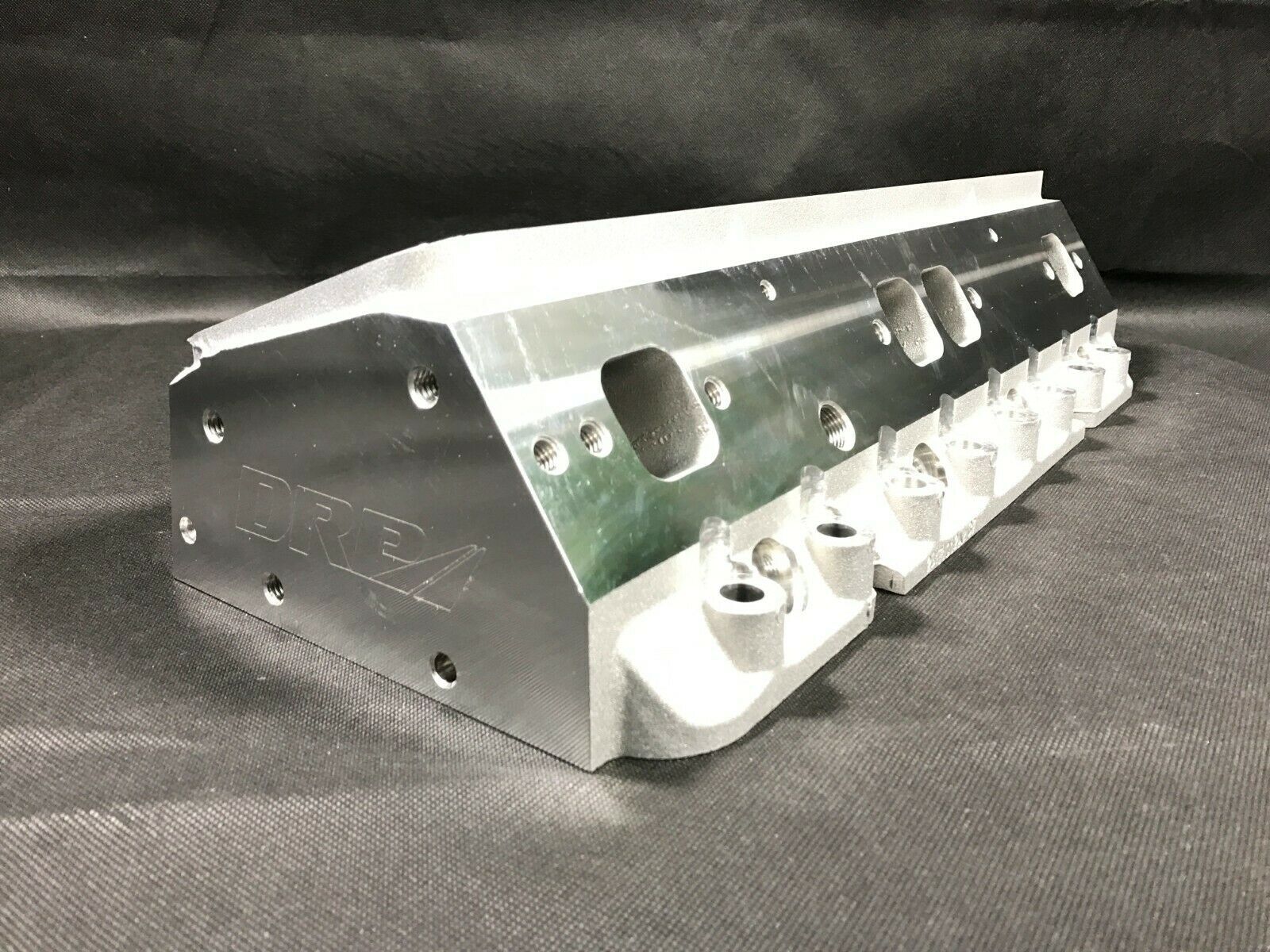

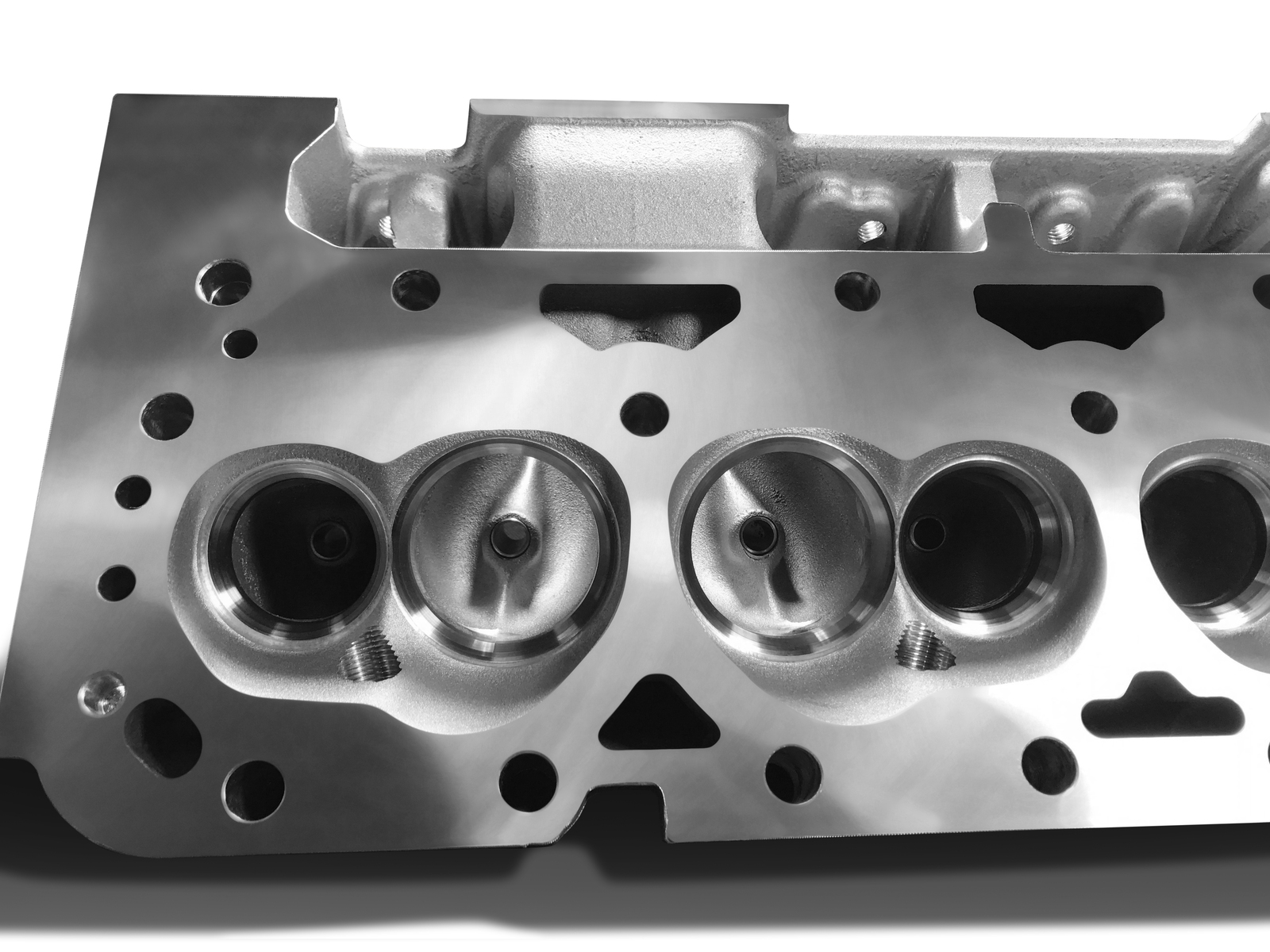

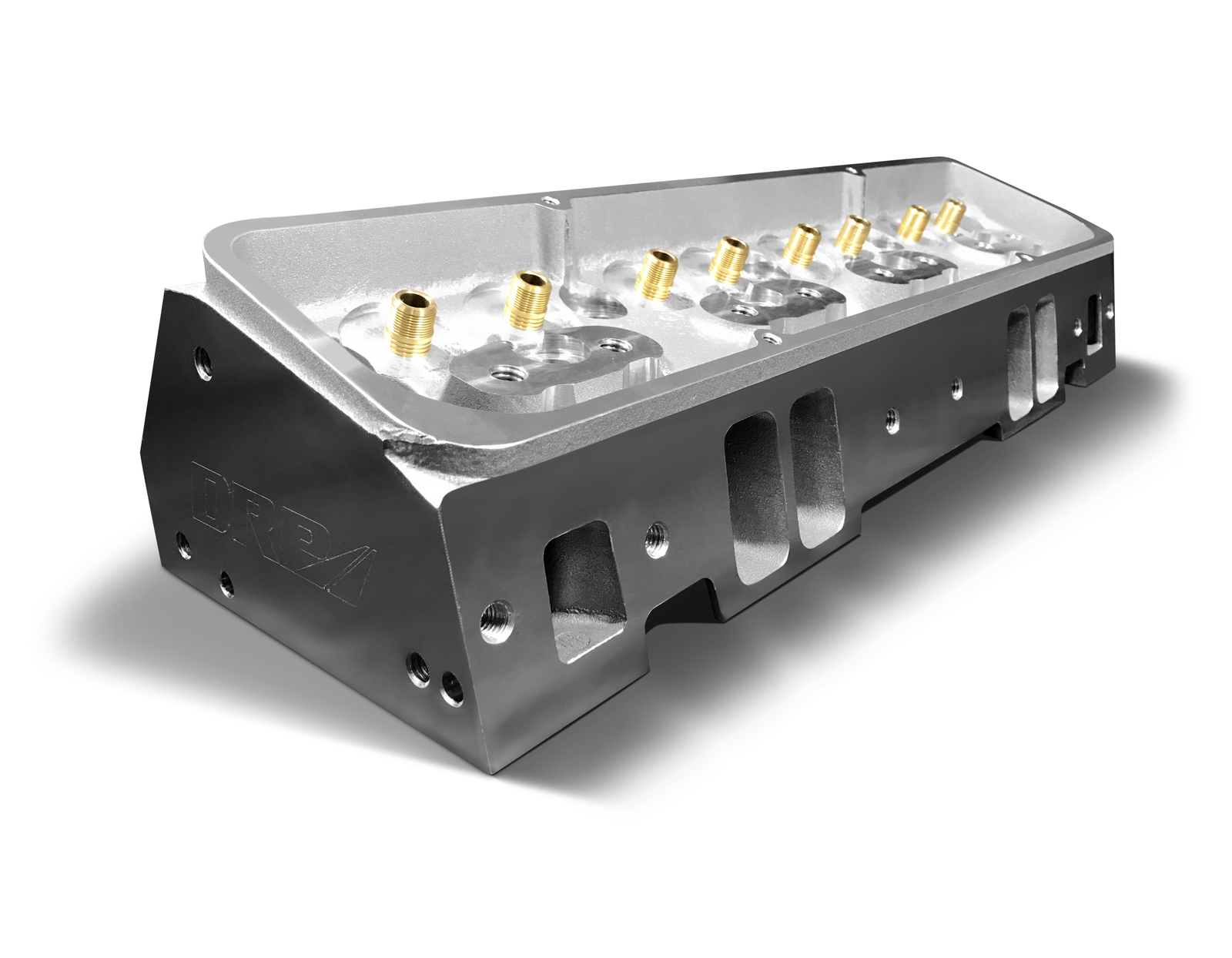

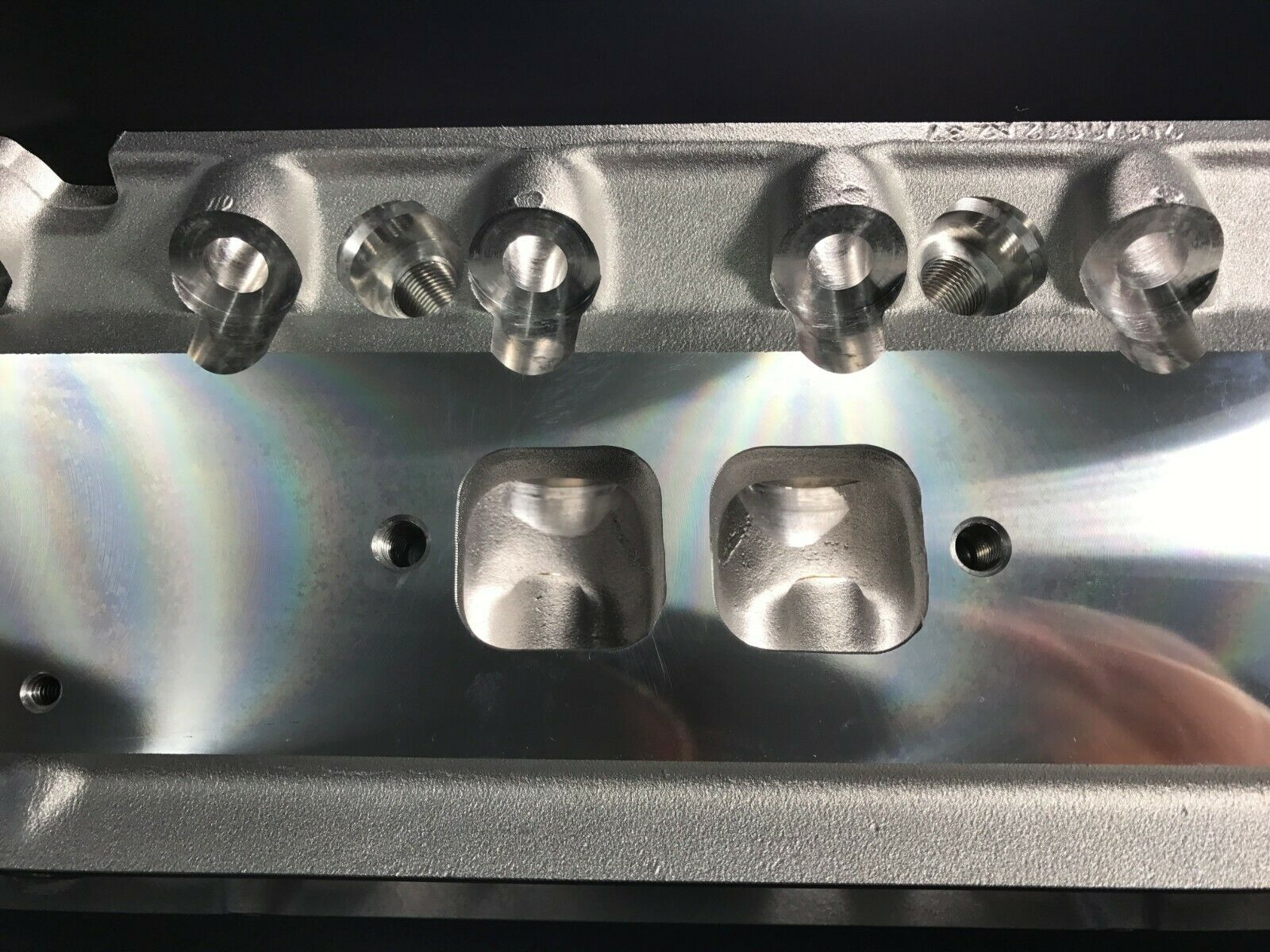

PAIR SBC Small Block Chevy Cylinder heads by DRP 196cc 23° 64cc Alloy Angle Plug

PAIR SBC Small Block Chevy Cylinder heads by DRP 1

$858.00

QTY
LABOUR & CONSUMABLES

LABOUR & CONSUMABLES

$55.00

QTY

Description

ASSEMBLED HEADS TO SUIT SOLID FLAT TAPPET

500HP and 460ft/lb of Torque from a 350 Small Block Chev*

Wow of a price for such a great Horsepower and Torque!!
*Dyno results are from a 350 Chev with a Solid Flat Tappet.

Not sure? Need more info?
Please message us through Ebay or find us on Facebook for further contact details
 - TOTAL PERFORMANCE

Heads are assembled for SOLID FLAT TAPPET & includes:
      °DRP Cylinder Heads - Hand assembled by US using Comp Cams hardware and Ferrea Valves (hand built in Melbourne)
      °Comp Cams - Springs 985-16 (Dual). 148LBS SEAT AND 349LBS OPEN @ 0.550" LIFT.

      °Comp Cams - Retainers, Locks, Spring Seats, Seals
      °Ferrea - 5000 Series valves


Need more items? Timing chain, Rockers, Pushrods....? .
We can also supply USA built TCI Torque converts and Camshafts.
Just ask and we can add at a super price

Please allow 5 days to assemble the heads. * If you need these sooner, just ask.

* Results will vary depending on your build and combination of other items.

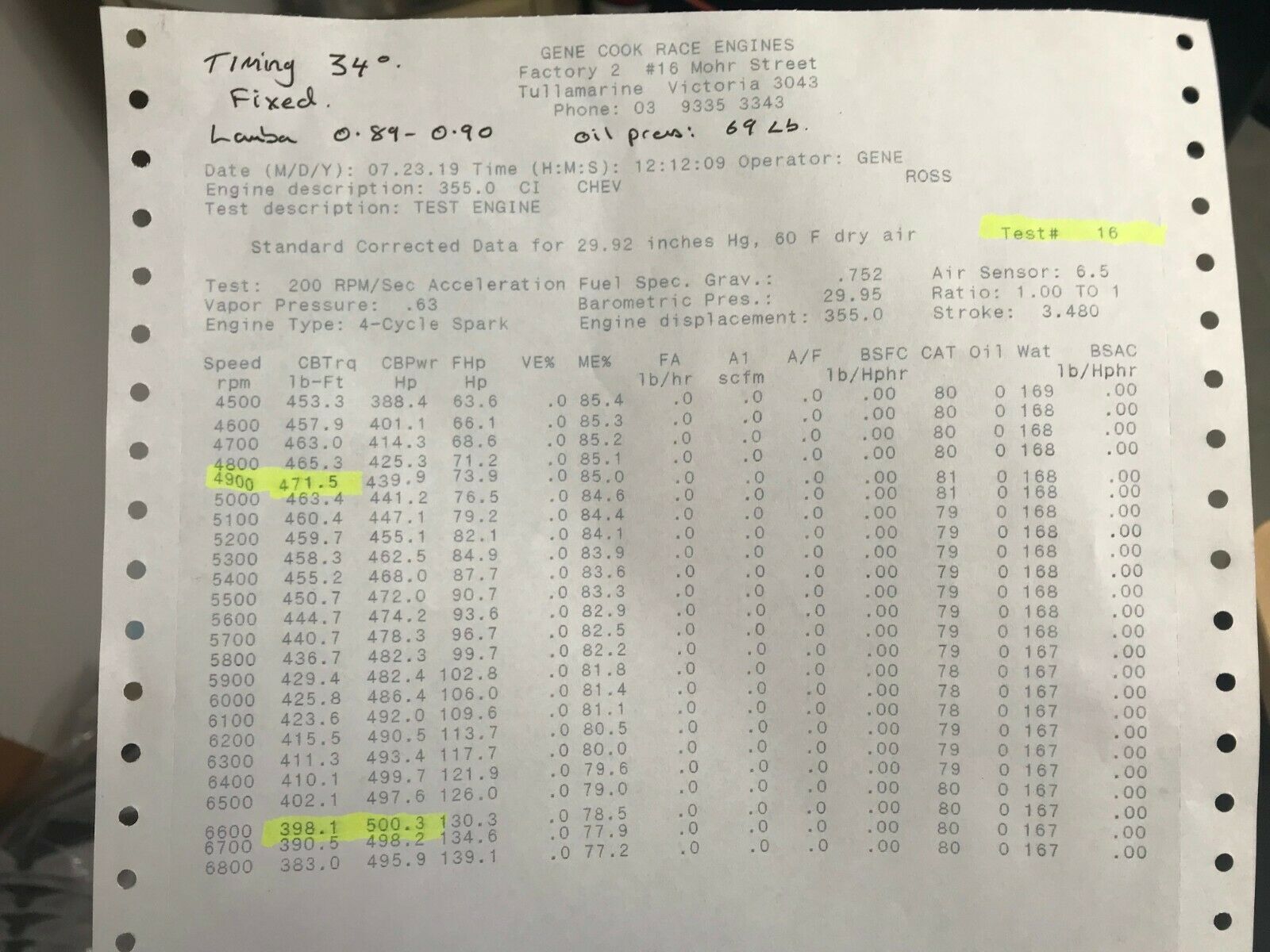

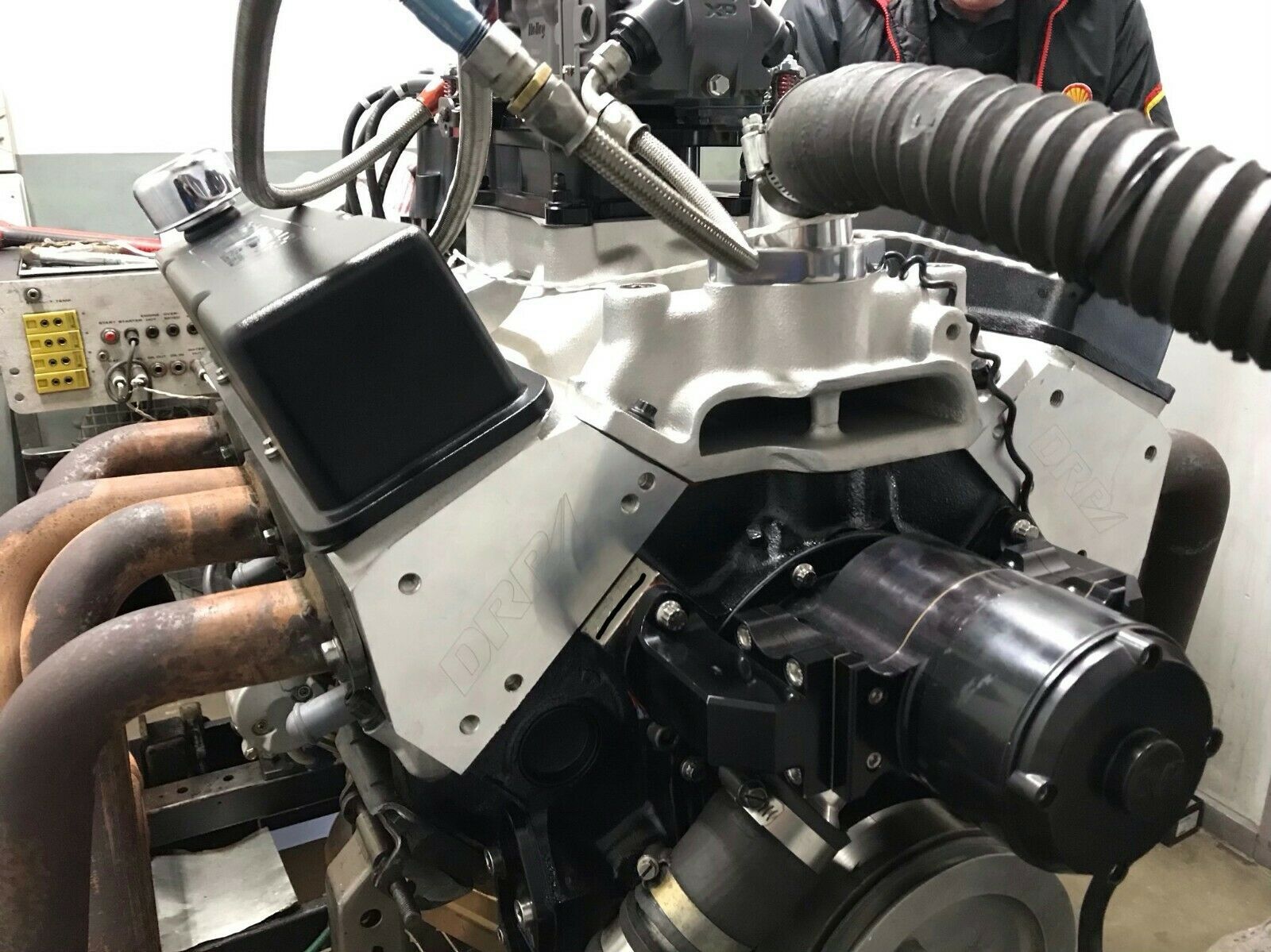

This Dyno test was carried out with a Solid Flat Tappet Camshaft,255/256 Duration and 0.540/0.534" valve lift with a 106 LSA. 1 3/4 Headers, Electrical Water pump, Edelbrock Victor Jnr Single plane intake (we feel you will achieve similar results with an air gap dual plane. 11:1 Compression with a domed Piston. 34°

350 CHEV DYNO RUN - 500HP  https://www.youtube.com/watch?v=vpwIgJIN5X8

383 CHEV DYNO RUN - LOW COMP 95 OCTANE  https://www.youtube.com/watch?v=iAEie9M4fz8

Always trust TOTAL PERFORMANCE for the right parts.
Established in 1979
Add us to your favourites as we are constantly adding more parts.
Like us on Facebook - TOTAL PERFORMANCE
                     THANK YOU FOR YOUR INTEREST.


Specifications

SKU DRP-SBC200-A-SFT-FV
Brand DRP
Unit Of Measure ea
Warranty Manufacturers Warranty
