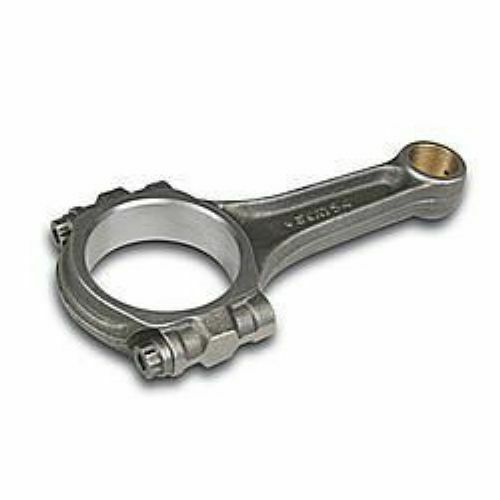

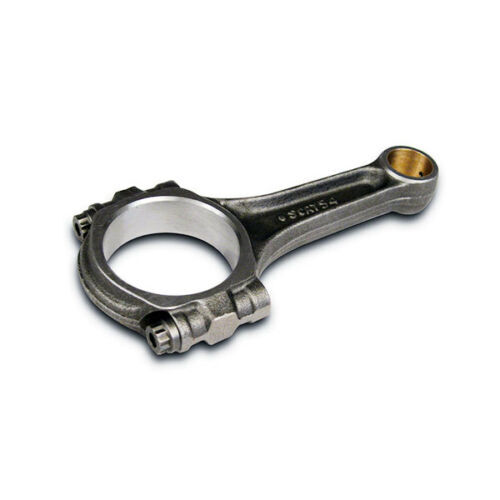

Ford Windsor 347 Stroker Connecting Rods, SBF 347W 302W, I BEAM 5.400" Con Rod, (25100912)

Scat Pro Stock I-Beam Connecting Rods

Scat Pro-Stock I-beam connecting rods incorporate all of the best features possible for an I-beam rod, including some strength-adders found in H-beam designs. They are profiled with clearance for long stroke applications. These connecting rods feature a one-rib cap design for added strength and bearing support, and special hollow dowels with ARP cap screw bolts to greatly increase strength and horsepower capabilities.

Connecting Rod Length Center to Center (in.):  5.400 in.

Connecting Rod Beam Style:  I-beam

Connecting Rod Material:  Forged 4340 steel

Connecting Rod Finish:  Natural

Wrist Pin Style:  Floating

Big End Bore Diameter (in.):  2.1230 in.  (Ford Journal)

Big End Width (in.):  0.830 in.

Pin End Bore Diameter:  0.912 in. (FORD)

Clearanced for Stroker:  Yes

Cap Retention Style:  Cap screw

Connecting Rod Bolt Brand:  ARP

Connecting Rod Bolt Diameter:  3/8 in.

Connecting Rod Bolt Material:  8740 chromoly steel

Fastener Tensile Strength (psi):  180,000 psi

Connecting Rod Bolt Head Style:  12-point

Weight Matched Set:  Yes

Quantity:  Sold as a set of 8.
