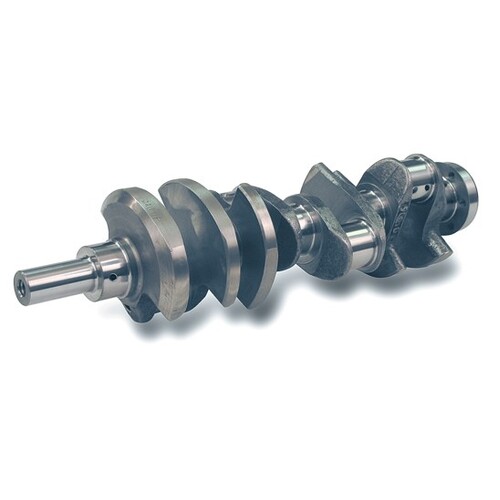

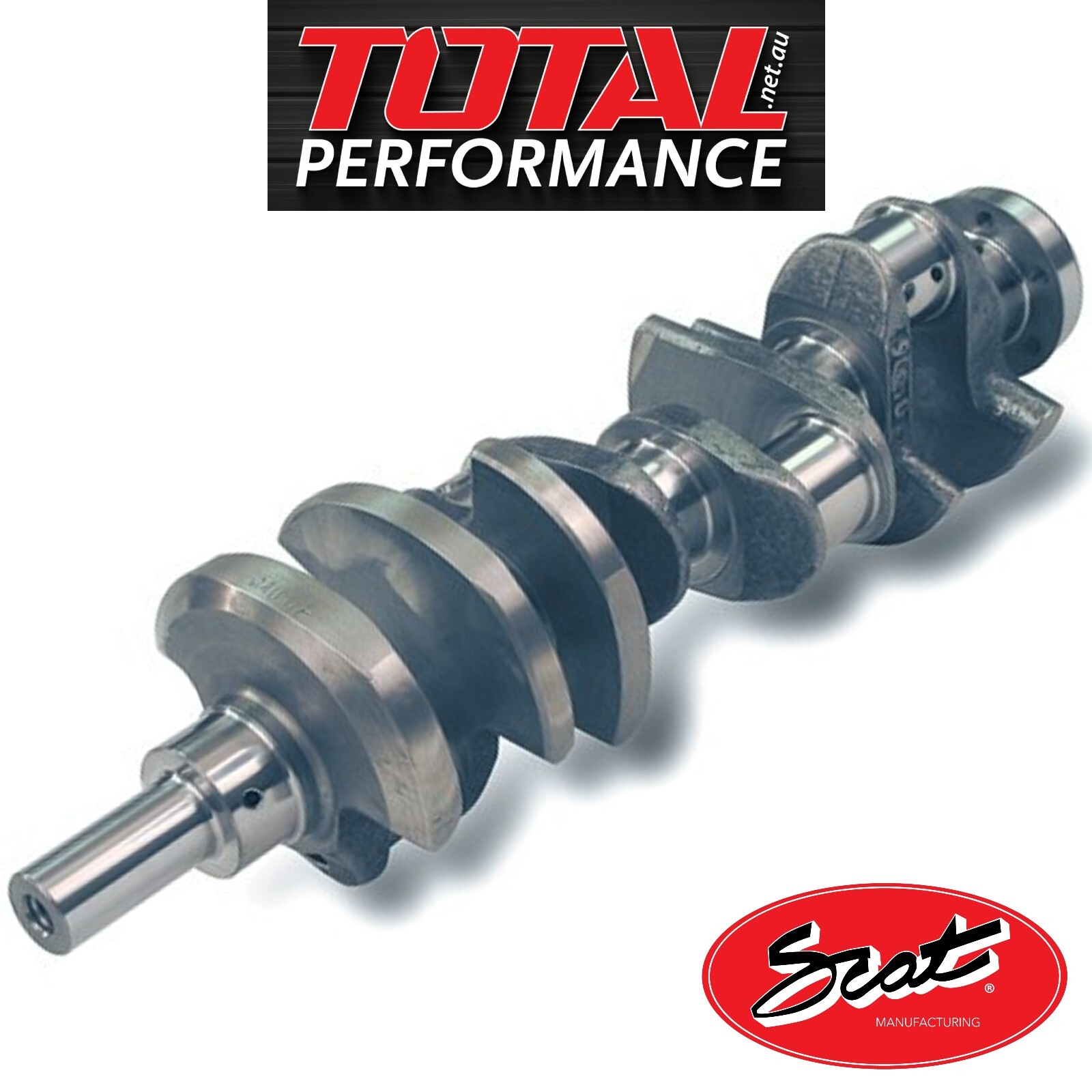

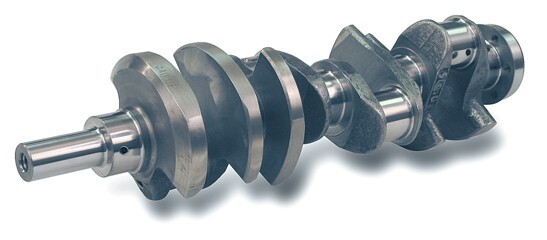

347 Windsor Stroker Crankshaft CAST 9000 Series 3.400" External Balance 1 or 2 Piece Seal, 93023 SBF Small Block Ford 302W Windsor Crankshaft

Scat Ford 302W, 5.0L Windsor Cranshaft - Cast 347 Windsor Stroker Crankshaft.

Suits: Windsor Bearings

SCAT Pro Stock features cast 9000 steel, precision-ground, micro-polished, factory balanced. SCAT 347 Windsor Stroker Crankshaft features cast 9000 steel, precision ground, knife-edged counterweights, factory balanced, straight shot oil holes, micro-polished, and is IMCA and Racesaver approved.

Applications: 302W Windsor Stroker Crankshaft, Street / Hot Rod applications stroked to 347 Windsors. Fits both 302W early blocks & 5.0L later blocks.

SCAT short part number: 93023

Engine Family: Suits Small Block Ford 8.2" Deck Windsors, early & late blocks. 2 piece & 1 piece rear mains blocks.

Rear Main Seal Style:  suits 1-piece & 2-piece

Engine Stroke (in.):   3.400 in.

Crankshaft Material:   Cast steel

Engine Balance:   External, 28 oz. balance

Lightened:   No

Requires Narrow Bearings:  No

Rod Bearings Included:   No

Main Bearings Included:   No

Rod Journal Diameter (in):   2.123 in. (Ford Windsor)

Crankshaft Snout Style:   Standard

Quantity:   Sold individually.

Notes:   Uses 1.375 in. Pilot Bearing

*NOTE:   IMAGE MAY DIFFER FROM ACTUAL PRODUCT.
