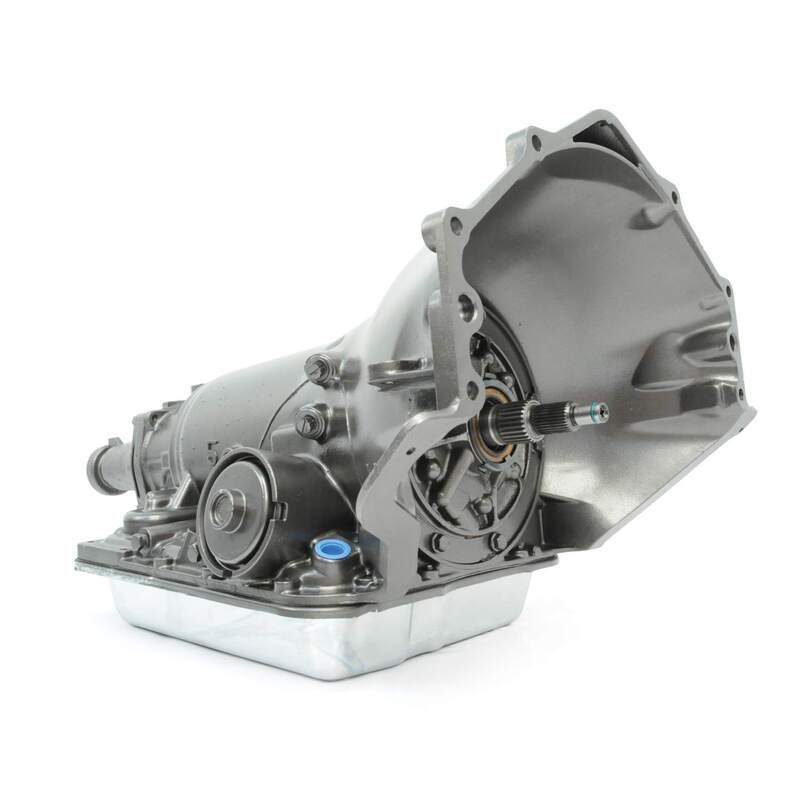

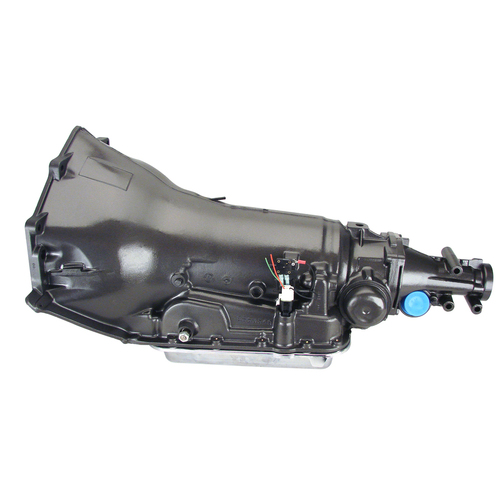

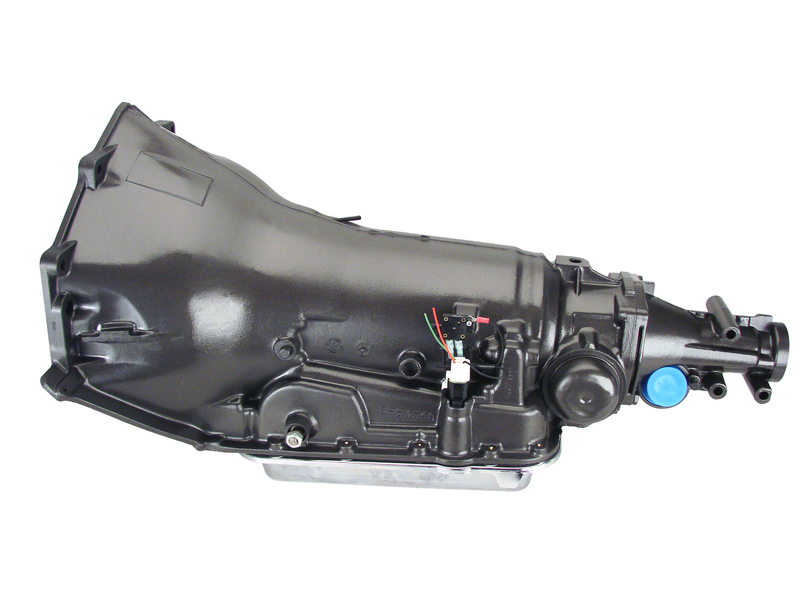

550HP Stage 1, 700R4 Heavy Duty Automatic Transmission Gearbox. Turbo 700, TH700

This 700R4 Transmission is built with TCI Heavy Duty Components to handle between 450-550 HP. Designed to increase cooler flo and improve shifting without the harshness.

Stage 1 Turbo 700R4 Transmission.

This is the perfect transmission for your two-wheel drive towing and heavy-load trucking needs that range from 450 to 550 HP, depending on the application. These units have valve body modifications that increase cooler flow and improve shift characteristics without the harsh feel of a racing style transmission. When used with a TCI Heavy-Duty Towing Torque Converter, you can be sure the transmission package is tailored to provide long, dependable service and maximum fuel economy. The optional low gear package offered with each of our RV units is a great addition for trucks pulling heavy loads.

Number of Gears:  4

Bellhousing Bolt Pattern Manufacturer: Chevy

Transmission Shift Pattern:  Forward

Valve Body Style: Automatic

Transmission Controller Included: No

Wiring Harness Included:  No

Trans-Brake Included:  No

Lockup Compatible:  Yes

Transmission Pan Style: Stock

Tailshaft Length (in.): 7.500 in. (Standard type to Suit Holden / Chev etc)

Yoke Style: OEM type Slip-on

Input Spline Quantity: 30

First Gear Ratio (Automatic Transmissions): 3.06

Transmission Case Style: OEM - Aluminium

Transmission Fluid Included:  No

Dipstick Included:  No

Remanufactured:  Yes new internals

Notes:

These transmissions are shipped without the speedometer driven gear or it’s housing. If replacing the same model of transmission, these may be re-used from existing. If not, they must be purchased separately. Does not include shift lever.
