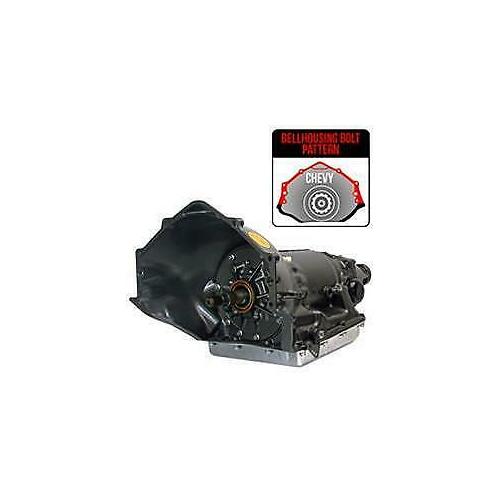

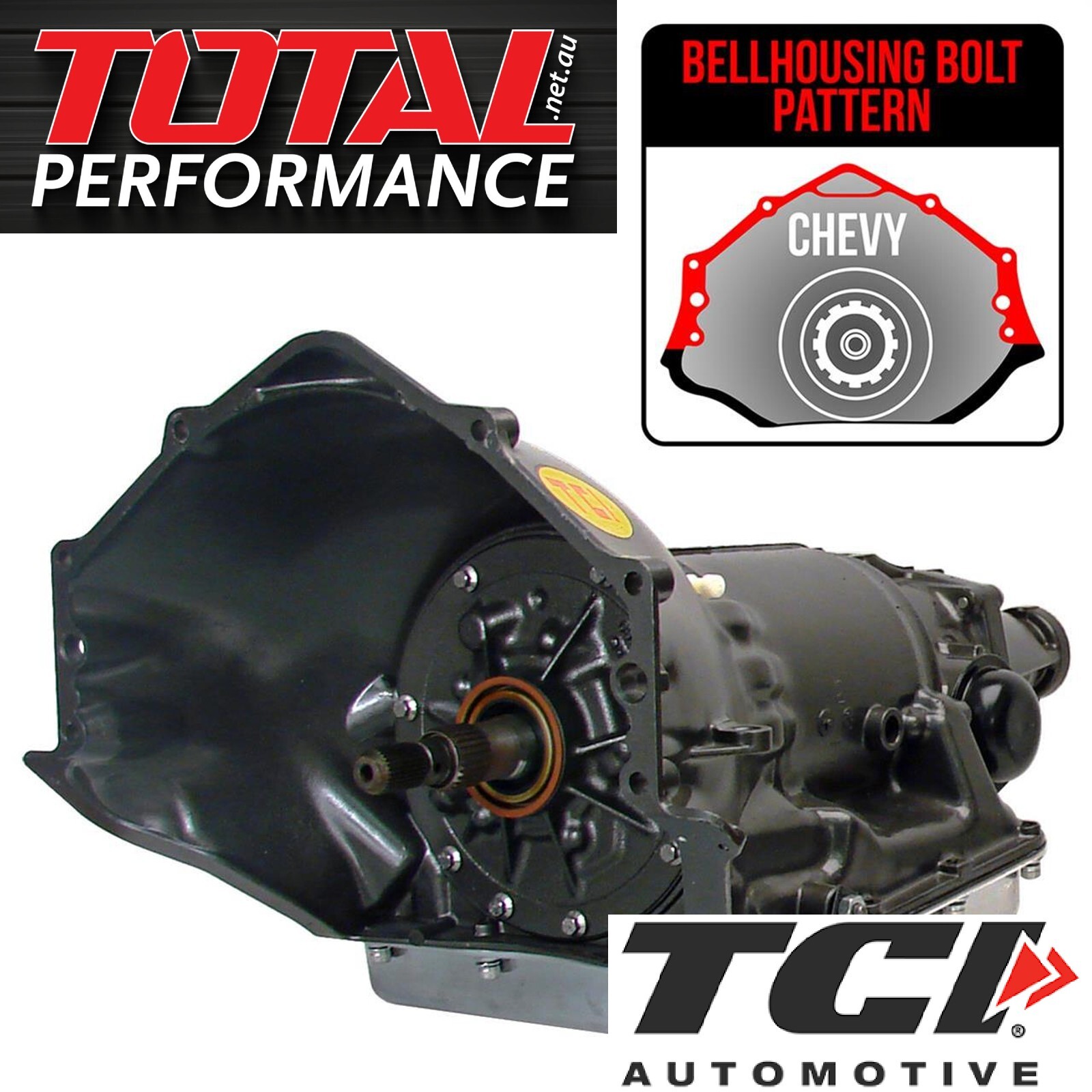

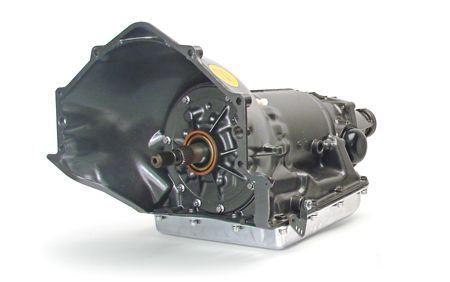

TH350 TURBO 350 Transmission Super StreetFighter Automatic Chevy Forward Shift Pattern, Automatic/Manual Valve Body 6 in Shaft
Automatic/Manual - Forward Shift. 775 HP rated.
In Stock
Description
This TH350 Tubro 350 Transmission is equipped with TCI Super StreetFighter components to handle up to 775 HP
Suits Chevy V8 engines.
The Super StreetFighter™ Turbo 350 Transmissions are the next step up from the StreetFighter®. This TCI Turbo 350 Transmissioin 311005 is intended for normally aspirated vehicles powered by engines producing up to 775 horsepower. Featuring some of the same benefits as our StreetFighter® Transmissions but with certain upgrades, the Super StreetFighter™ offers both manual and automatic shift options to give you the power and shifts you want for the strip or easy driving for the street.
Both Automatic/Manual Valve Body.
Features & Benefits of the TCI 311005 Turbo 350 Transmission:
- Extreme performance clutches and nitrided steel plates for enhanced performance
- Extra-wide powerbands, where available, provide greater torque capacity, and more positive shifts & band apply
- Larger diameter servos increase band pressure which means more force on flex bands
- New sprags/roller clutches (upgraded in particular models – call for applications), enhanced hard parts and improved lubrication system
- Includes a chrome-plated transmission pan with embossed TCI® logo
- Increased thrust capacity and higher line pressure for extra firm shifts & greater torque capacity with less slippage
Number of Gears: Three
Valve Body Style: Automatic/Manual
Transmission Advertised Horsepower Rating: 775
Torque Converter Included: No
Trans-Brake Included: No
Lockup Compatible: No
Transmission Pan Style: Stock
Transmission Pan Material: Steel
Transmission Pan Finish: Chrome
Tailshaft Length (in.): 6.000 in.
Yoke Style: Slip-on
Input Spline Quantity: 30
First Gear Ratio (Automatic Transmissions): 2.52
Transmission Case Style: OEM
Transmission Case Material: Aluminum
Transmission Case Finish: Black
Transmission Shield Built In: No
Flexplate Shield Built In: No
Fluid Fill Location: Case
Dipstick Included: No
Notes: Features 36 element intermediate sprag assembly, Alto Red Eagle clutches and Kolene steels. These transmissions are shipped without the speedometer driven gear or it’s housing. If replacing the same model of transmission, these may be re-used from existing. If not, they must be purchased separately.
Warranty
12
Specifications
SKU | 311005 |
Barcode # | 788120032407 |
Brand | TCI |
Maximum Horsepower | 775 |
First Gear Ratio | 2.52 |
Oem Model | TH350 |
Third Gear Ratio | 1.0 |
Coating Type | HDT Coating |
Transmission Series | Super StreetFighter |
Second Gear Ratio | 1.52 |
Number Of Gears | 3 |
