Boosted LS1, LS2, LS3 Cylinder head studs kit - ARP 2000 series Under Cut Studs - suits 2004+ later LS engines. (5.7L, 6.0L, 6.2L)
ARP 2000 Series
Description
ARP 234-4345 LS Cylinder Head Studs Kit – LS1, LS2, LS3 2004+ Gen III & Gen IV
The ARP 234-4345 Pro Series, 2000 Series head studs kit suits 2004-on GM Gen III and Gen IV LS engines using equal-length M11 head fasteners. Built from ARP2000 material for dependable cylinder-head clamping in performance, naturally aspirated, turbocharged and supercharged LS engine builds.
Quick Answer: Use ARP 234-4345 when upgrading to high Boosted/Turbo LS engines. Common applications include late LS1, LS2, L76, L77, L98, LS3 and LSA combinations.
ARP 234-4345 Specifications
| Brand | ARP |
| Part Number | 234-4345 |
| Product Type | Pro Series Cylinder Head Stud Kit (2000 series) |
| Engine Application fits | Chevrolet / GM Gen III and Gen IV LS, 2004-on, LS1, LS2, LS3, 5.7L, 6.0L, 6.2L |
| Stud Material | ARP2000 |
| Main Stud Thread | M11 x 2.0 |
| Upper Stud Thread | M8 x 1.25 |
| Nut Style | 12-point |
| Finish | Black oxide |

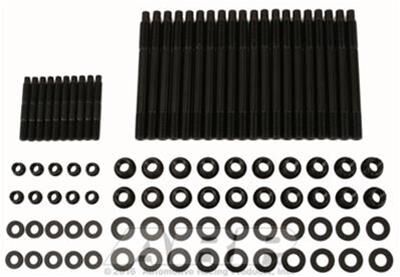

| Kit Contents | 20 x M11 studs, 10 x M8 studs, 30 x 12-point nuts, 30 x washers and ARP Ultra-Torque lubricant |
ARP 234-4345 Features & Benefits
- ARP2000 studs rated at 220,000 psi nominal tensile strength
- More consistent cylinder-head clamping than factory torque-to-yield bolts
- Stud design improves cylinder-head and gasket alignment during assembly
- Reusable when correctly inspected and installed to ARP specifications
- ARP Ultra-Torque assembly lubricant included
Fitment Check: This is the 2004-on equal-length M11 stud kit. Check the cylinder-head fastener design before ordering, particularly on early LS1 and LS6 combinations.
Our sales team of actual engine builders are on hand to help.
More Product Information
The ARP 234-4345 head stud kit is commonly used in Holden and Chevrolet LS2, L76, L77, L98, LS3 and LSA performance engine combinations. Correct application depends on the cylinder-head fastener arrangement, not simply the vehicle model or engine capacity.
ARP2000 studs are centreless ground, heat-treated before thread rolling and manufactured for consistent fastener preload. This makes the kit well suited to high-compression, turbocharged, supercharged and serious naturally aspirated LS builds where reliable head-gasket clamping is critical.
Installation Note: Clean the block threads thoroughly, install the studs hand-tight only and use the supplied ARP Ultra-Torque lubricant on the specified threads, nuts and washers. Follow the current ARP instructions and GM tightening sequence supplied for this exact kit.
Total Performance has supplied performance engine parts since 1979. Our sales team are experienced engine builders and are on hand to help match the right parts to your engine, driveline and intended use. Call 1800 351 351.
Specifications
| SKU | ARP-234-4345 |
| Barcode # | 672036047696 |
| Brand | ARP |
