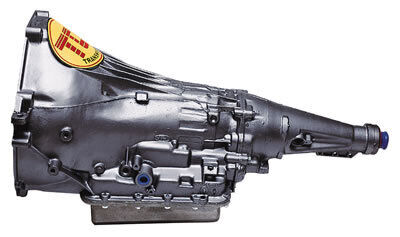

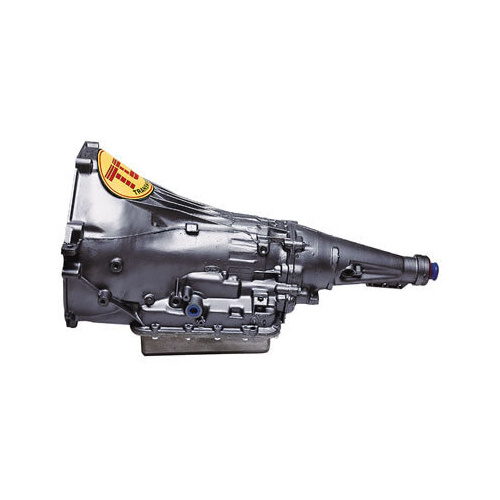

C6 Maximizer 4x4 Transmission for 351M/400/429/460 Engines (8" Spacer).

This C6 Transmission is equipped with TCI Maximizer 4x4 Components to handle between 450-550 HP from Ford 351M/400 & 429/460 Big Block Engines.

Transfer Case Notes:

• Requires 8" Spacer between transmission and transfer case.

• C6 has the *LONGER* 31-spline 4WD output shaft for the nominal 8-inch adapter

• Commonly *LONG* NP205 and late BW1356 arrangements* Customer to verify first

NOTE: Spacer not included - customer to verify their own research.

• NP205 - Spacer Casting: RF-D7TP-7A040-CA

• NP208/BW1356 aluminium housing

  The common Spacer casting to search is:  D8TP-7A040-AA — generally associated with the older long-output C6 arrangement

• Casting number	Approximate housing	Typical use
  RF-D7TP-7A040-BA	5¾-inch short	NP205
  RF-D7TP-7A040-CA	8¾-inch long	NP205
  D8TP-7A040-AA	Long aluminium type	Common C6/NP208 arrangement
  E7TP-7A040-AA or E8TP-7A040-AA	Shorter aluminium type	Late BW1356/related applications
