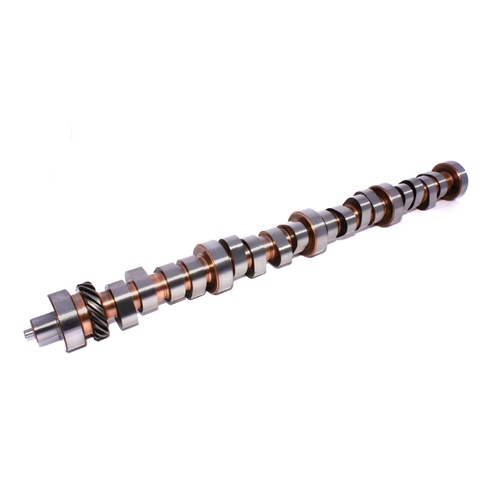

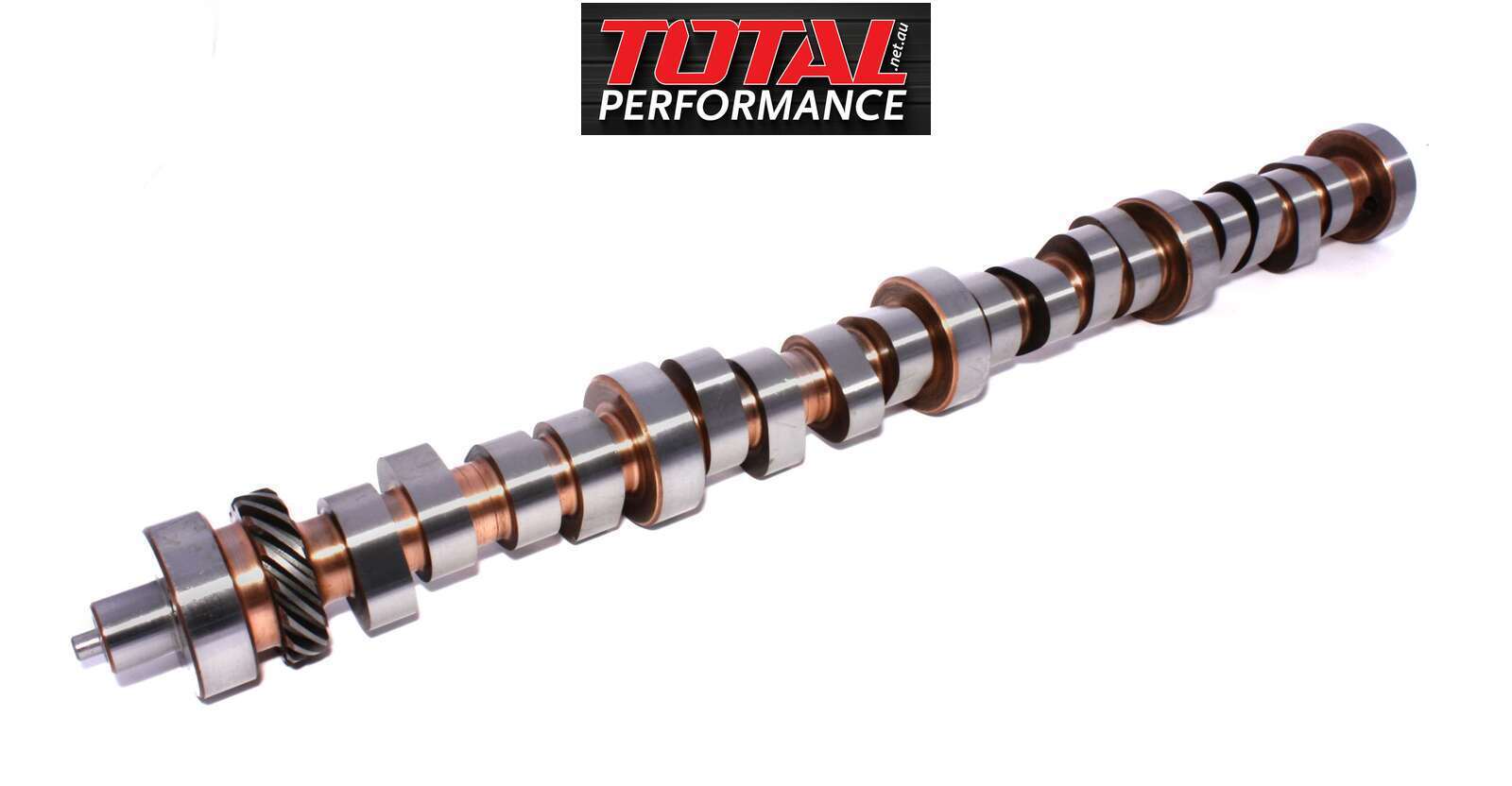

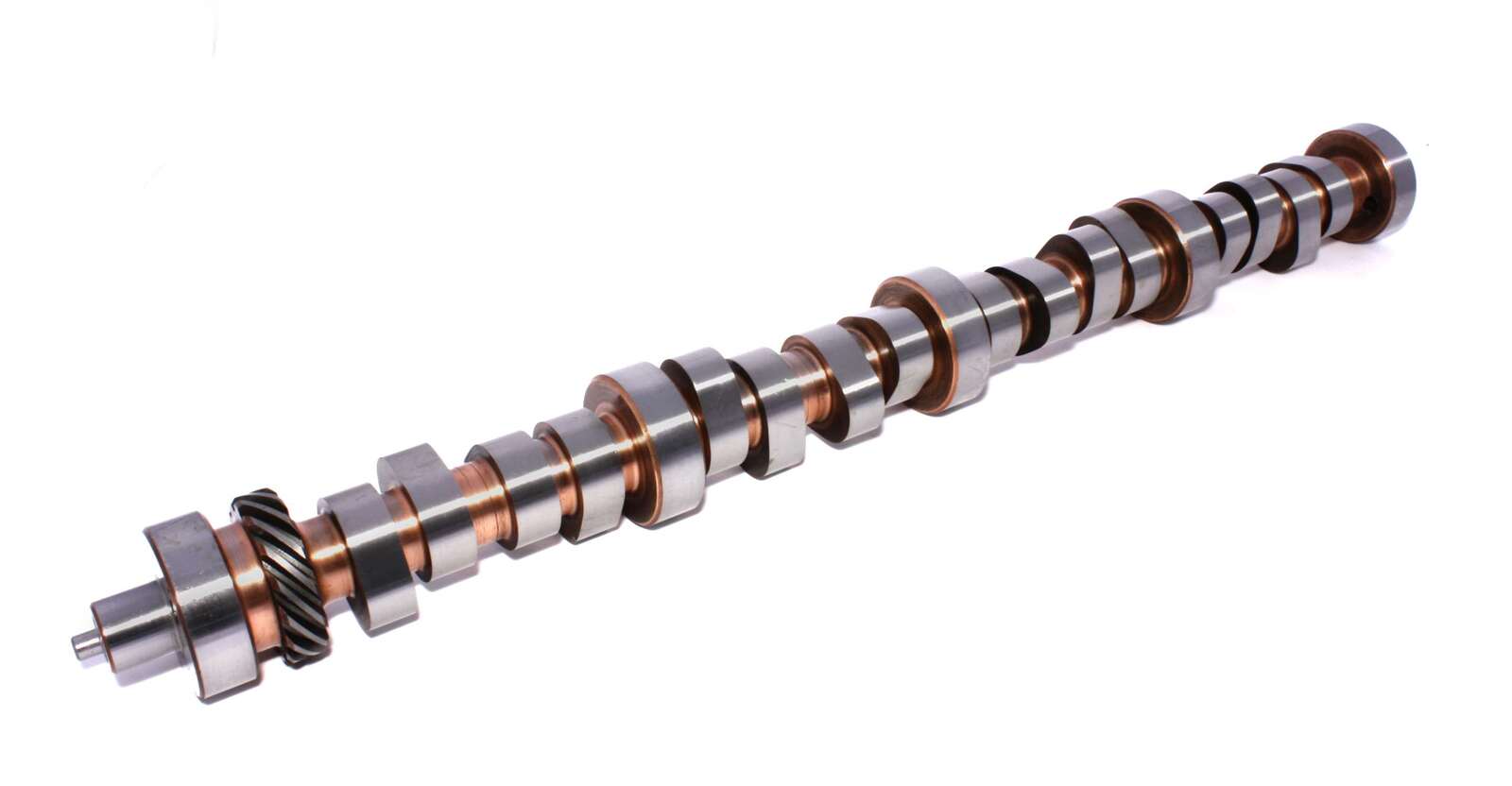

Xtreme Energy 218/224 Hydraulic Roller Camshaft Ford 429 460 Big Block
RPM Range: 1800-5400 - Towing & low end torque
or 4 payments of $209.93 with
Info
*FREE SHIPPING ON ORDERS OVER $200!
Description
34-422-9 COMP CAMS, FORD BIG BLOCK 429 460, HYDRAULIC ROLLER CAMSHAFT.
Great mid-range torque in performance street application, likes headers.
Engine Family:Ford 429, 460 c.i. 8 Cylinder (1968-1995)
RPM Operating Range:1,800-5,400
Grind Number:XR270HR
Cam Type:Hydraulic Roller
Lifter Style:Hydraulic Roller
Camshaft Series:Xtreme Energy
Usage:Street/Performance
California Proposition 65:WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov
Advertised Intake Duration:270
Advertised Exhaust Duration:276
Intake Duration at .050 Inch Lift:218
Exhaust Duration at .050 Inch Lift:224
Intake Valve Lift:0.521
Exhaust Valve Lift:0.521
Lobe Lift Intake:0.301
Lobe Lift Exhaust:0.301
Lobe Separation:110
Intake Centerline:106
Exhaust Close ATDC:25
Intake Open BTDC:28
Exhaust Open BBDC:71
Intake Close ABDC:62
Camshaft Gear Attachment:1-Bolt
Specifications
| SKU | 34-422-9 |
| Barcode # | 036584212317 |
| Brand | COMP CAMS |
| intake valve lift | 0.521 |
| Exhaust Valve Lift | 0.521 |
| Lifter Type | Hydraulic Roller |
| Advertised Exhaust Duration | 276 |
| Advertised Intake Duration | 270 |
| Cam Type | Hydraulic Roller |
| Exhaust Duration At .050 Inch Lift | 224 |
| Intake Duration At .050 Inch Lift | 218 |
| Lobe Separation | 110 |
| Camshaft Series | Xtreme Energy |
| Grind Number | XR270HR |
| Basic Operating Rpm Range | 1,800-5,400 |
| Lifters Included | No |
| Valve Springs Required | Yes |
| Camshaft Gear Attachment | 1-Bolt |
| Camshaft Material | Billet Steel |
