SKU: 54-469-11

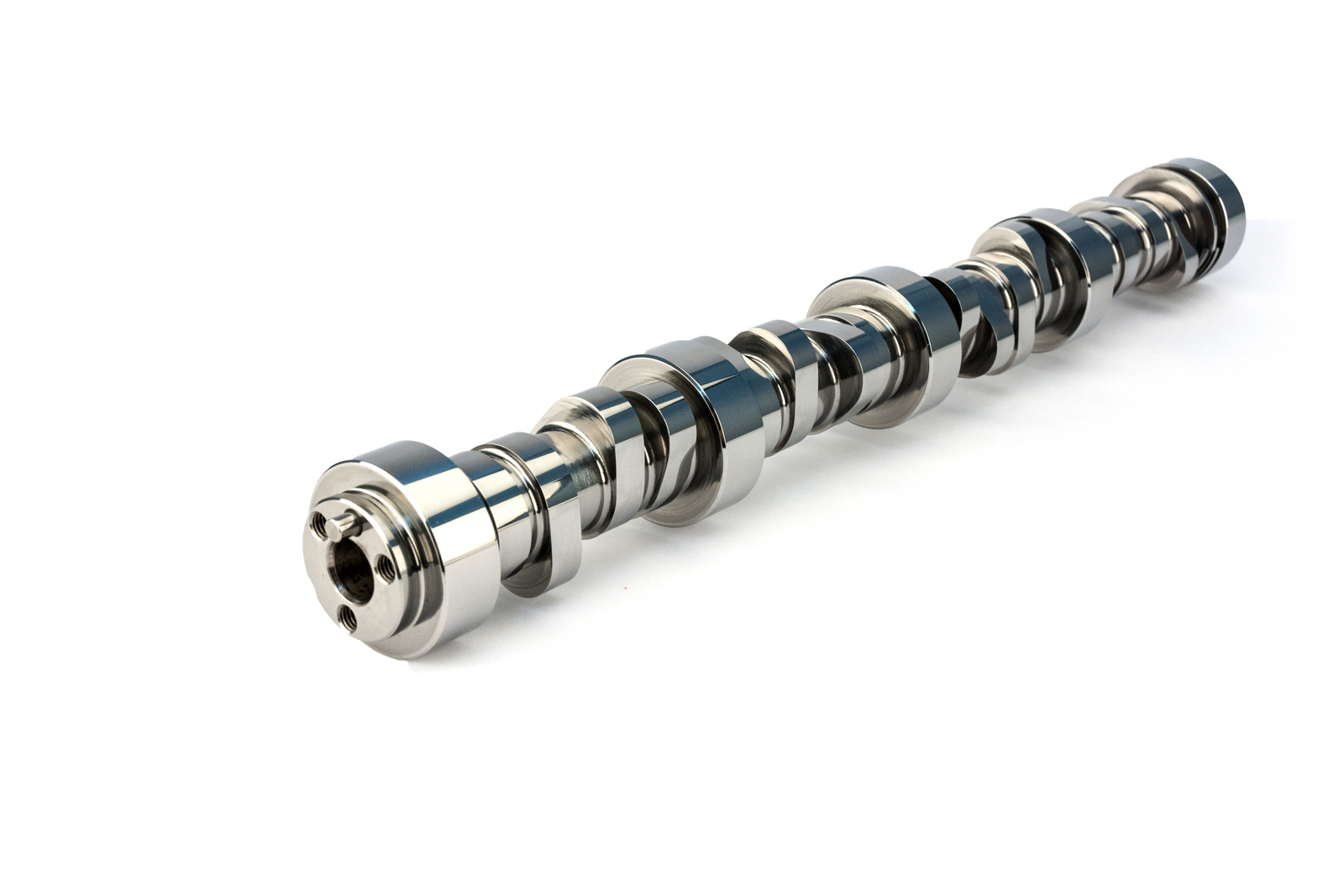

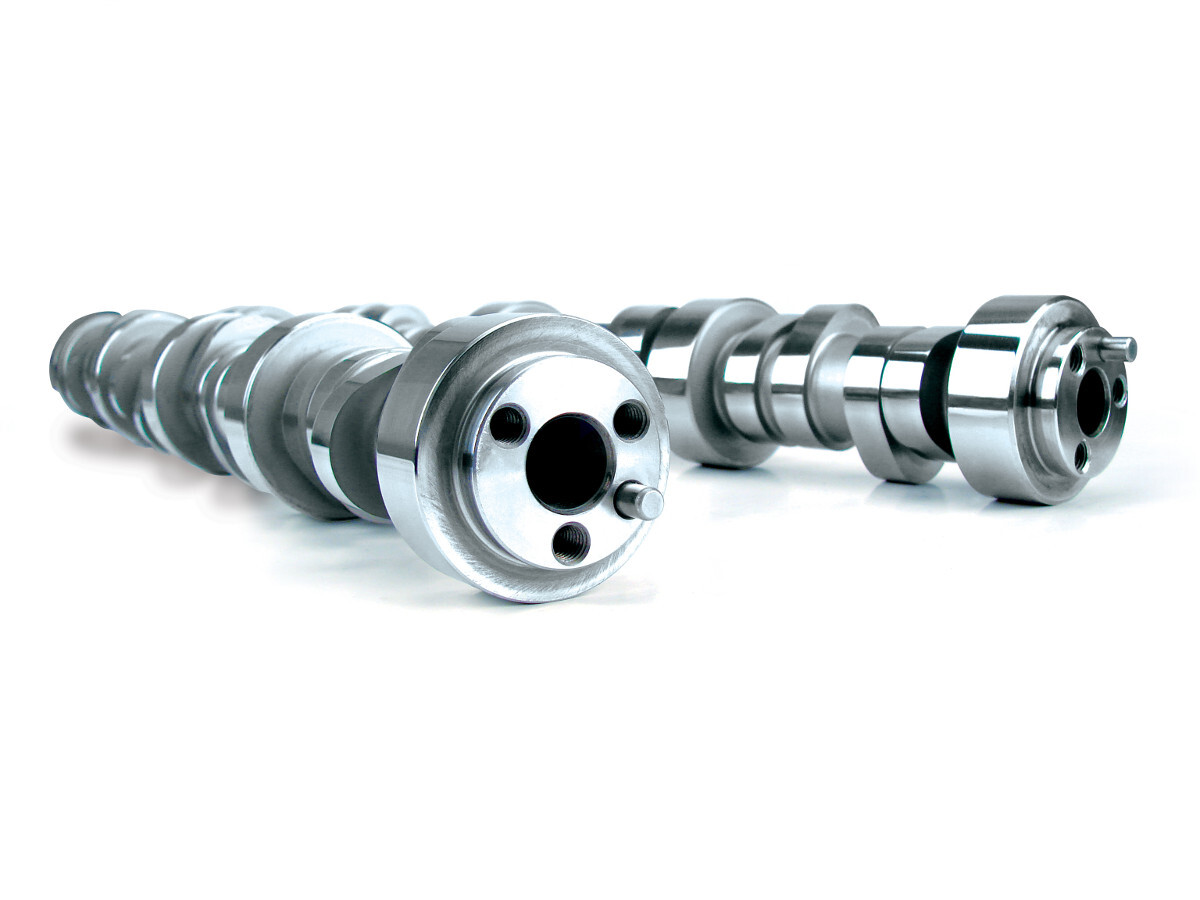

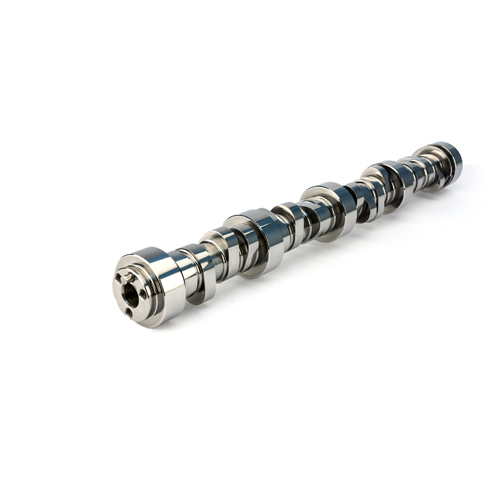

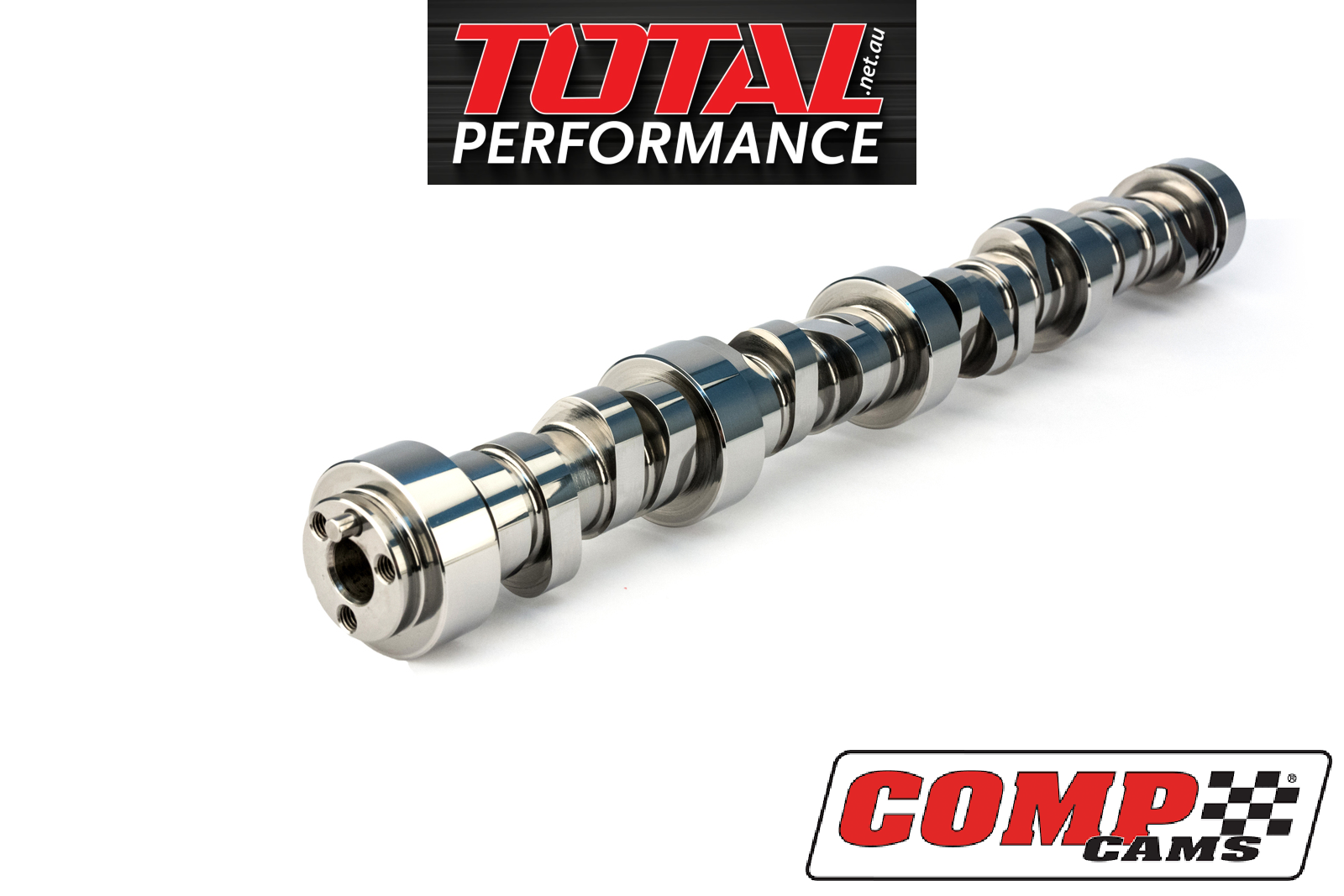

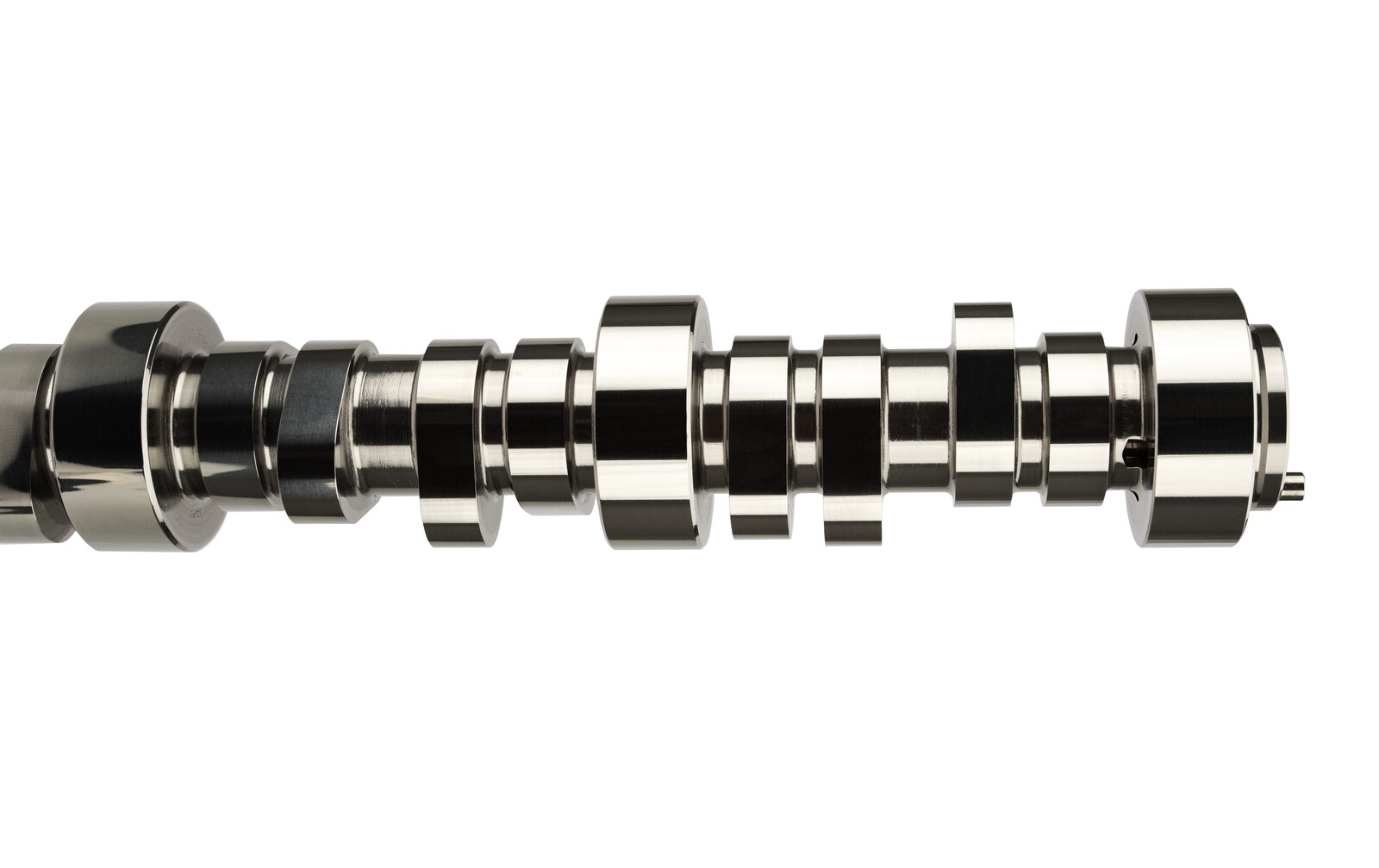

54-469-11 LSR Rectangular Port 231/247 LSA 113 Hydraulic Roller Cam for GM LS GEN III/IV

RPM Operating Range: 2,000-7,000


or 4 payments of $217.23 with Info

In Stock


Very wide power range and excellent mid-range torque for LS engines with rectangular port cylinder heads.


SKU 54-469-11
Barcode # 036584195313
Intake Valve Lift 0.617
Camshaft Gear Attachment 3-Bolt
Basic Operating Rpm Range 2,000-7,000
Lobe Separation 113
Cam Type Hydraulic Roller
Lifter Type Hydraulic Roller
Valve Springs Required Yes
Grind Number 281LRR HR-13
Intake Duration At .050 Inch Lift 231
Advertised Intake Duration 281
Exhaust Valve Lift 0.624
Camshaft Material Billet Steel
Lifters Included No
Camshaft Series LSR Rectangular Port All Out Power
Exhaust Duration At .050 Inch Lift 247
Advertised Exhaust Duration 297
