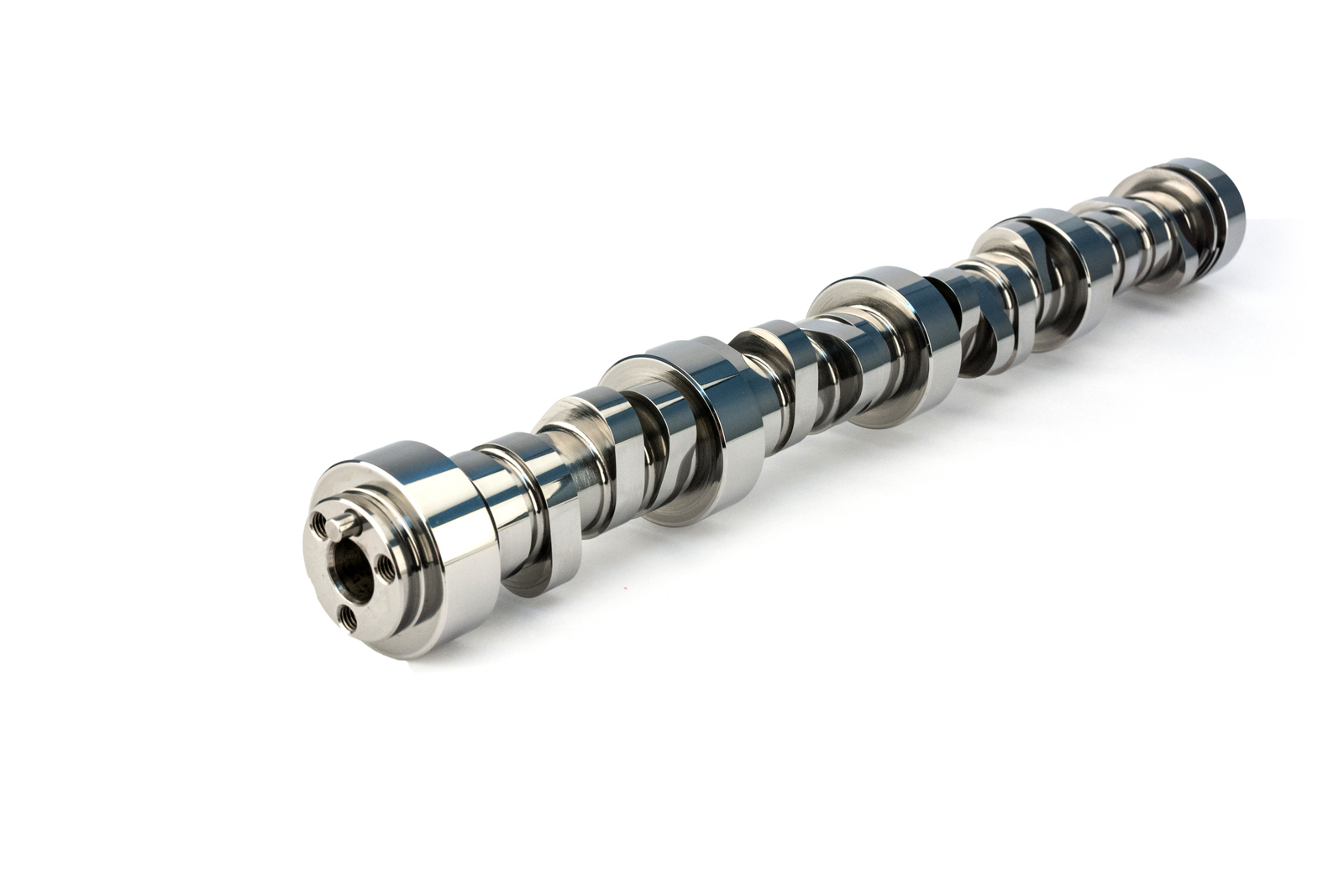

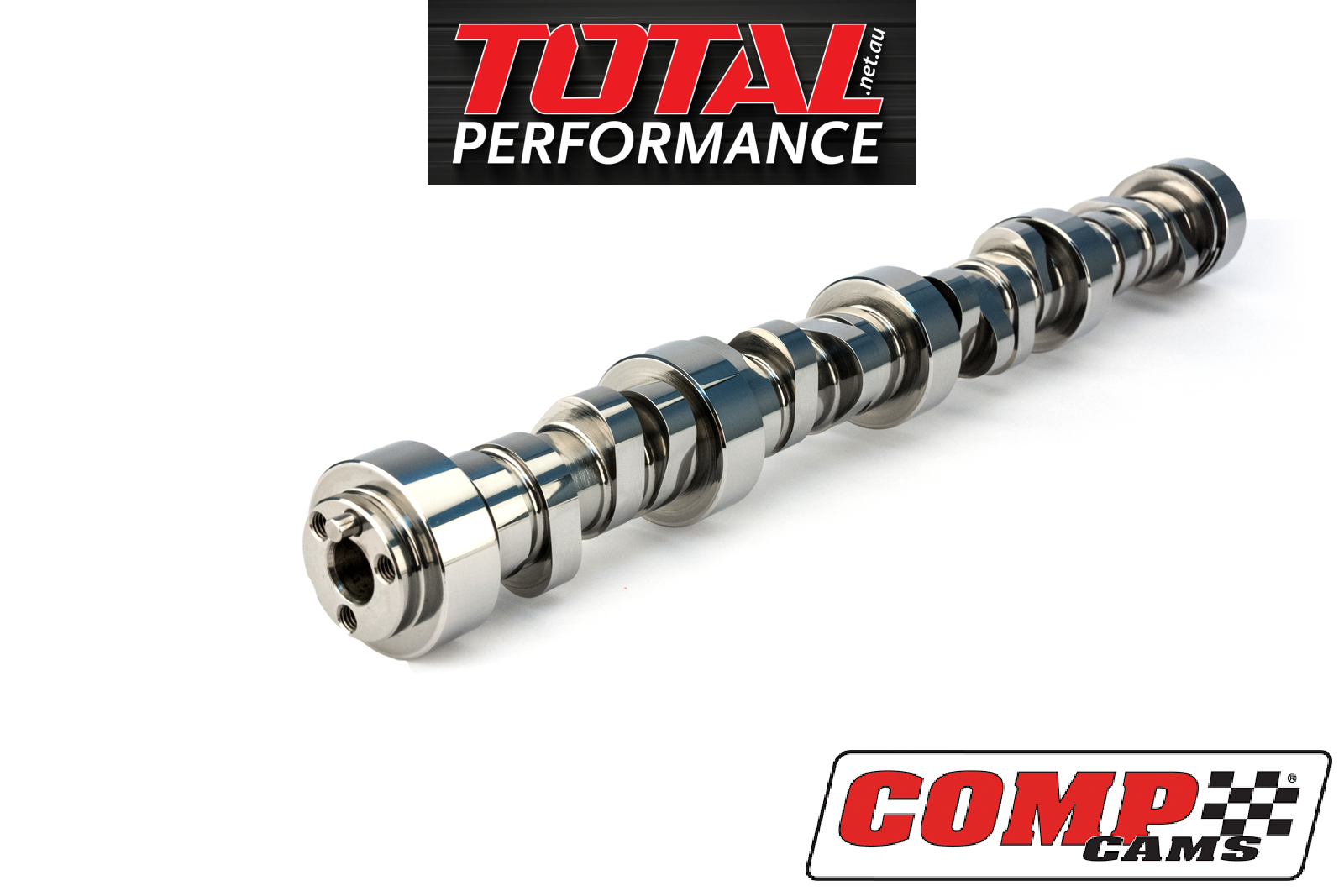

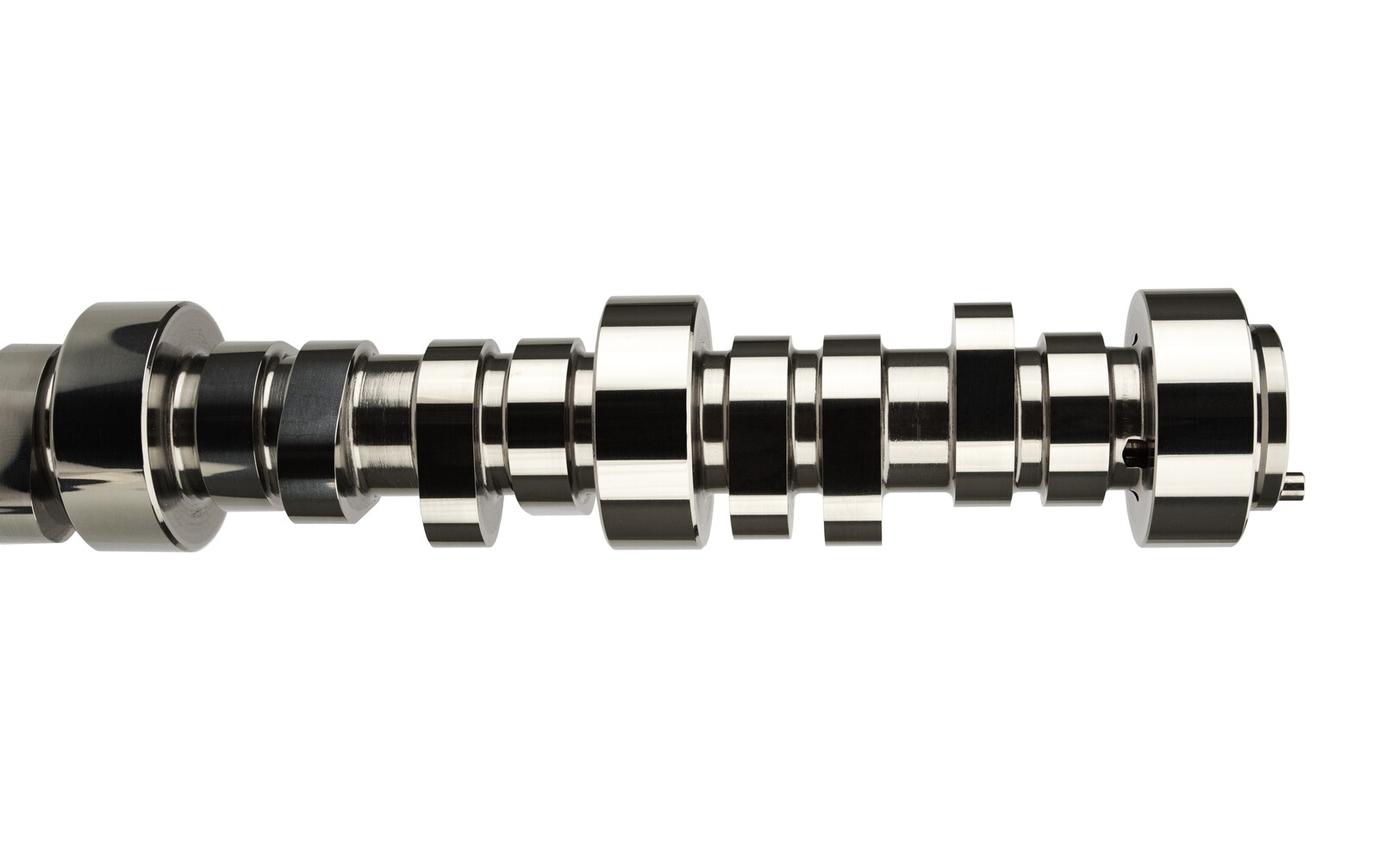

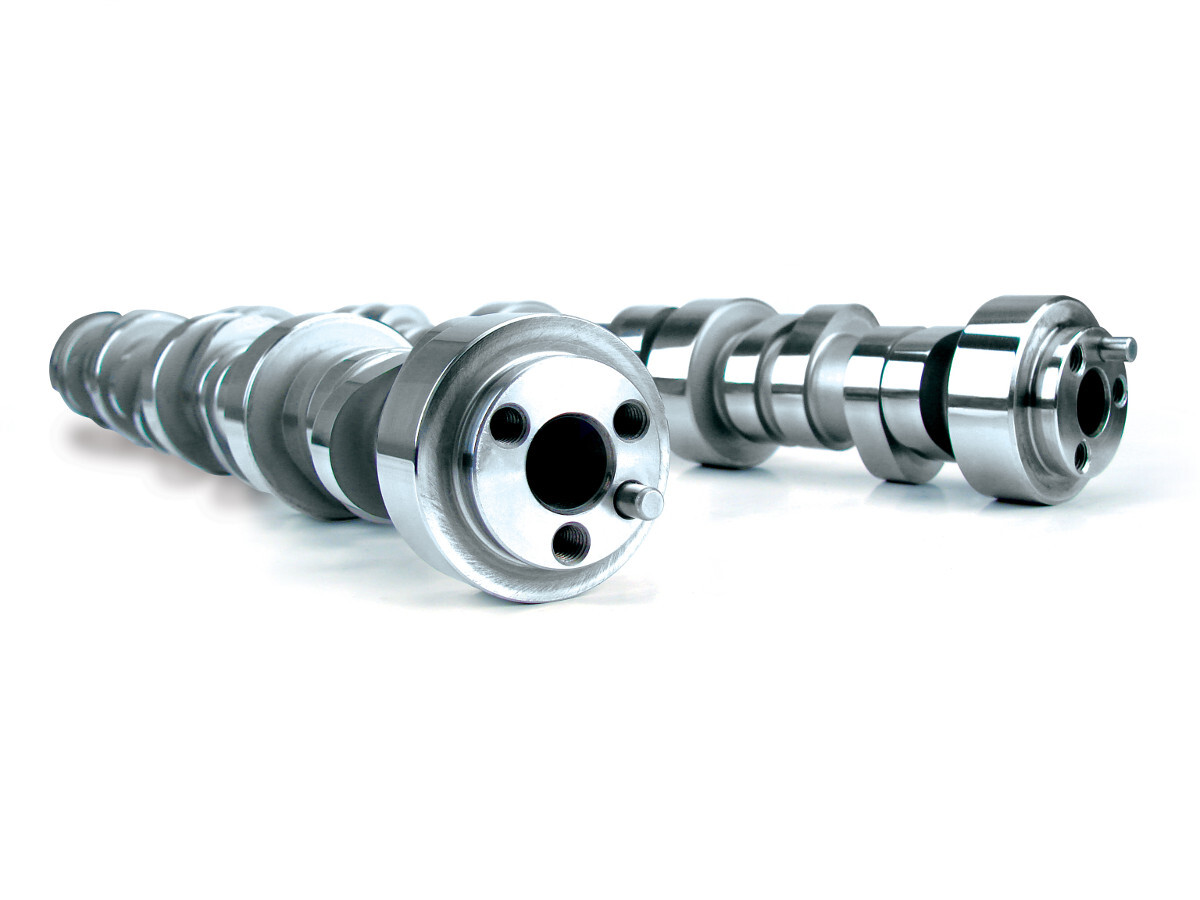

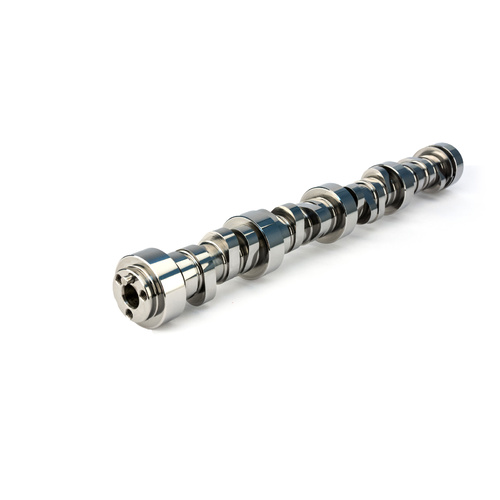

LS2 LS3 Rectangular Port 235/251 LSA 113 .621".624" Hydraulic Roller Cam for GM LS GEN III/IV

SKU: 54-470-11

LS2 LS3 Rectangular Port 235/251 LSA 113 .621".624" Hydraulic Roller Cam for GM LS GEN III/IV

RPM Operating Range: 2,200-7,200

RRP $962.50 SAVE $297.00 (31%)
$665.50

or 4 payments of $166.38 with Info

IN STOCK  FREE SHIPPING

*FREE SHIPPING ON ORDERS OVER $200!

Description

Very strong from mid-range to high end torque and horsepower for LS engines with rectangular port cylinder heads.

Specifications

SKU 54-470-11
Barcode # 036584195320
Brand COMP CAMS
intake valve lift 0.621
Exhaust Valve Lift 0.624
Lifter Type Hydraulic Roller
Advertised Exhaust Duration 301
Advertised Intake Duration 285
Cam Type Hydraulic Roller
Exhaust Duration At .050 Inch Lift 251
Intake Duration At .050 Inch Lift 235
Lobe Separation 113
Camshaft Series LSR Rectangular Port All Out Power
Grind Number 285LrR HR-13
Basic Operating Rpm Range 2,200-7,200
Lifters Included No
Valve Springs Required Yes
Camshaft Gear Attachment 3-Bolt
Camshaft Material Billet Steel
