SKU: 51-233-4

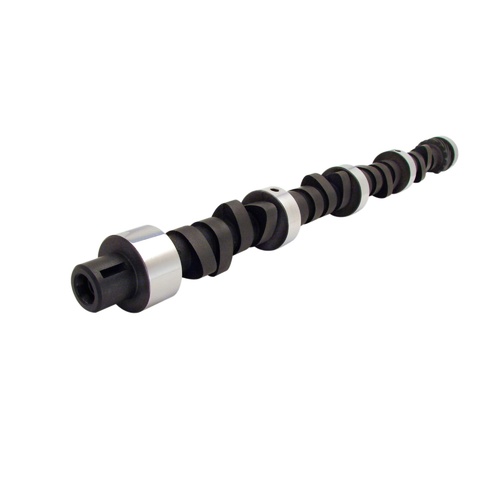

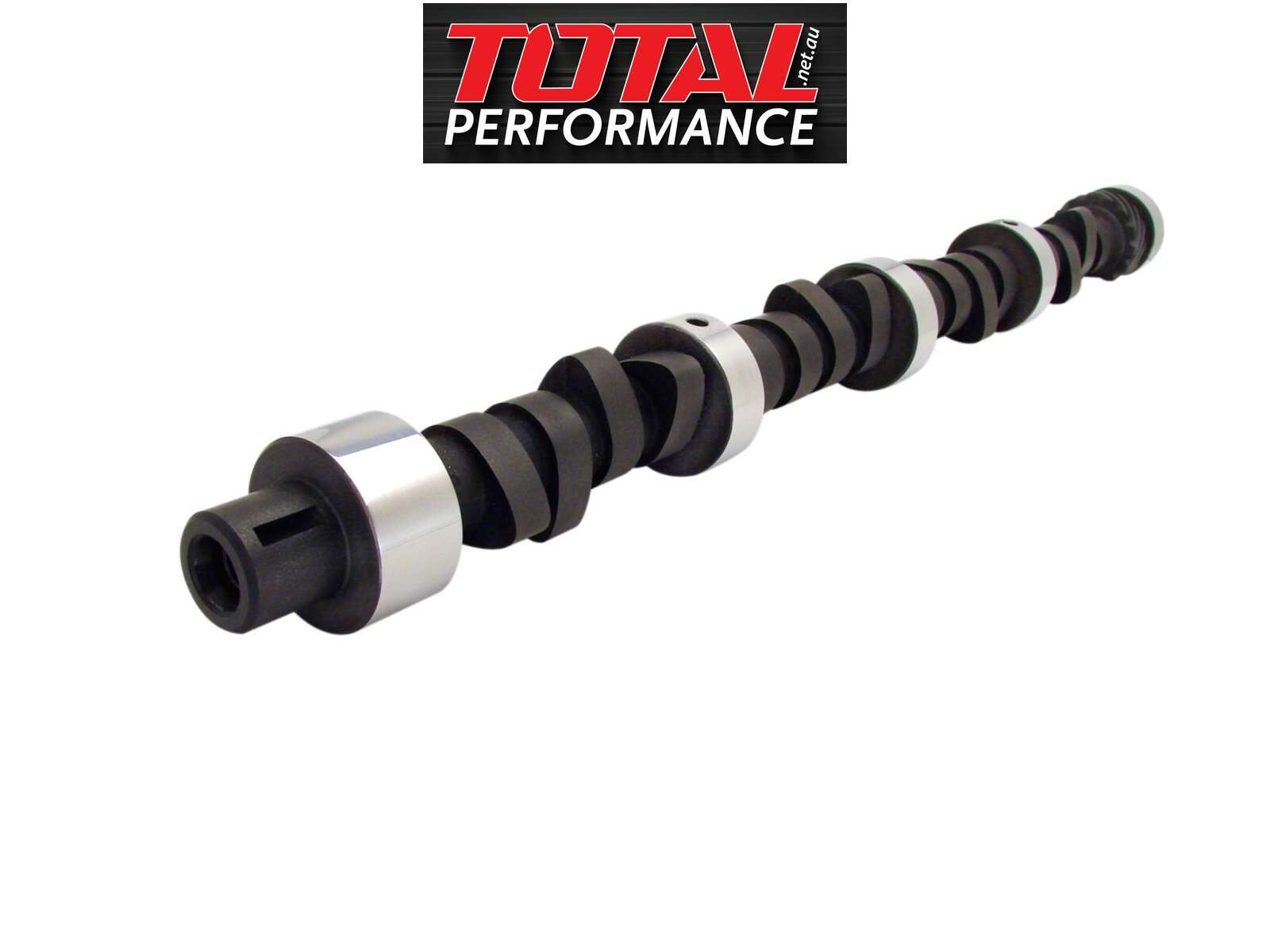

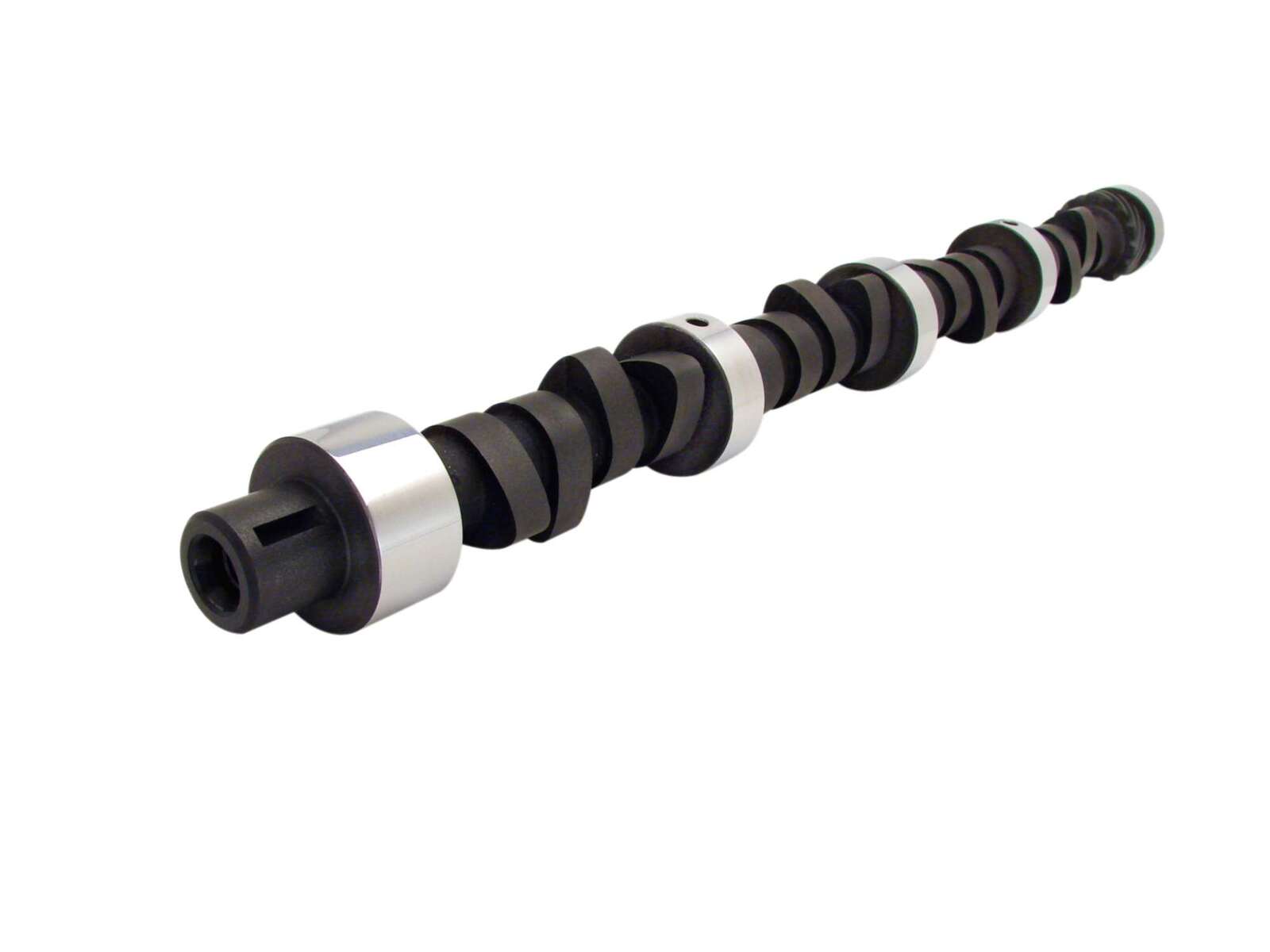

51-233-4 Magnum 224/224 Hydraulic Flat Cam for Pontiac 265-455

$280.59

or 4 payments of $70.15 with Info

Sold Out

Description

Fair idle, good mid-range torque. Can use stock torque converter, best with 2000+ stall. Daily performance use.

Specifications

SKU 51-233-4
Barcode # 036584520443
Brand COMP CAMS
Lifters Included No
Camshaft Series Magnum
Exhaust Duration At .050 Inch Lift 224
Advertised Exhaust Duration 270
intake valve lift 0.476
Camshaft Gear Attachment 1-Bolt
Basic Operating Rpm Range 1,800-5,800
Lobe Separation 110
Cam Type Hydraulic Flat Tappet
Lifter Type Hydraulic Flat Tappet
Valve Springs Required Yes
Grind Number 270H
Intake Duration At .050 Inch Lift 224
Advertised Intake Duration 270
Exhaust Valve Lift 0.476
Camshaft Material Cast Iron
