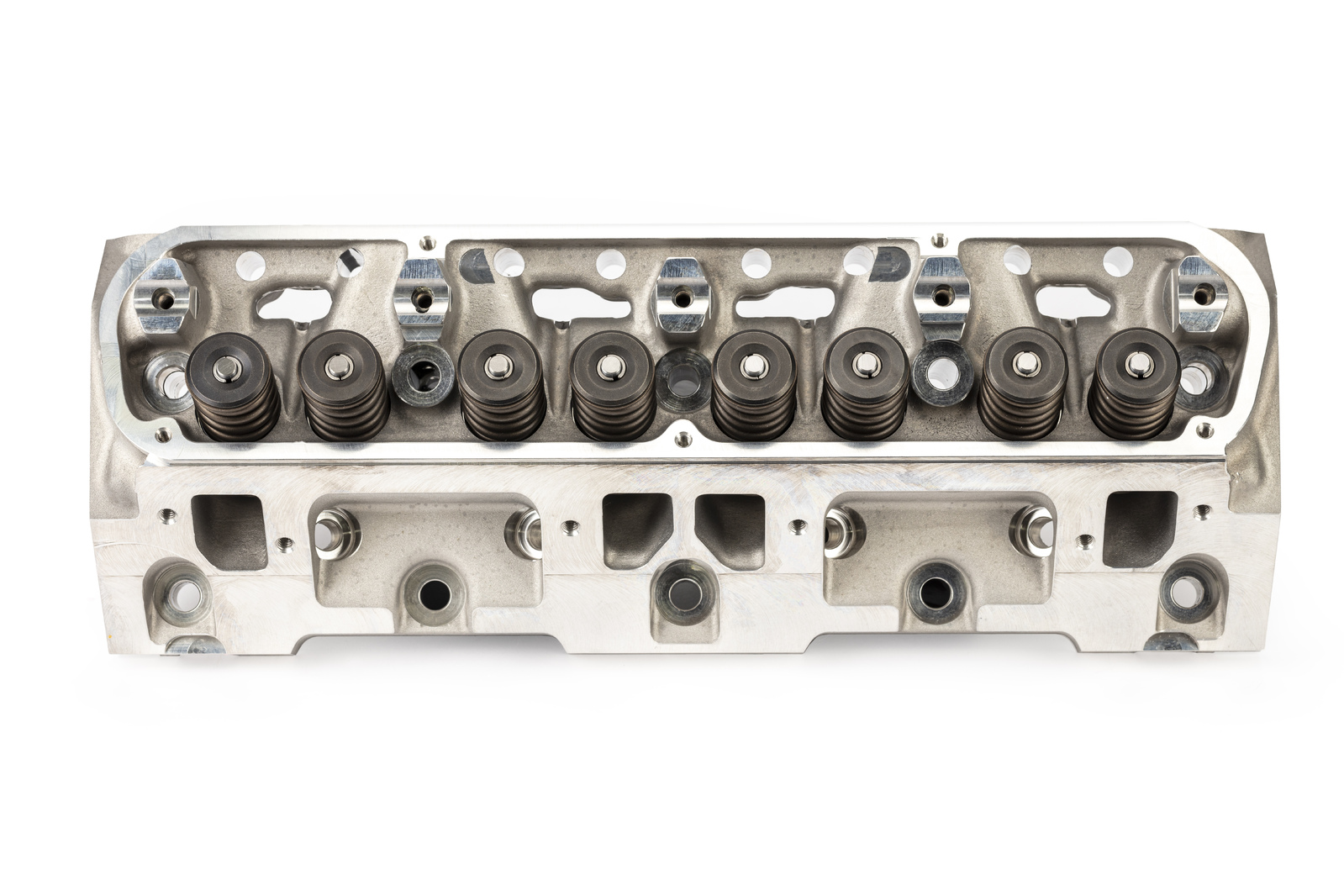

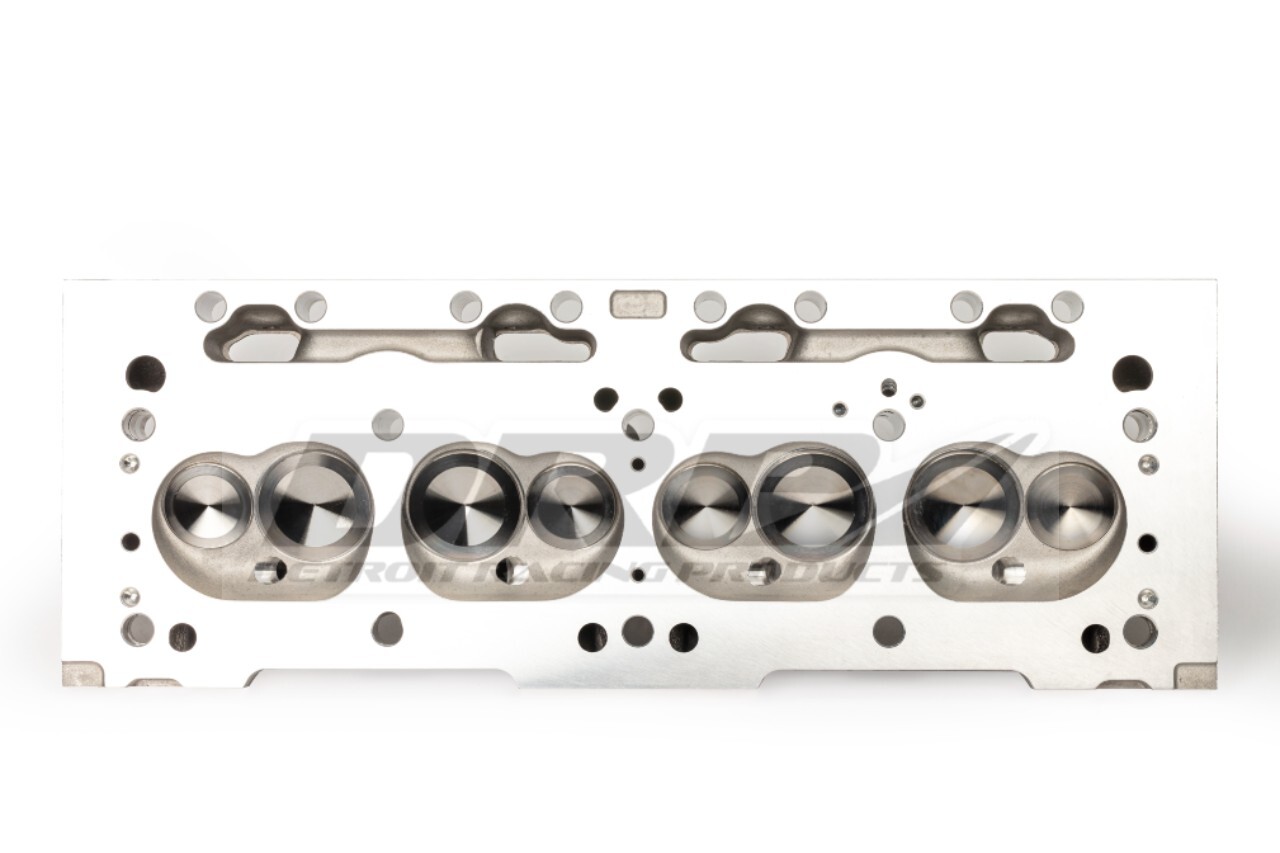

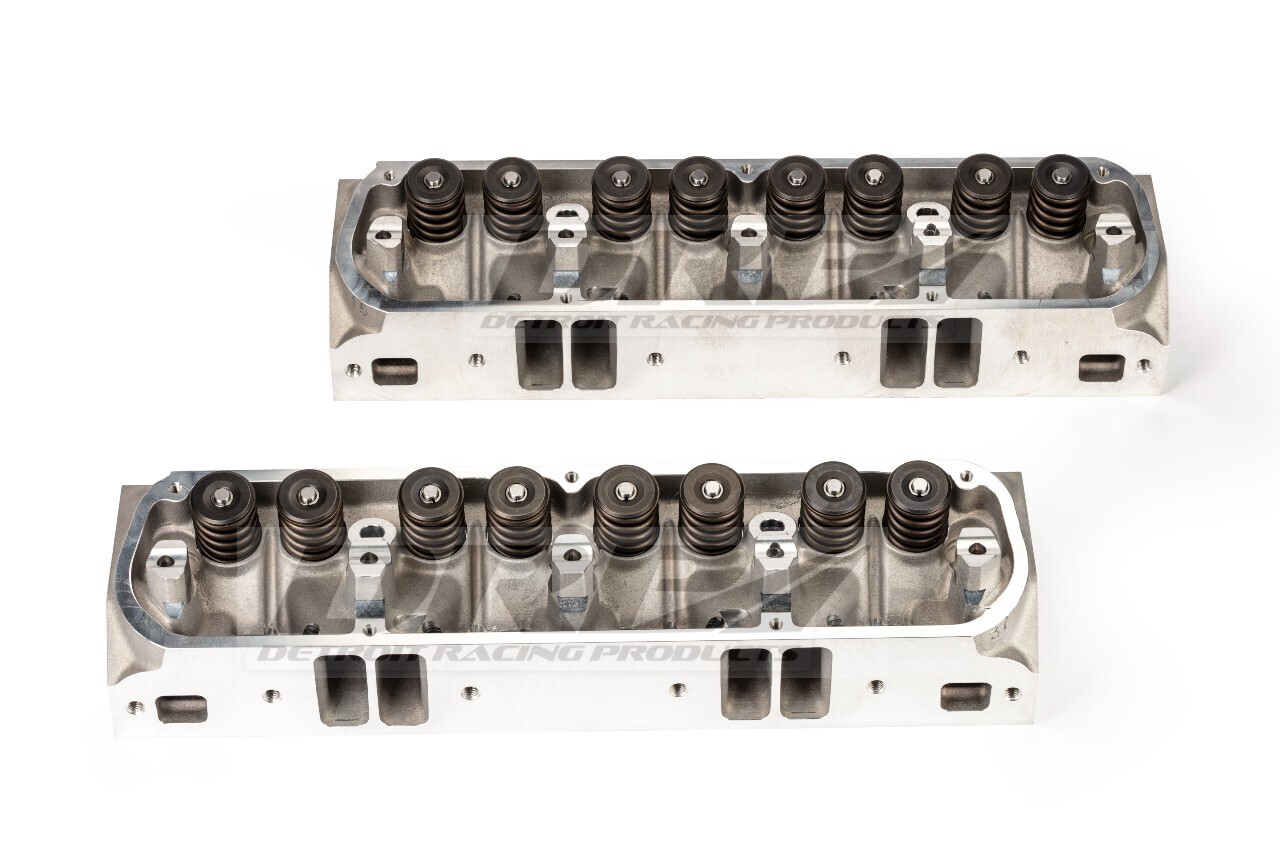

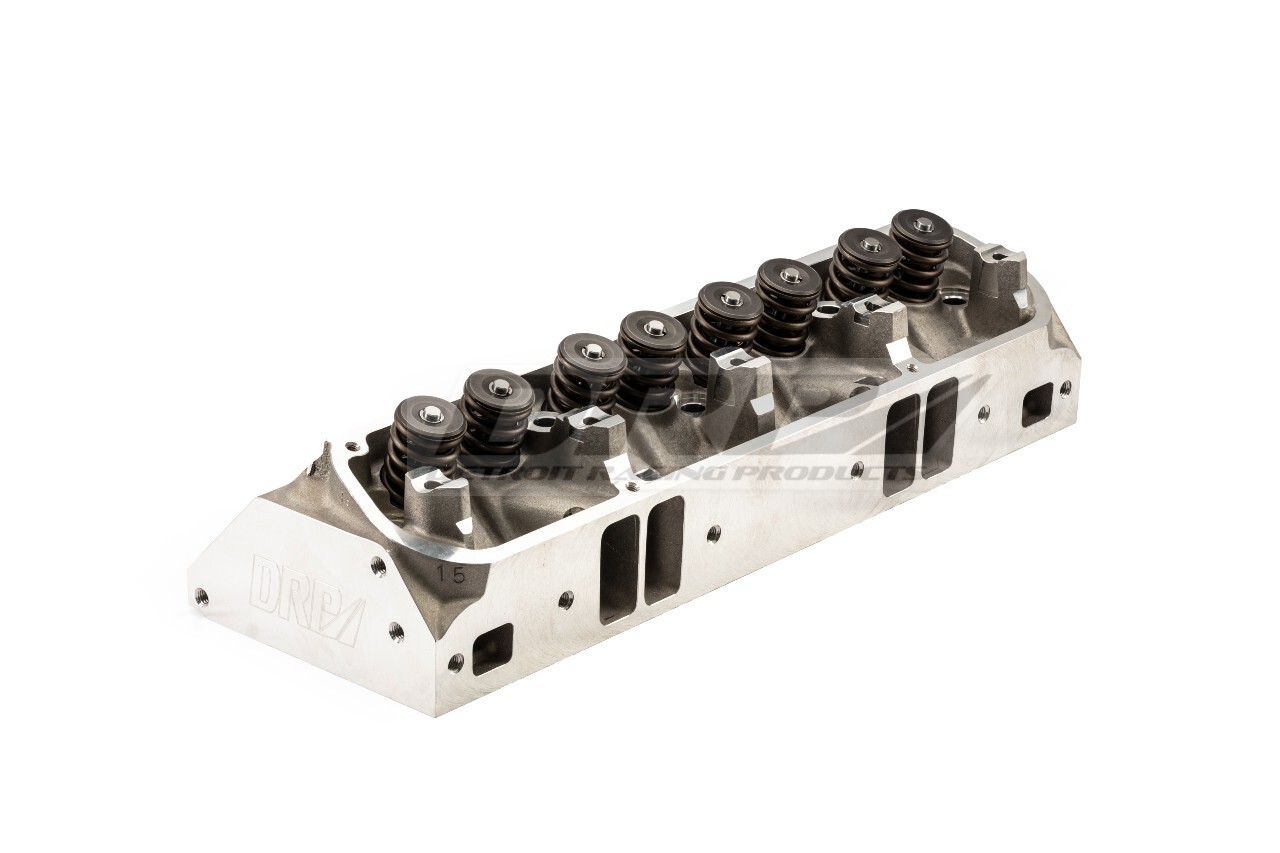

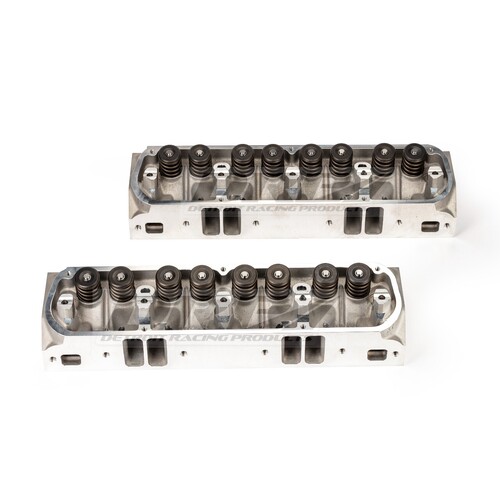

Chrysler Mopar Small Block V8 Cylinder Heads 318 340 360 170cc Runner 63cc Chamber Assembled Complete Hydraulic Roller / Solid Flat Tappet

Valves:                                        DRP 5000

Springs:                                      Comp Cams @

Cylinder Head Material:                Aluminium A356.2 T6

Combustion Chamber Volume:    63cc

Intake Runner Volume:                 170cc

Exhaust Runner Volume:              77cc

Intake Valve Diameter:                 2.02''

Exhaust Valve Diameter:              1.60''

Valve Stem Diameter:                  11/32''

Valve Guides:                               Manganese Bronze

Deck Thickness:                           5/8''

Valve Spring Diameter:                xxx

Valve Spring Maximum Lift:       xxxx

Valve Angle:                                 18°

Exhaust Port Location:                 Stock

Spark Plug Fitment:                     14mm x 3/4'' Reach, Gasket Seat

Head bolts:                               use ARP 144-3601
