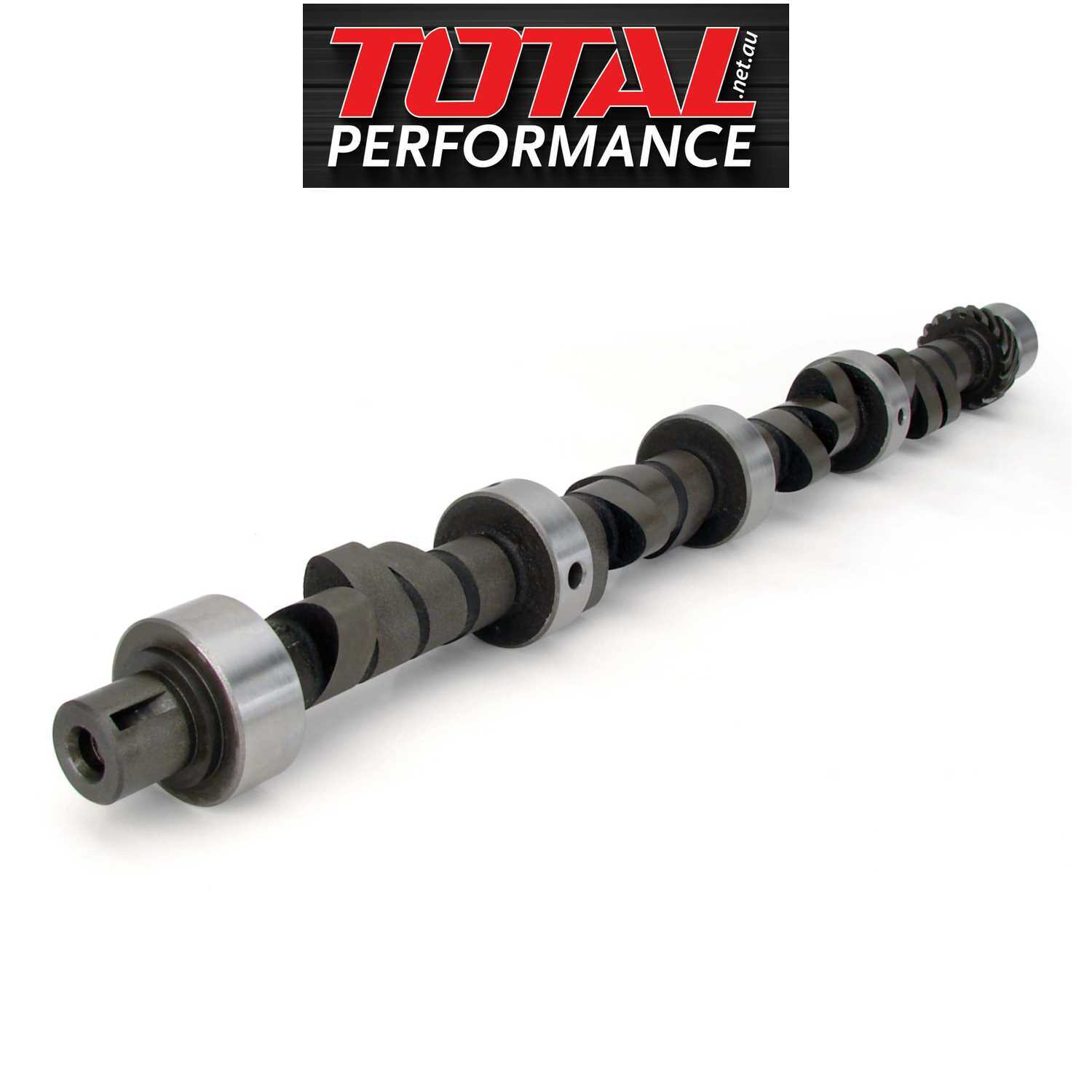

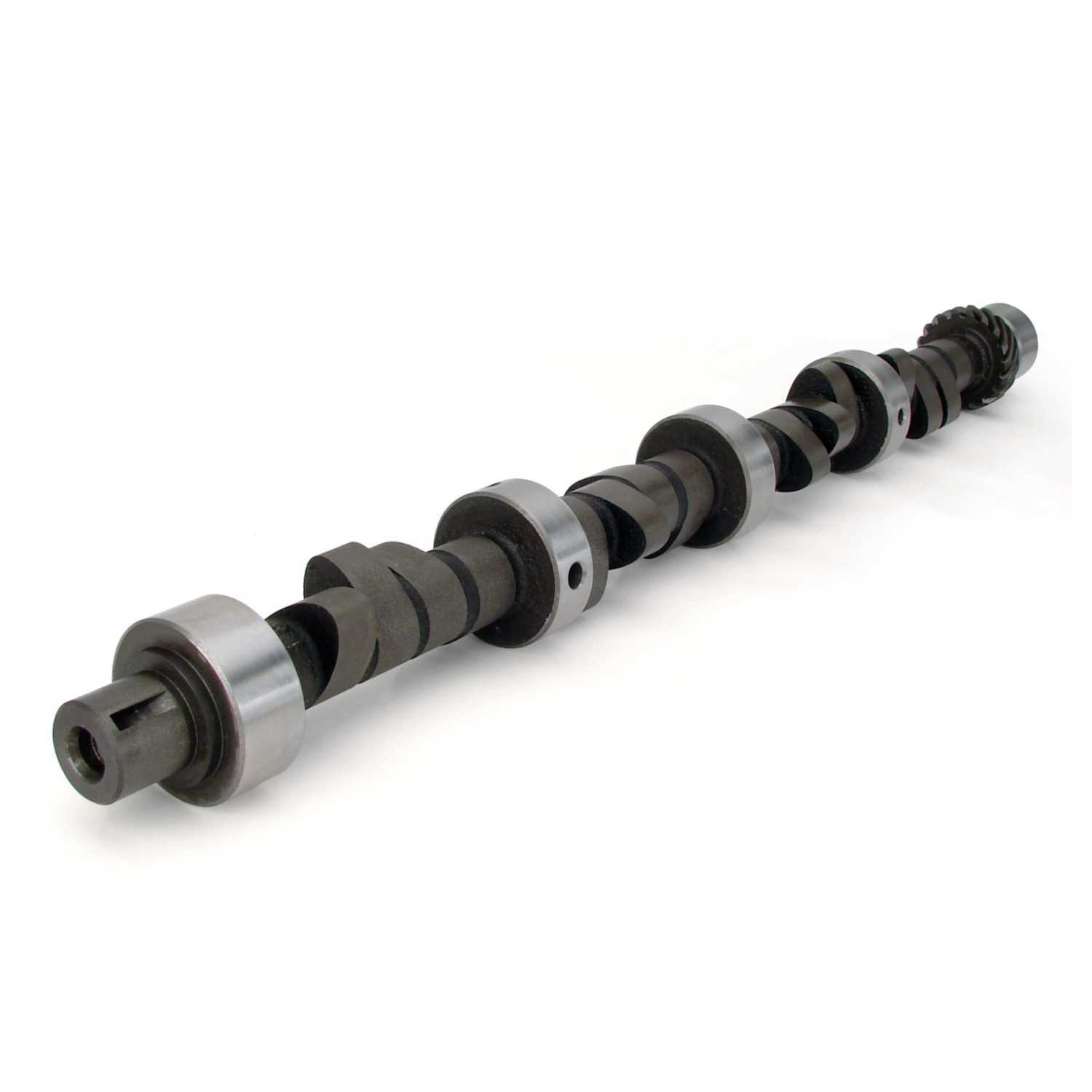

XE274H Xtreme Energy 230/236 Hydraulic Flat Tappet Camshaft Chrysler 318 340 360

Description

Very strong torque and throttle response, 2200+ stall.

Specifications

SKU	20-224-4
Barcode #	036584046967
Brand	COMP CAMS
intake valve lift	0.488
Exhaust Valve Lift	0.491
Lifter Type	Hydraulic Flat Tappet
Advertised Exhaust Duration	286
Advertised Intake Duration	276
Cam Type	Hydraulic Flat Tappet
Exhaust Duration At .050 Inch Lift	236
Intake Duration At .050 Inch Lift	230
Lobe Separation	110
Camshaft Series	Xtreme Energy
Grind Number	XE274H
Basic Operating Rpm Range	1,800-6,000
Lifters Included	No
Valve Springs Required	Yes
Camshaft Gear Attachment	1-Bolt
Camshaft Material	Cast Iron
