SKU: 20-228-4

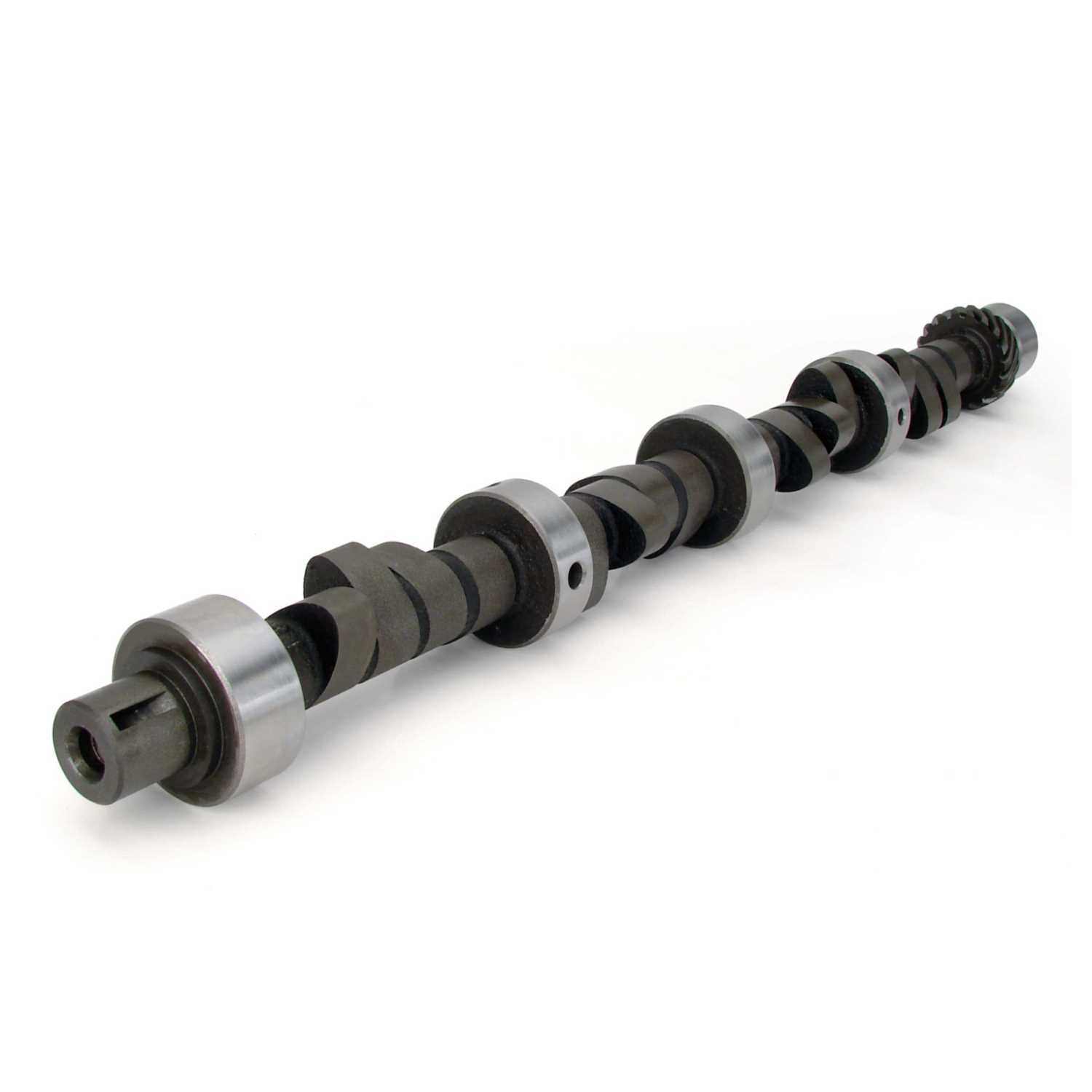

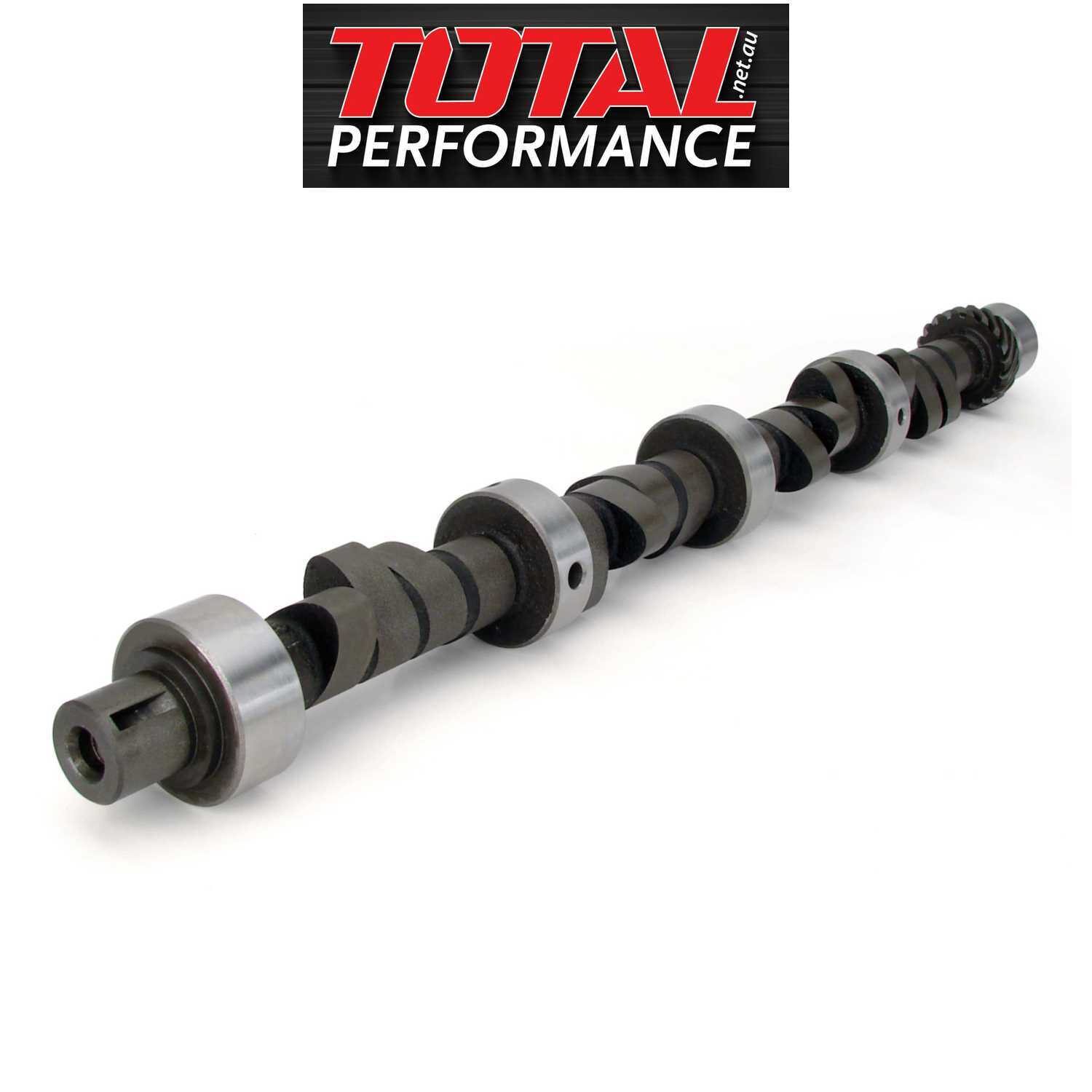

20-228-4 Xtreme Energy HI-LIFT 241/247 Hydraulic Flat Cam for Chrysler 273-360


or 4 payments of $93.35 with Info

In Stock


Serious street/strip cam. Strong mid-range and upper RPM power. Hi-lift design to take advantage of ported heads and single plane intake, 3000+ stall with 9.5:1 compression.


SKU 20-228-4
Barcode # 036584078296
Intake Valve Lift 0.545
Camshaft Gear Attachment 1-Bolt
Basic Operating Rpm Range 2,500-6,500
Lobe Separation 110
Cam Type Hydraulic Flat Tappet
Lifter Type Hydraulic Flat Tappet
Valve Springs Required Yes
Grind Number XE285HL
Intake Duration At .050 Inch Lift 241
Advertised Intake Duration 285
Exhaust Valve Lift 0.545
Camshaft Material Cast Iron
Lifters Included No
Camshaft Series Xtreme Energy Hi-Lift
Exhaust Duration At .050 Inch Lift 247
Advertised Exhaust Duration 297
