FORD Coyote & Modular 4.6L, Connecting Conrods, Rods H BEAM ARP 2000 (Mustang)

Scat Ford Modular 4.6L & Coyte Conrod upgrade.

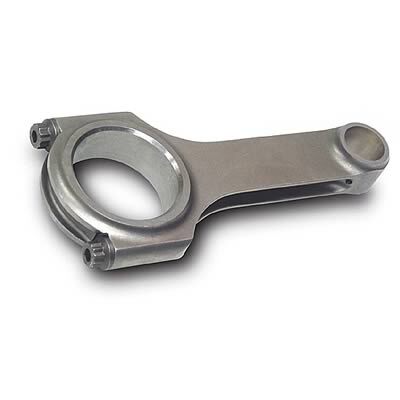

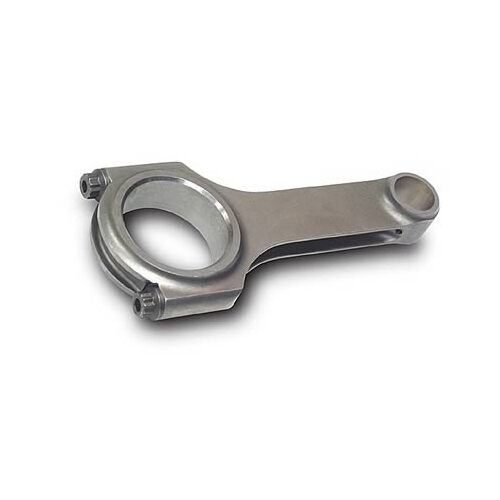

 Pro Sport Series H-Beam Connecting Rods

These Scat H-beam connecting rods are the strongest Scat connecting rods available by Scat. These Scat H-beam connecting rods are perfect for supercharged and nitrous applications. These rods incorporate a special doweled cap for specific cap-to-rod alignment and are profiled with extra clearance for stroker applications. Forged 4340 material with ARP 7/16 8740 rod bolts make them very strong and affordable. H Beam rods with ARP 8740 Bolts are rated to 750 horsepower on small blocks and 850 on big blocks, ARP 2000 bolt upgrade brings the rating up to 1000 horsepower on small blocks, and 1200 on big blocks.
Fits Ford 4.6L, 5.933 Length, 4340 Forged Steel, 2.086 Rod Journal, .866 Bushed Full Floating Wrist Pin, ARP 2000 3/8 Cap Screw Rod Bolts, Set of 8

Part Type: Connecting Rods

Model: 2-46L-5933A
Product Line: Scat Pro Sport H-Beam Connecting Rod
Connecting Rod Length Center to Center (in.): 5.933 in.
Connecting Rod Beam Style: H-beam
Connecting Rod Material: Forged 4340 steel
Wrist Pin Style: Floating
Pin End Bore Diameter: 0.866 in.
Big End Bore Diameter (in.): 2.0860
Quantity: Sold as a set of 8.
Cap Retention Style: Cap screw
Big End Width (in.): 0.940
Clearanced for Stroker: No
Connecting Rod Bolt Brand: ARP
Connecting Rod Bolt Diameter: 3/8 in.
Connecting Rod Bolt Material: 8740 chromoly steel
Fastener Tensile Strength (psi): 180,000 psi
Connecting Rod Bolt Head Style: 12-point
Weight Matched Set: Yes
Remanufactured: No
Magnafluxed: No
Connecting Rod Color: Shot-peened and tumbled
