Hydraulic Roller Installation lifter Tin Spider tray Kit OEM Roller Ford 302W 5.0L Windsor late EB AU V8 Falcon & 351 Cleveland SBF

DRP hydraulic roller lifter tray & installation kit. Provides a complete, convenient solution for the installation of Non Linkbar hydraulic roller lifters into Ford 302/5.0 HO with OEM hydraulic roller camshafts & 351 Cleveland* & ealry Windsor blocks.

DRP has made these easy to fit conversion kits containing all of the necessary pieces to help you smoothly install OEM "drop in type" hydraulic roller lifters in your Windsor & 351C Cleveland.

This Drop in kit for 5.0L originally equipped with a hydraulic roller cam. This kit can also be "Retro Fitted" to suit the early 302W Blocks & 351C Cleveland blocks with slight modification*.

Each kit contains all required hardware and all components are new.

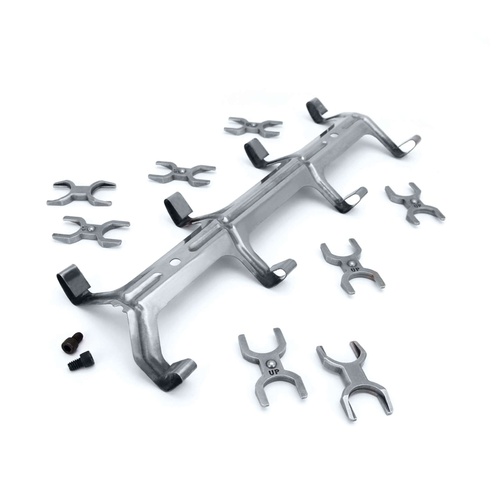

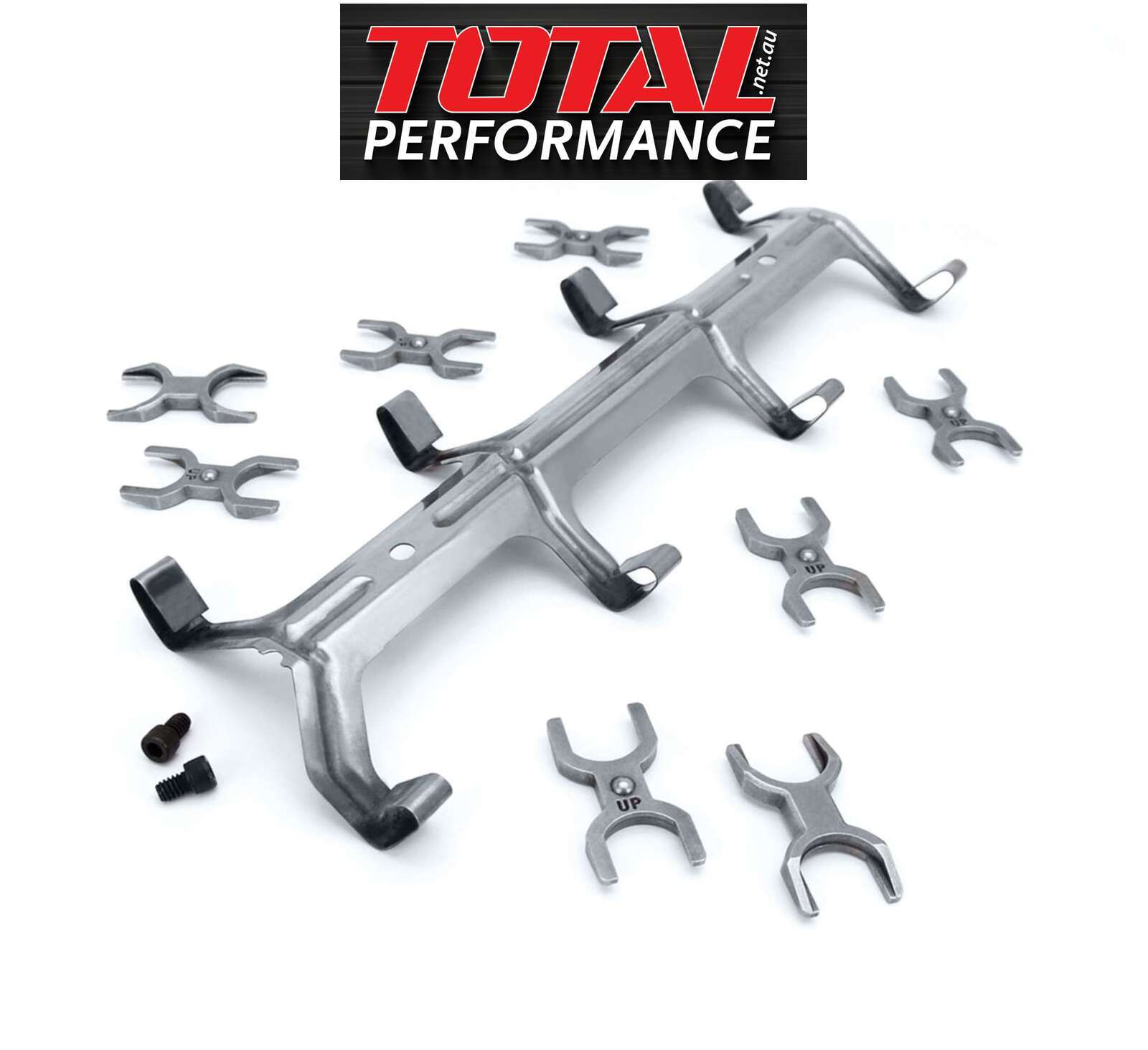

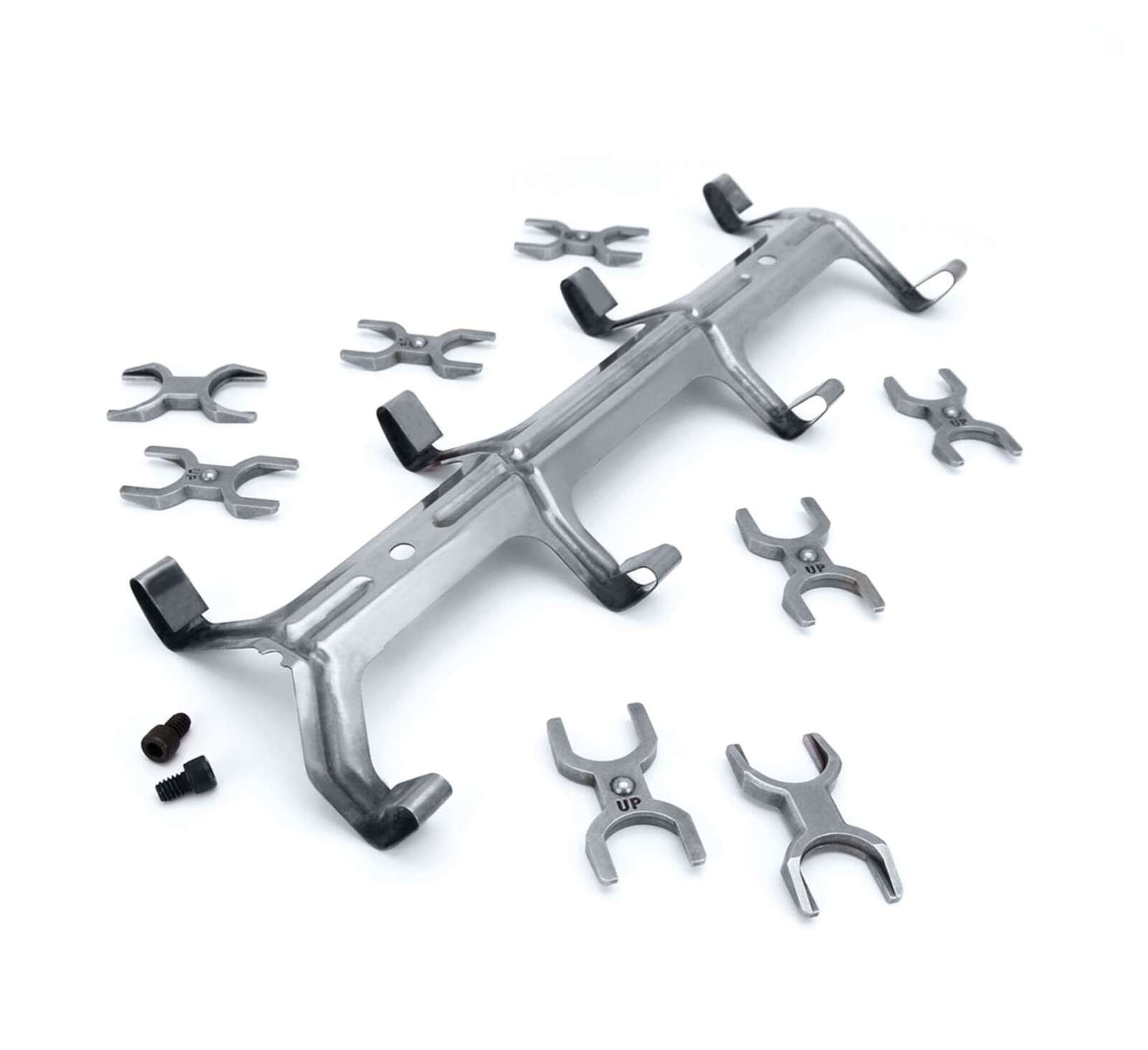

DRP DRP-SBFHR-KIT Specifications & Contains:

• (8) Lifter Guides
• (1)Tray - Lifter Retainer
• (2) Retainer Bolts

*Lifter Tray kit Installation Notes

• 302W & 351W Early Blocks will need 2 x small holdes drilled & tapped so you can secure the tin steel tray in the valley.
• *351C - you will need to drill 2 x small holes & tapped in the valley to screw the spring steel tray too. Also some Cleveland blocks need the lifter valley side walls to be clearanced with a burr so the dog bones can sit flat onto the lifter face. Some blocks have the XXX cast into the side walls and these need removing.
