SKU: 26987-16

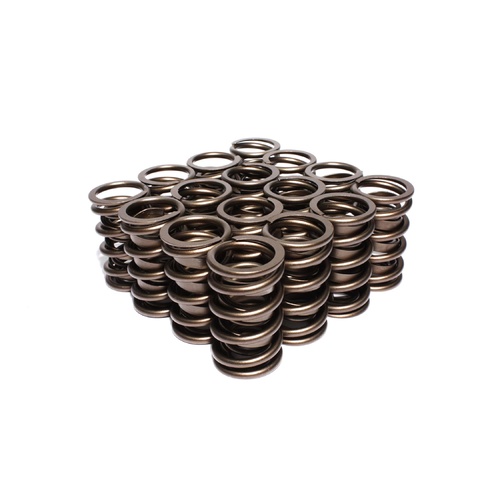

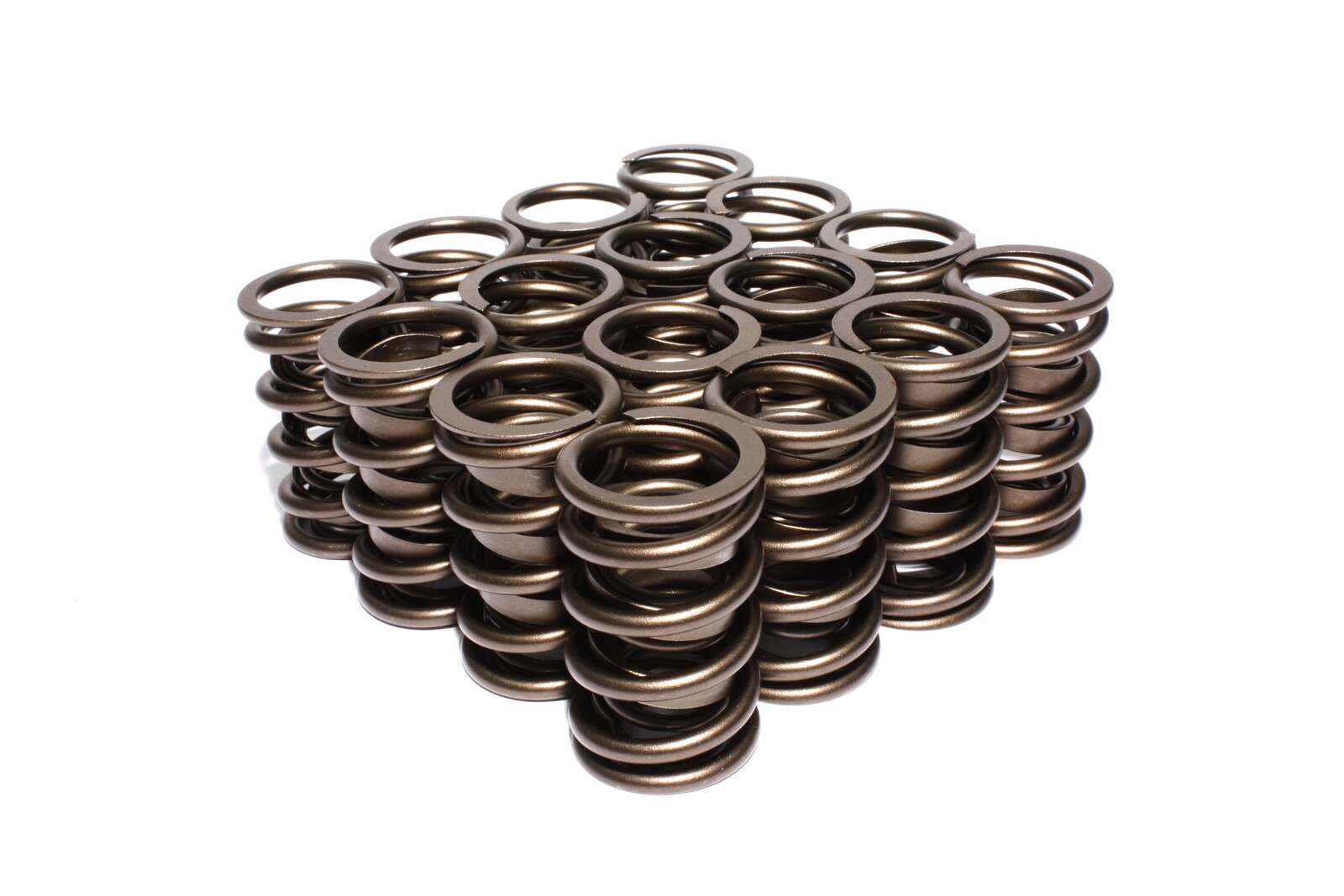

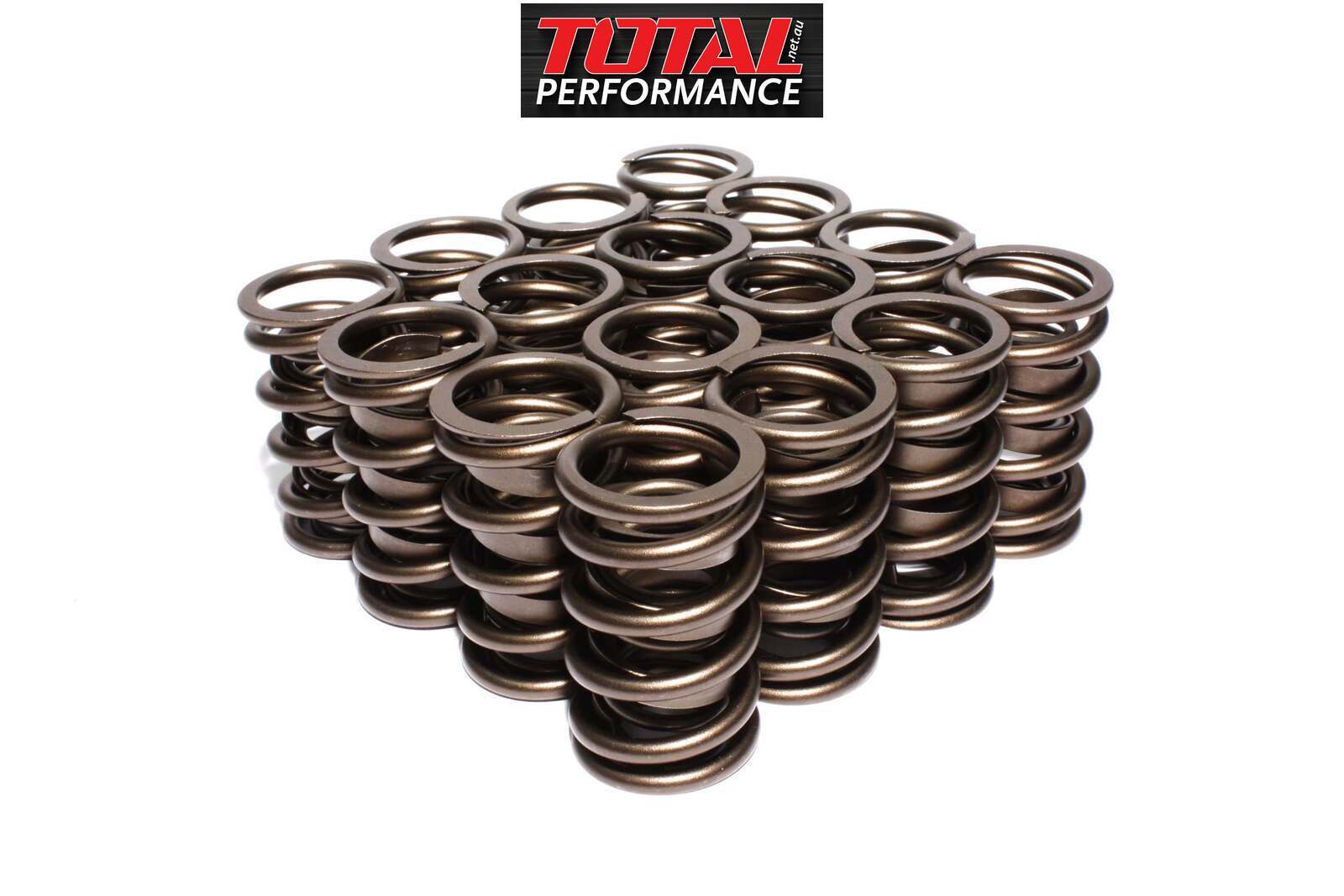

Dual Engine Valve Springs - Hydraulic Roller, 120lbs@1.800", 366lbs rate SBC Chevy 350 302 SBF Windsor Chrysler 360,

Suits Hydraulic Roller + Solid Flat tappet.

$234.17

or 4 payments of $58.54 with Info

SOLD OUT

Description

COMP CAMS  26987-16, Dual Valve Springs - suit Hydraulic Roller.

Suits aftermarket cylinder heads when using a Hydraulic Roller Camshaft or a Solid Flat Tappet Camshaft

  • SBC Chevy 350,
  • 302 SBF Windsor,
  • Holden V8 253-380*OEM heads will need machining
  • Chrysler 318-360,

Specifications:

Max Lift:   .600”  @ 060” safety

Installed Height:  1.800"

Coil Bind Height:  1.130"

O.D. of Outer:  1.442

I.D. of Inner:  0.710

I.D. of Outer:  1.070

Spring Style Double with Damper

Load at Installed Height: 120lbs

Valve Spring Rate: 391 lbs/in

Valve Spring Finish:  Raw

Comp Cams

Specifications

SKU 26987-16
Brand COMP CAMS
Seat Height 1.75
Damper Yes
Seat Pressure 165
Outer Spring Outside Diameter 1.43
Outer Spring Inside Diameter 1.07
Number Of Springs 2
Inner Spring Inside Diameter 0.7
Coil Bind Height 1.15
Spring Rate 366
