SKU: 351C-HRDSKIT-1GCI

Dual Valve Springs Kits HYDRAUIC ROLLER Ford 351C Cleveland Factory Cast Iron Heads. Single Groove Valves

Heads need machining. Suits Single Groove Valves.

$809.70

or 4 payments of $202.43 with Info

Sold Out

Description

COMP CAMS 351 Cleveland, Dual Vavle Spring kit for a Hydraulic Roller Camshafts.

Hydraulic Roller Valve Springs kits, Ford 351 Cleveland with Cast Iron Cylinder Heads.

Suits Single Groove Valve Stems. (aftermarket valve upgrade)

Spring seats will need to be machined for dual springs on Factory Cast Iron Heads.

Suits: Ford Cleveland

  • Hydraulic Roller Camshaft + Solid Flat Tappet
  • Cast Iron Cylinder Heads
  • Wont fit Aluminum Cylinder heads.

Available for the Cast Iron 351 Cleveland Cylinder heads with aftermaket Single Groove valve applications. Total Performance has matched up Comp Cams high performance Dual valve springs with the correct chrome moly steel retainers, metal body Viton valve seals,  Single Groove valve locks.

Available Ford 302 and 351 Cleveland Cast Iron Cylinder Head applications.

Specifications:

  • Fits: Cleveland cast Iron 2V & 4V Cylinder heads* Machining required.
  • Application: Hydraulic Roller Camshaft.
  • Spring OD:
  • Inner Spring ID:
  • Valve Stem seal: 0.530" Guide* Needs maching to fit.
  • Seat Load-  150 Lbs @ 1.900"- Installed Height
  • Max lift: .680" Lift
  • Open Load 330 lbs @ .500" Lift
  • Open Load 350 lbs @ .550" Lift
  • Locator: Cup Style
  • *Spring seat machining: Yes, will need to accept the inside spring.

High Quality Comp Cams Valve Springs, Retainers & Locks - Made in USA

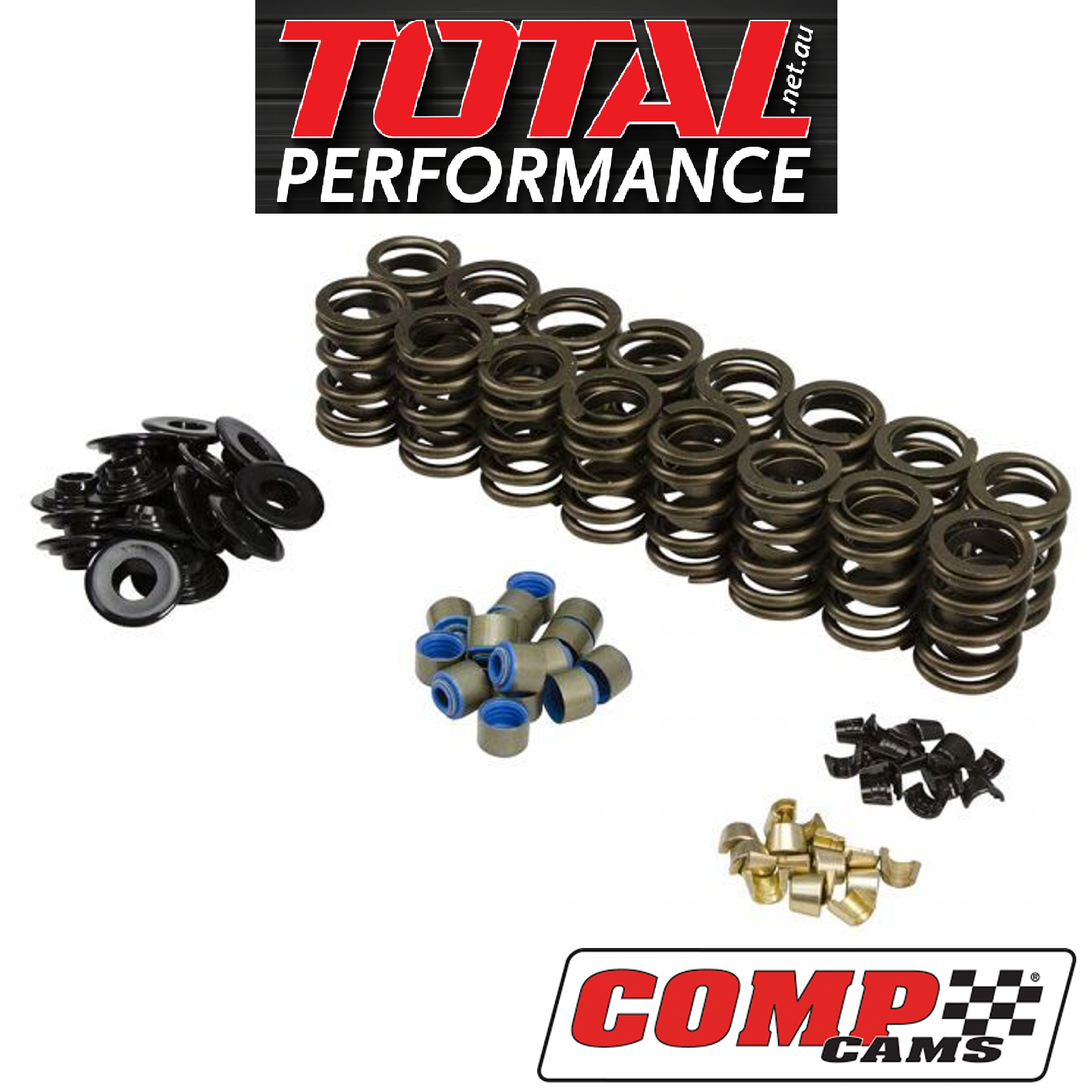

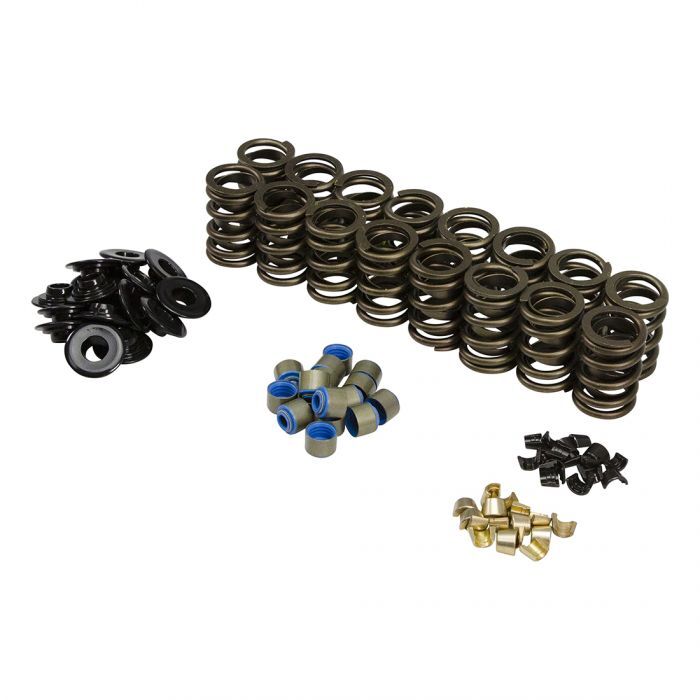

The Cleveland Dual Valve Spring kit includes

•Comp Cams Dual valve springs, Comp Cams 10 deg Single groove locks, and Comp Cams chromoly steel retainers

•Comp Cams Teflon Valve Stem seals

Made in USA.

BE ADVISED: IMAGE MAY DIFFER FROM ACTUAL PRODUCT.

Specifications

SKU 351C-HRDSKIT-1GCI
Brand COMP CAMS
