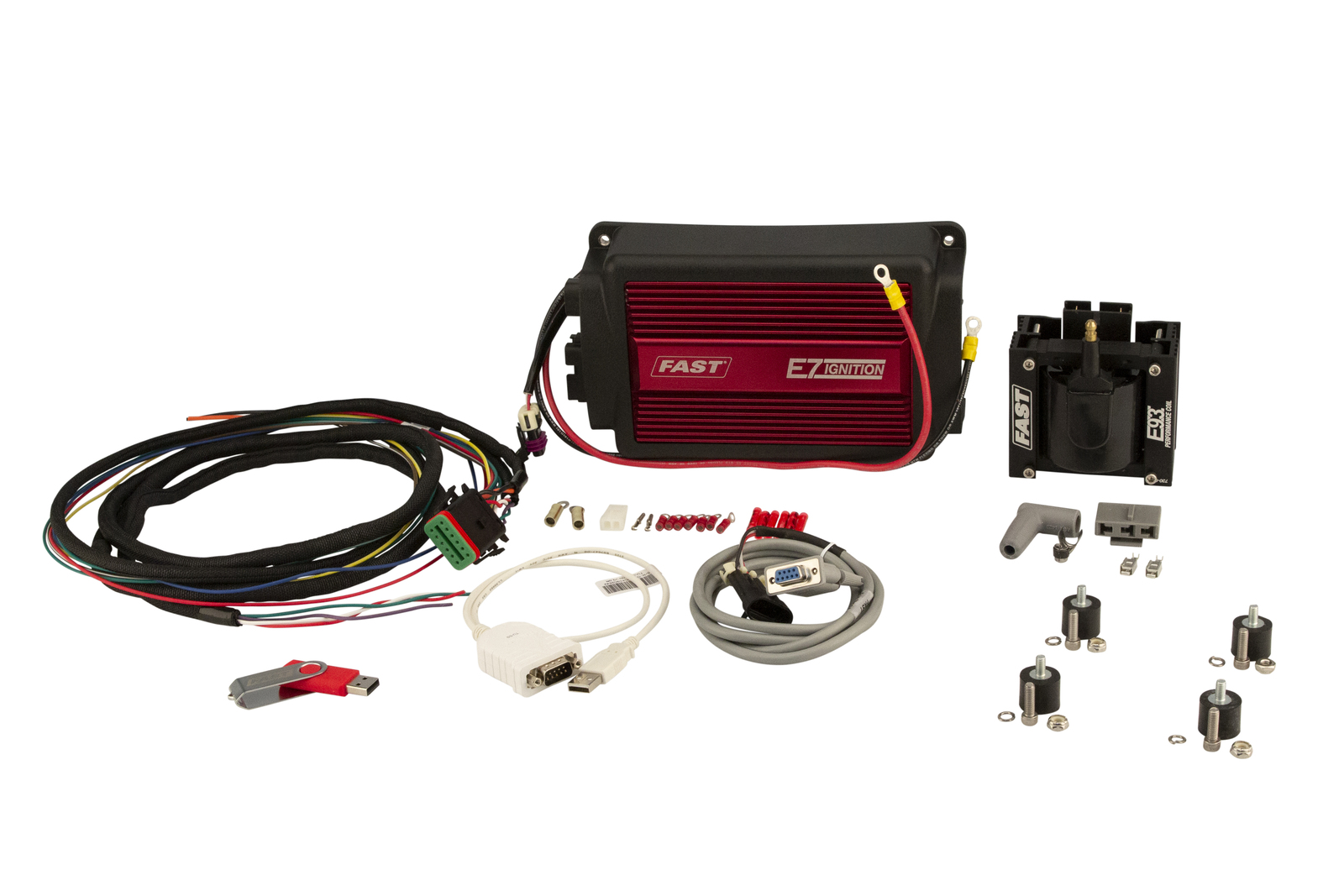

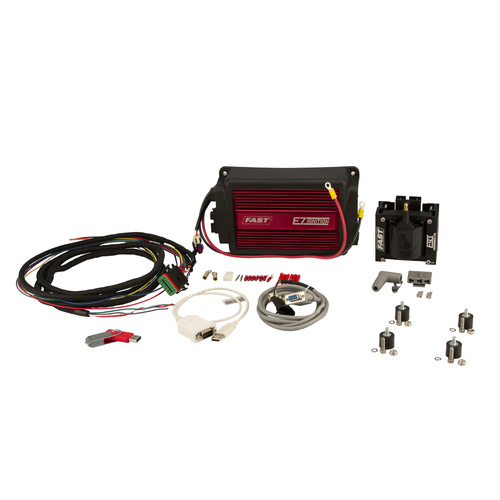

307224 E7 CD Ignition + E93 Racing Coil Ignition Kit

12

High energy sparks to handle extreme compression, boost or nitrous;Built-in 20 degree start retard eases cranking and start up;Accurate and smooth sequential rev limiters for overrev and starting line RPM;Multi-strike spark series below 3,000 RPM for clean low RPM operation;Completely encased in soft urethane for protection against moisture and vibration;Advanced digital technology produces timing accuracy within ± .5 degrees.;The E93 coil was engineered to handle race engines: urethane encapsulation ensures protection against extreme vibration and abuse.

SKU	307224
Barcode #	036584164869
Brand	FAST
Ipu Compatible?	Yes
Peak Spark Gap Current	510
Leakage Inductance	6.8
Ignition Box Height	2.2
Limiter Range	100-12,000
Limiter Rpm Increment	100
Limiter Accuracy	30
Timing Accuracy	0.5
Ignition Box Width	6.3
Software Included?	Yes
Primary Energy Output	160
Hall-effect Compatible?	Only compatible with aftermarket crank trigger pickup
Limiter Type	Sequential
Coil Width	3.5
Ignition Box Length	8.3
Timing Retard Stages	1
Coil Height	3.25
Coil Length	4.25
Mounting Tray Included?	No
Secondary Resistance	0.82
Coil Wire Included	No
Instruction Manual Included	Yes
Minimum Operating Voltage	10
Maximum Rpm	12000
Rev Limiter Included	Yes
Maximum Voltage	50000
Primary Inductance	1.9
Primary Resistance	0.2
Mounting Hardware Included	Yes
Turns Ratio	0.14
Title	E7 CD Ignition + E93 Racing Coil Ignition Kit
Trigger Type	Points & Mag
Operating Voltage	10-20
Current Draw	1 Amp per 1,000 RPM
Operating Range	12,000+
Multi-strike Duration (crankshaft Rotation)	20
Primary Voltage Output	450
