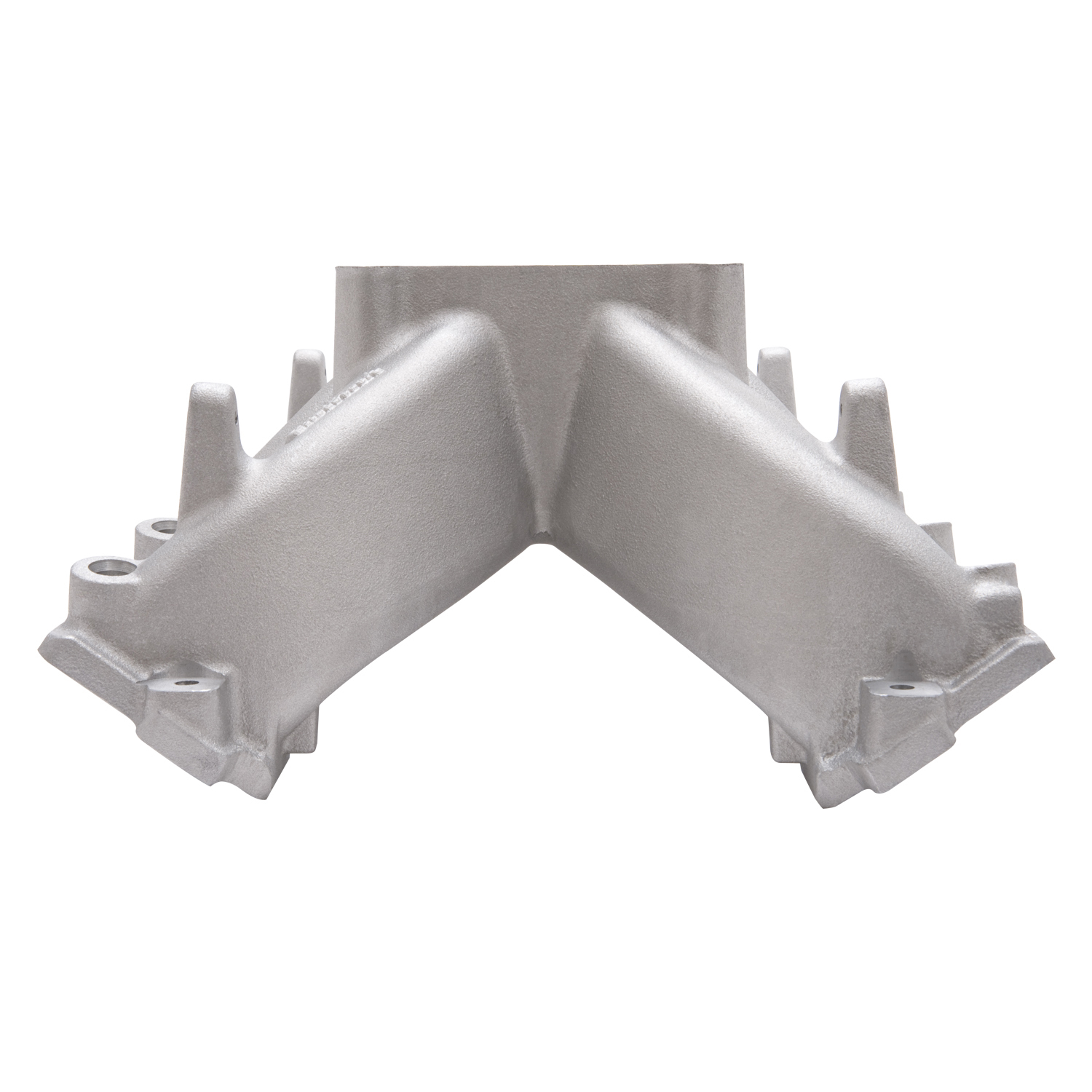

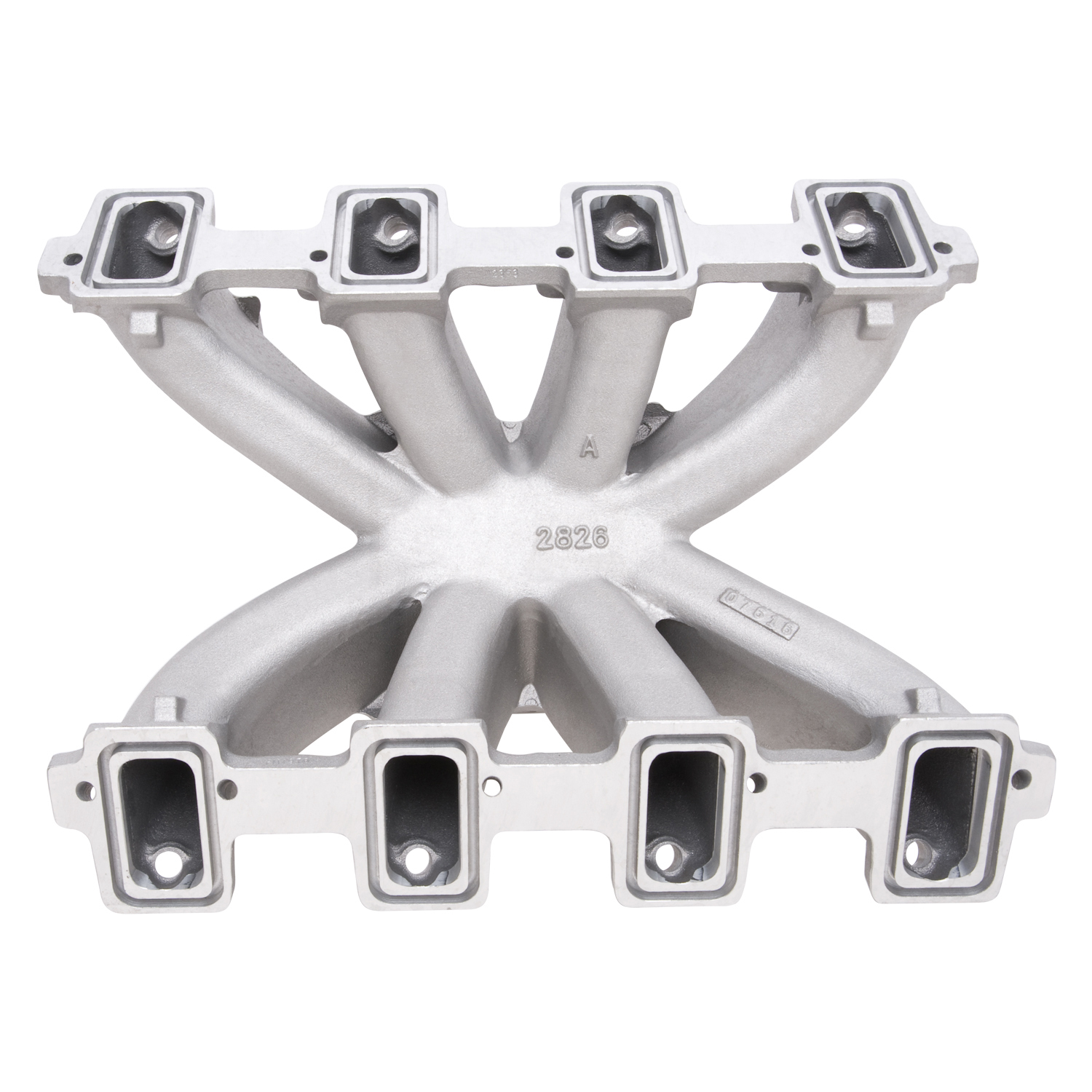

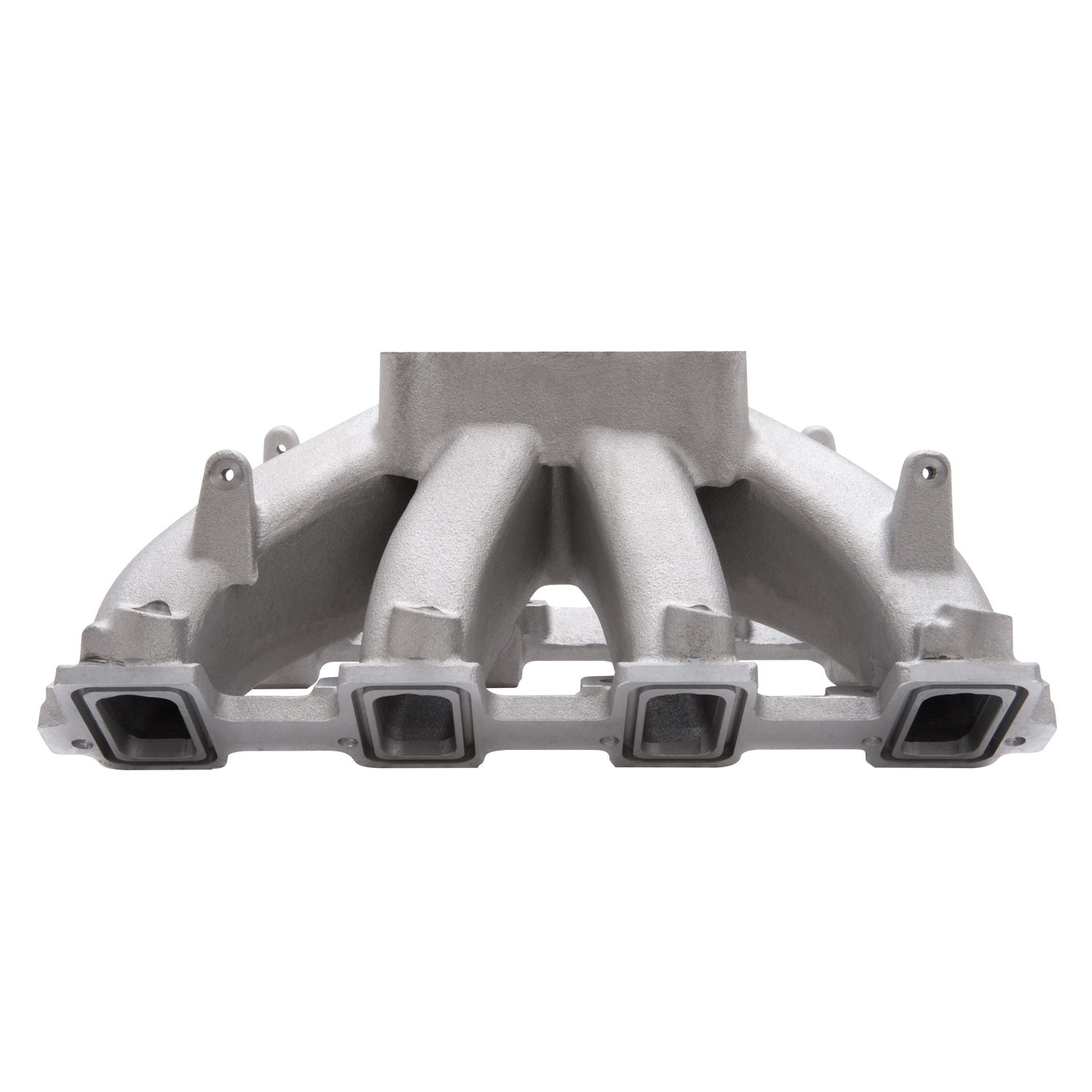

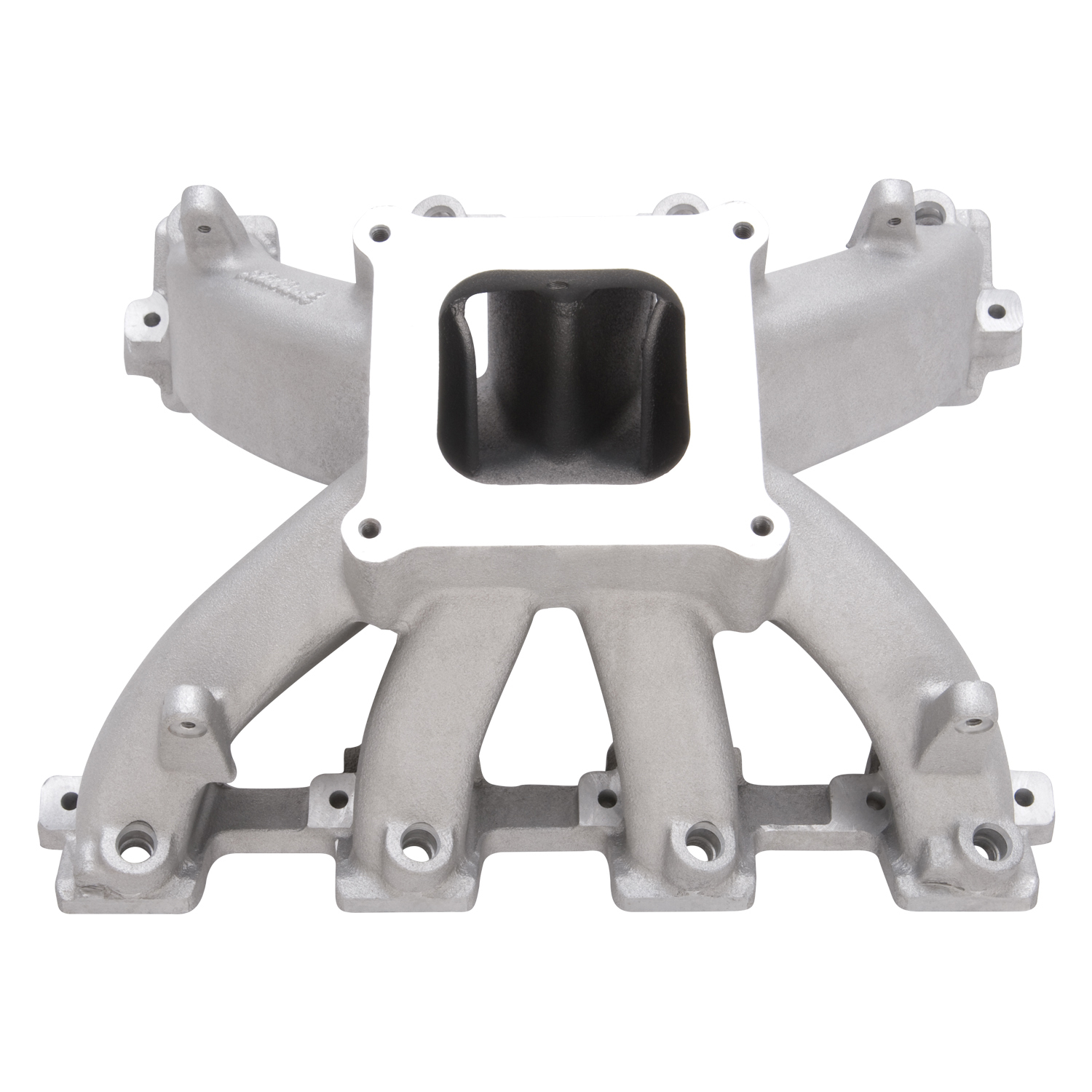

LS3 Single-Plane Rectangle Port Intake Manifold, Inlet Super Victor, with EFI ports 4150 Carb base pattern

Edelbrock ED28265,  EFI Super Victor LS3 4150 Single Plane Intake Manifold GM LS3 Rectangle Port Engines.

This new Super Victor intake manifold is ideal for anyone building a 700+ hp 4150 series EFI large displacement racing engine operating between 3,500 - 7,500 rpm. The large plenum makes this intake manifold ideal for nitrous and forced induction applications. This EFI intake manifold also features tapered runners for increased flow at high rpm. A carburetor mounted style throttle bracket is recommended.

Edelbrock ED28265 Installation Notes:

• Uses LS3/L76/LS92 style individual port o-ring seals GM PN19256623

• Fuel Rail Recommendations: Use Edelbrock fuel rail kit ED3655.

  • Uses stock injector angles.

  • Fuel rail mounting hardware included

• Throttle body recommendations: Edelbrock ED38783 or ED38883

• Will work with Edelbrock Manifold bolt kit PN 8515

• Manifold height: A-7.67", B-7.67"

• Carb pad height: 7.67"
