SKU: 7220

Ford Windsor OEM replacement intake inlet manifold gasket, Ford Small Block SBF, 289, 302W, 351W, 5.0L Windsor

Intake Gaskets for 1963-1996 Small-Block Fords

$55.00

or 4 payments of $13.75 with Info

SOLD OUT

*FREE SHIPPING ON ORDERS OVER $200!

Description

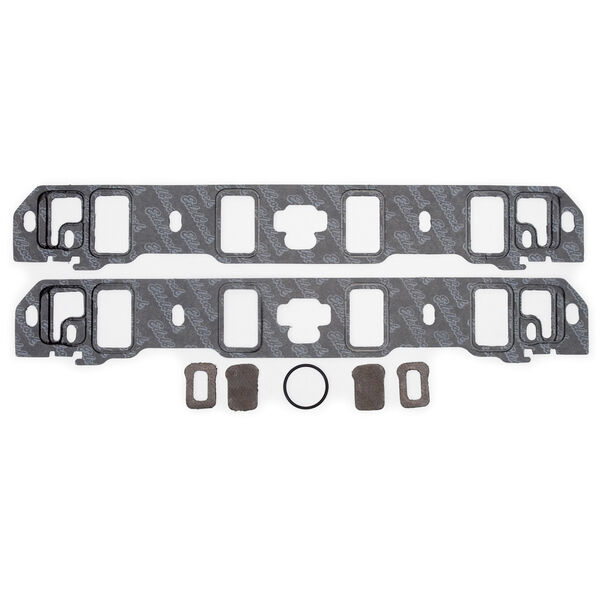

Edelbrock ED7220 Intake Manifold Gasket for 1963-1996 Small-Block Fords.

*Has exhuast passage cross-over hole

Edelbrock part #7220 Intake Gaskets for 1963-1996 Small-Block Fords allow for optimum flow and performance. Any gasket can create a seal, but a good gasket can do it with less clamping force, and for a longer period of time. The new MP-2N Micropore technology does not use solvents making our gaskets environmentally friendly. Impervious to most chemicals, this synthetic fiber composite provides a high recovery under load. This means that when compressed, the gasket will conform to any imperfections on the sealing surface even using lower flange pressures. A nitrile bead around each port opening makes the seal even better.

Edelbrock ED7220 Intake Gasket Specifications:

  • Fits: Suits Ford Small Block Windsor, 289, 302, 351, 5.0L
    • OEM replacement style
  • Port Location: Suits stock port location
  • Intake Port Size: 2.000" x 1.200"
  • Gasket Thickness: 0.060"
  • Material: Synthetic Fiber Composite
  • Exhaust Cross Over Provision: Yes
  • Special Notes: Pringed seal around port opening

Specifications

Ford:Small-Block Windsor:260 (4.3L)/289 (4.7L)/302 (5.0L)

SKU 7220
Barcode # 00085347072200
Brand Edelbrock
