SKU: TFS-51403002

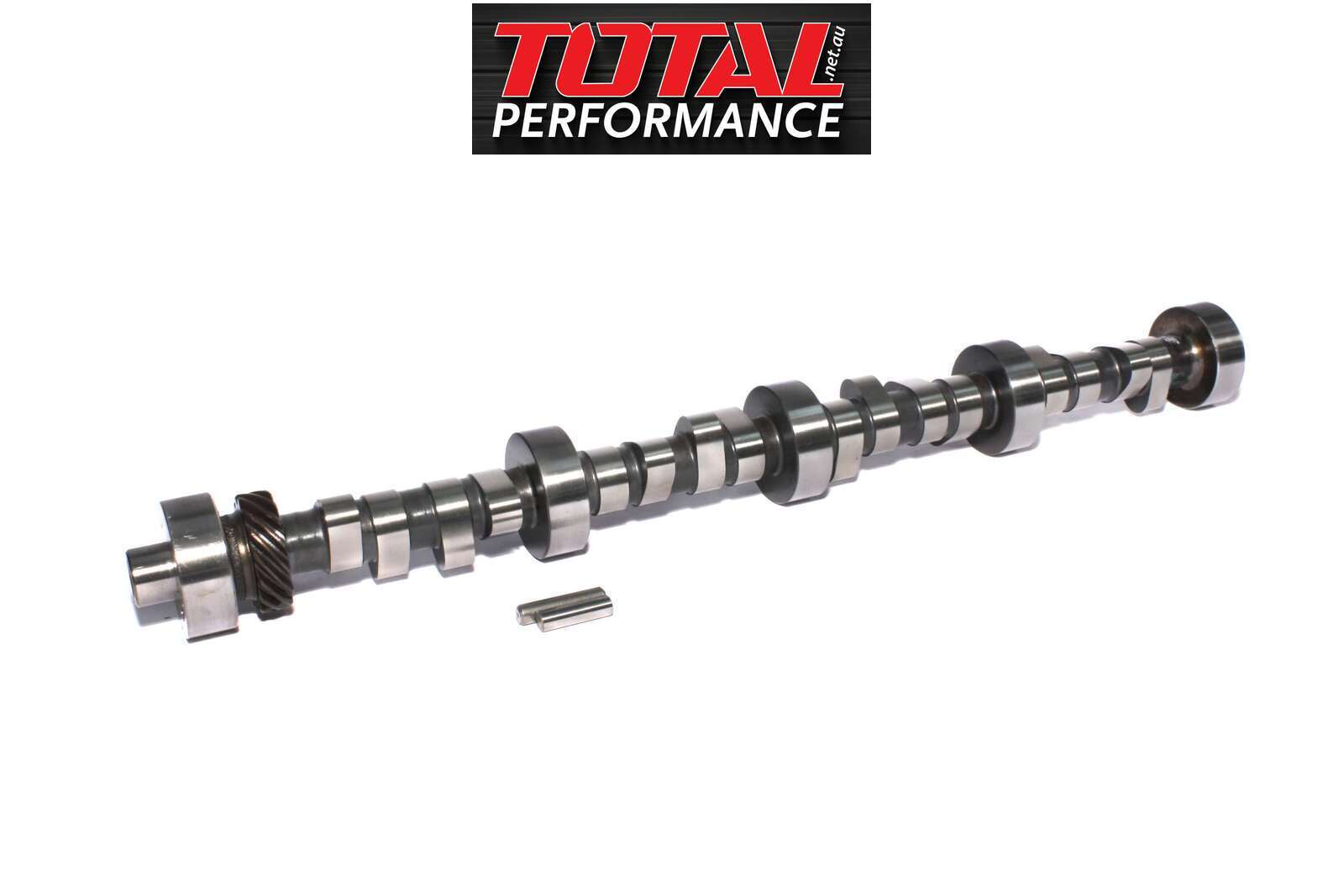

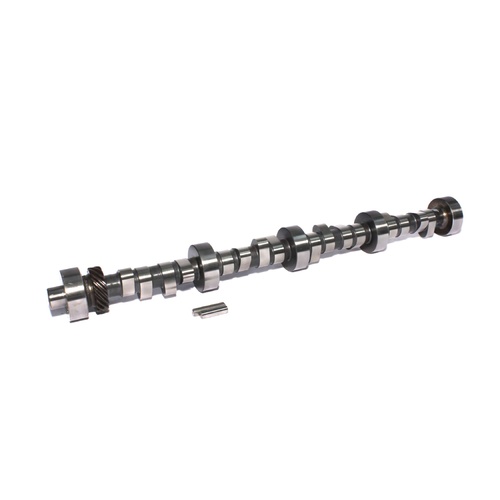

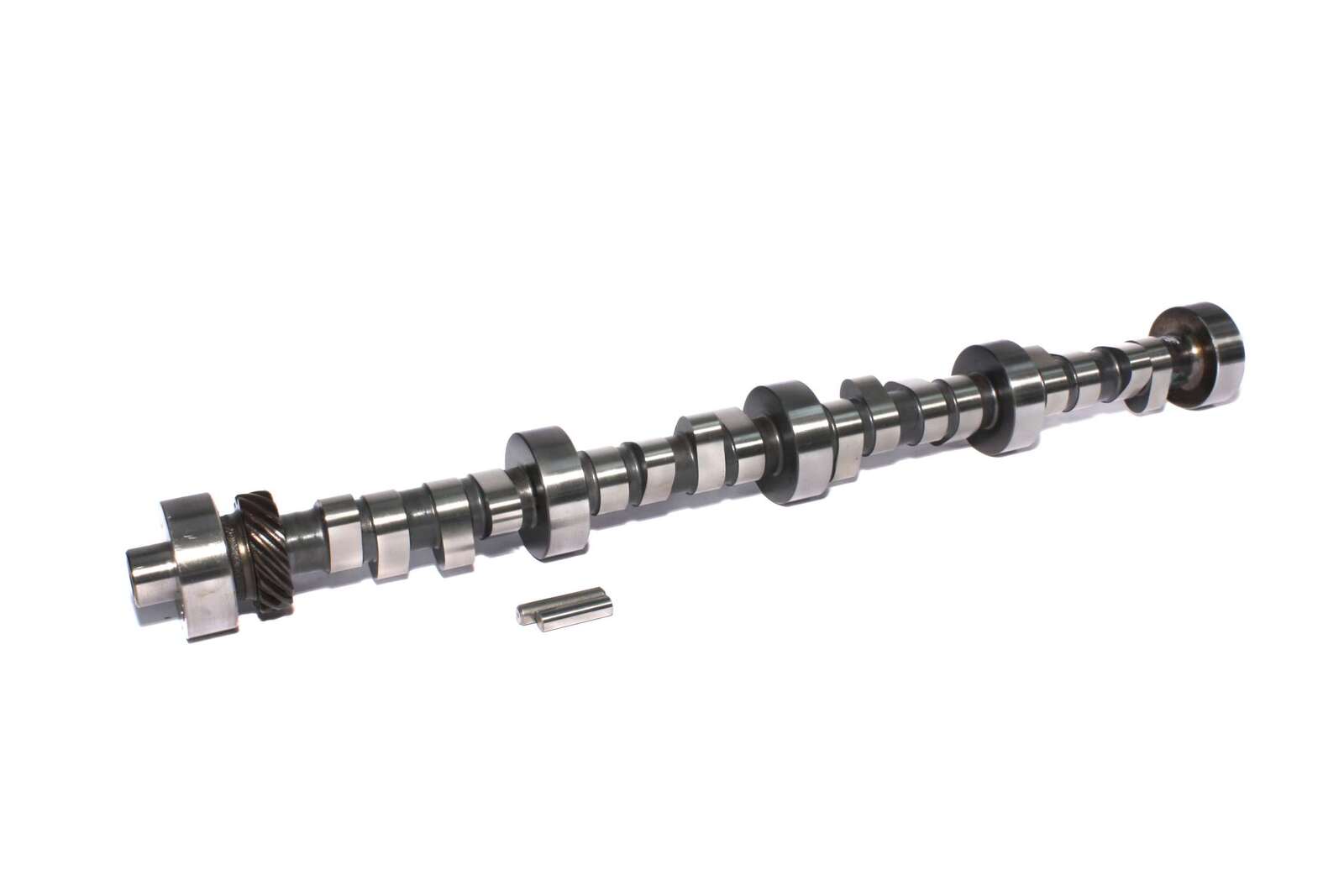

Track Max Hydraulic Roller Camshafts for SBF FORD 302 351W 5.0L

Hydraulic roller, OE roller

$631.71

or 4 payments of $157.93 with Info

Sold Out

Description

Trick Flow Track Max Hydraulic Roller Camshafts for SBF FORD 302 351W 5.0L
Trick Flow Track Max hydraulic roller camshafts for small block Ford and Ford 5.0L engines are designed and dyno-tested to ensure maximum performance. These camshafts are manufactured from premium billet steel blanks that are heat-treated to the proper hardness. They're precision-ground to exacting tolerances to deliver enhanced power and proven
Trick Flow performance throughout the engine's powerband.


Specifications
Brand:
Trick Flow Specialties

Part Type: Camshaft

Cam Style: Hydraulic roller, OE roller

Camshaft Use: Street/Strip

Basic Operating RPM Range: 2,500-6,000

Intake Duration at 050: 224/232

Valve Lift 0.542”/ 0.563”

Lobe Separation (degrees): 112

Camshaft Gear Attachment: 1-bolt

Computer-Controlled Compatible: No

Grind Number: HR-236/359-2S1-10

Valve Springs Required: Yes

Quantity: Sold individually.

Notes:

Fair idle, 2,500-6,000 rpm powerband. 2,500-3,000 rpm stall converter or 5-speed with 3.55 and numerically higher gears recommended. Calibrated mass airflow meter required. Compression 9.5:1 minimum.



Specifications

SKU TFS-51403002
Barcode # 842645110719
Brand TRICK FLOW
Intake Duration At .050 Inch Lift 224
intake valve lift 0.542 in.
Exhaust Valve Lift With Factory Rocker Arm Ratio 0.563 in.
Lobe Separation 112
Exhaust Duration At .050 Inch Lift 232
