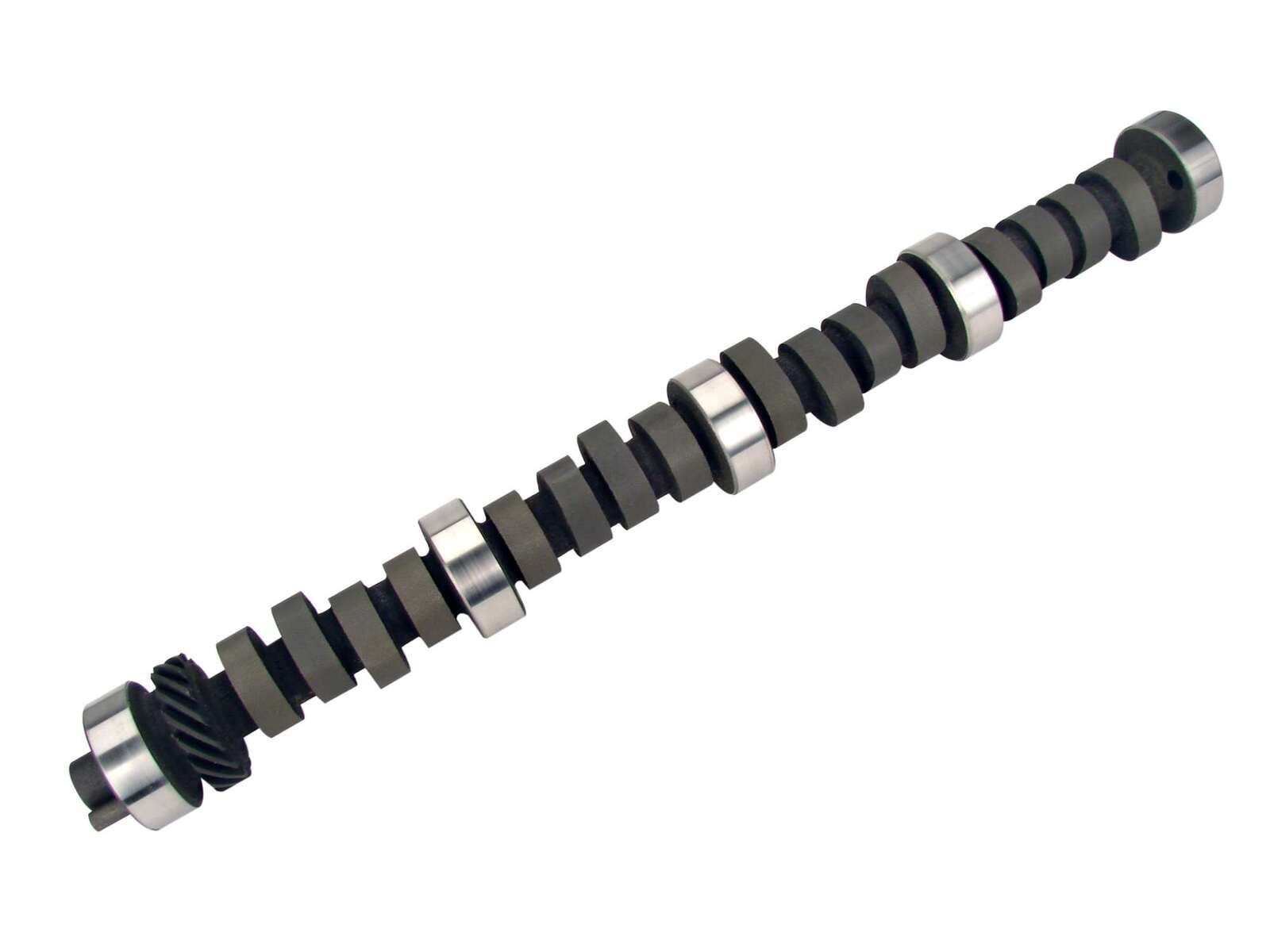

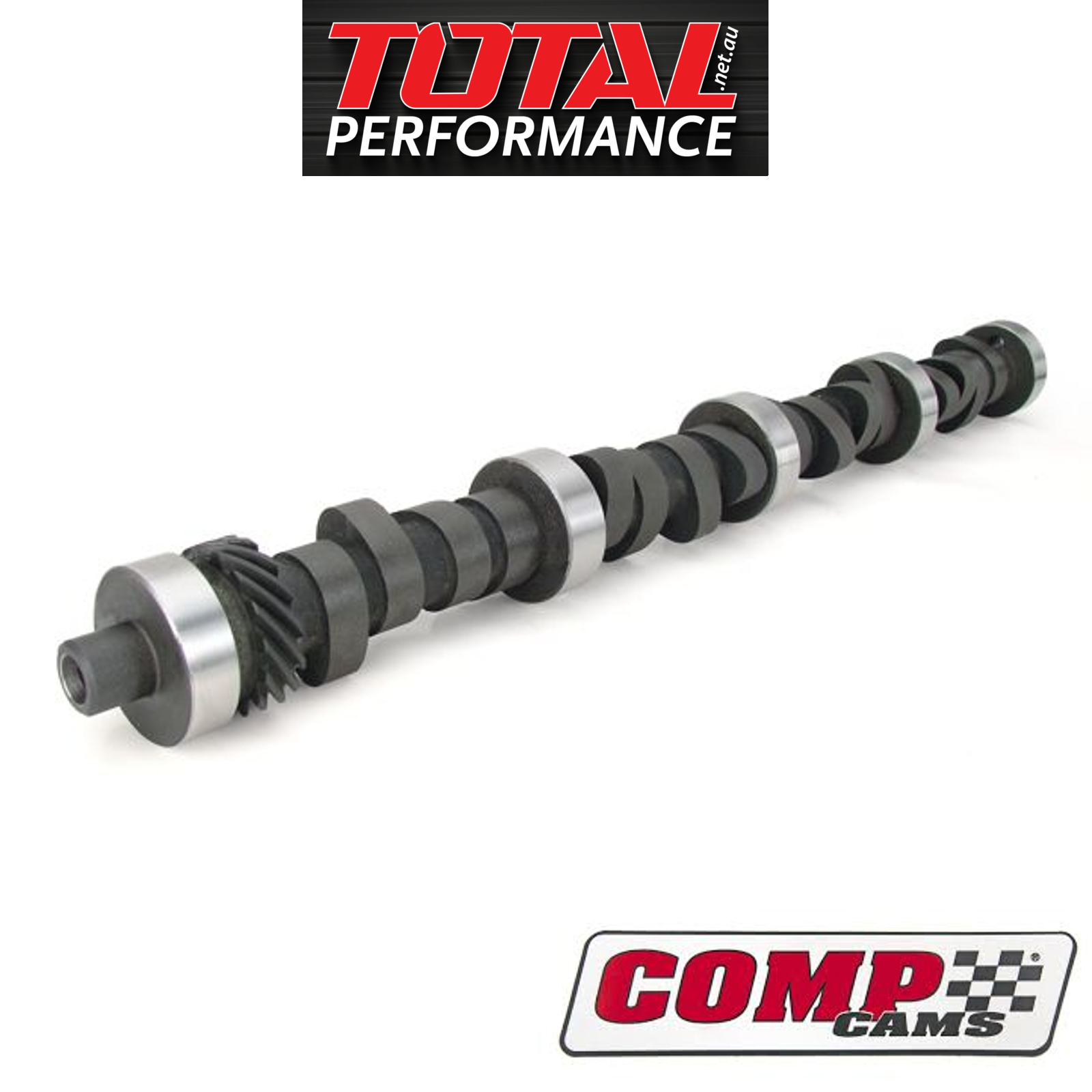

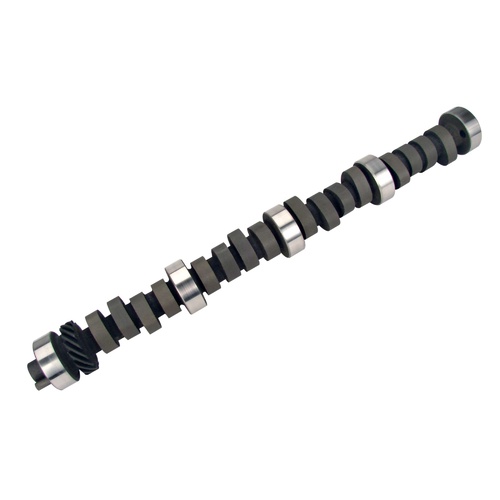

32-644-5 Drag Race 256/266 LSA 106 294B-6 Solid Flat Cam for Ford 351C, 351M-400M
Description
Excellent torque for heavy cars, 3500+ stall or 4 speed with 10.5:1 compression.
Ford 351 Cleveland Solid Mechanical Flat Tappet Camshaft.
Race Series / Tough Street
Power up your Ford Cleveland with this cranky camshaft!
Solid-Pro Street / Bracket Race. Excellent top end, 3500+ stall and 11:1 compression. Radical idle.
RPM RANGE: 3000 to 7000 RPM!
**Extra protection required, a High Zinc oil additive like Comp Cams #159 is required for all Flat Tappet camshaft engines.
Engine Family: Ford 351C, 351M-400M 8 Cylinder (1970-1983)
RPM Operating Range: 3,800-6,800
Grind Number: 294B-6
Cam Type: Solid Flat Tappet
Lifter Style: Solid Flat Tappet
Camshaft Series: Drag Race
Usage: Strip
Advertised Intake Duration: 294
Advertised Exhaust Duration: 304
Intake Duration at .050 Inch Lift: 256
Exhaust Duration at .050 Inch Lift: 266
Intake Valve Lift: 0.564
Exhaust Valve Lift: 0.589
Lobe Lift Intake: 0.343
Lobe Lift Exhaust: 0.358
Lobe Separation: 106
Intake Centerline: 106
Exhaust Close ATDC: 46
Intake Open BTDC: 41
Exhaust Open BBDC: 78
Intake Close ABDC: 73
Camshaft Gear Attachment: 1-Bolt
Specifications
SKU | 32-644-5 |
Barcode # | 036584641063 |
Brand | COMP CAMS |
Intake Valve Lift | 0.564 |
intake duration | 256 |
Valve Springs Required | Yes |
Camshaft Series | Drag Race |
Cam Type | Solid Flat Tappet |
Lifter Type | Solid Flat Tappet |
Camshaft Material | Cast Iron |
Basic Operating Rpm Range | 3,800-6,800 |
Lobe Separation | 106 |
Advertised Intake Duration | 294 |
Exhaust Valve Lift | 0.589 |
Camshaft Gear Attachment | 1-Bolt |
Grind Number | 294B-6 |
Exhaust Duration At .050 Inch Lift | 266 |
Advertised Exhaust Duration | 304 |
