FORD 351C CLEVELAND ALLOY CYLINDER HEADS 2V 351 393 408 - Complete Assembled Solid Flat Tappet

DETROIT RACING PRODUCTS (DRP)  2V FORD CLEVELAND CYLINDER HEADS
ALL SALES ARE FOR 1 SET (2 X CYLINDER HEADS)

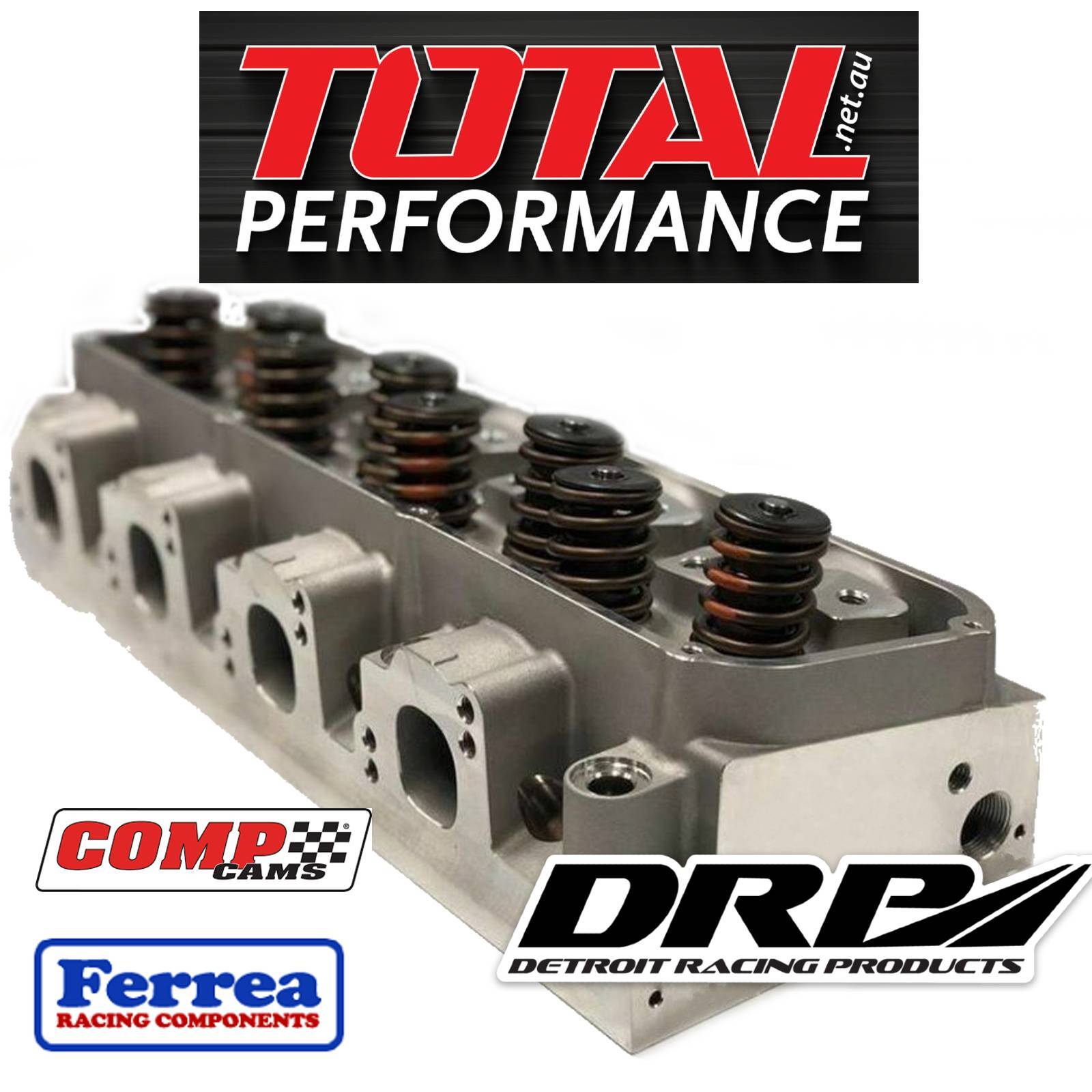

Assembled Cleveland Cylinder Heads to suit a Solid Flat Tappet Camshaft - complete

Using Comp Cams Valve Springs & Ferrea 5000 Series Valves!

High performance Cleveland Cylinder heads by DRP. These 351 Cylinder heads are an upgrade over the original 2V cylinder heads. and have many modern features that are a vast improvement. These 351 Cleveland Cylinder Heads have a high velocity 200cc Intake runner with a 2.18" MCSA port design boasting an impressive 310 + cfm flow at a usable performance street engine level. These 2V cylinder heads are also suitale for high torque and high horsepower 393, 408 stroker Ford Clevelands. These cylinder heads can also be fitted to the Windsor blocks as these have the water passages already machined and ready to go.

Engine Family:  351 Cleveland Ford & 393 408 Stroker

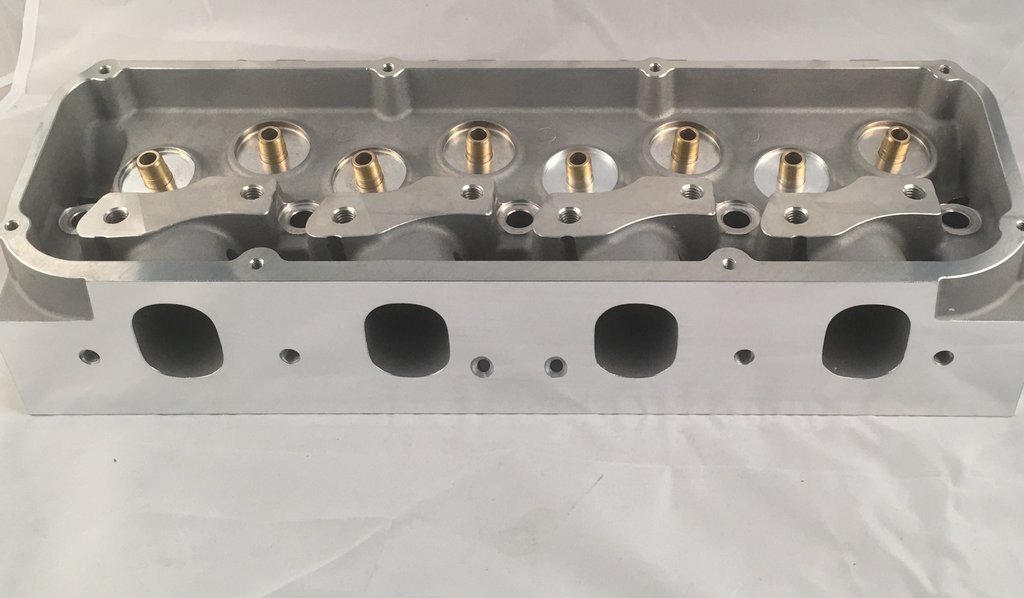

Assembled:  Yes - complete with Valves, Springs and assembled ready to go. (NO rocker studs or guide plates)

Valve Springs:  Race Series Comp Cams - 150lbs on the seat / 370 lbs open @ .600" Lift.

Cylinder Head Material:              356 Alloy, T6

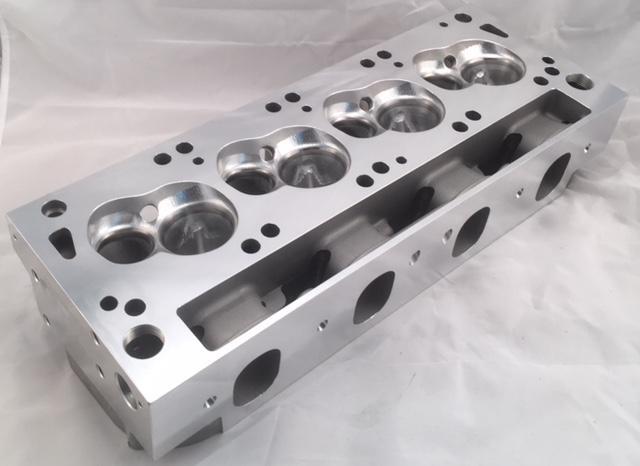

Chamber Volume:                       67cc

Intake Runner Volume:              200cc

Intake Port location                   raised .100" over stock

Minimum Cross Section:            2.18 square inches MCSA

Exhaust Runner Volume:             125cc - high velocity

Exhaust Port Location                 Raised .080” (near stock location)

Valves Intake:                          2.070" Ferrea 5000 Series

Valves Exhaust:                        1.650" Ferrea 5000 Series

Valve Guides:                            Bronze .502” od x 11/32” stems .570" shoulder

Spark Plugs:                               relocated for efficient fast burn
                                                    ¾ reach, 5/8 hex, washer seat (NGKBCP7ES)

Spring Pads:                              1.570” od/.560” id

Rocker Arm Studs:                     7/16” unc thread  (studs not included)

Rocker Arm Type:                      7/16” stud mounted roller rockers (1.73 ratio)

Chamber size reduction:  .006" per CC.

Water Hole Sizes:  3/4" NPT hex plug/bung required (not included)

Notes:  Requires adjustable guide plates.

Quantity:   Sold as a Pair.
