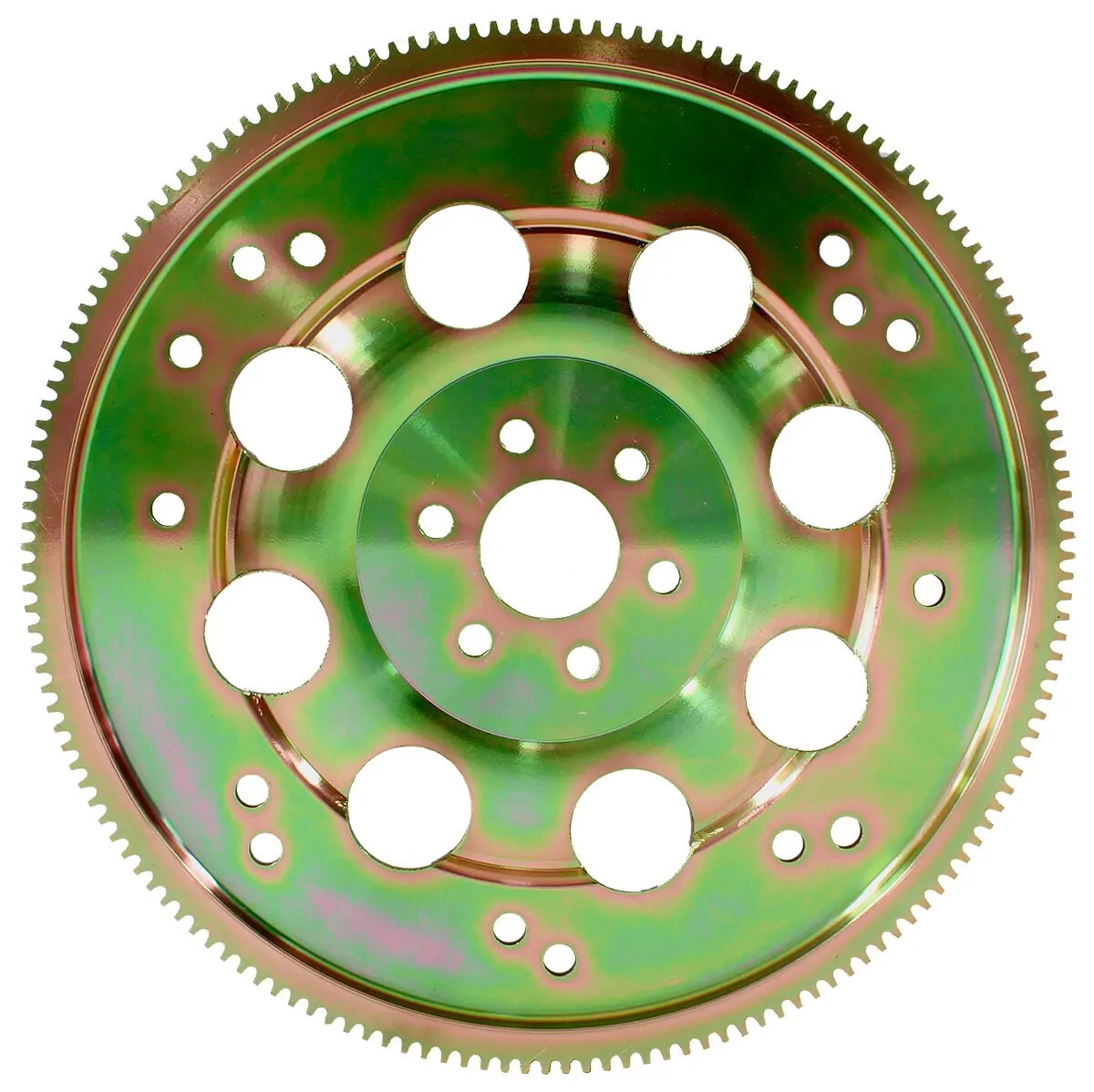

*Billet* Ford Barra Flexplate, Neutral Balance, 160T Tooth, DOHC 4.0L Turbo XR6 BA-FG Falcon (160 Tooth)

Ford Barra Flexplate - CNC Machined Billet for Ford XR6 BA to FG Falcon

CLASSIFICATION: Billet HEAVY DUTY
FLYWHEEL BALANCE: NEUTRAL
ENGINE BALANCE STATUS: 0
WEIGHT KG: 5.3kg
NO. OF TEETH: 160
ENGINE APPLICATION: 6CYL
ENGINE TYPE: DOHC BARRA Inline 6
ENGINE CAPACITY: 4.0L TURBO
MODEL APPLICATION: FORD FALCON 2002 onwards
BA – BF
FG - FG/X
TORQUE CONVERTER PATTERN:
FACTORY BTR 4sp / 5sp / ZF 6sp
HUGHES Performance 8 Bolt Converter
CLUTCH DIAMETER: N/A
CLUTCH NOTES: Heavy Duty Flex Plate
CRANK REGISTER DIAMETER: 44.46mm
CRANK BOLT HOLES: 6
PRESSURE PLATE BOLT HOLES: 0
NOTES:
10mm longer crank / converter bolts required (NOT INCLUDED)
Thickness of Flex plate at Crank Mounting Point: 7.8-8 mm
By enlarging crank holes to 15/32" flex-plate will suit early model Ford 6cyl. engines (144, 170, 221, 250ci)

DRP Barra XR6 Billet Flexplate Features

• Explosion Proof Billet Steel.
• CNC machined accuracy to factory specs.
• Offers exceptional Power and Torque holding capacity.
• 10mm material thickness around mount holes to prevent fretting & cracking.
• 8 machined slots to reduce mass and create airflow around converte
