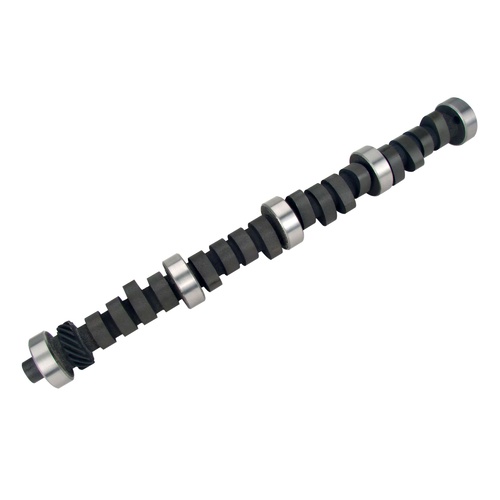

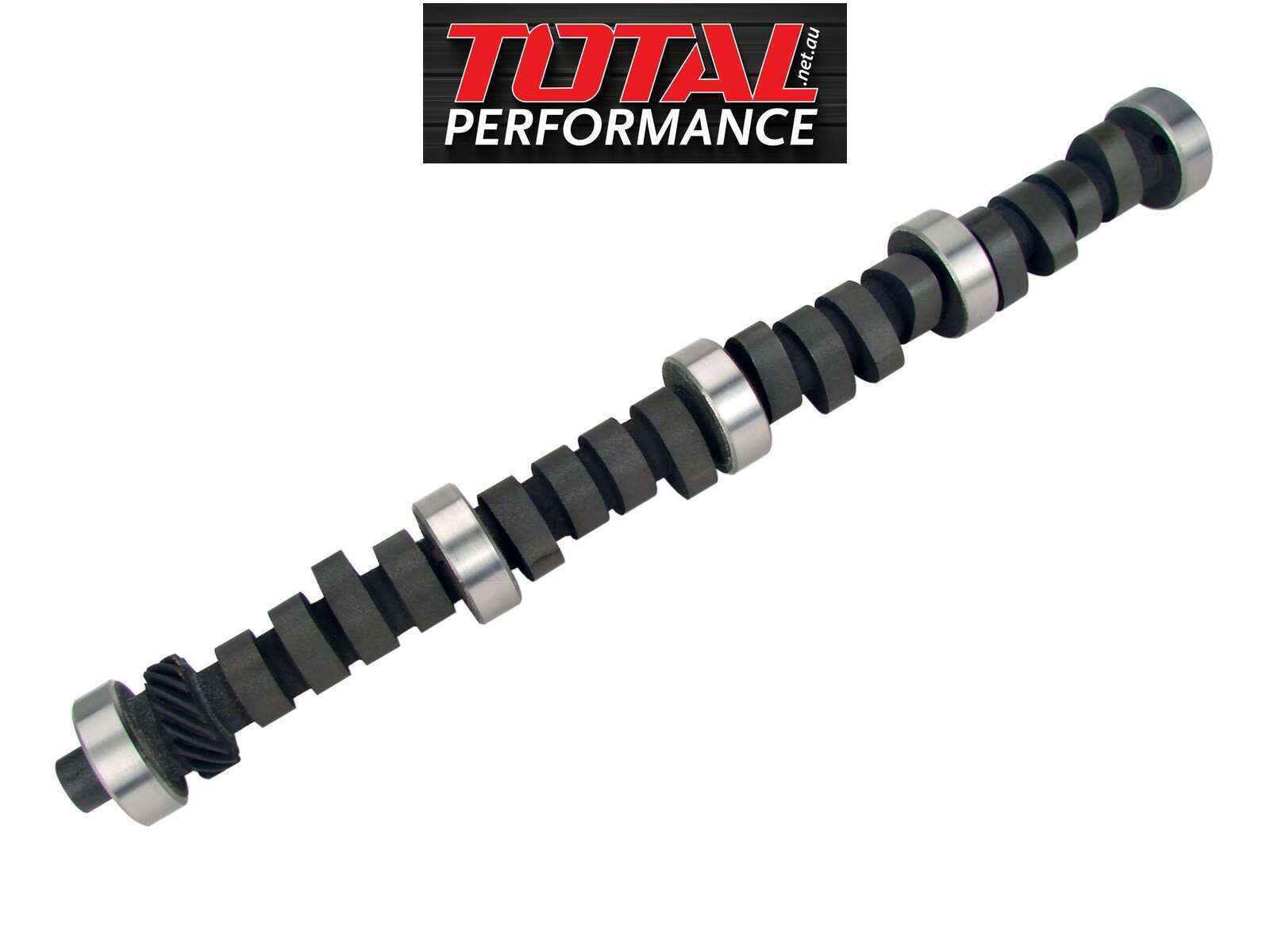

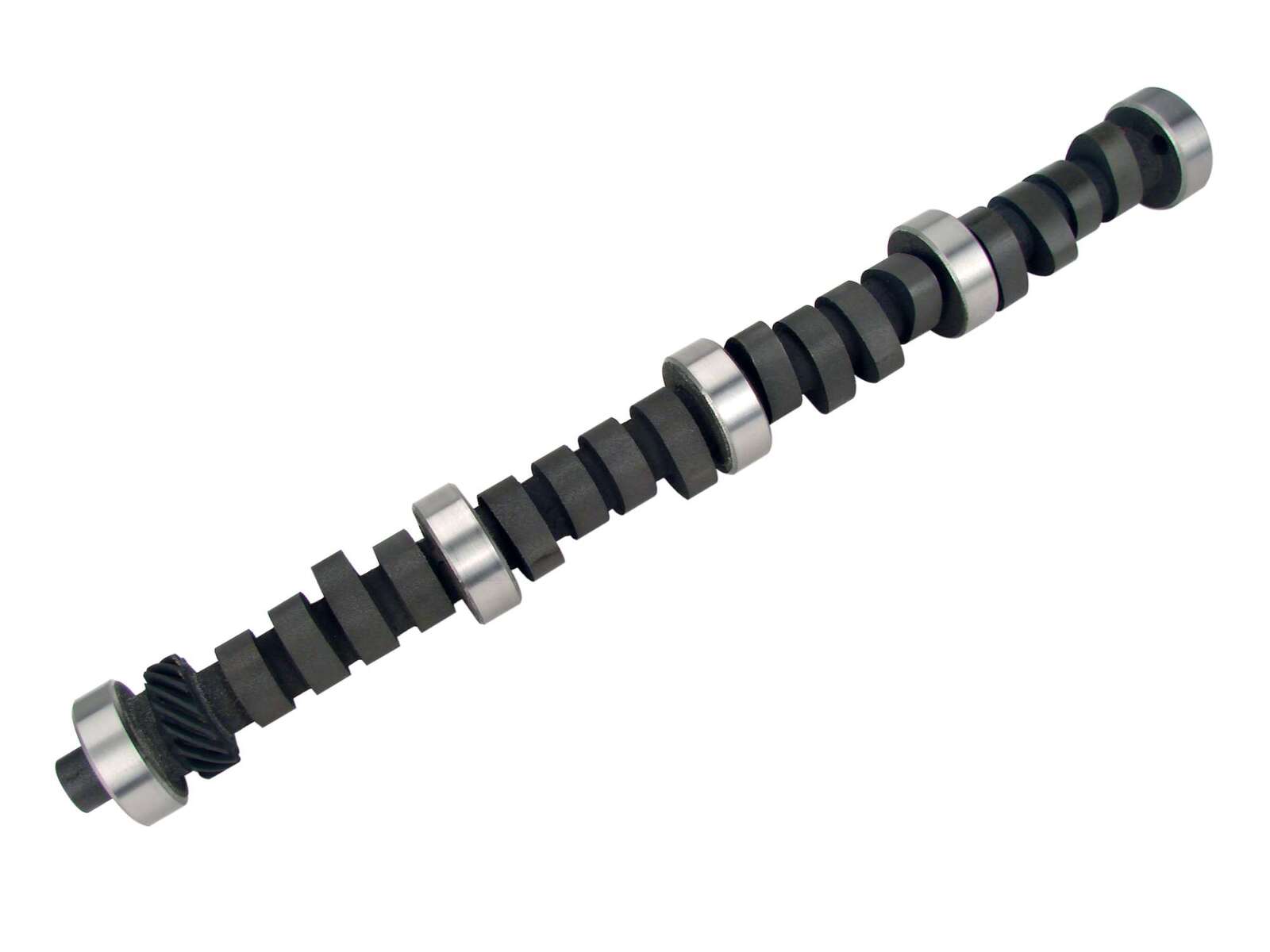

260H High Energy Marine 212/212 LSA 110 Hydraulic Flat Tappet Camshaft Ford 302W Windsor SBF
RPM Range: 1200-5200
or 4 payments of $99.19 with
Info
*FREE SHIPPING ON ORDERS OVER $200!
Description
Excellent combo of torque and power. Best for towing in 302 stick with low gears. Excellent economy, pleasure and skiing use, fairly smooth idle.
High Energy & Marine 212/212 Hydraulic Flat Cam for Ford 221-302. Excellent combo of torque & power. Best for towing in 302 stick with low gears.
| Advertised Intake Duration | 260 |
|---|---|
| Advertised Exhaust Duration | 260 |
| Intake Duration at .050 Inch Lift | 212 |
| Exhaust Duration at .050 Inch Lift | 212 |
| Intake Valve Lift | 0.447 |
| Exhaust Valve Lift | 0.447 |
| Lobe Lift Intake | 0.28 |
| Lobe Lift Exhaust | 0.28 |
| Lobe Separation | 110 |
| Intake Centerline | 106 |
| Valve Timing Lift | 0.006 |
| Exhaust Close ATDC | 16 |
| Intake Open BTDC | 24 |
| Exhaust Open BBDC | 64 |
| Intake Close ABDC | 56 |
| Lifter Style | Hydraulic Flat Tappet |
| Make | Ford |
Specifications
| SKU | 31-216-2 |
| Barcode # | 036584500186 |
| Brand | COMP CAMS |
| intake valve lift | 0.447 |
| Exhaust Valve Lift | 0.447 |
| Lifter Type | Hydraulic Flat Tappet |
| Advertised Exhaust Duration | 260 |
| Advertised Intake Duration | 260 |
| Cam Type | Hydraulic Flat Tappet |
| Exhaust Duration At .050 Inch Lift | 212 |
| Intake Duration At .050 Inch Lift | 212 |
| Lobe Separation | 110 |
| Camshaft Series | Marine |
| Grind Number | 260H |
| Basic Operating Rpm Range | 1,200-5,200 |
| Lifters Included | No |
| Valve Springs Required | Yes |
| Camshaft Gear Attachment | 1-Bolt |
| Camshaft Material | Cast Iron |
