SKU: 54-232232-HR-10

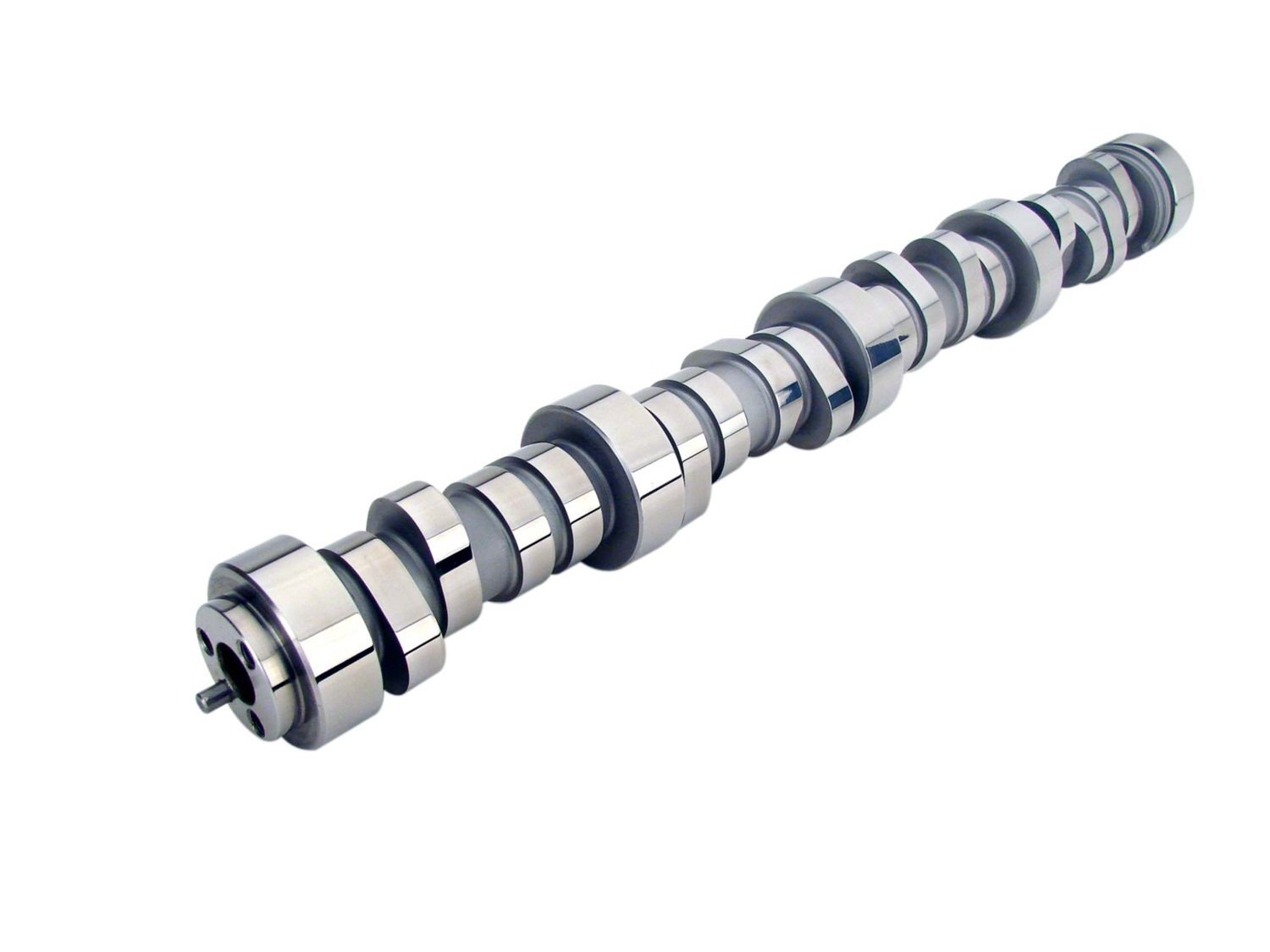

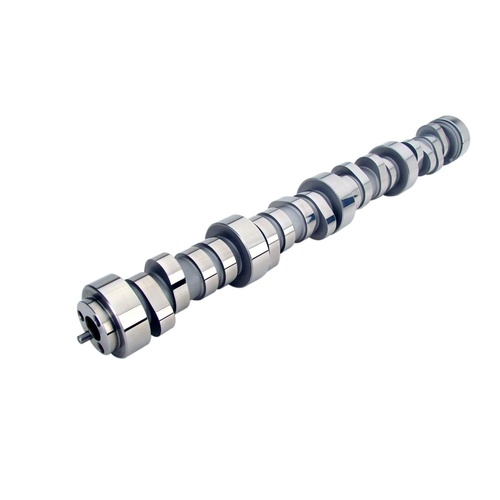

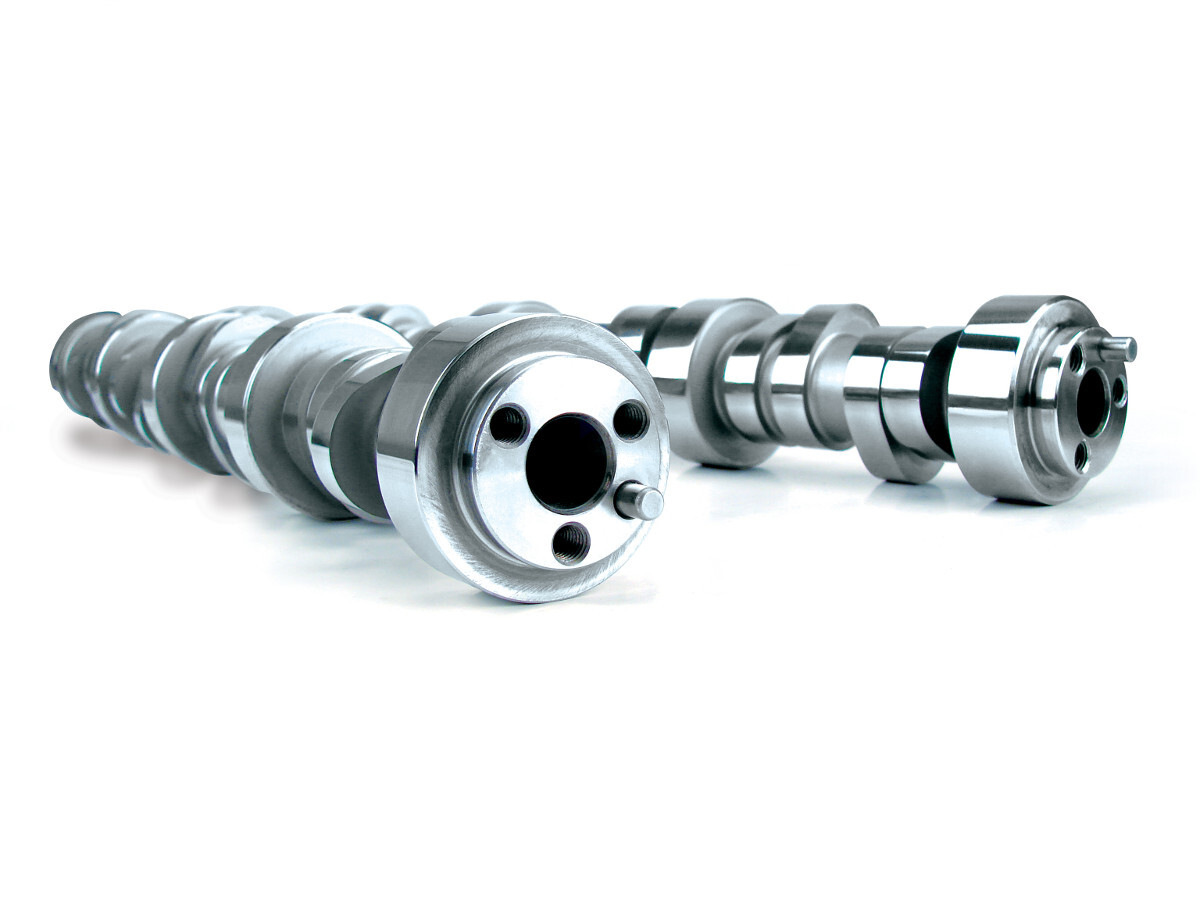

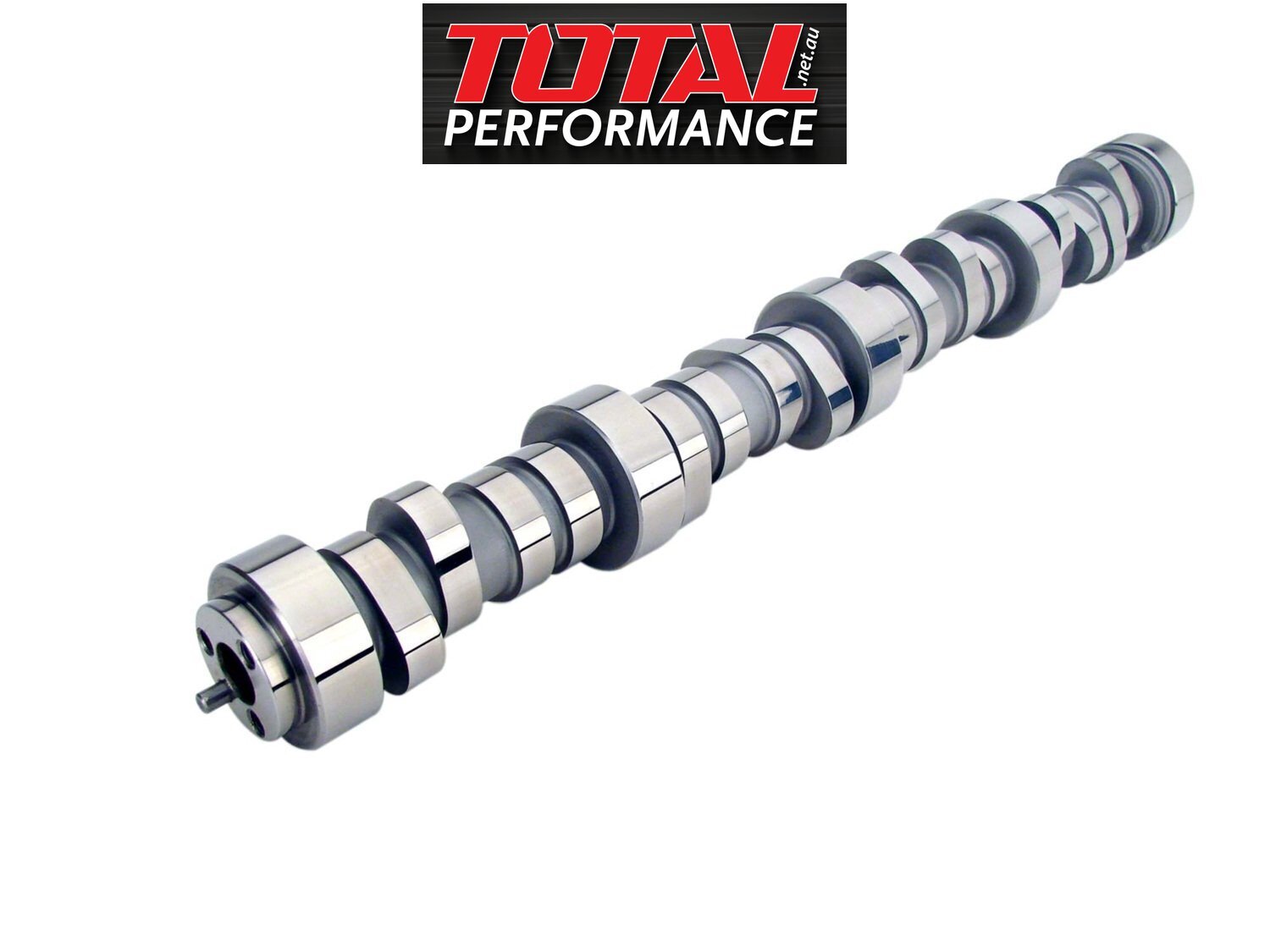

GM LS1 5.7L Camshaft, Hydraulic Roller 232/232 0.576/0.576'' LSA 110 COMP CAM

CATHEDRAL PORT

$890.38

or 4 payments of $222.59 with Info

SOLD OUT

*FREE SHIPPING ON ORDERS OVER $200!

Description

GM LS1 / 5.7L Camshaft, Hydraulic Roller upgrade

Fantastic all round performance camshaft that is sharp on the throttle and delivers everywhere in the RPM range.

Match this up with a 3000+ stall torque converter for best results. We have turned this 6800 RPM and produced 300kw at the rears. The combination was a stock LS1 with 241 heads & stock pistons.

Installation note:

  • Recommend shaving .015" off the heads to increase compression.
  • Recommended Valve Springs: DRP-8415P-16 or a Kit DRP-8415P-LSKIT
  • Recommended Torque Converter: 3000/3500 RPM, TCI #242931
  • Piston to valve is close and must be checked. If you use aftermarket pistons, they will have deeper valve reliefs allowing more to be shaved off the heads or no PTV issues.

DURATION @ 050   232/232

VALVE LIFT             0.574"/0.574"

LOBE LIFT              0.338/0.338''

LSA                          110

COMP CAM - Made in USA

Specifications

SKU 54-232232-HR-10
Brand COMP CAMS
