SKU: DRP-LS243-DSHR-T

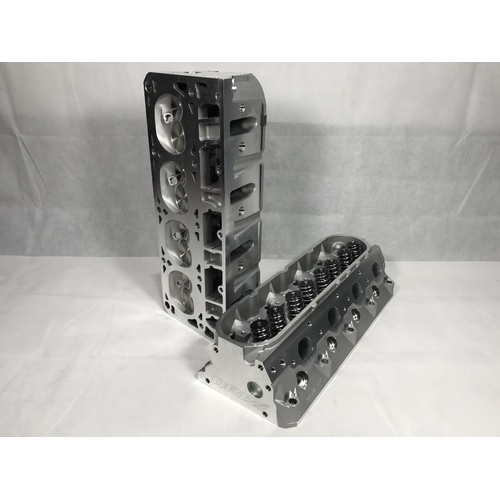

GM LS1 LS2 CATHEDRAL PORT 243 HEADS ASSEMBLED DUAL SPRINGS TITANIUM RETAINERS - PAIR (2 Heads)

PAC Springs & Titanium Retainers

$1,983.62

or 4 payments of $495.90 with Info

Sold Out

Customise Your Purchase

LS1 LS2 LS3 Dual Valve Spring Kits TITANIUM Retainers 0.660" Max Lift

LS1 LS2 LS3 Dual Valve Spring Kits TITANIUM Retain

$499.00

QTY
GEN 3 LS1 LS2 LS3 Dual Valve Springs Kits Chro Steel Retainers 0.670" Max Lift 5.7L 6.0L 6.2L

GEN 3 LS1 LS2 LS3 Dual Valve Springs Kits Chro Ste

$429.00

QTY
STAINLESS STEEL EXHAUST VALVES GM LS1 1.550"" X 4.891"  8MM - 5.7L

STAINLESS STEEL EXHAUST VALVES GM LS1 1.550"&

$200.97

QTY
Stainless Inlet Intake valves GM LS1 2.00" 8MM X 4.900" - 5.7L PERFORMANCE REPLACEMENT INTAKE VALVES

Stainless Inlet Intake valves GM LS1 2.00" 8M

$200.97

QTY
GM LS1 LS2 CATHEDRAL PORT 243 CYLINDER HEADS - PAIR (2 Heads)

GM LS1 LS2 CATHEDRAL PORT 243 CYLINDER HEADS - PAI

$1,045.00

QTY
LABOUR & CONSUMABLES

LABOUR & CONSUMABLES

$55.00

QTY

Description

LS1 LS2 CATHEDRAL PORT - 243 HEADS to suit the 5.7ltr and 6.0ltr

Titanium Retainers.

Assembled, using Stainless Steel valves and Brian Tooley Polished Dual Spring kit with Titanium Retainers.

Hand assembled by Total Performance in Melbourne.

These Cylinder heads are a Performance replacement to the GM 243 heads. All factory mounting points with the Performance of the 243 port and chamber all assembled and reay to bolt on and go!

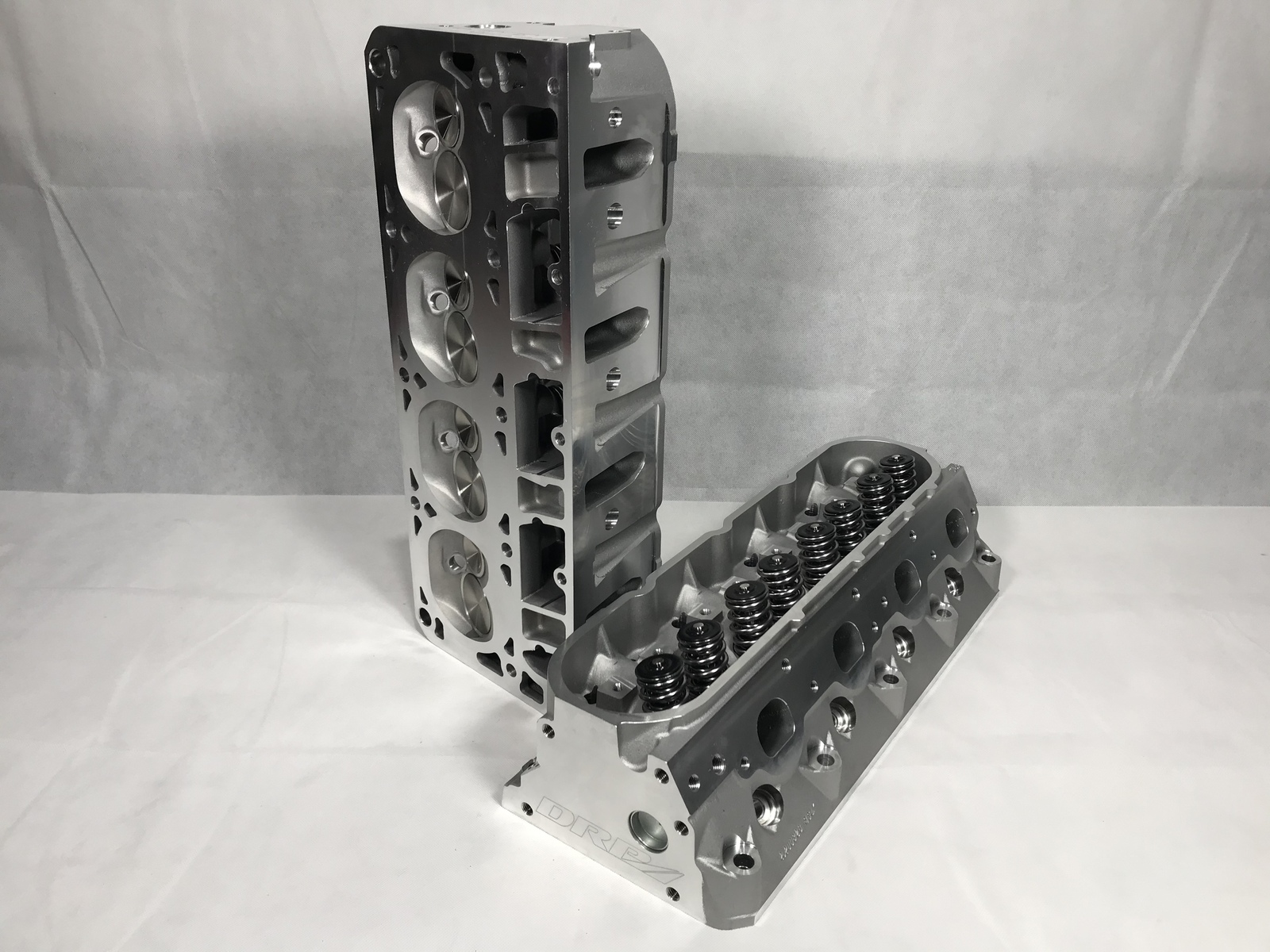

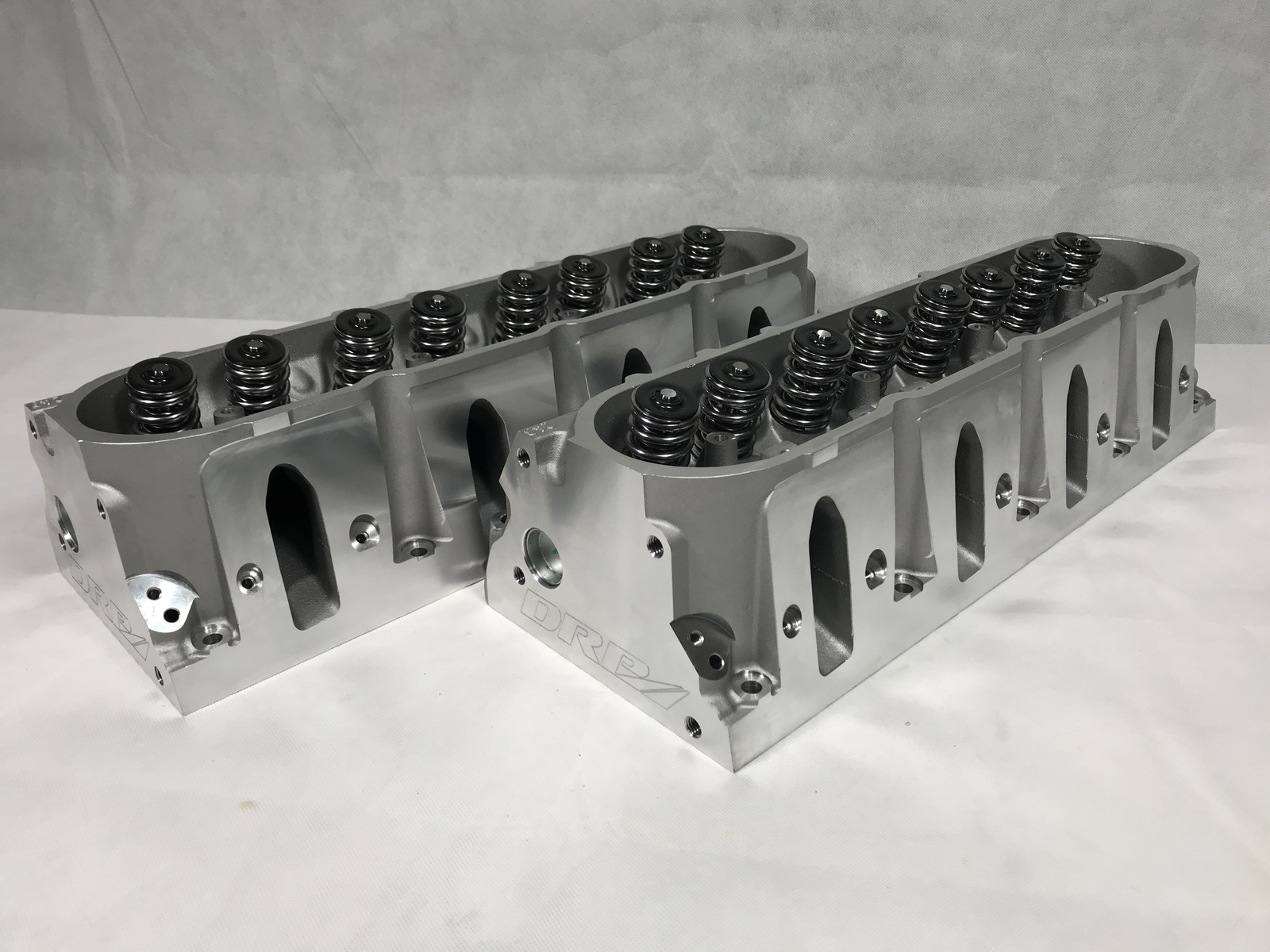

2 Assembled Heads included in sale.

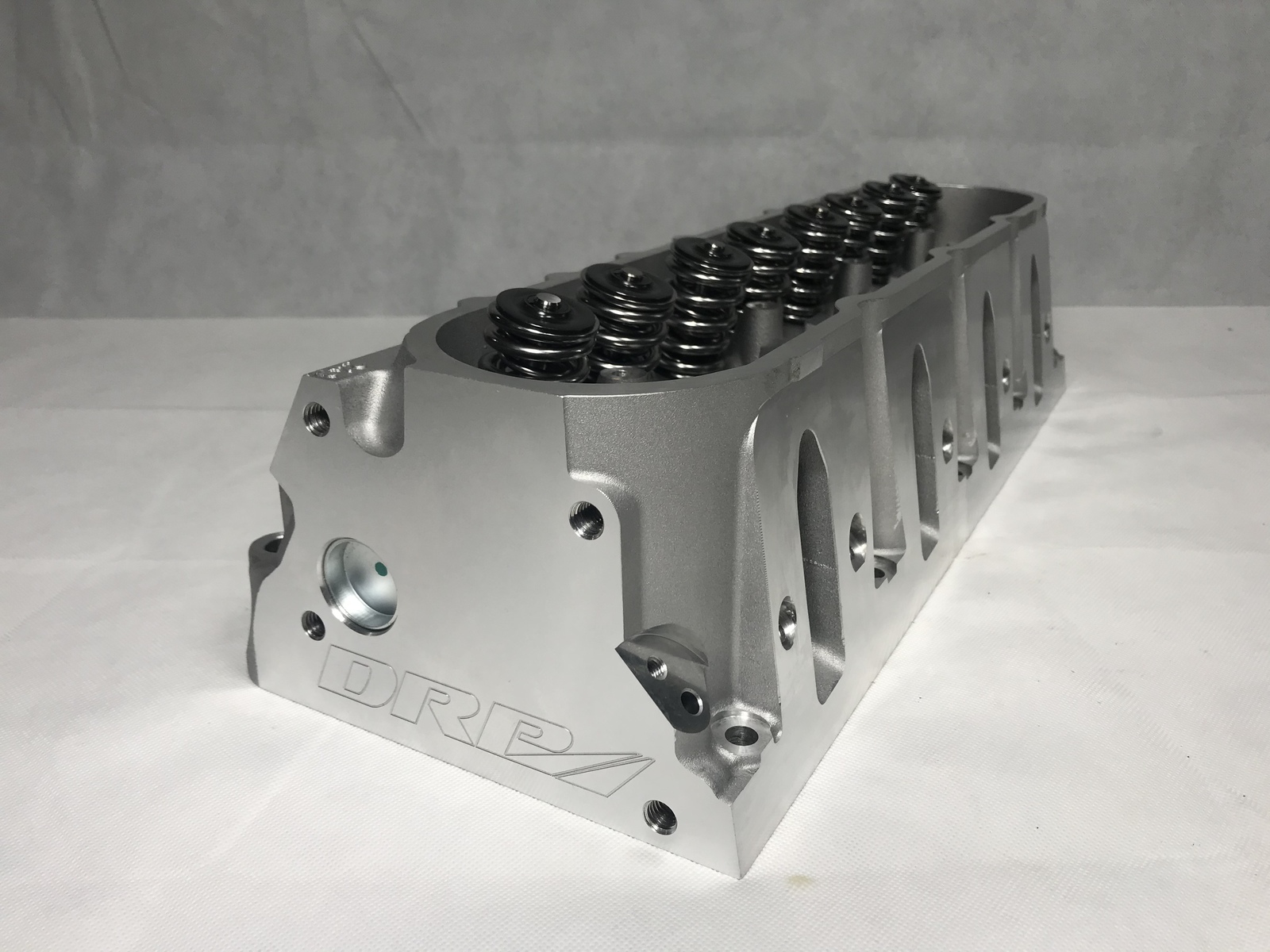

Brand New Pair of genuine DETROIT RACING PRODUCTS Cylinder heads.

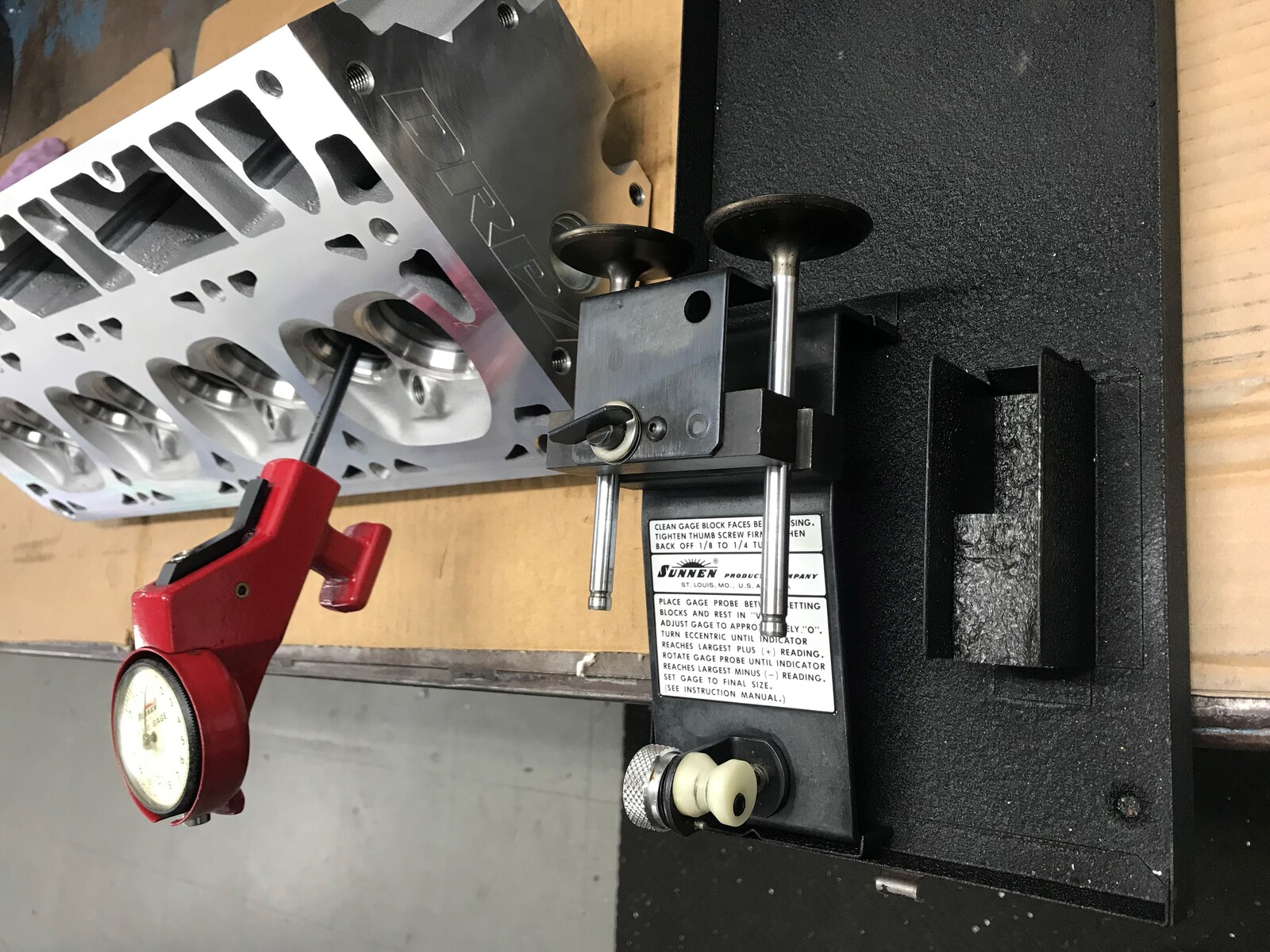

  • Factory Valve Guides 0.500" OD x 8mm stem. - see photo of checking tolerance.
  • Hard 355-T6 Aluminium - Race Quality.
  • 3 Angle Valve Seats - machined - ready for assembly
  • Deck thickness:  0.360"
  • Intake Valve size:  2.00" factory size*
  • Exhaust Valve size: 1.55"  factory size*
  • Intake Port:  210cc
  • Exhaust Port:  75cc

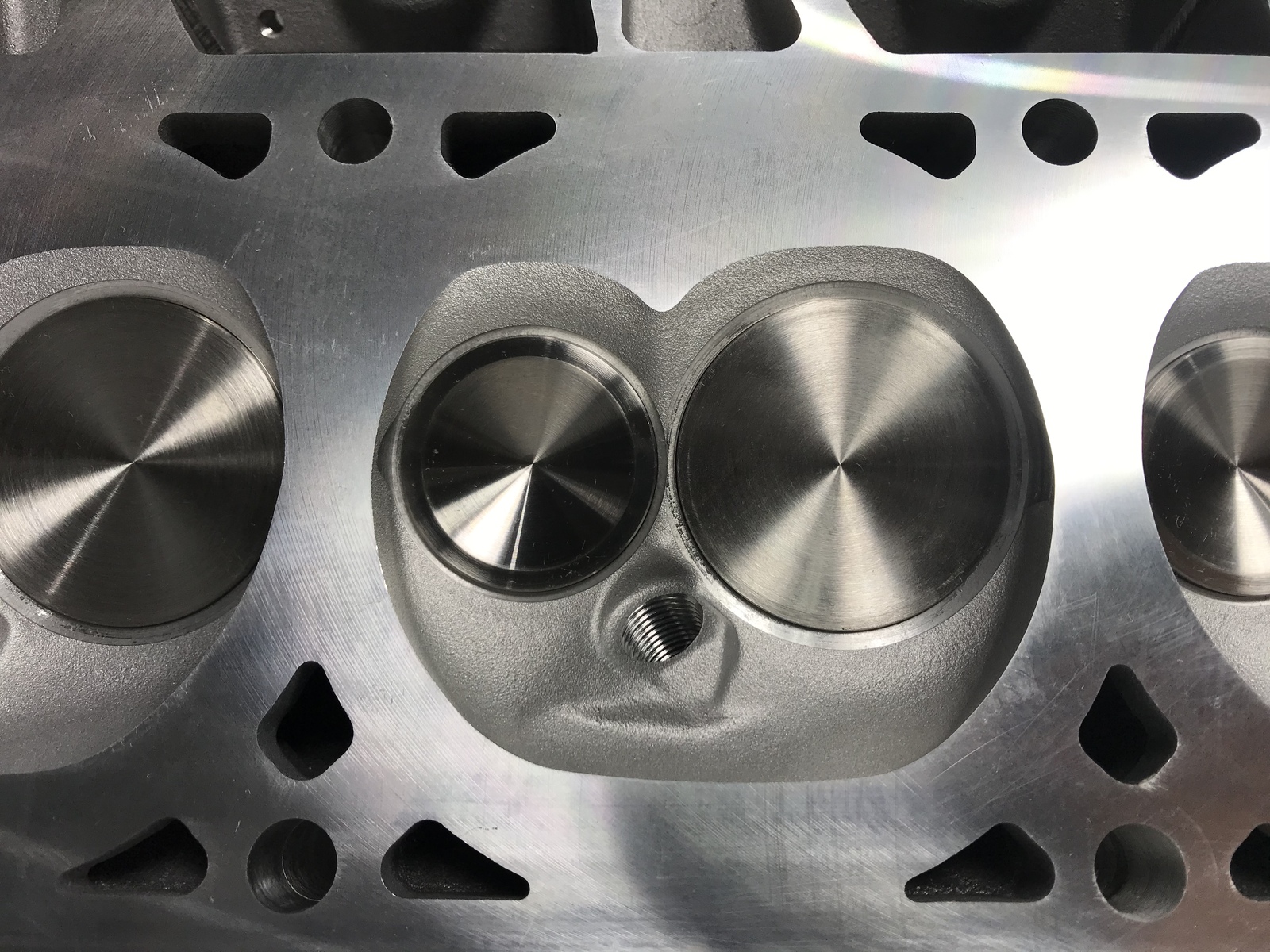

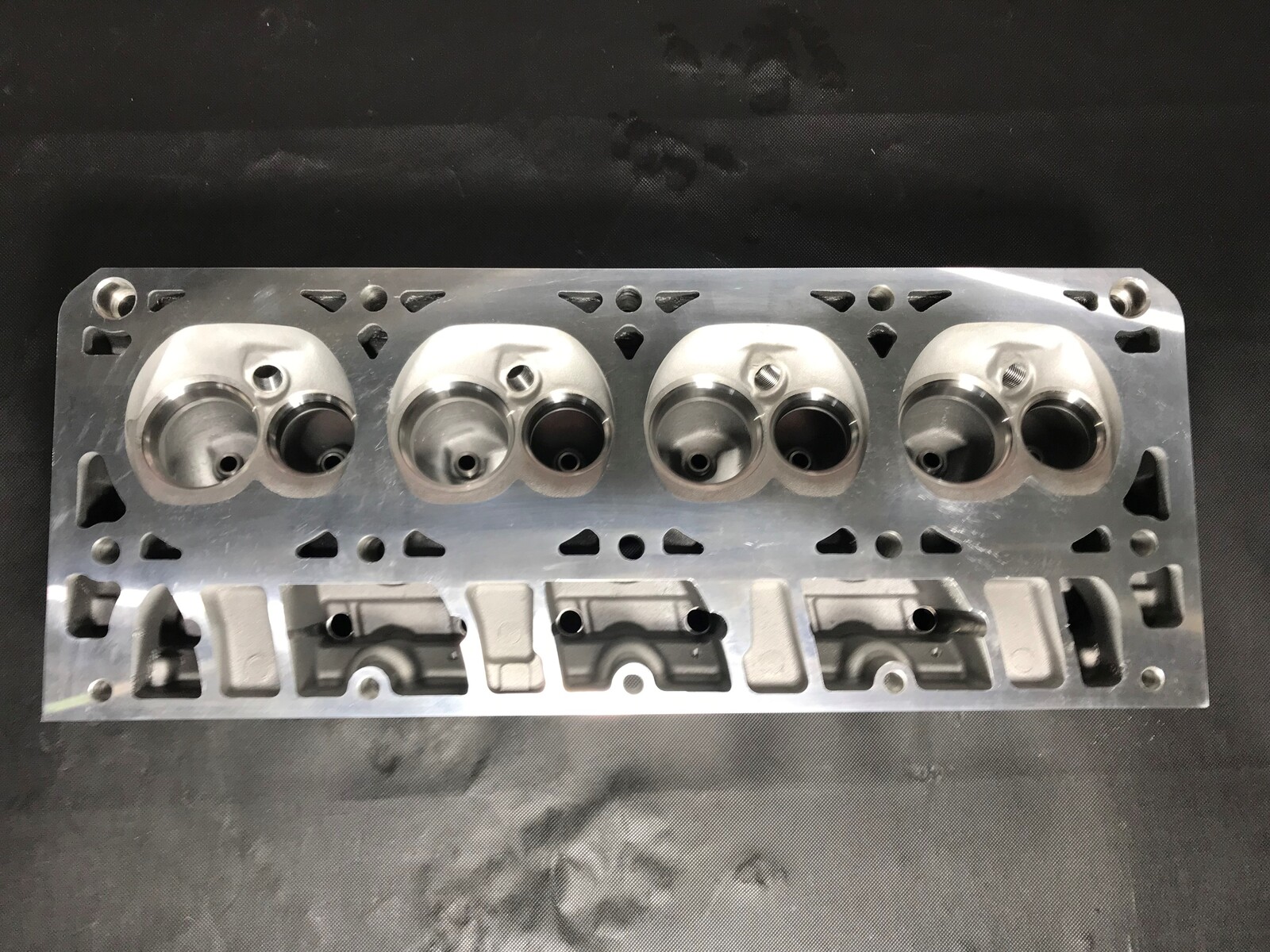

  • Combustion Chamber:  64cc

Exceptional Quality for a Wow factor of a price!

These Cylinder heads flow and work like you wont believe. Best Bang for your Buck!

Dont waste your time or money on rebuilding old units - upgrade now. Forget the headaches, poor valve seats and crack testing woes.

Assembled using:

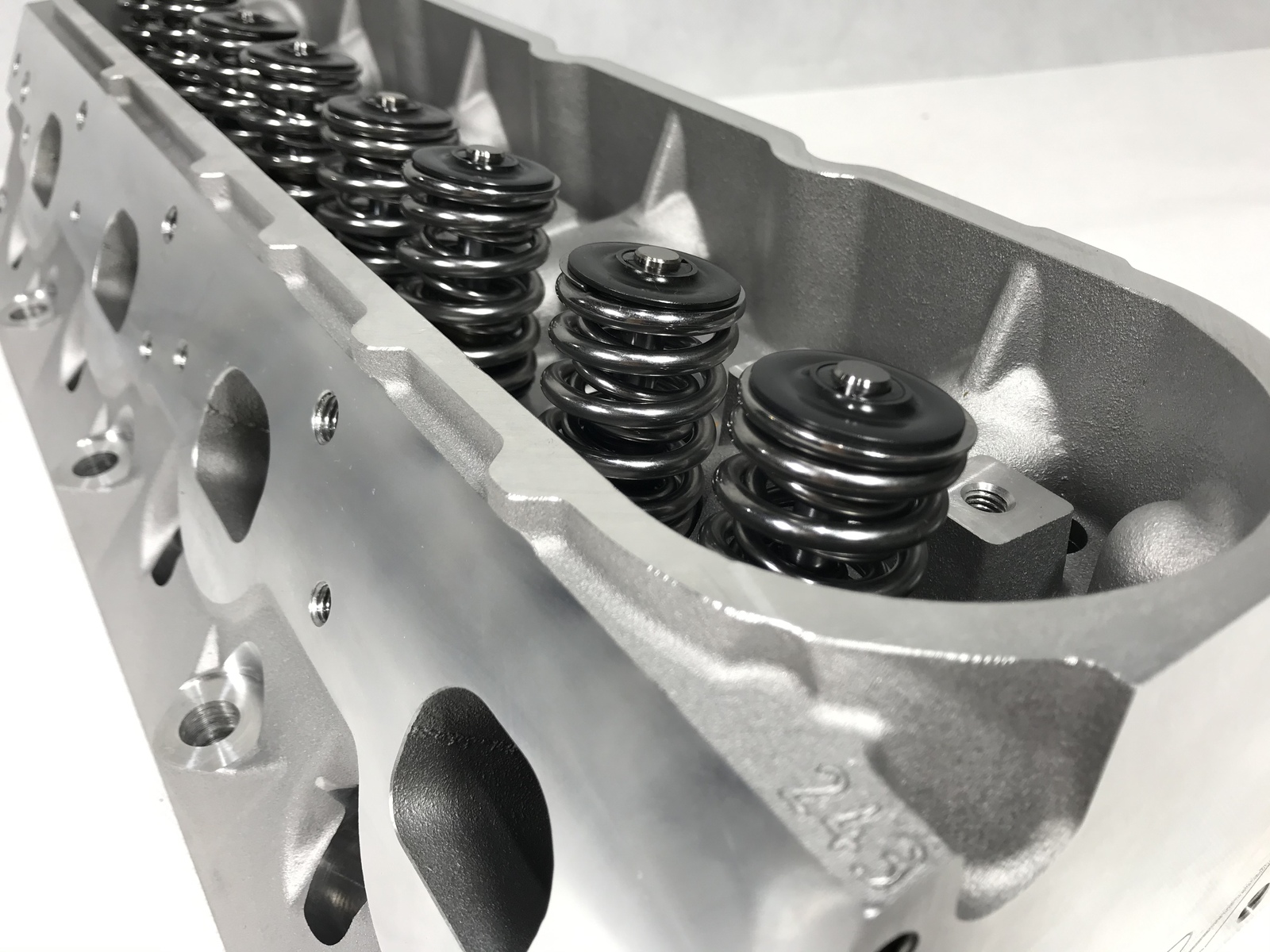

  • Brian Tooley Dual Polished Valve Springs (Installs @ 1.750")
  • Brian Tooley Titanium Retainers.
  • Max lift 0.620"  (with 060" to coil bind)
  • DRP Stainless Steel Valves (Made in the USA)
  • Assembled at Total Performance - Melbourne.
