ASSEMBLED GM LS3 CNC SQUARE PORT HEADS 260CC RUNNER - PAIR LS7 VALVE SPACING 11°

SKU: DRP-LS3-7-260CNC-DSKIT

ASSEMBLED GM LS3 CNC SQUARE PORT HEADS 260CC RUNNER - PAIR LS7 VALVE SPACING 11°

ASSEMBLED 6 BOLT HEADS 11° LS7 VALVE SPACING

$3,767.94

or 4 payments of $941.99 with Info

SOLD OUT

*Free shipping on orders over $200

Notify Me

Description

This sale is for a Pair of Bare Heads.

DRP PERFORMANCE CNC CYLINDER HEADS.

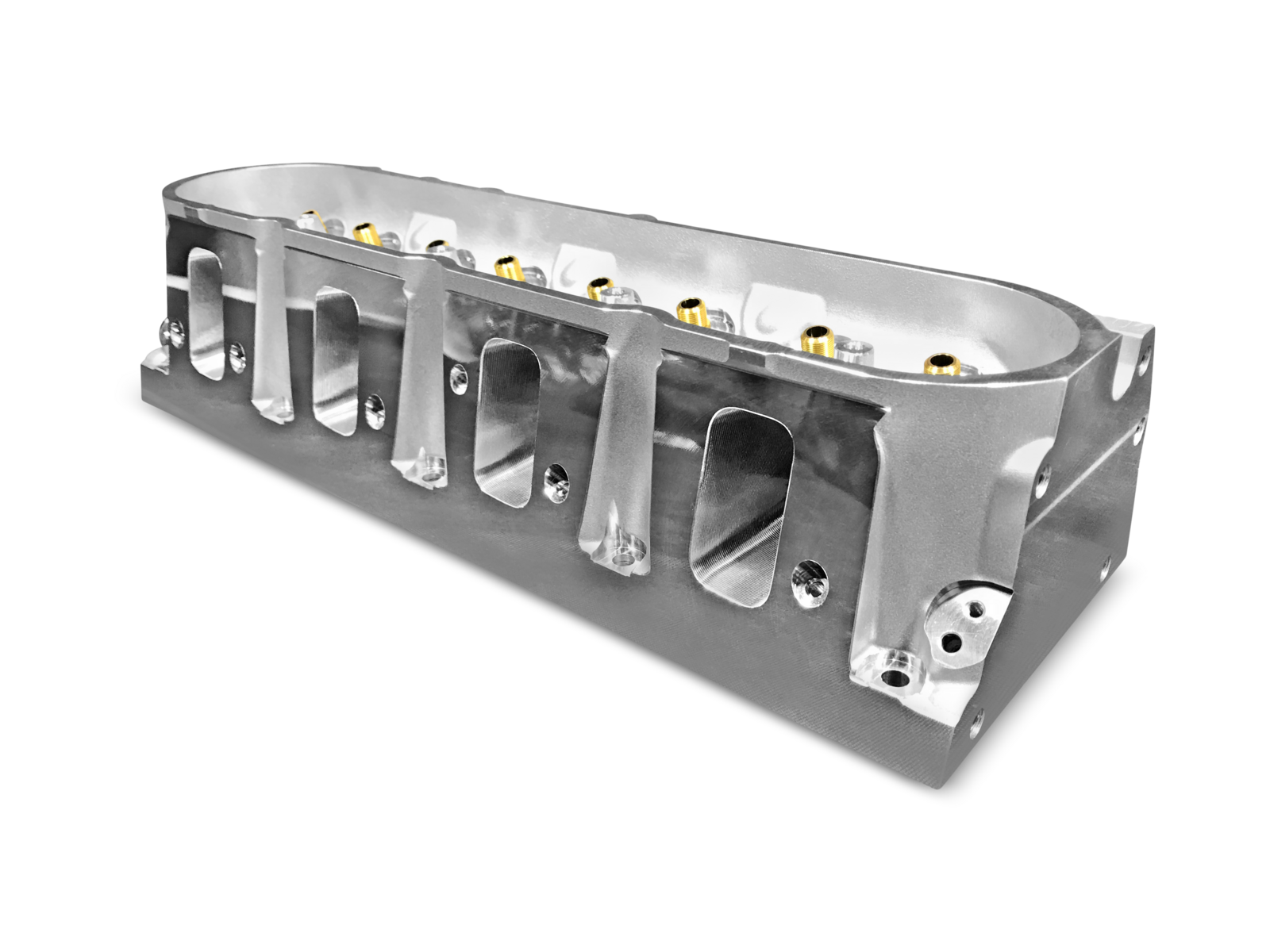

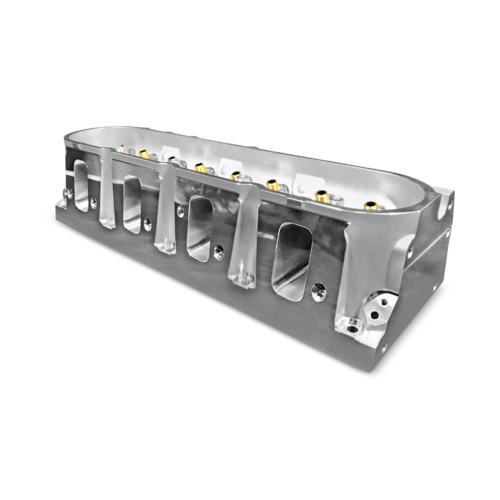

GM LS3 CNC SQUARE PORT HEADS - 260CC RUNNER, LS7 VALVE SPACING - 11° VALVE ANGLE.

We can supply assembled, please enquire.
  • Premium Bronze Valve Guides.
  • Hard 355-T6 Aluminium - Race Quality.
  • 3 Angle Valve Seats
  • 0.560" Bronze Guides x 0.500" Seal
  • Intake Valve size:  8mm 2.165" x 5.450"  w/0.300" tip
  • Exhaust Valve size: 8mm 1.588" x 5.450" w/0.300" tip
  • Installed heights:  (with above length valve)
    • 1.900" with Comp Cams Tool Steel Retainer + 060" locator (Comp #1779-16)
    • 1.850" with DRP Titanium Retainer + 060" locator.



Specifications

SKU DRP-LS3-7-260CNC-DSKIT
Brand DRP
Unit Of Measure ea
Custom Bundle Yes
Bundle Description PAIR
