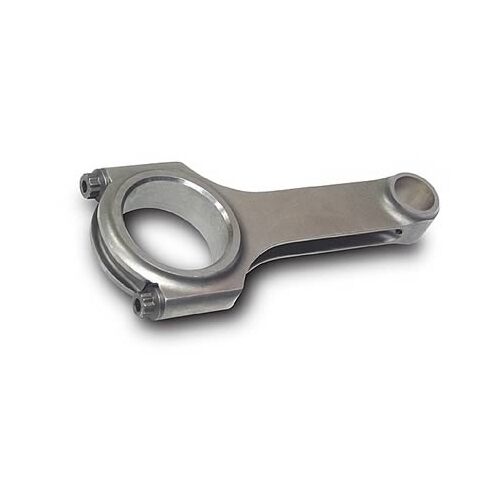

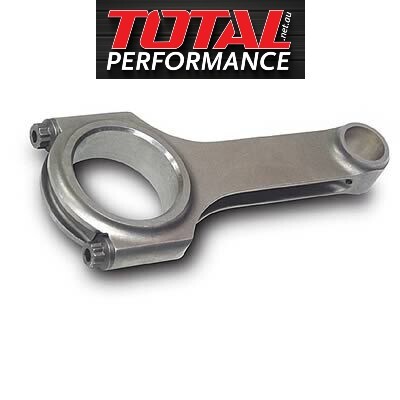

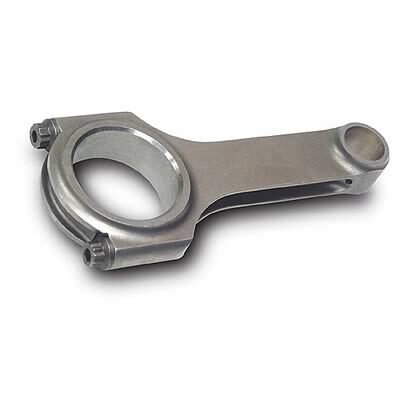

H BEAM FORGED CONNECTING CONRODS SBF FORD WINDSOR 347W 302W STROKER 5.400" 0.927 Pin, ARP 2000

DRP Windsor H-Beam Stroker Connecting Rods - Ford 302 347 Windsor 5.400"

These DRP high performance H beam conrods fit 347 Stroker Windsor. Ford Small Block 347 H-beam connecting rods are high quality with premium surface finished & tight tolerances. Fitted with ARP 2000 rod bolts makes these 347 Windsor stroker conrods top quality. These DRP H-beam connecting rods are perfect for supercharged and nitrous applications. These Windsor Stroker rods incorporate a special doweled cap for specific cap-to-rod alignment and are profiled with extra clearance for Windsor stroker applications.

Connecting Rod Length:  5.400 in.

Connecting Rod Beam Style:  H-beam

Connecting Rod Material:  Forged 4340 steel

Connecting Rod Finish:  Natural Fine Finish

Wrist Pin Style:  Floating - Bronze Bush

Big End Bore Diameter (in.):  2.1230 in.

Big End Width (in.):  0.830 in.

Pin End Bore Diameter:  0.927" (Chevy)

Cap Retention Style:  Cap screw

Connecting Rod Bolt Brand:  ARP

Connecting Rod Bolt Diameter:  7/16 in.

Connecting Rod Bolt Material: ARP 2000

Connecting Rod Bolt Head Style:  12-point

Weight Matched Set:  Yes

Quantity:  Sold as a set of 8.
