500 HP HOLDEN 304 V8 EFI VN 355 Hydraulic Roller Camshaft 236/236 .572"/.572" LSA 110 COMP CAM

Total Performance Custom Cam by COMP Cams Hydraulic Roller Camshaft fits Holden 304 / 5.0L, 355 Stroker V8 (suits VN EFI type Heads)

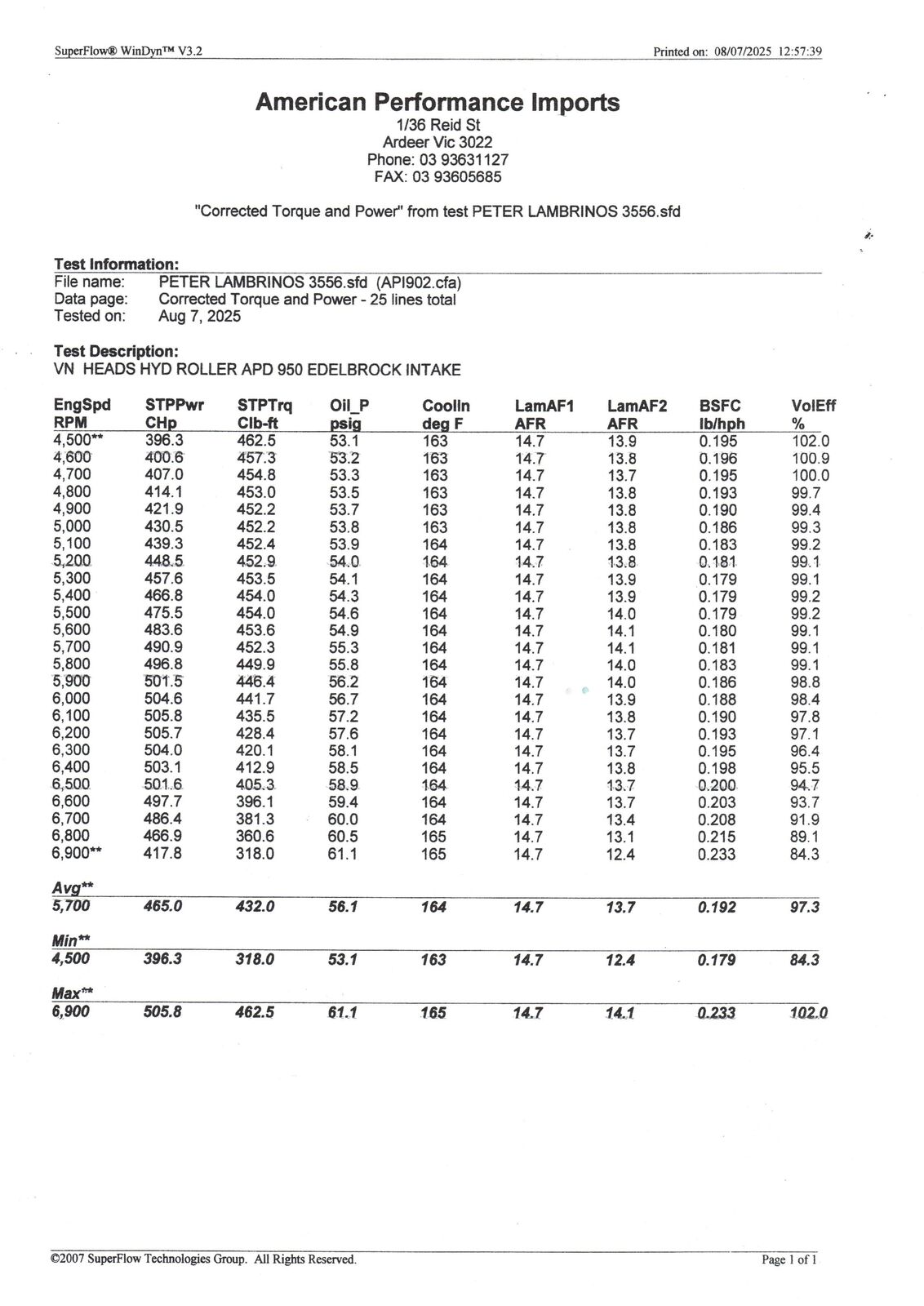

• Dyno Proven 500 HP & 6800 RPM! See the Dyno sheet with DRP Proline Valve Springs.
• This is an excellent all round camshaft for the 355 Stoker combinations. With the LSA 110, this camshaft is a little more tame than the other cam on a LSA 108.

This COMP Cams hydraulic roller camshaft is Street friendly & agressive enough to pull hard to 6800 RPM! Designed for Holden 304 / 5.0L V8 engines with VN EFI cylinder heads. A very popular grind, it performs exceptionally well in 355 stroker builds, delivering strong midrange and top-end horsepower with crisp throttle response. This USA-made cam is an excellent choice for street and strip applications requiring power, durability, and proven performance.

Key Benefits

• Best Cam for the 355 strokers, Popular grind with excellent results.

• Rough idle with a performance lope

• Strong midrange and top-end power to 6600 rpm - revs to 6800 RPM

• Crisp throttle response for street/strip use

• COMP Cams quality, made in the USA

Recommended Setup

• Compression: 10.0 – 10.5:1

• Rear Gear Ratio: 3.5 – 3.9

• 3000 to 3500 High-stall torque converter recommended

• Ported / modified VN EFI heads for maximum gains + Machine for dual valve springs

• Valve Springs: Recommend DRP Streetline or DRP Proline valve Springs* Cylinder head machine work required.

  • DRP-8374S-16  - (Street) LS type Dual

  • DRP-8415P-16   (High RPM/Strip) LS type Dual polished

  • DRP-8415P-304KIT (High RPM KIT) LS type Dual Springs Polished

• 650 CFM Carby

Specs

• Engine Fitment: Holden 304 / 5.0L V8 (VN EFI heads)

• Cam Type: Hydraulic Roller

• Brand: Comp Cams

• Part Number: 282-236236-HR-08

• Duration @ 0.050": 236 / 236

• Valve Lift @ 1.65:1: .570" / .570"

• Lobe Lift: .347" / .347"

• Lobe Separation Angle (LSA): 110

• Basic RPM Range: 3000 – 6500

COMP CAM - MADE IN USA

CAMSHAFT BY TOTAL PERFORMANCE
