Holden V8 253 308 Intake Inlet Manifold Early Carby Head, Dual Plane Performer Satin Red, Blue, Black engines

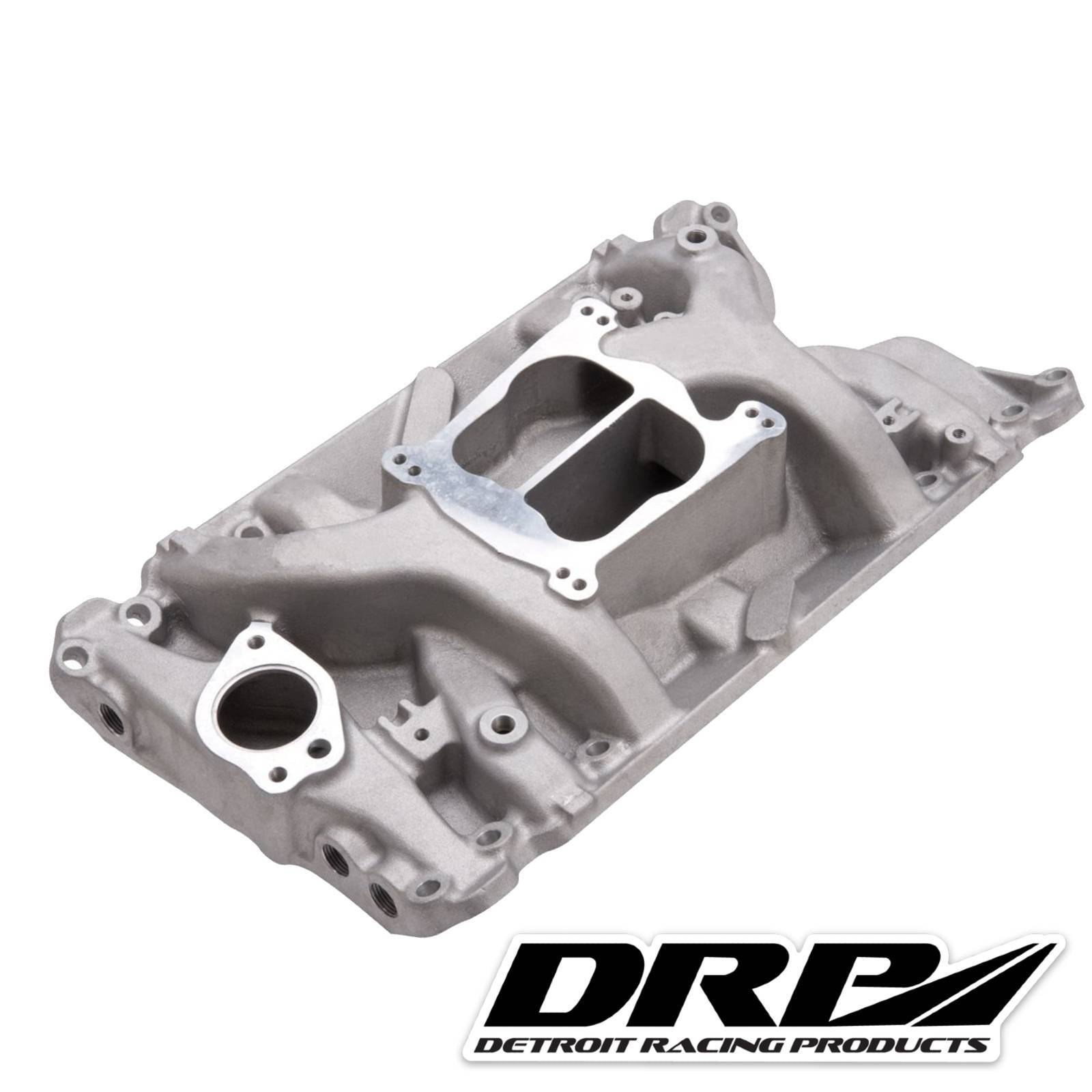

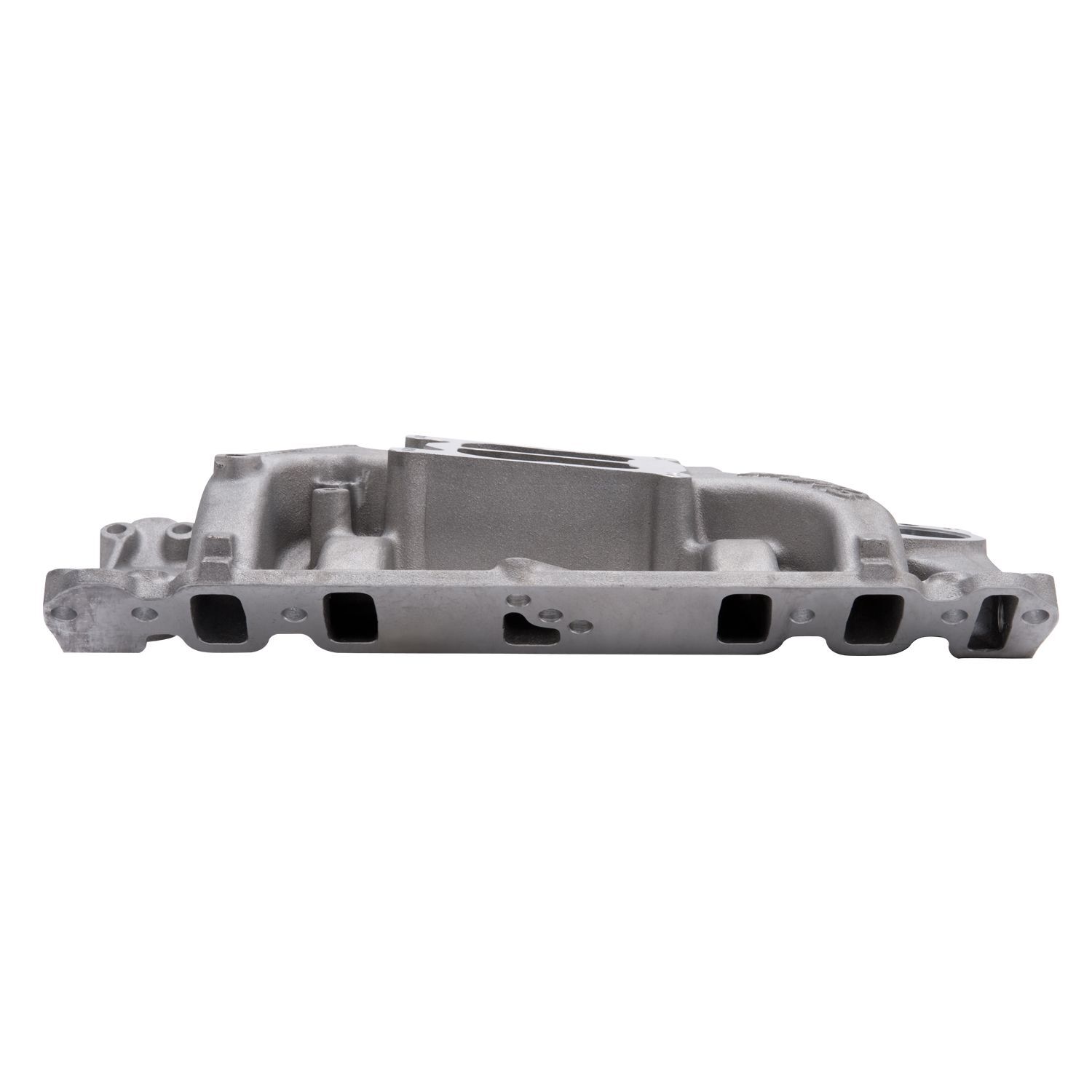

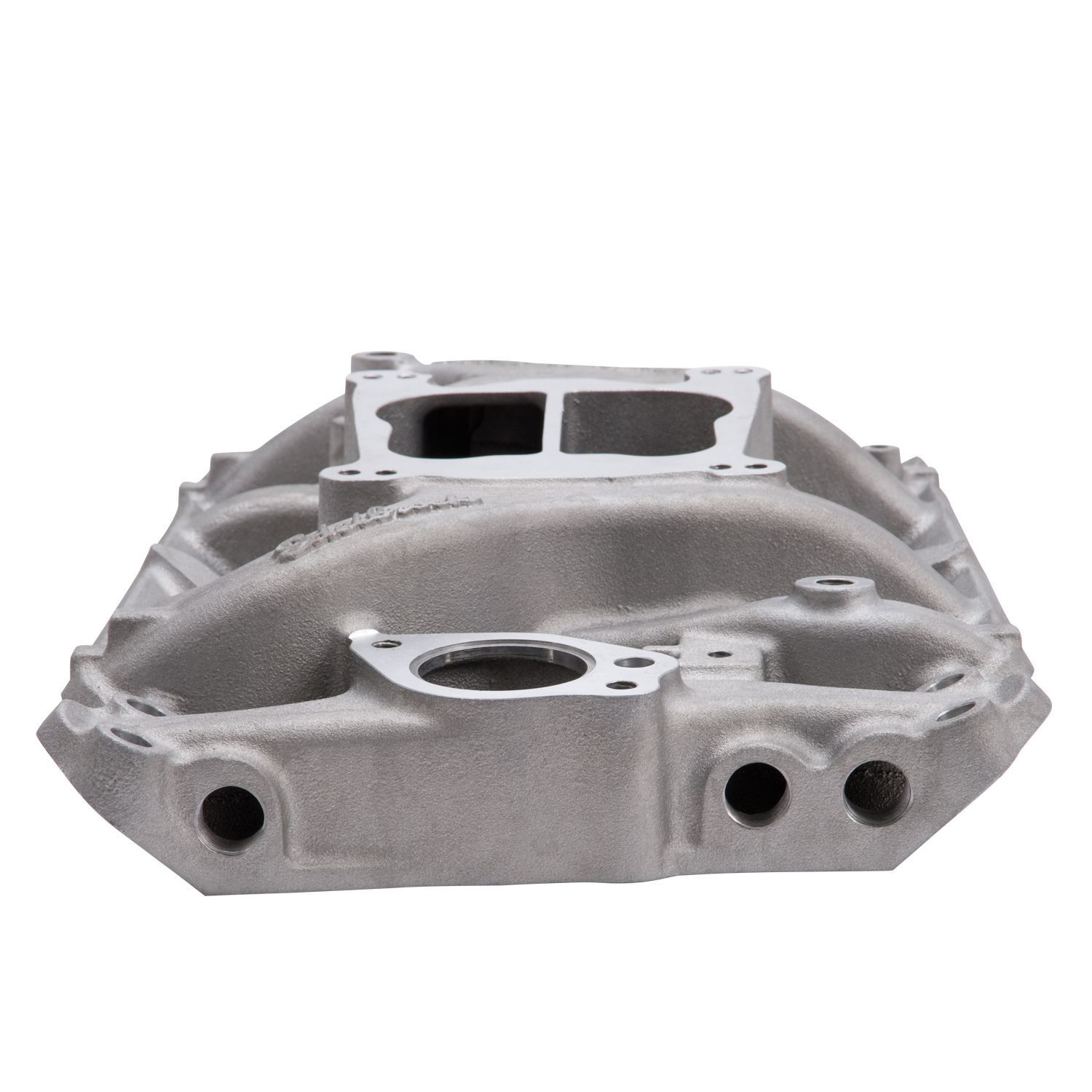

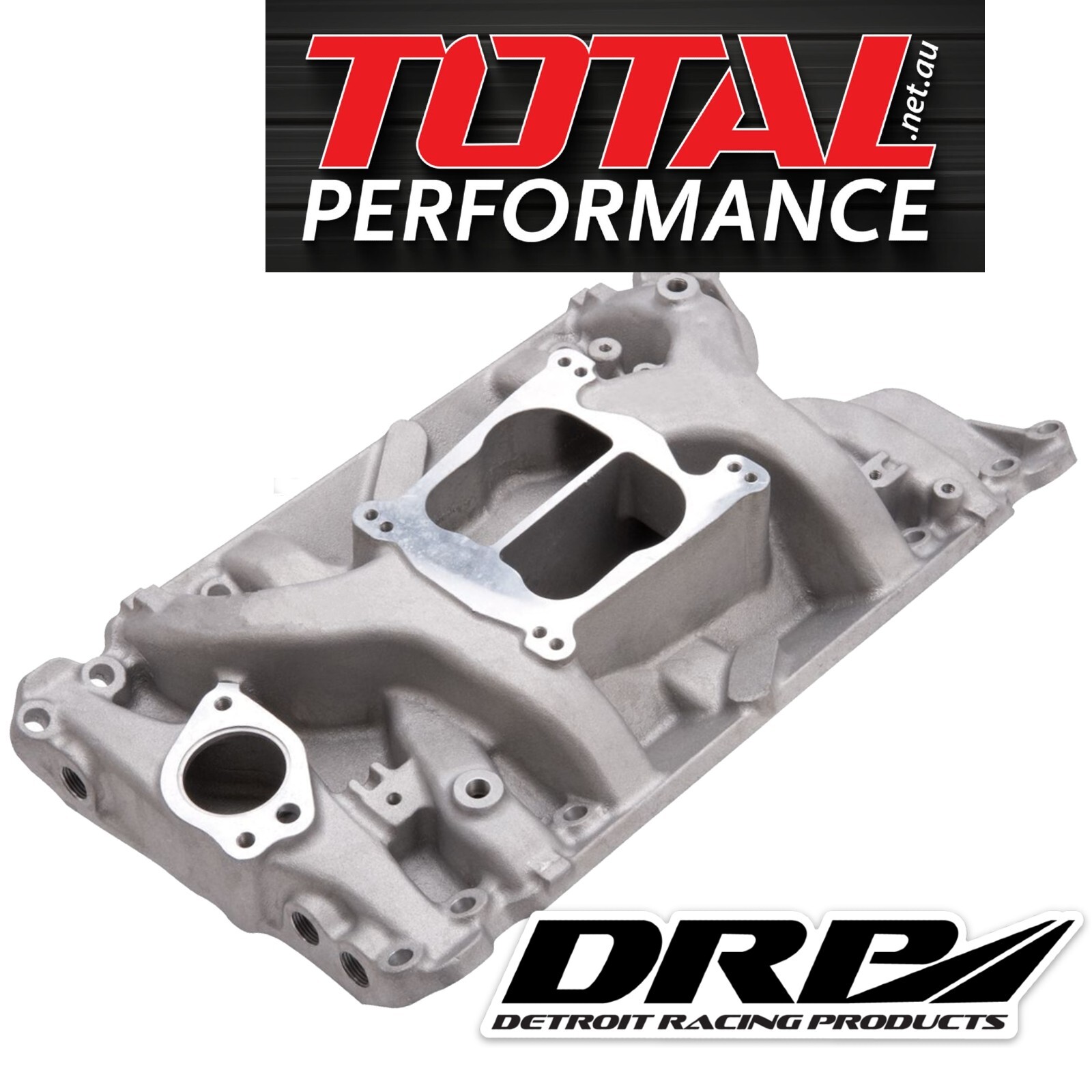

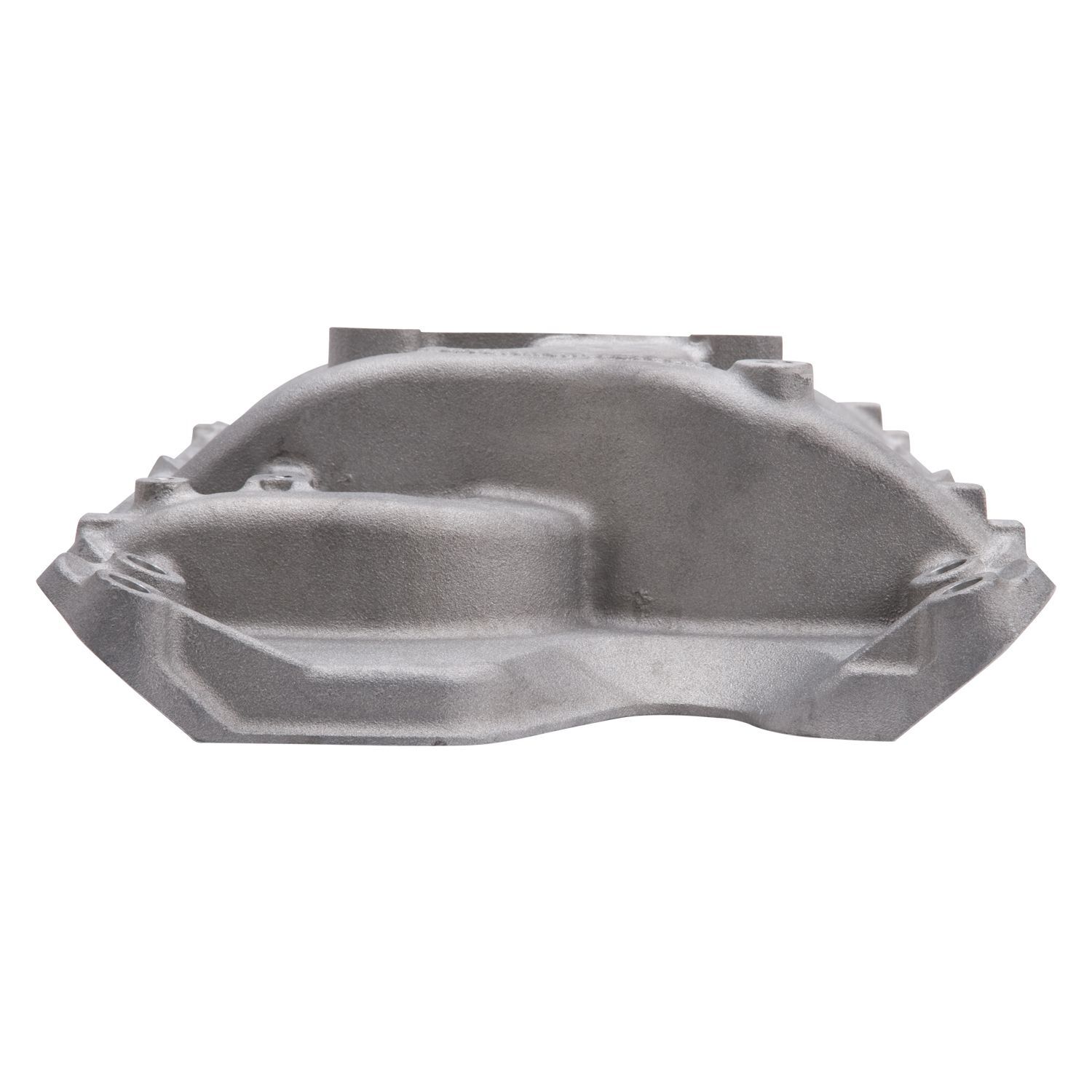

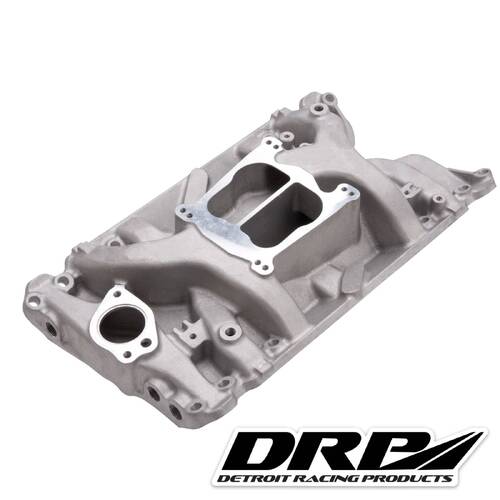

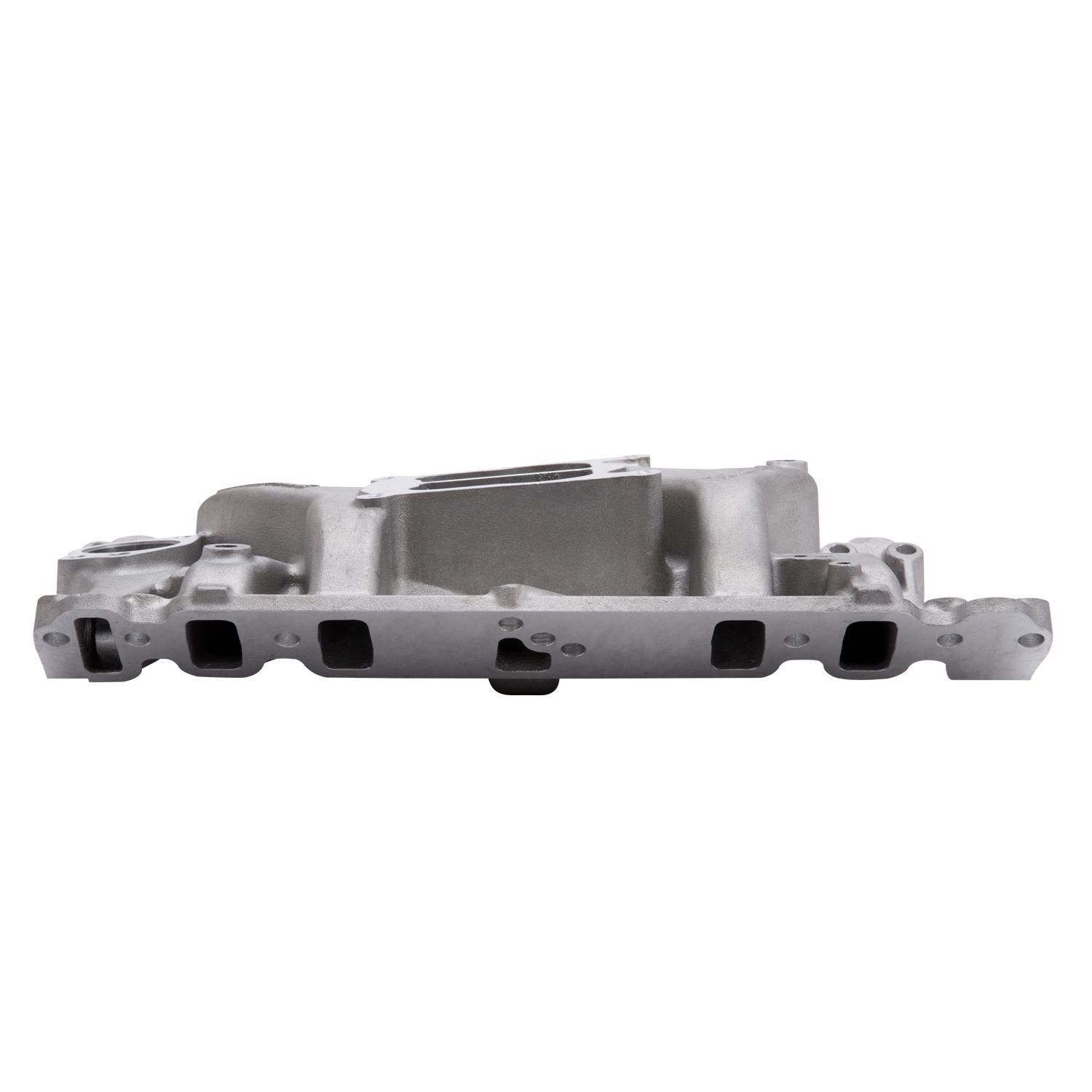

DRP 308 Holden Dual Plane Intake Manifold, for the ealry Holden 253-308 c.i.d Engines Red/Blue/Black engines.

Accepts Either OEM 4-bbl or 4150-Style Square-Bore Carburetors.

Fits Holden 253 & 308 Intake Manifold, Red, Blue, Black, V8 Holden.

The DRP Holden intake manfiold, intake manifold is designed for street 253 & 308 ealry Holden V8 engines. This dual plane holden intake manifold is a high torque dual-plane design that is tuned for excellent throttle response from idle to 5500 rpm. The DRP Holden manifold has been designed to fit both cylinder head bolt hole patterns. Pilot holes have been drilled on each side of the exhaust crossover for early or late model cylinder heads and will need to be drilled out depending on application.

Will not fit VN style EFI Heads.

Accepts both square-bore and spread-bore carbs. Fits Red/Blue/Black engines.

• Does not have a provision for external heat crossover.
• Utilises the Holden Thermostat Housing.

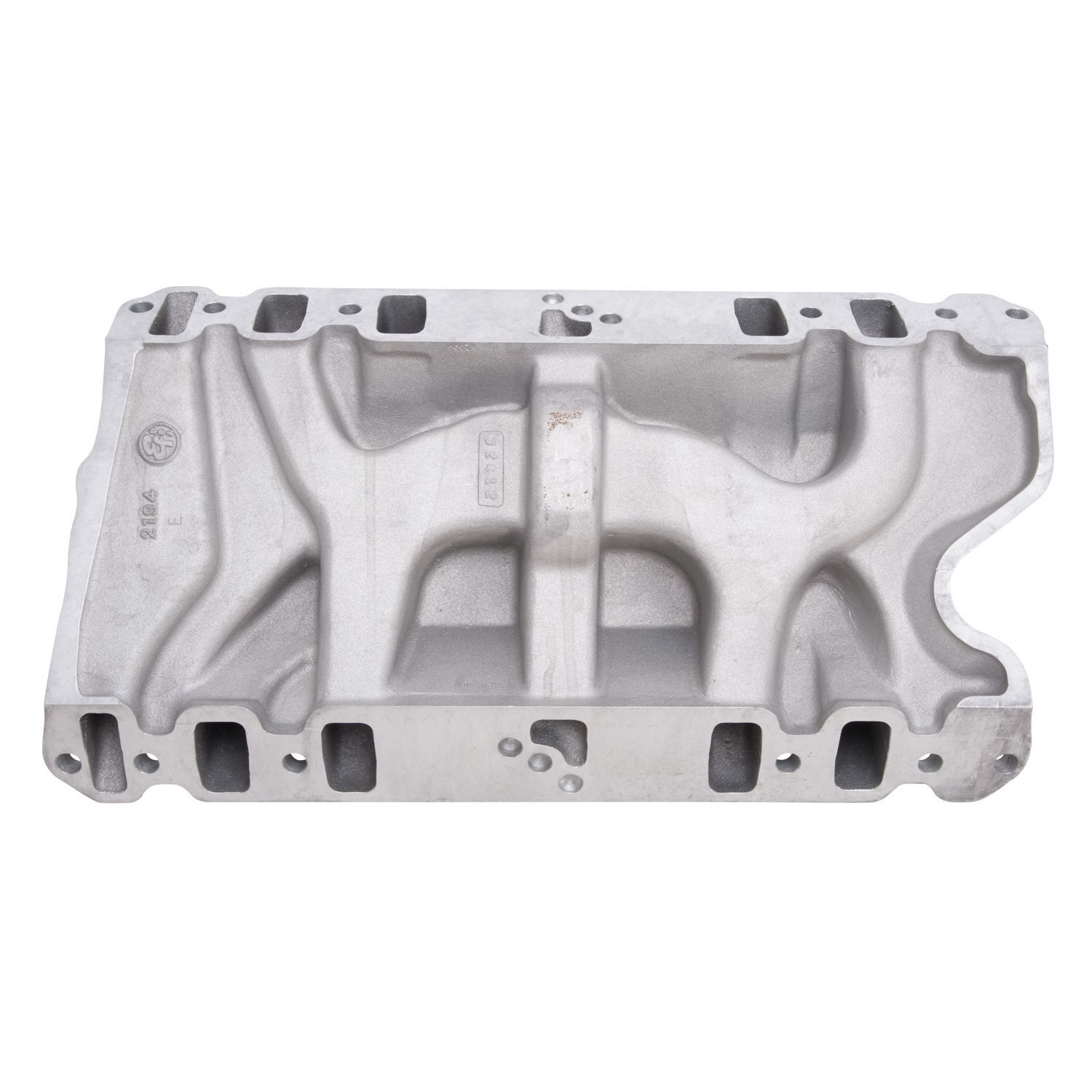

Installation Note: For the center bolt holes, you will need to drill out to suit which Carby Cylinder heads you have. There is a convenient provision for part drilled holes on the underside of the manifold. You just have to drill out the rest to match which head you have.
