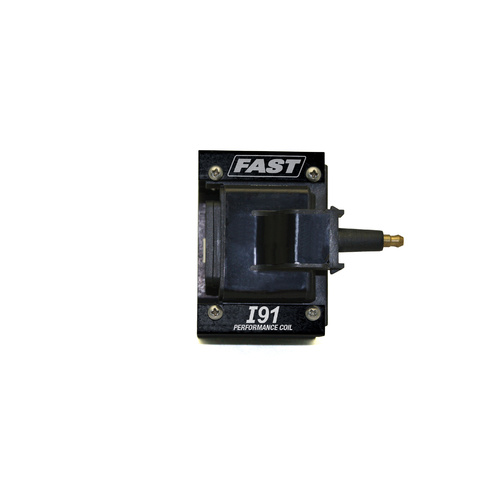

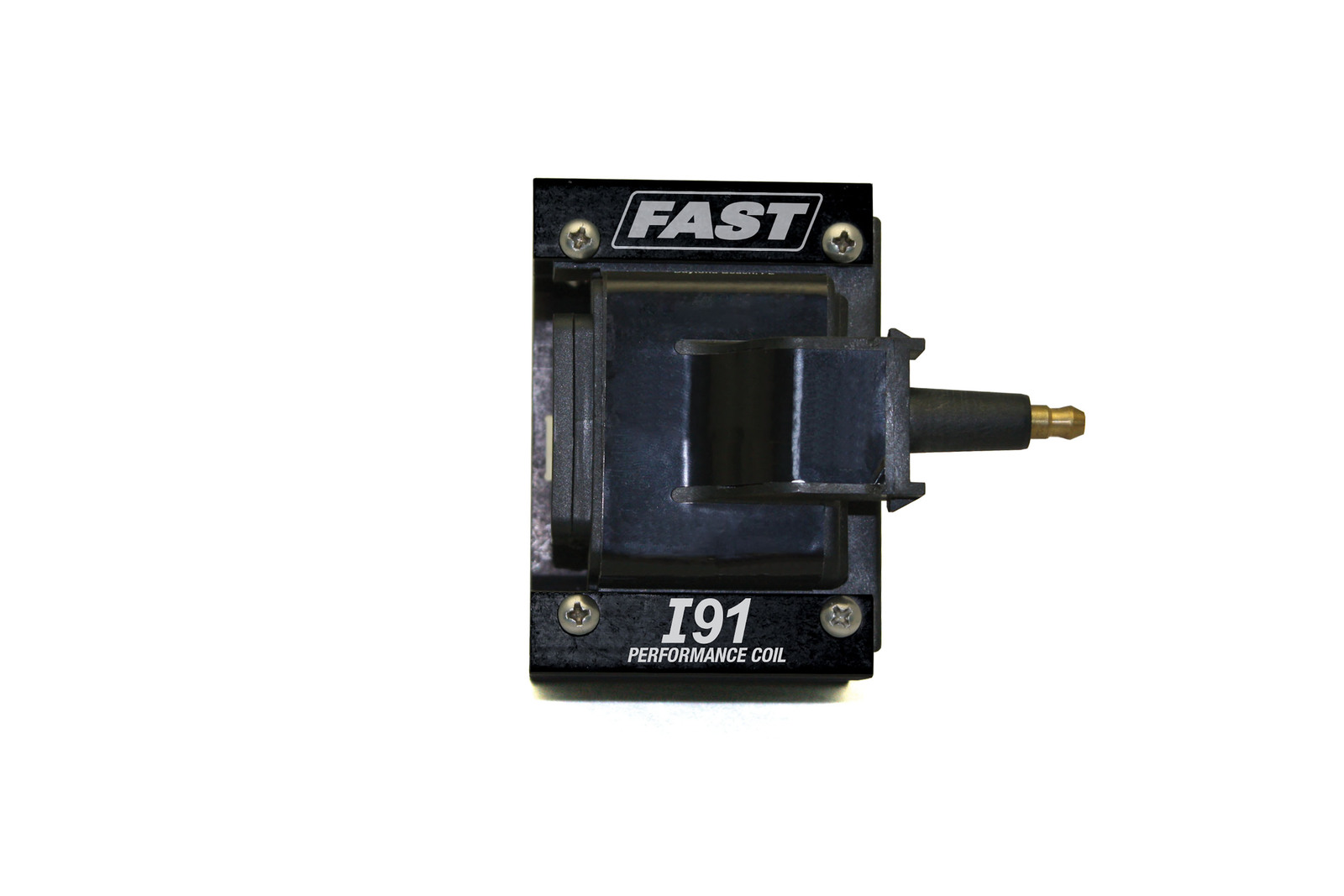

730-0891 I91 Inductive Ignition Coil

12

High-output E-core coils for race and street; Up to 70% higher energy at the spark plug than stockfor maximum performance, race or street; E-core design with closed magnetic path reduces leakage and improves energy transfer to the spark plug, for maximum ignition performance.; Plastic overmolded core with improved urethane encapsulation material provides protection against severe shock, harsh vibration, and high voltage breakdown by eliminating the exposed E-core; Insulated primary connector for enhanced safety with mating connector included; Improved coil wire retention and longer creep path protects against high voltage arcing; 50 state legal CARB E.O. D-225-60

SKU	730-0891
Barcode #	021174160895
Brand	FAST
Spark Duration	280 uS
Diameter	N/A
Coil Wire Attachment	Male/HEI
Coil Wire Terminal Quantity	1
Leakage Inductance	.23 mH
Mount Type	Integral
Mounting Bracket Included	Yes
Oil Filled	No
Secondary Inductance	14.4 H
Terminal Quantity	2
Mounting Position	Any
Ballast Resistor Included	No
Height	3
Title	The I91 is a great choice for street an performance applications.
Turns Ratio	57:1
Weight	1.25 lbs
Secondary Resistance	4.6K ohms
Primary Resistance	.40 ohms
Primary Inductance	4.7 mH
Peak Current	380 mA
Meets Or Exceeds Oem Specs	Yes
Maximum Voltage	47,000 V
Coil Style	E-Core
Coil Internal Construction	Epoxy
Coil Color	Black
Coil Shape	Square
Coil Wire Included	No
Quantity	Sold individually
Width	2.5
Length	3.75
