SKU: 4696-16

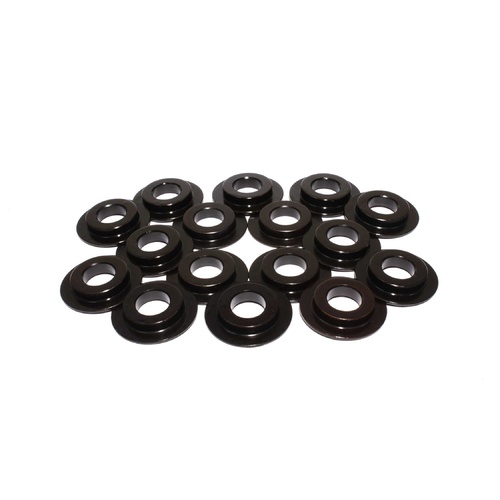

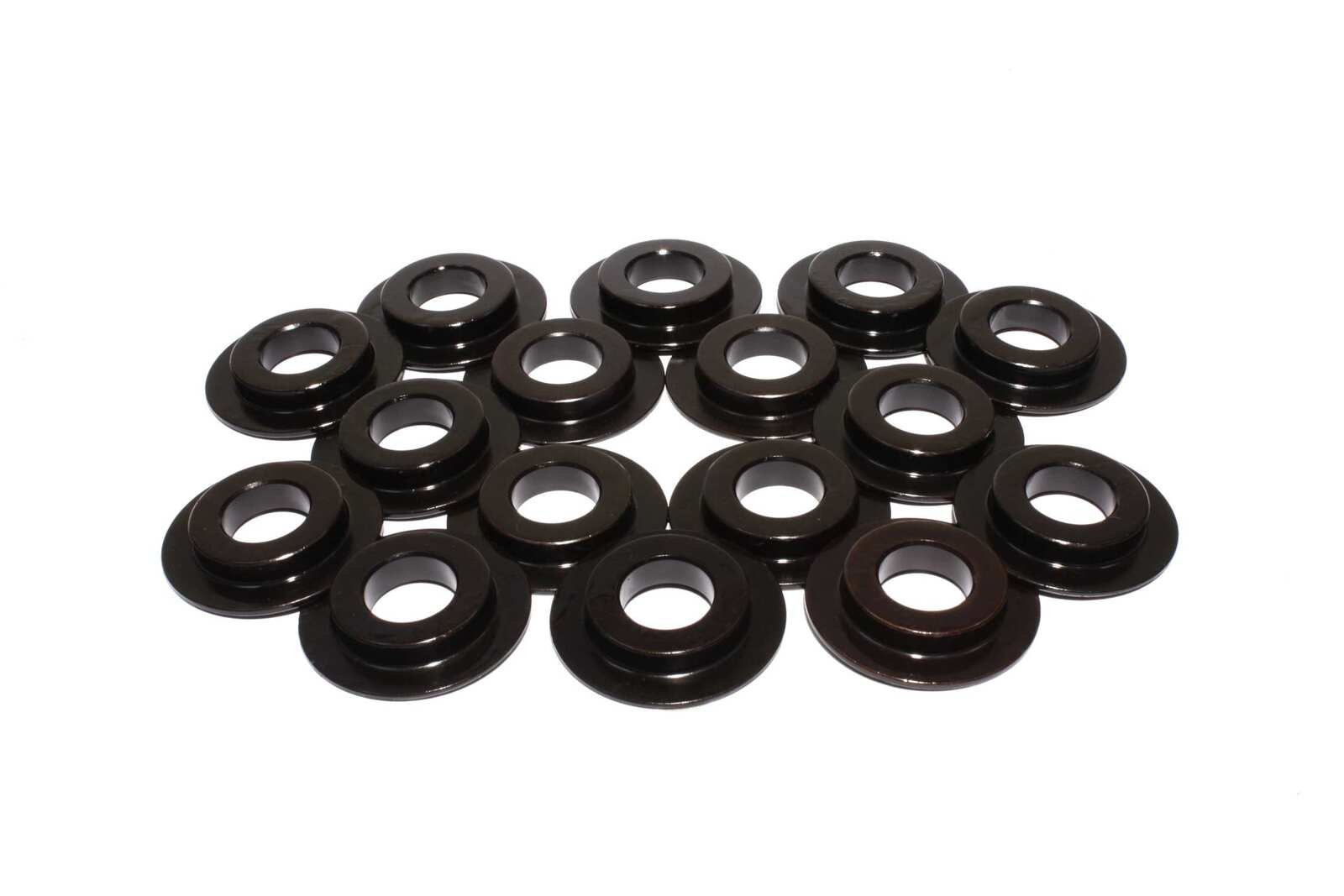

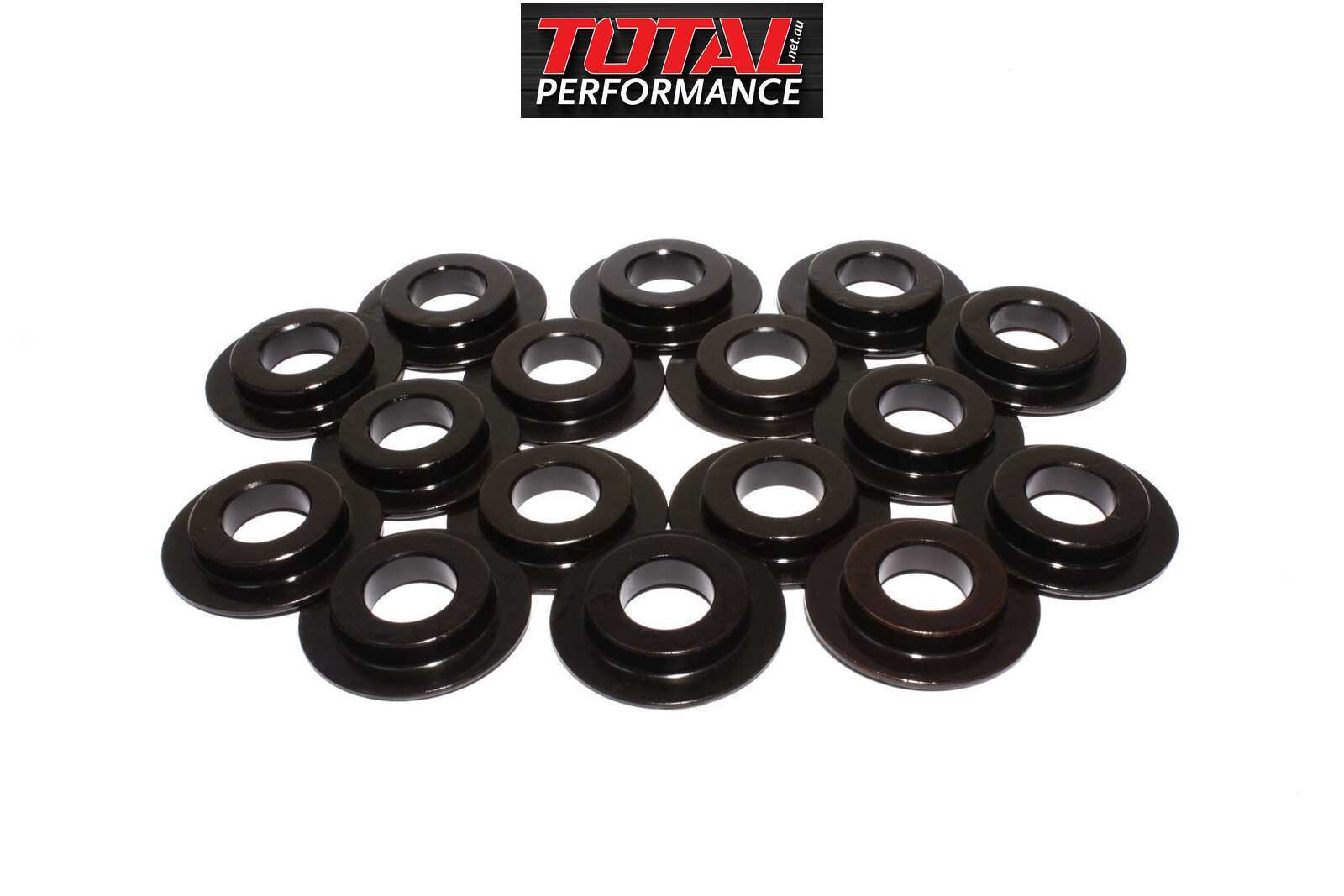

4696-16 ID Spring Locator Set of 16 - 1.510" OD, .570" ID, .060" Thickness

$75.25

or 4 payments of $18.81 with Info

In Stock

Description

Made from hardened steel, these locators use an inboard locating shoulder to center the seat and hold the spring in place. The 4696 seat's 1.510" OD works well with our 26120 and 26056 valve springs in .570" OD Guide applications.

Specifications

SKU 4696-16
Barcode # 036584091134
Brand COMP CAMS
Outside Diameter 1.51
Spring Inside Diameter .970"
Locator Inner Diameter 0.57
Spring Inner Diameter 0.97
Inside Diameter .570"
Locator Thickness .060"
Locator Outer Diameter 1.51
