SKU: 4773-16

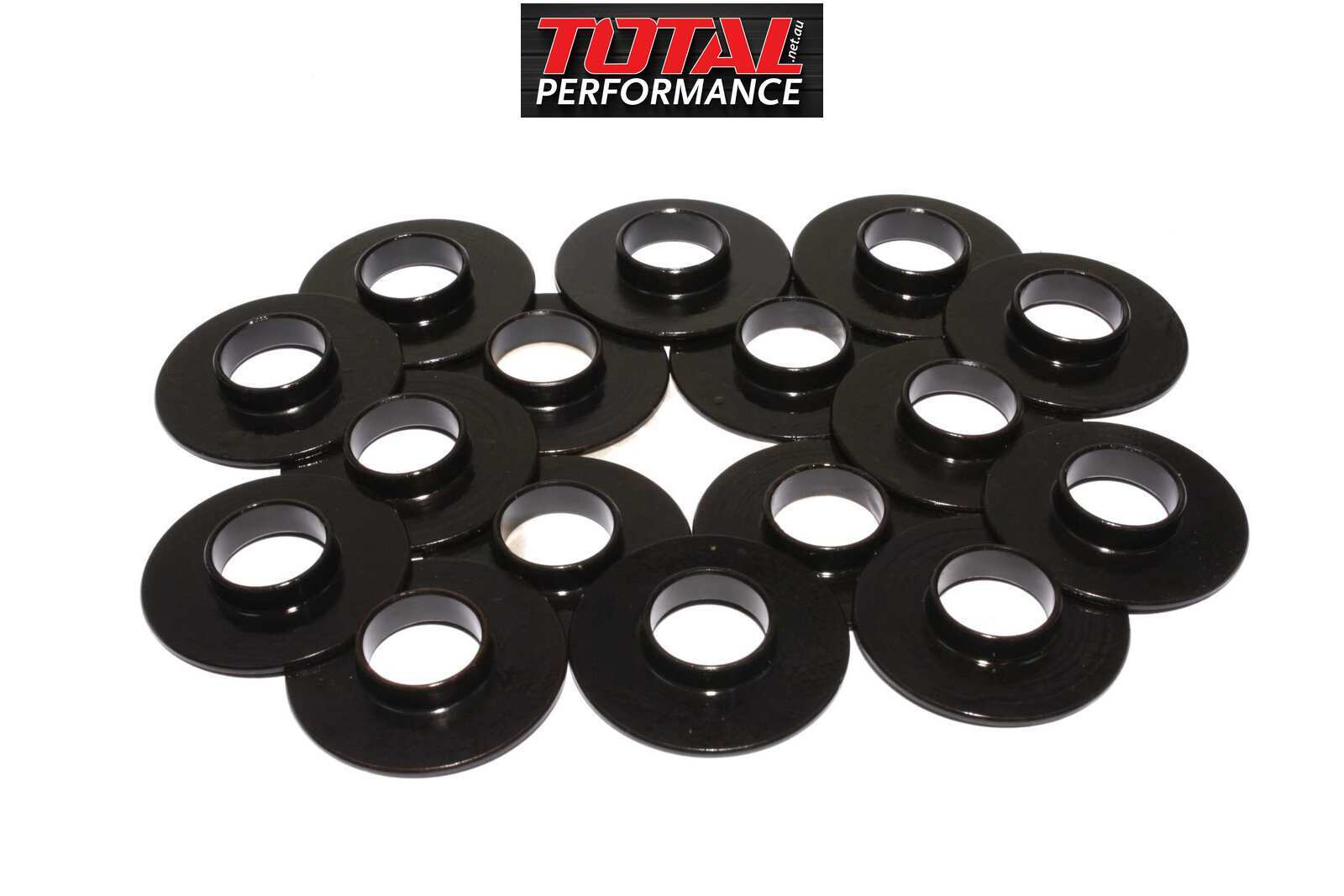

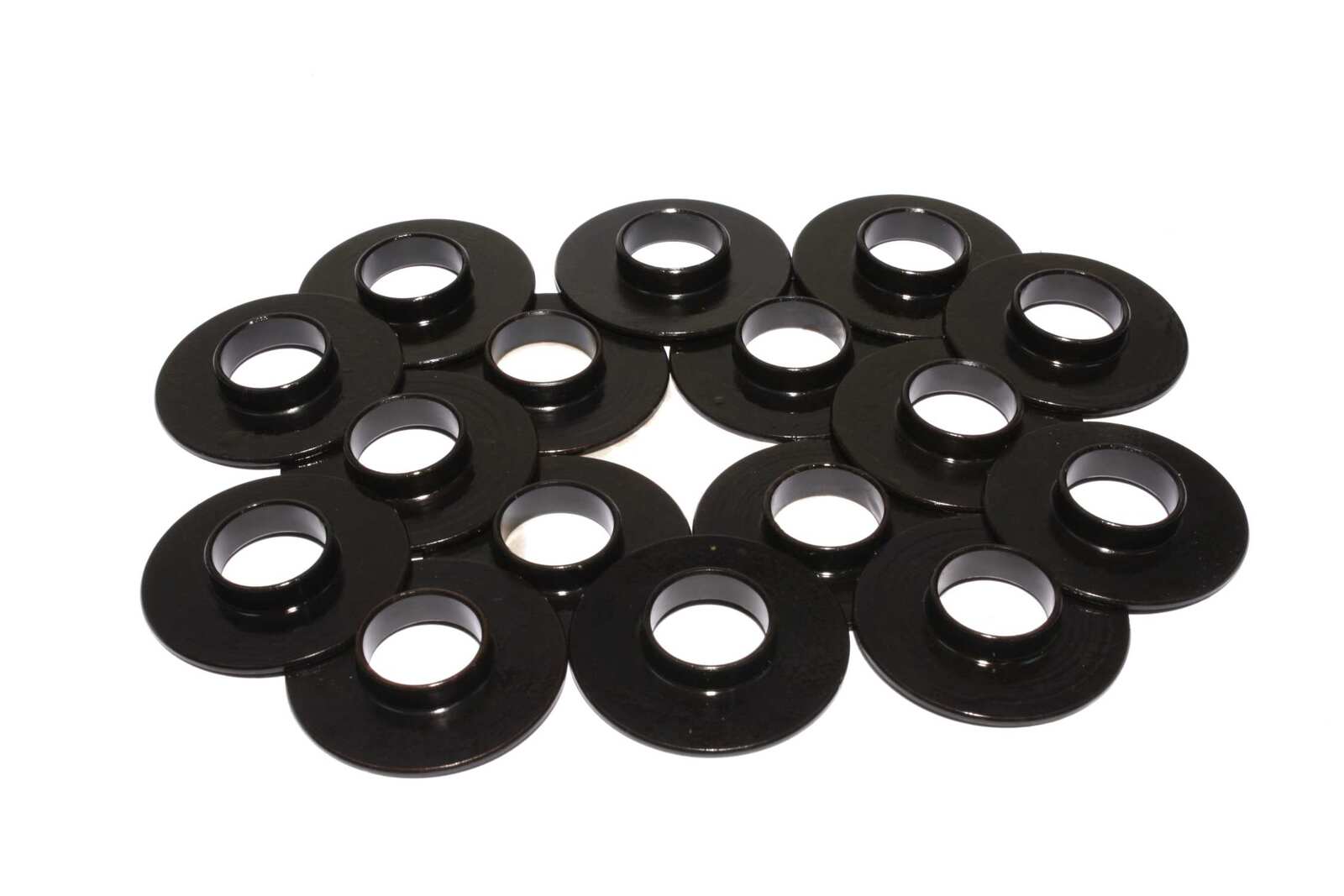

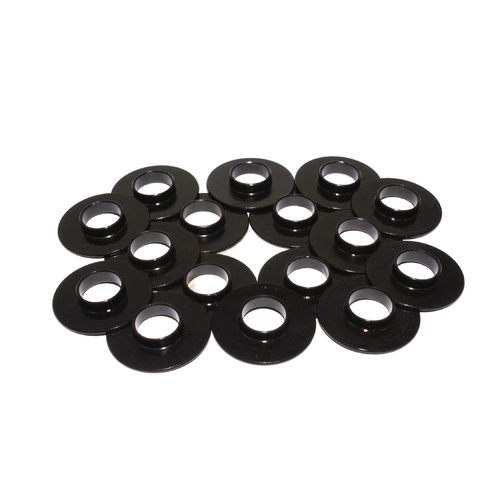

4773-16 ID Spring Locator Set of 16 - 1.540" OD, .640" ID, .060" Thickness

$91.32

or 4 payments of $22.83 with Info

In Stock

Description

Made from hardened steel, these locators use an inboard locating shoulder to center the seat and hold the spring in place. The 4773 features a 1.540" OD and a .640" ID that works well with our 932, 935 and 26094 dual valve springs.

Specifications

SKU 4773-16
Barcode # 036584391388
Brand COMP CAMS
Locator Thickness .060"
Locator Outer Diameter 1.54
Outside Diameter 1.54
Spring Inside Diameter .750"
Locator Inner Diameter 0.64
Spring Inner Diameter 0.75
Inside Diameter .640"
