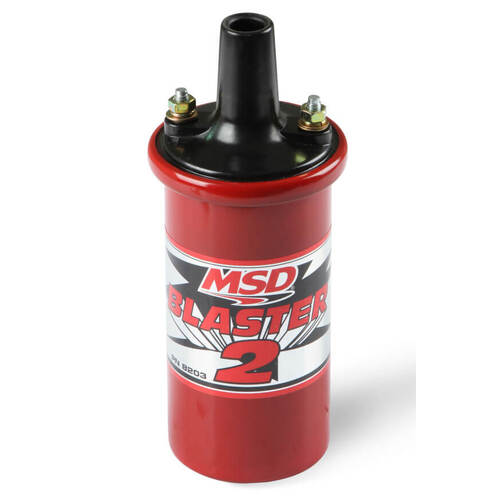

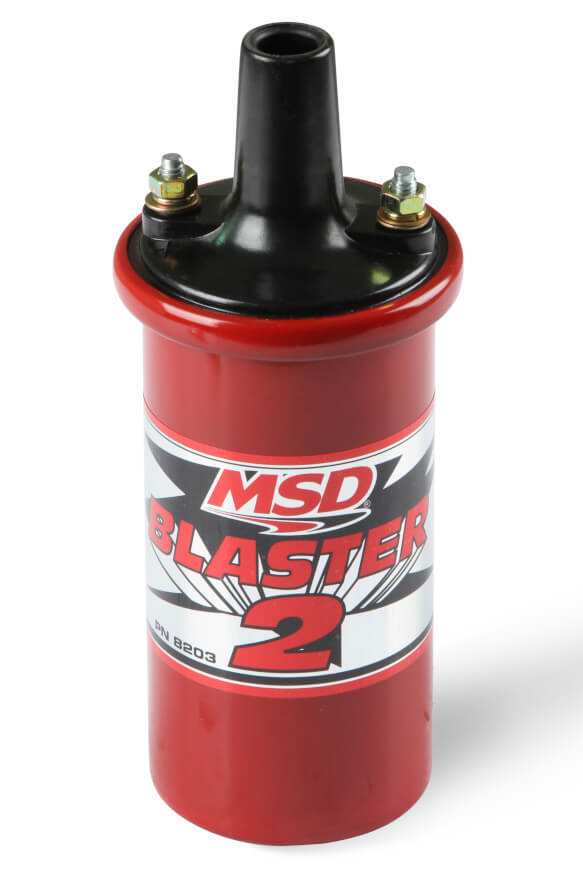

Ignition coil RED Blaster 2 Round body female socket - Resistor Type - Included

MSD Blaster 2 Ignition Coils Resistor Type- includes Resistor

This Blaster Coil is supplied with a ballast resistor. If your application uses a points distributor, the ballast must be used. Late-model electronic ignitions or an MSD Ignition do not require the ballast.

If you are looking to upgrade your stock coil, or want to compliment the performance of your MSD Blaster Ignition, MSD 5, 6, or 7, the Blaster Coil line is the right choice. Our Blaster Coils are designed for improved spark output! Special 100:1 windings are used to provide maximum build-up of voltage! These windings are held secure and kept cool in an oil-filled metal canister.

Features:

• Improved output coil for stock points or electronic ignitions, Blaster Ignition or MSD 5, 6, and 7 Series

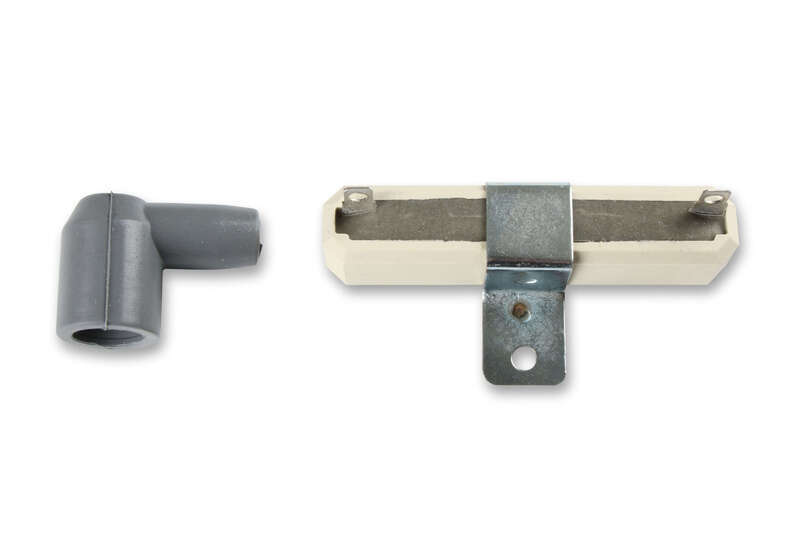

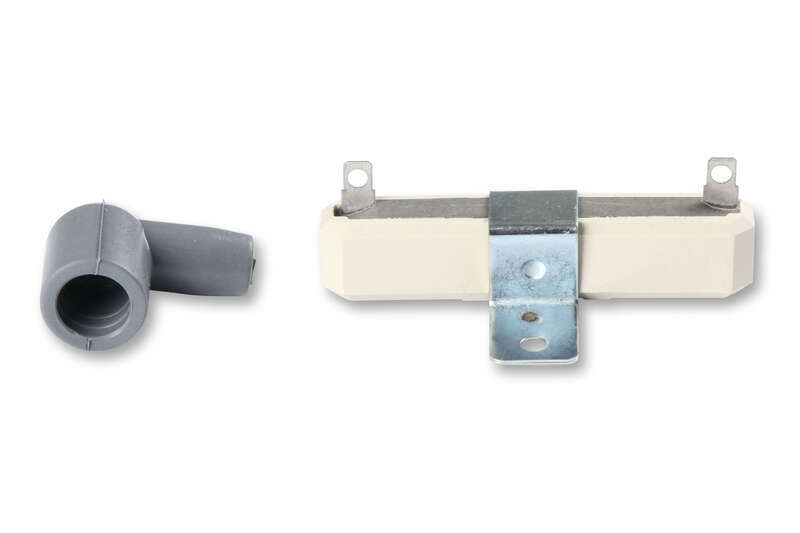

• Supplied with two spark plug wire boots, terminals and a ballast resistor (required if used with stock points ignition)
• 100:1 turns ratio and lower primary resistance produce high voltage output
• MSD Red metal canister is filled with a premium grade oil for cooling
• CARB E.O. Approved

Coil Style:            Remote mount

Primary Resistance:        0.700 ohms

Coil Internal Construction:           Oil-filled

Coil Lead Connector:      Female/Socket

Body Color:         Red

Maximum Voltage:

Secondary Resistance:

Inductance:

Peak Current:

Spark Duration:

Mounting Bracket Included:        No

Coil Wire Included:          No

Ballast Resistor Included:              yes

Coil Shape:          Round

Diameter (in.):  2.125 in.

Height (in.):        6.000 in.

Notes:  This coil should only be mounted in a vertical upright position.
