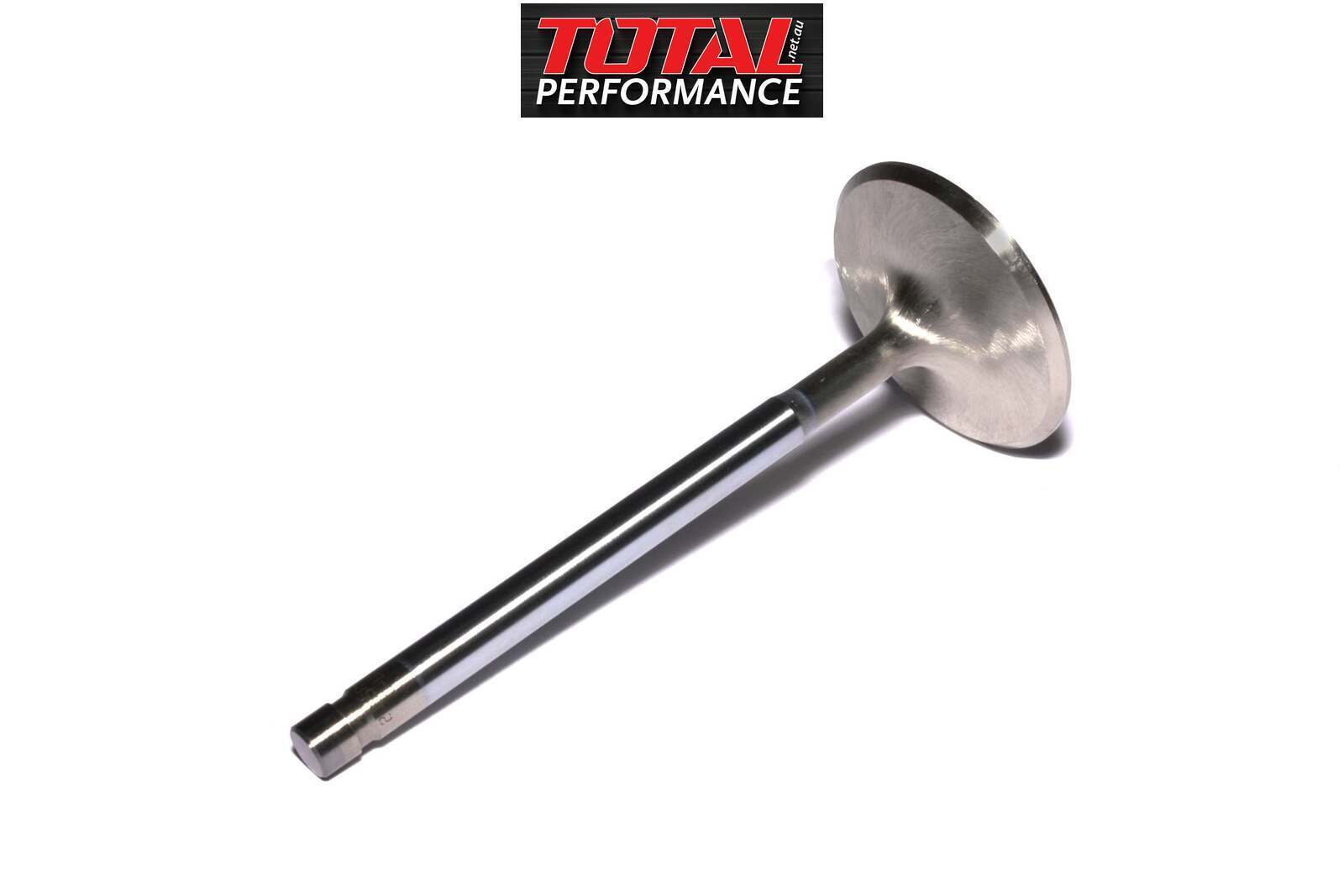

Intake Valves 2.190" 11/32", 5.346" BBC Big Block Chevy Ford 351C Cleveland 4V, Competition Plus, +.100" longer

Ferrea,  F1226P, 2.190", Intake Valves, Ford, 351 Cleveland, 4V, BBC.

Competition Plus

2.190" x 11/32" x 5.346" long 12 deg Super flo - Single Square Lock

Suits: Ford 351 4V Cleveland, Ford 460 Big Block & 454 Big Block Chevy

One important factor to take into consideration to increase the engine’s rpm’s, is the valve train weight. The valve being the main component, the design has to be spot on for the weight reduction to allow higher rpm’s.

Ferrea’s latest design in this area is the Lightweight Hollow Stem Valves. Ferrea developed a proprietary manufacturing process that gun drills and micro polishes the bore of a valve stem. This proprietary process ensures greater structural integrity than any other hollow valve on the market today. The valve weight reduction is approximately 20 percent compared to a conventional stainless steel solid stem valves. The Ferrea Hollow Stem valves also feature  friction welded tips, radial grooves, avionics chrome plated stems, seat hardness up to 42HRc and Super  Flo designs to improve flow.

Engines Compatability: Ford Cleveland, Ford Big Block & Chevy Big Block

Product Line: Competition Plus

Valve Type:  Intake Valve

Application: Race, High RPM, Turbo, Blown

Head Diameter: 2.190"

Back Angle:  12°

Backcut:  No

Stem Diameter: 11/32

Overall Length: 5.346"

Tip Length: 0.250

Lock Type:  Square Groove

References: 12 Degree Super Flo. +.100" longer than standard.

Ferrea Valves Australia
