Timing Chain Gear Set Ford 5.0L Windsor, DART 302W HO EFI 1984+ Torrington Thrust Plate + Double Roller Chain, Torrington Bearing Gold Series

ROLLMASTER CS10030 Billet Double Row Timing Chain Gear Set for Ford Windsor 5.0L + 5.8L EFI Blocks & Torrington Bearing & Thrust Plate. Gold Series

FORD 5.0L & 5.8L EFI WINDSOR 1984 ONWARDS & DART Windsor Blocks

All Timing Chain Sets are made from billet steel, have 9 Keyways (unless otherwise stated) and have a heat treated crank sprocket.

Rollmaster Part#  CS10030 Specifications & Features:

• Timing Chain Gear Set fits Ford Windsor 1984 onwards, 5.0L/302 & 5.8L/351 EFI Blocks & DART Windsor Blocks.
• Nitrided:   YES
• Shim/Torrington:   Torrington Bearing
• Thrust Plate - yes matching thrust plate
• Number of Links    58
• Type of Chain      IWIS Double Row
• Number of Keyways     9
• Cam Teeth:   42
• Crank Teeth:  21
• Made in Australia

Want more EFI/5.0L Windsor Gear Set options? click the blue links below:

• DRP-SBF-TGS-DR-EFI  No Nitrided Gears, No Torrington Bearing - Street Series
• CS3040  - No Nitrided Gears, No Torrington Bearing - Red Series
• CS3060  Yes Nitrided Gears, No Torrington Bearing - Gold Series
• CS3071  Yes Nitrided Gears, Yes Torrington Bearing - Gold Series
• CS10030 - Yes Nitrided Gears, Yes Torrington Bearing & Thrust plate - Gold Series

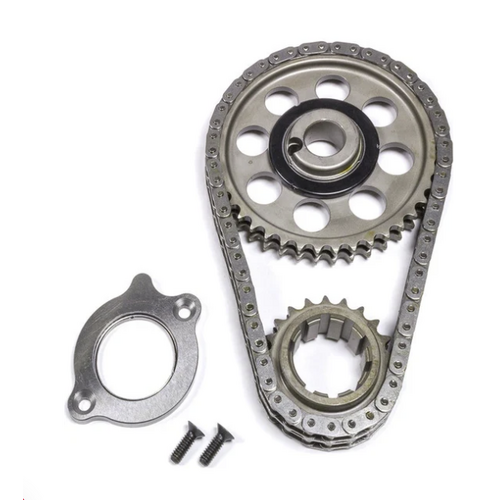

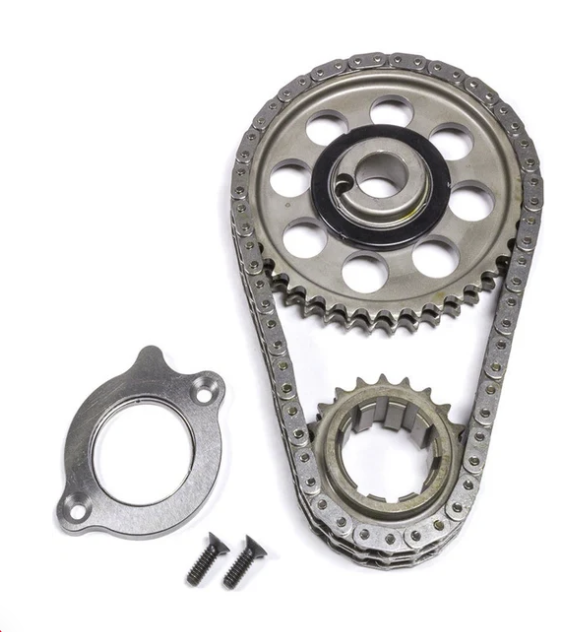

NOTE* Photo is a representative image
