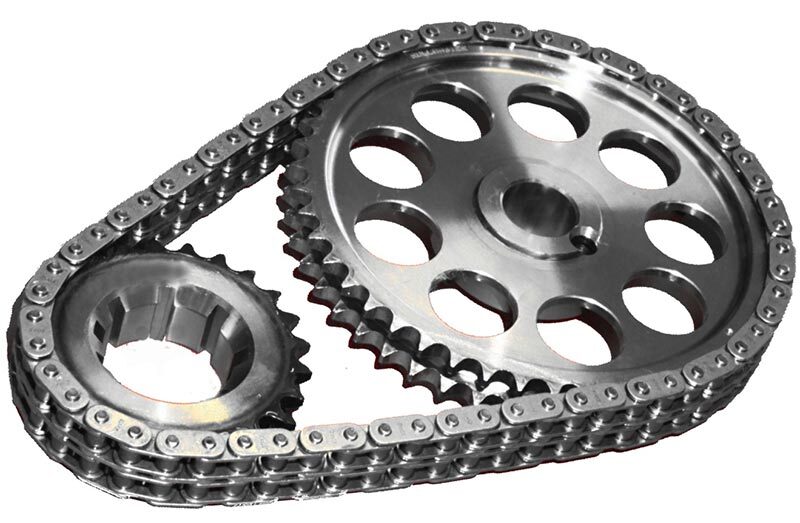

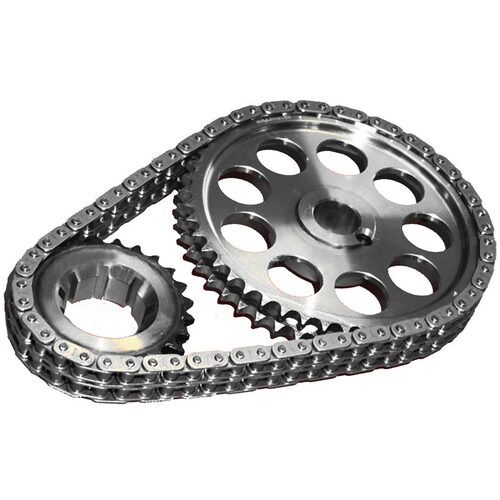

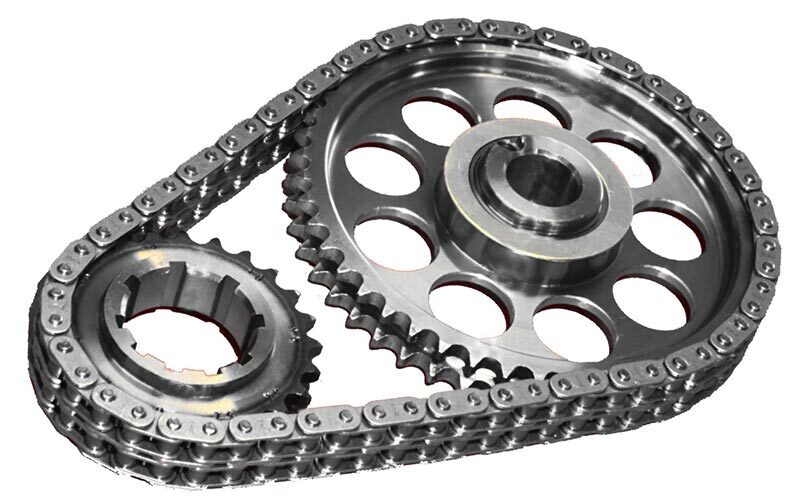

SVO Red Series Timing Chain Gear Set Kit fits FORGED Stroker Ford 351C CLEVELAND 393, 408 & DART Windsor, ADJUSTABLE DOUBLE ROW, BILLET

Rollmaster CS3110 351 393 408 Cleveland Double Row Timing Chain Kit with Shim, Nitrided Gears, 9 Keyway Adjustable. Red Series. Fits Forged Stroker Cranks Cleveland/DART Windsor - Has the Longer Bottom Gear.

Note: Does not fit the SCAT "Cast" stroker crankshafts. See below.

Rollmaster CS3110 is an SVO-style double row timing chain gear set for Ford Cleveland stroker combinations using forged crankshafts that require the longer bottom gear.

This kit is commonly used in 351 Cleveland 393 and 408 stroker builds where the forged crankshaft uses a Windsor-style snout and a standard Cleveland timing set will not align correctly.

All timing chain sets are made from billet steel, have 9 keyways (unless otherwise stated) and have a heat-treated crank sprocket. CS3110 features nitrided gears, an IWIS double row chain and shim-style thrust arrangement.

Rollmaster SVO Timing Chain CS3110 Specifications & Features

PART #  CS3110

Series: Red Series - has a shim, Double IWIS chain, Nitrided, adjustable

Fits: Ford 351 Cleveland forged stroker crank combinations, including many 393 and 408 Cleveland stroker builds. Also suits some DART Windsor block combinations that require the longer bottom gear arrangement.

Special Notes - does not suit the SCAT "CAST" stroker cranks. Suits the majority of forged cranks. Does not fit standard 351 Cleveland cranks. You will need the CS3080 351 timing chain kit link here.

Not sure which timing set you need? Check your crank snout and timing gear alignment before ordering, or contact Total Performance before purchasing.

Click the below links for other options:

• CS3130 SVO Gold Series with Torrington
• CS31100-005 line bore gear set
• CS31100-010 line bore gear set
