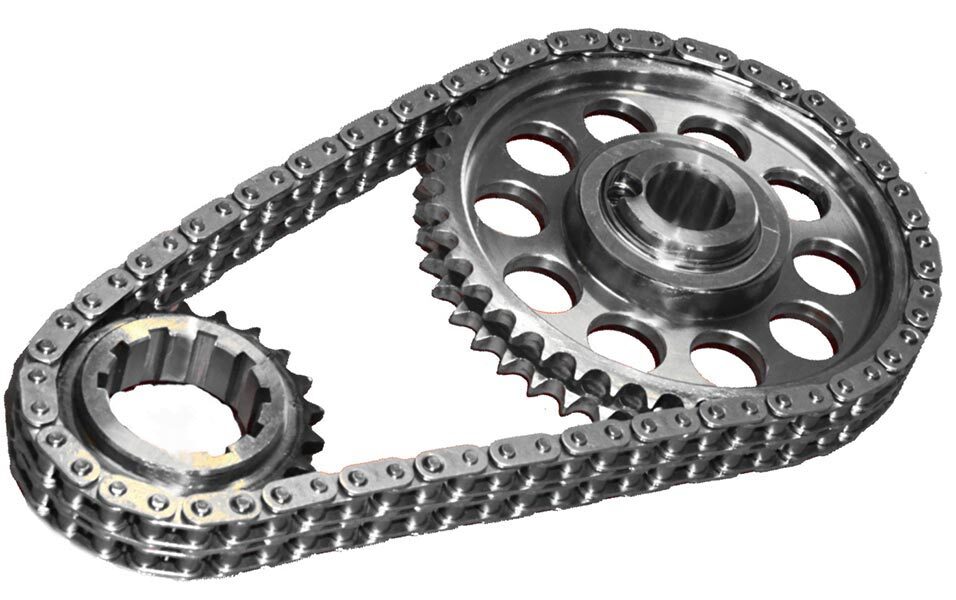

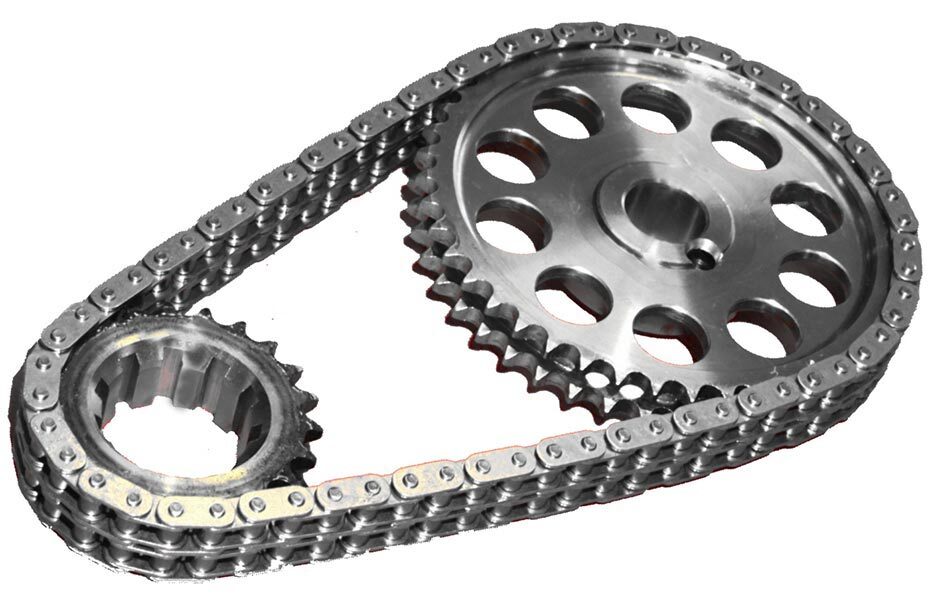

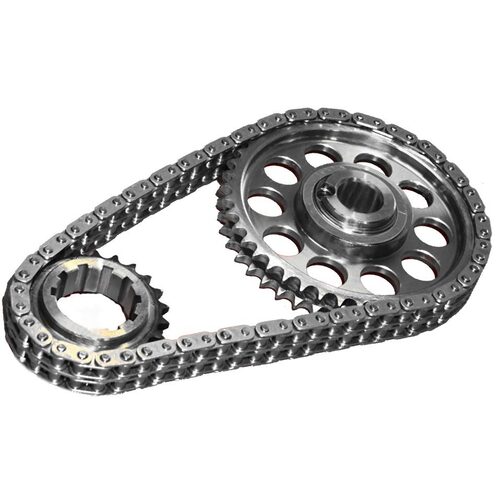

Ford 429, 460 Big Block Double Row Timing Chain Gear Set, 9 Key way, IWIS chain suits PRE/EFI GOLD Series

Rollmaster CS4020 - Double Row Timing Chain Gear Set fits Ford 429, 460 Big Block - Gold Series

Rollmaster’s Gold timing sets are fitted with Rollmaster/Iwis German quality timing chains.

Gold Series is a premium billet steel gear set with all sprockets nitrided by better durability and longer life. 9 Keyway adjustable bottom gear.

ROLLMASTER TIMING CHAIN SET GOLD SERIES

FORD BIG BLOCK 429 -460 - PRE EFI

Rollmaster Part#  CS4020 Specifications & Features

Timing Chain Series:  Gold Series

Timing Chain Set fits: Ford 429, 460 Big Block - Pre EFI blocks

Type of Chain:   IWIS Double Row

Torrington / Shim:  YES Torrington

Nitrided Sprockets: Yes - Nitrided

Number of Keyways:   9 Keyway Adjustable

Number of Teeth Cam Sprockets:  44

Number of Teeth Crank Sprockets:   22

Number of Links:  66
