CLEVITE (x8) 010 CONROD BEARINGS S/B CHEV S/JOURNA H/PERF H-SERIES NO DOWEL

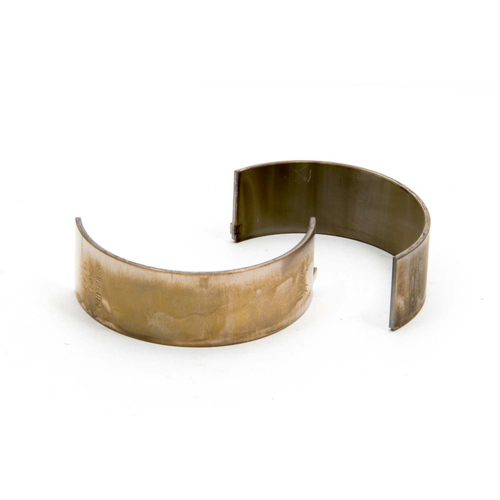

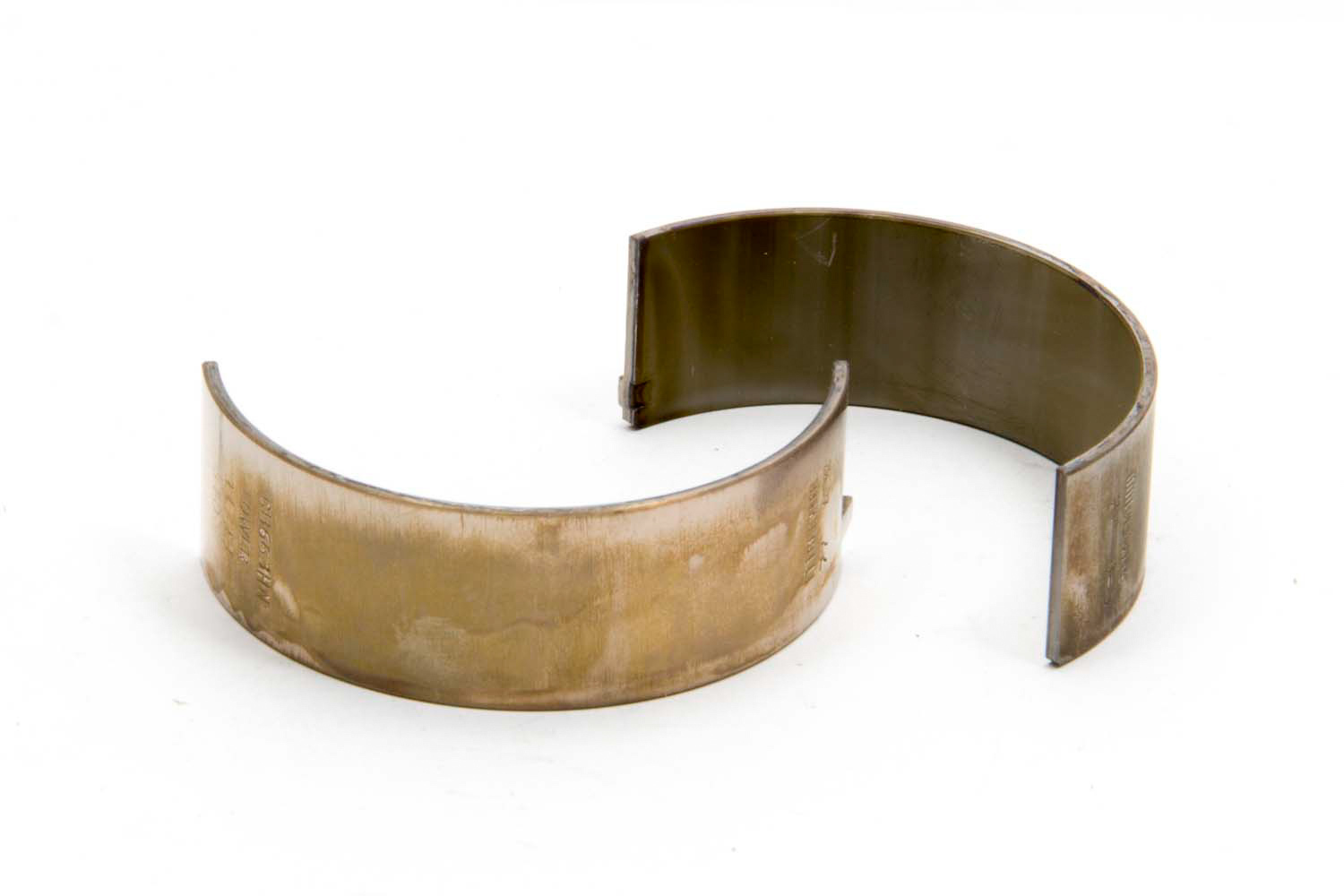

Clevite CB-745HN-10 Small Block Chevy SBC 350 Bearing 010 Undersize, H-Series

FULL SET OF 8

Suit the Small Journal (SJ) )

• STANDARD CLEARANCE Size, Tri Metal,
• NARROW SERIES
• Material: Bi-Metal
• Set of 8

Clevite H-Series Rod Bearings

Clevite H-Series rod bearings were developed primarily for use in NASCAR type racing but are suitable for all types of competition engines. These H-Series bearings have a medium level of eccentricity, high crush factor, and have hardened steel backs and thin overlays. They also have enlarged chamfers for greater crankshaft fillet clearance and are made without flash plating for better seating.
Bearings with .001 in. extra clearance are available for standard size shafts and with or without dowel holes. H-Series bearings are recommended for use with crankshafts that have oversize fillets and where engines run in the medium to high rpm range. They should also be used if contact patterns obtained with Clevite P-Series bearings are too narrow. Contact patterns should ideally cover 2/3 to 3/4 of the bearing surface.
