SKU: 714-16

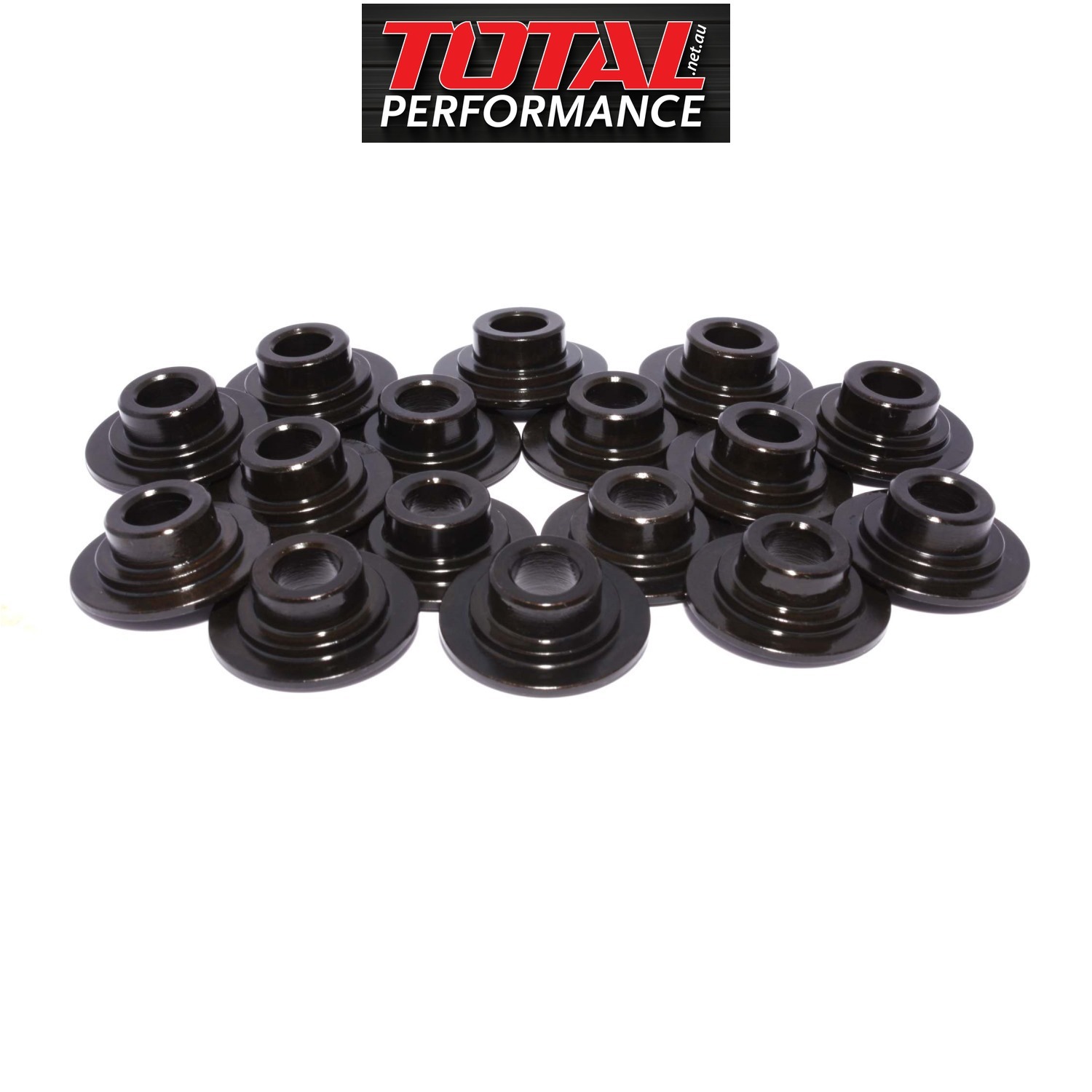

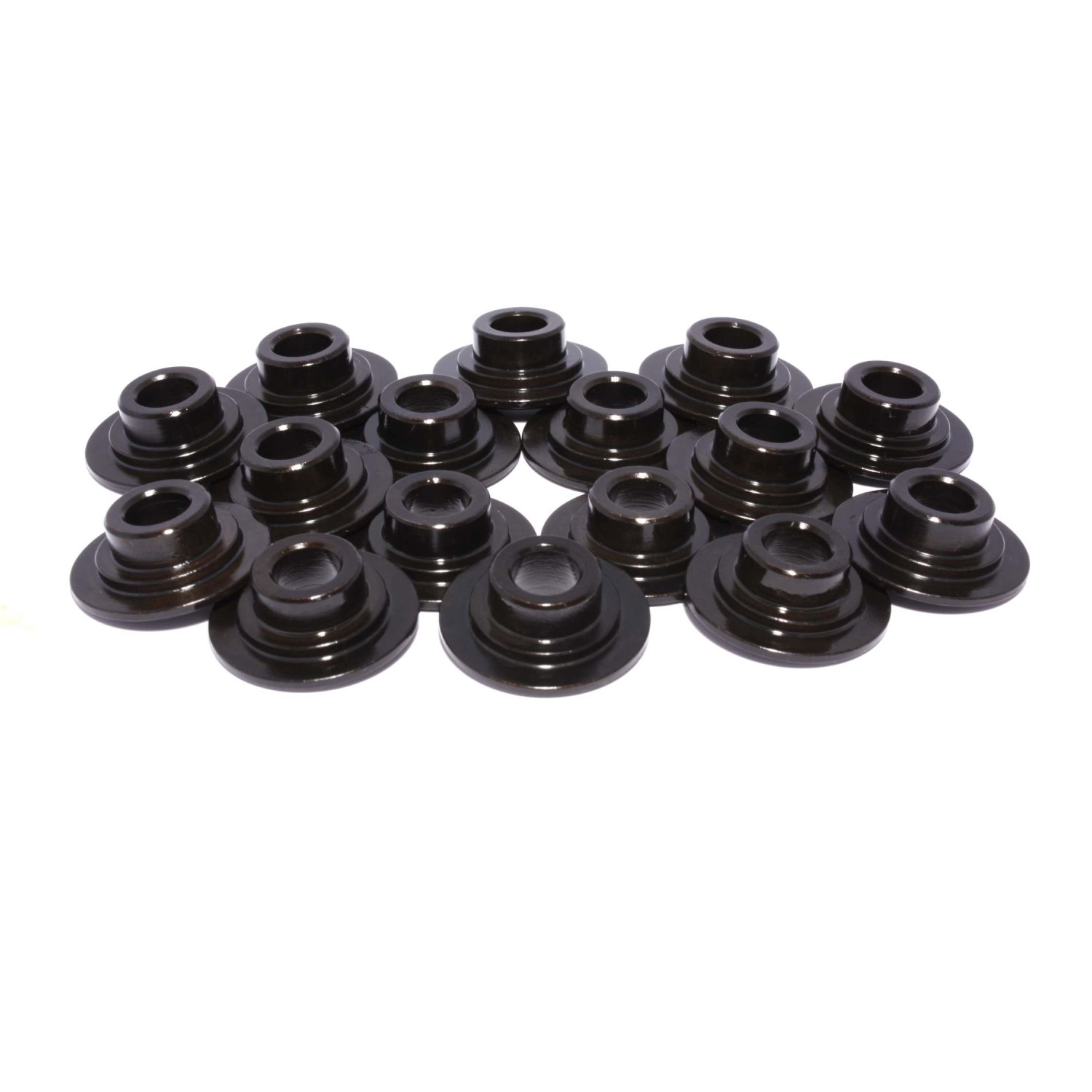

714-16 7 Degree Steel Retainer Set of 16 for for 11/32 Valve w/ 26925 Spring

$111.80

or 4 payments of $27.95 with Info

In Stock

Description

COMP Cams­® Part  714-16

Precision machined from chromemoly steel then black oxided, these 7 degree retainers are designed specifically for 11/32" valve engines using our 26925 dual valve springs.

Valve springs with larger diameters require retainers to handle the higher pressures developed by the springs. COMP Cams® Steel Retainers are the perfect solution to this problem. COMP® engineers used 3D CAD with FEA to design retainers with a modern and advanced contoured top profiling for lower stress, increased lift and a reduction in mass. The retainers are CNC-machined to exact tolerances using CAD/CAM software. All COMP® retainers use only high-grade SAE 4140 chromemoly steel with no lead, <0.04% sulfur and a black oxide finish to prevent corrosion. COMP Cams® Steel Valve Spring Retainers offer both unmatched looks and superior performance that set the industry standard.

  • Includes 16 Retainers
  • Steel Retainers for Part# 26925 Dual Springs in NON-LS Engines
  • 7° Lock Angle - 11/32" Valve Stem Size - 1.320" Spring Diameter



Comp Cams

Specifications

SKU 714-16
Barcode # 036584212737
Brand COMP CAMS
Diameter 1 1.2
Valve Spring Diameter 1.32
Diameter 3 0.675
Retainer Material 4140 Chromemoly Steel
Diameter 2 0.945
Valve Stem Size 11/32
Lock Angle 7
